2026 Beaver Valley Supply Co WFSTX21046SP

2026 Beaver Valley Supply Co WFSTX21046SP

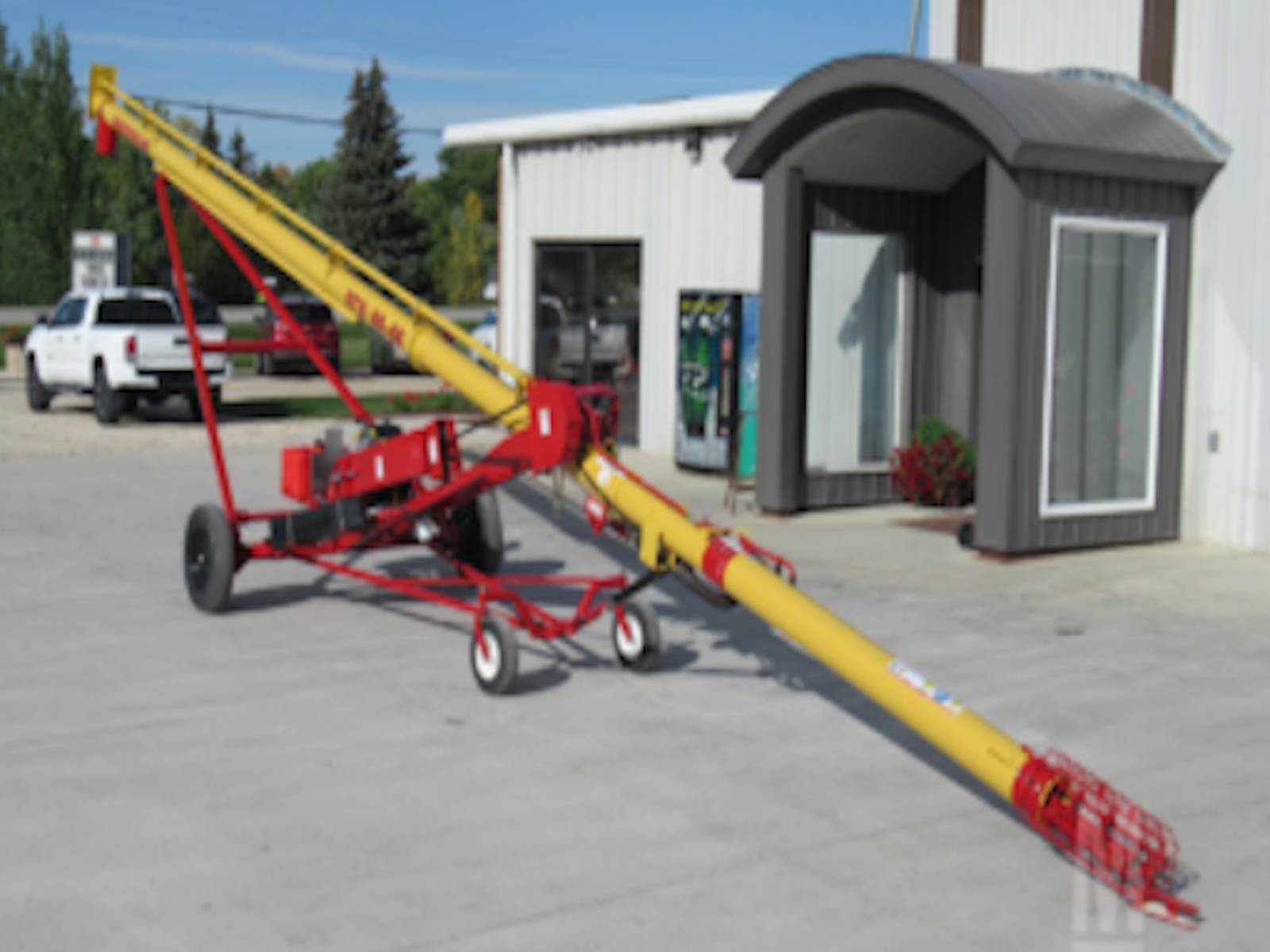

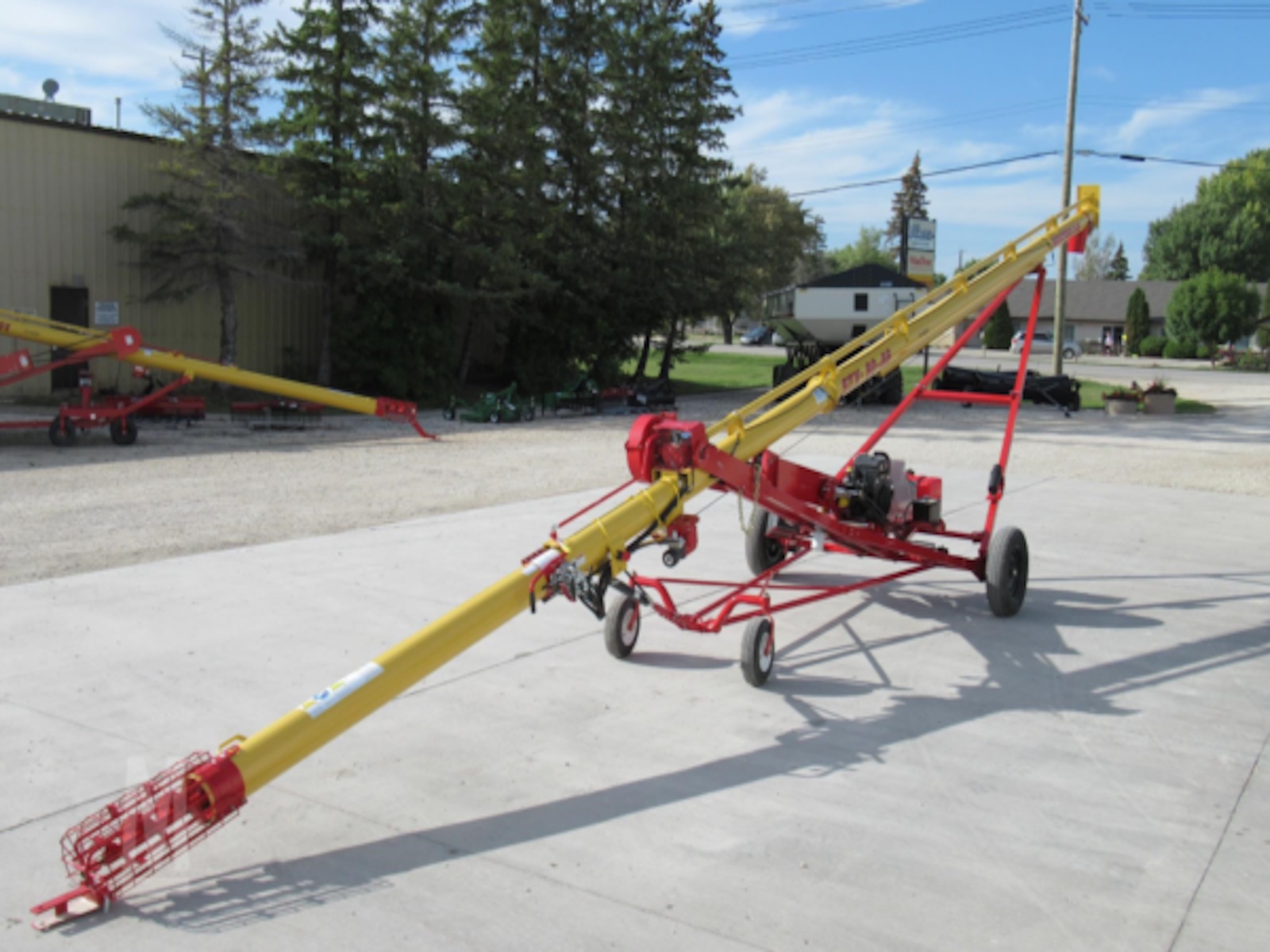

Westfield STX Series 10″ X 46′ Auger | Up To 5,500 BPH | Self-Propelled Kit

Shipped Complete With

• Auger

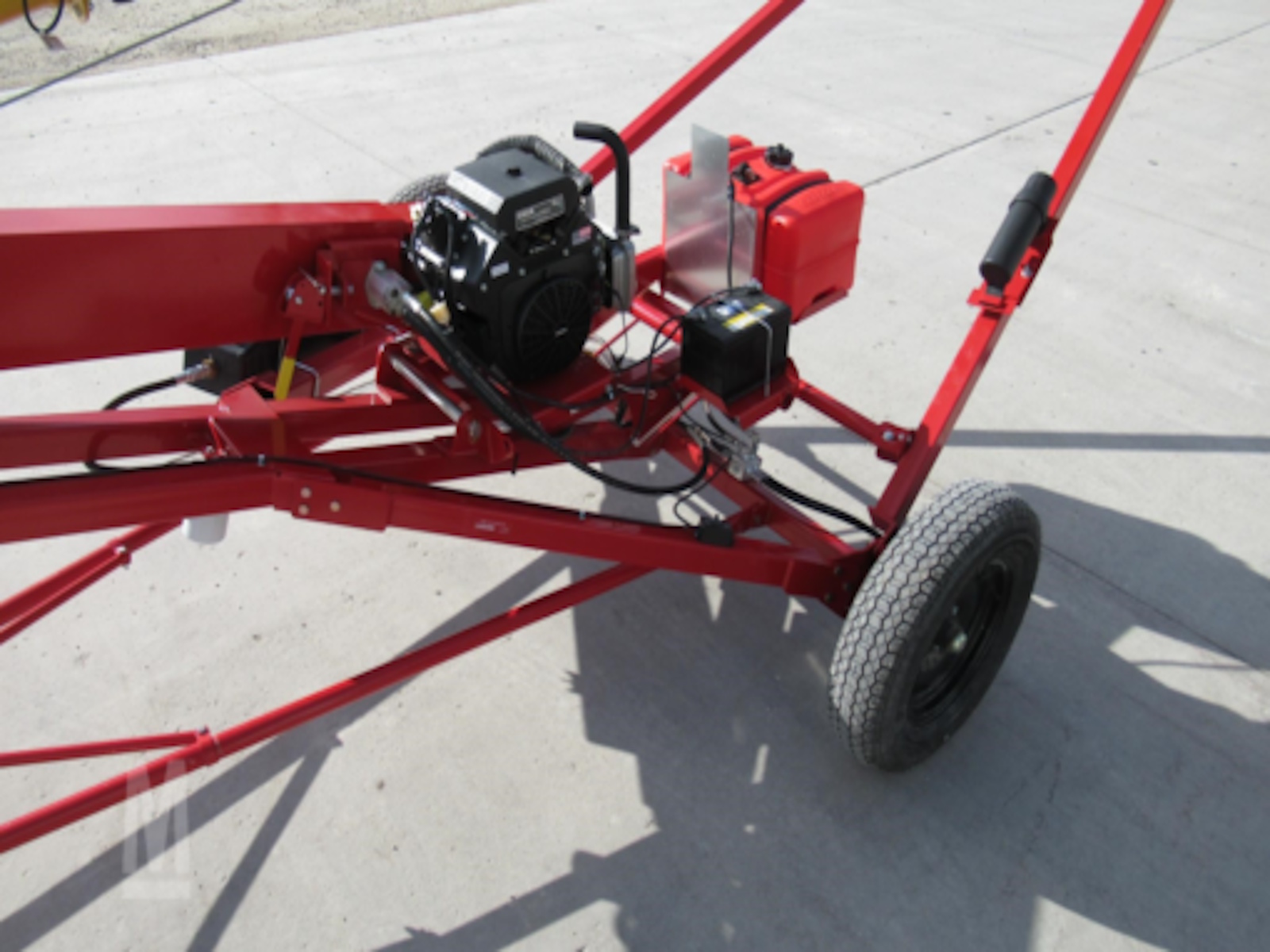

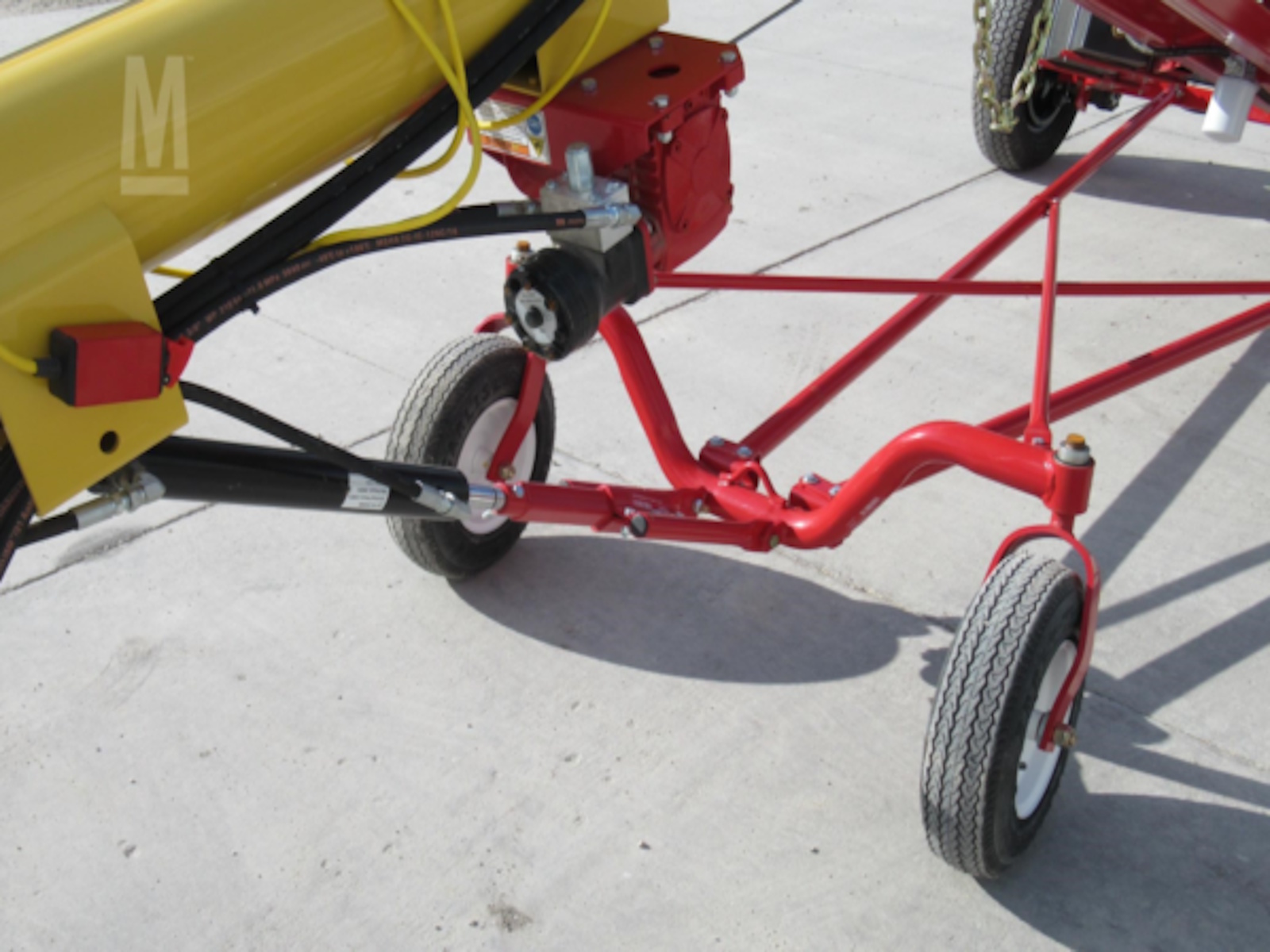

• SP Mover Package
• EMD/MD Motor Mount & Battery Mount
• Double Belt & Pulley
• Standard Outlet Spout
• Tow Hitch
• Safety Shields
• Winch
• Mounted Tires

Features May Include:

Westfield STX2 Series

STX2  80 | up to 3,500 bph | 31′- 51′ lengths
STX2100 | up to 5,500 bph | 31′- 51′ lengths

Westfield‘s redesigned truck auger has been engineered to withstand the demands of farming today. The STX2 was built for durability, longevity and capacity. With the STX2, you’ll get the job done fast.

Durable – Built to Last Long

The STX2 features 12-gauge tubing on the 10″ model, a heavy-duty motor mount designed to handle high horsepower, heavy auger engines, giving you the flexibility to use the engine you want. Like all Westfield augers, the flighting includes Wear Edge Technology™, which provides an extra layer of steel welded to the edge at critical wear points. The purpose-built hose routing provides a cleaner sleeker look and protects the hoses from the elements and the powder coat paint protects and provides a long lasting durable finish. Heavy-duty hardened steel sprockets and high speed roller chain are sized to match auger length and diameter. A lubricated upper drive extends the life of sprockets and drive chain. The 10″ models use square, one-bolt flight connections to ensure the flighting maintains proper alignment for smooth operation.

Fast – Designed for High Capacity

The STX2 uses double banded belts that are molded together as one to transfer maximum power from the engine to the gearboxes to maintain consistent speed when the auger is running. To ensure optimal performance is achieved with longer units, the 10″ in 46′ and 51′ lengths use triple banded belts.

Simple – Developed for Ease-Of-Use

Westfield’s STX2 is designed with end users in mind. The self-leveling motor maintains proper tension at all heights, so there is no need to reset the belt tension once the auger is raised into position to provide better traction. Less slippage means you can get the job done faster. The electric clutch with remote allows you to start and stop the auger without shutting down gas engine drives.

Low Maintenance – Work More, Worry Less

The drive shaft bearings are constructed of durable oil impregnated hardwood for long, quiet operation and can be easily replaced if needed without disassembling the drive shaft. The bearing brackets are factory jig welded to ensure precise= alignment. The chain tensioner on the top drive can be easily adjusted and provides consistent chain drive tension, helping to prolong the life of the chain.

Extended Warranty

Westfield is committed to providing quality products. To ensure your STX2 is ready when you need it, Westfield has extended their program to 2 years limited warranty.

Convenient – Easy To Transport

The STX2 features a quick detach tow hitch that can be stored on the auger so it’s ready to go when you need it. Moving around the yard is easy with the optional Heavy-duty mover kit.
