2023 Corbin Steel Products Squeeze Chutes

2023 Corbin Steel Products Squeeze Chute

The Corbin Steel Squeeze Chute is the most complete and largest squeeze chute available. The options that everyone else offer on their squeeze chutes come standard with the Corbin Steel Squeeze Chutes.

• The Corbin Steel Squeeze Chute is built with 2" x 11ga square for the rails and posts
• The bottom frame of the squeeze chute is 2" x 3/16" square tube to ensure long life
• The hinge post for the squeeze chutes are 2 3/8" OD x .150 pipe and are gusseted at the top and bottom to stand up to everyday use
• The overall measurements of the Corbin Steel Squeeze Chutes are 42" wide and 12' long, making it one of the heaviest built chutes available

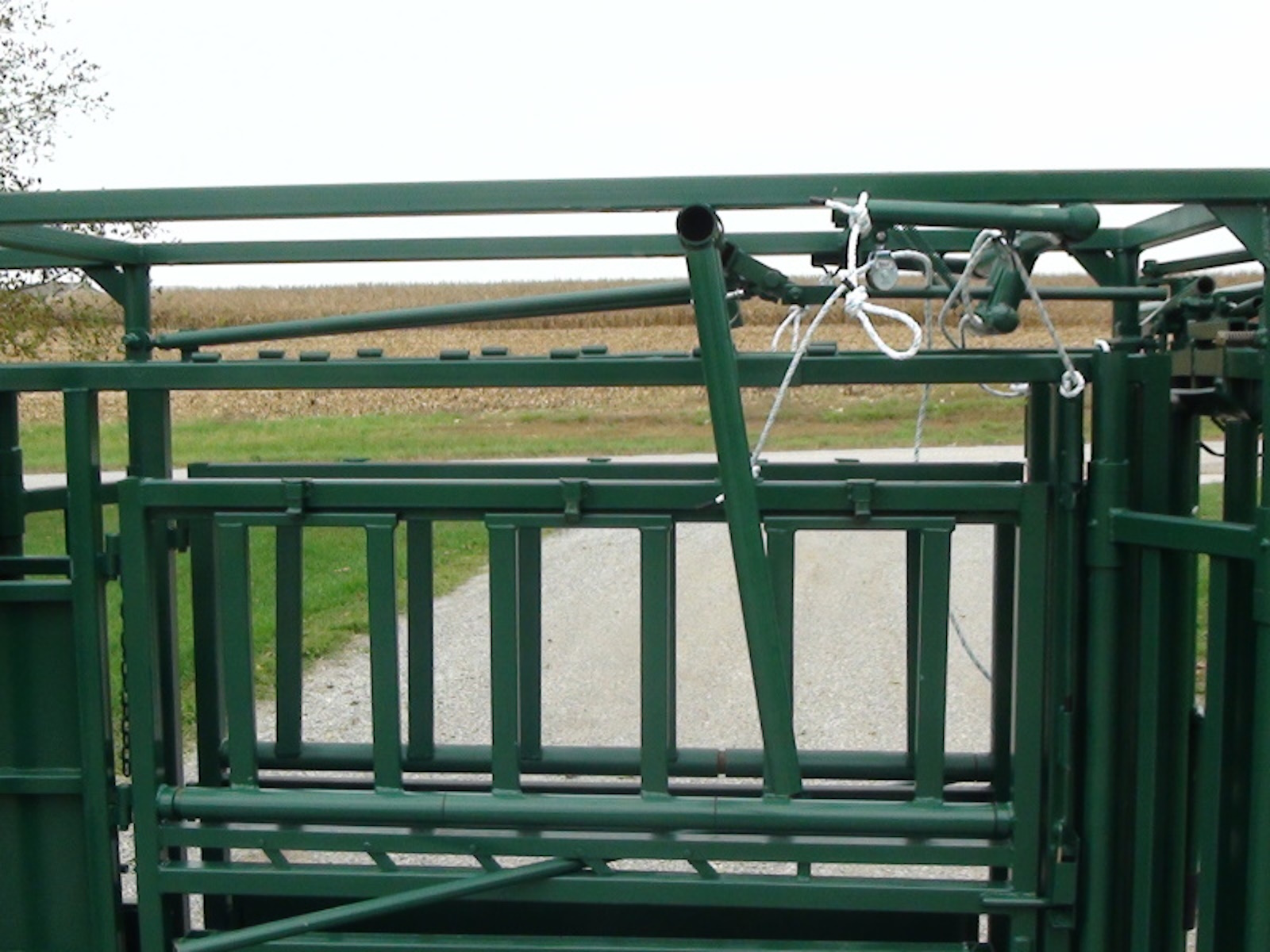

• To operate the squeeze chute there is one handle that will attach to either side allowing operation of the squeeze chute from both sides

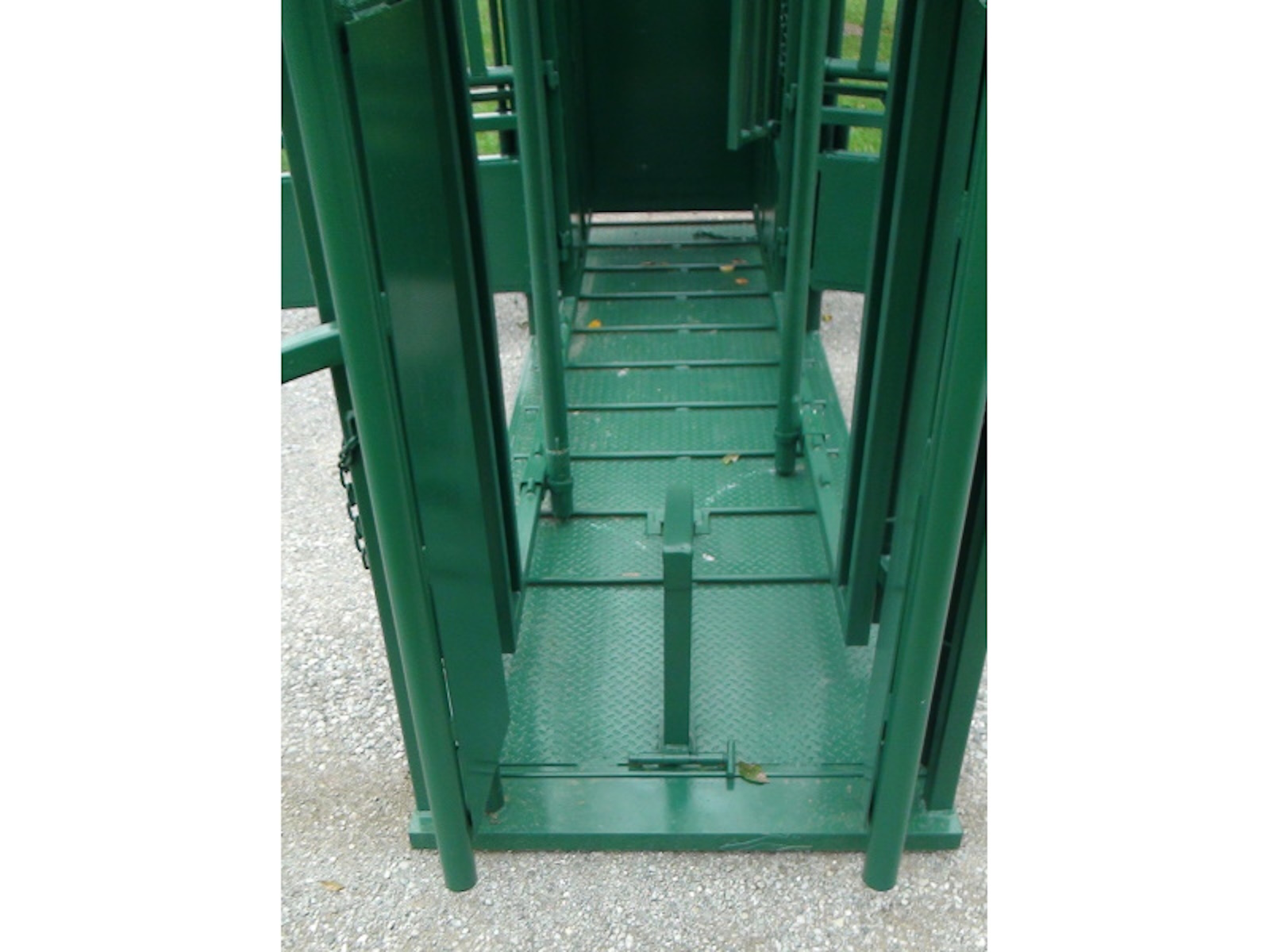

• The squeeze chute will adjust from 32" wide down to 14" so it will handle the smallest calves up to some of the largest bulls

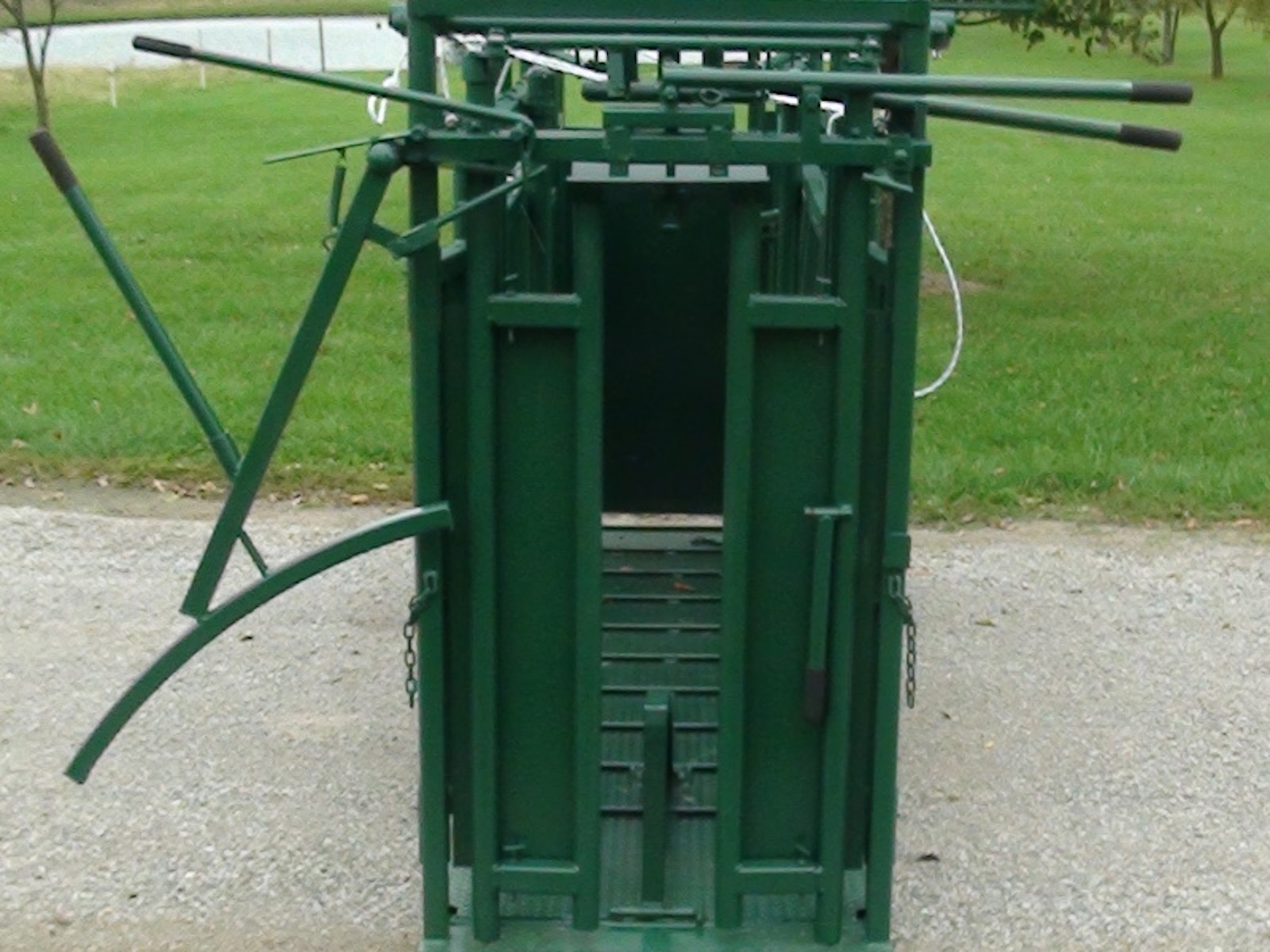

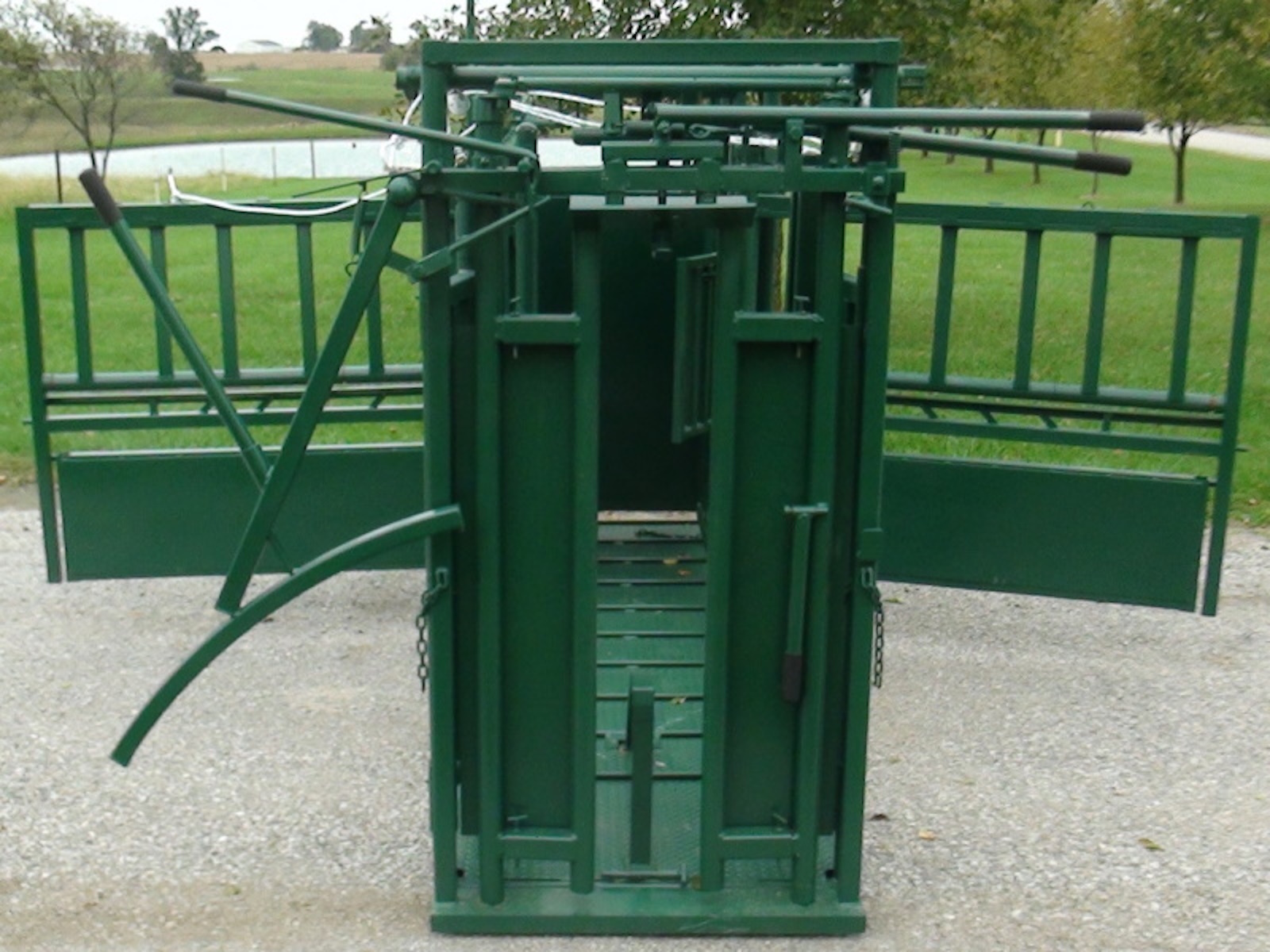

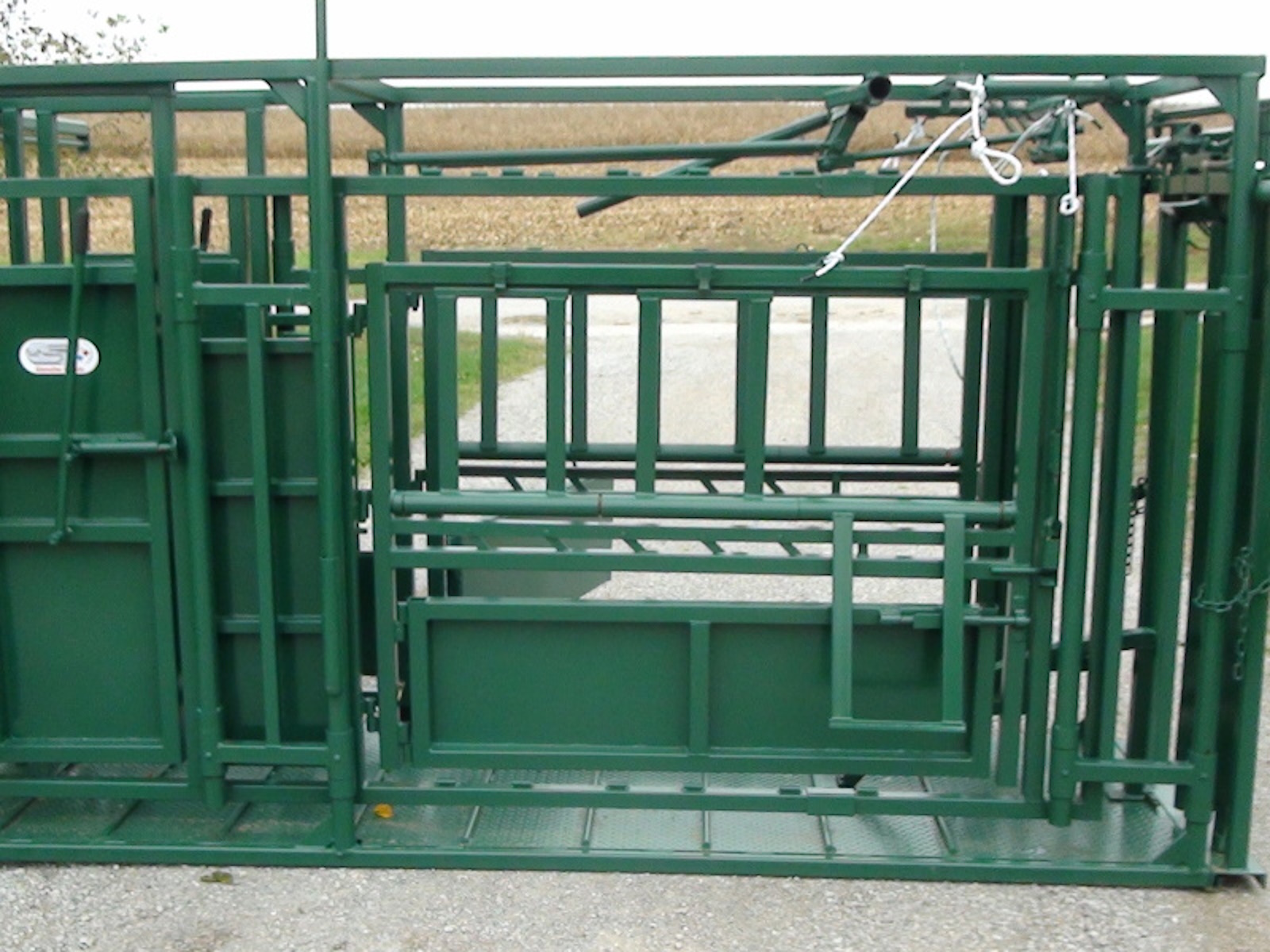

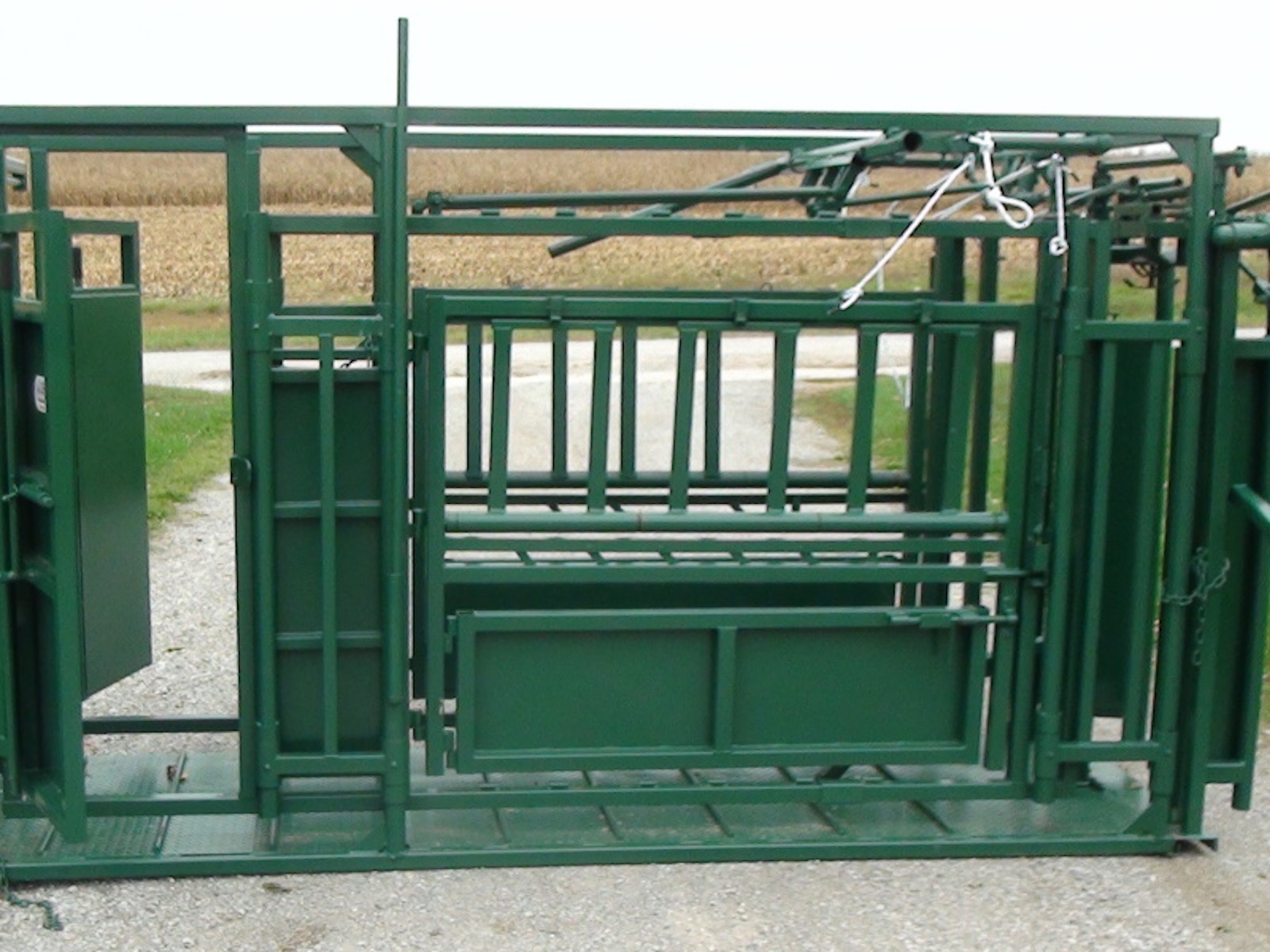

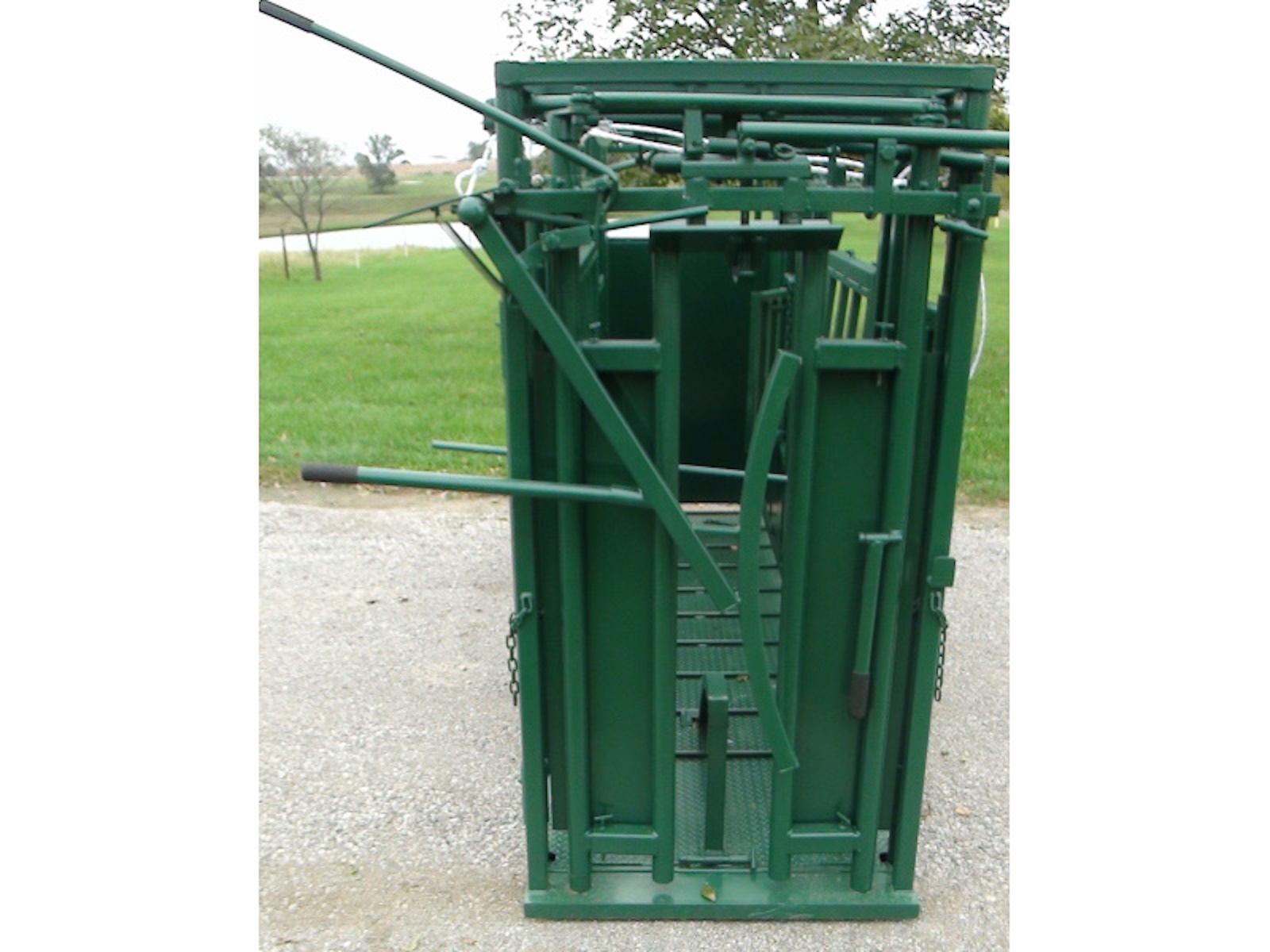

These frontal photos of the Corbin Steel Squeeze Chute show the auto catch head gate with the neck crowding bar. The two handles on the right side operate the lock for the automatic headgate that allow it to open or hold the cow in place and the handles on the left are for the neck crowding bar. The neck crowding bar on the squeeze chute will lock out of the way as shown above and, with it locked back, the automatic headgate will open to the front.

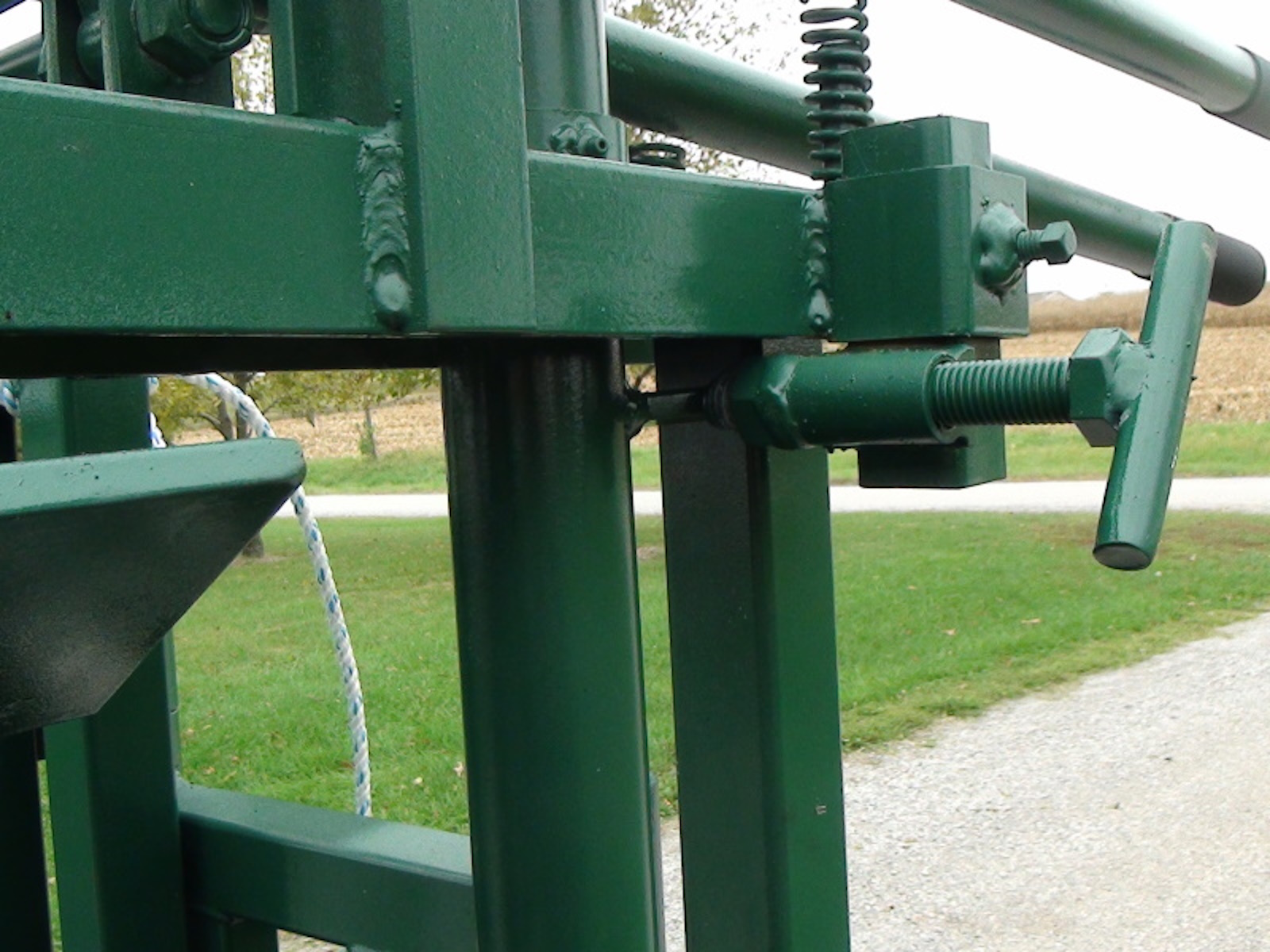

The automatic headgate that comes with the Corbin Steel Squeeze Chute will open out to 28" allowing most anything that comes in the chute to go out the automatic headgate. To make this automatic headgate easier and safer to operate we have put a safety bolt that adjusts how wide the headgate can open to the back which will help eliminate the trouble of hiplock.

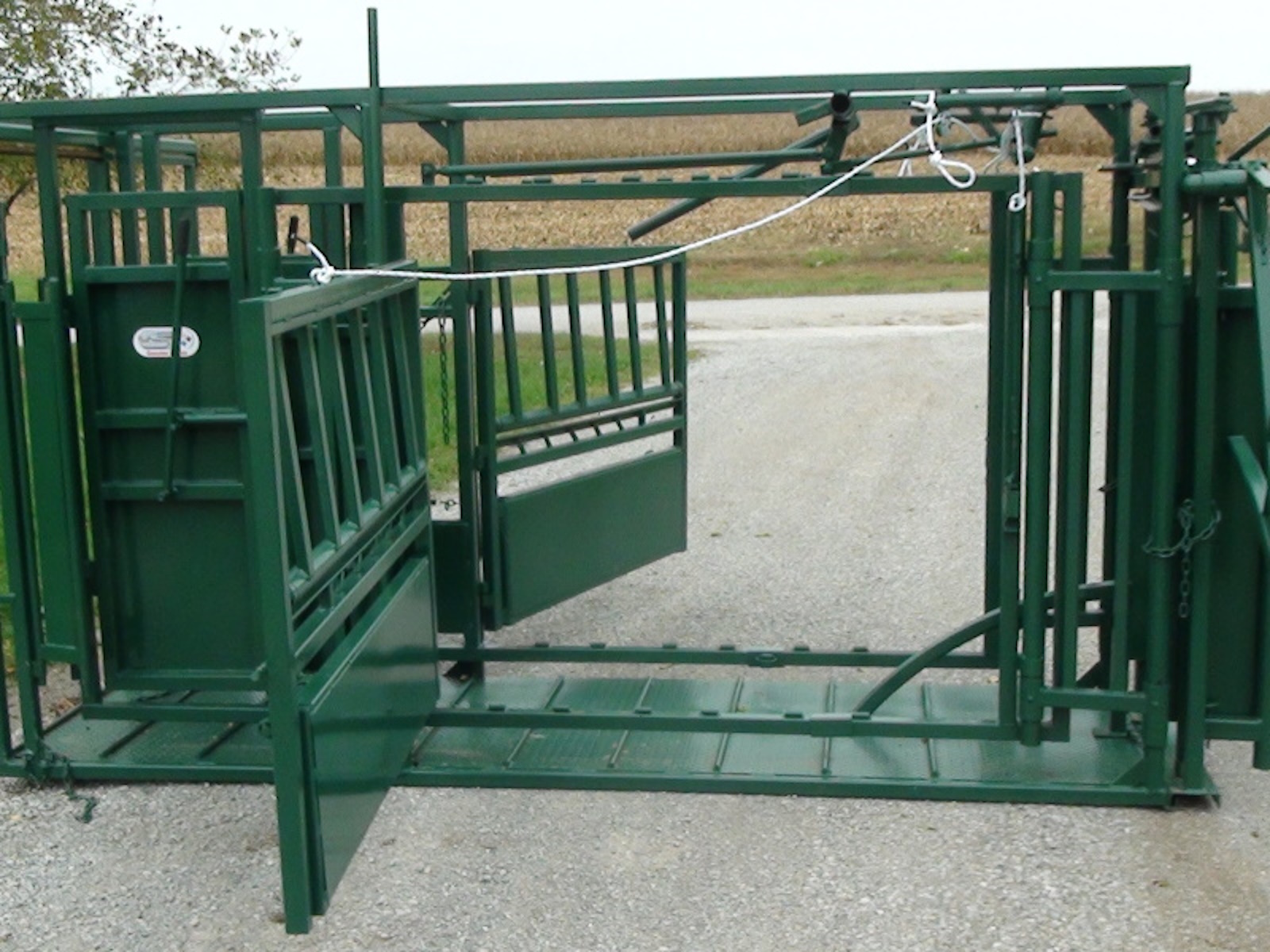

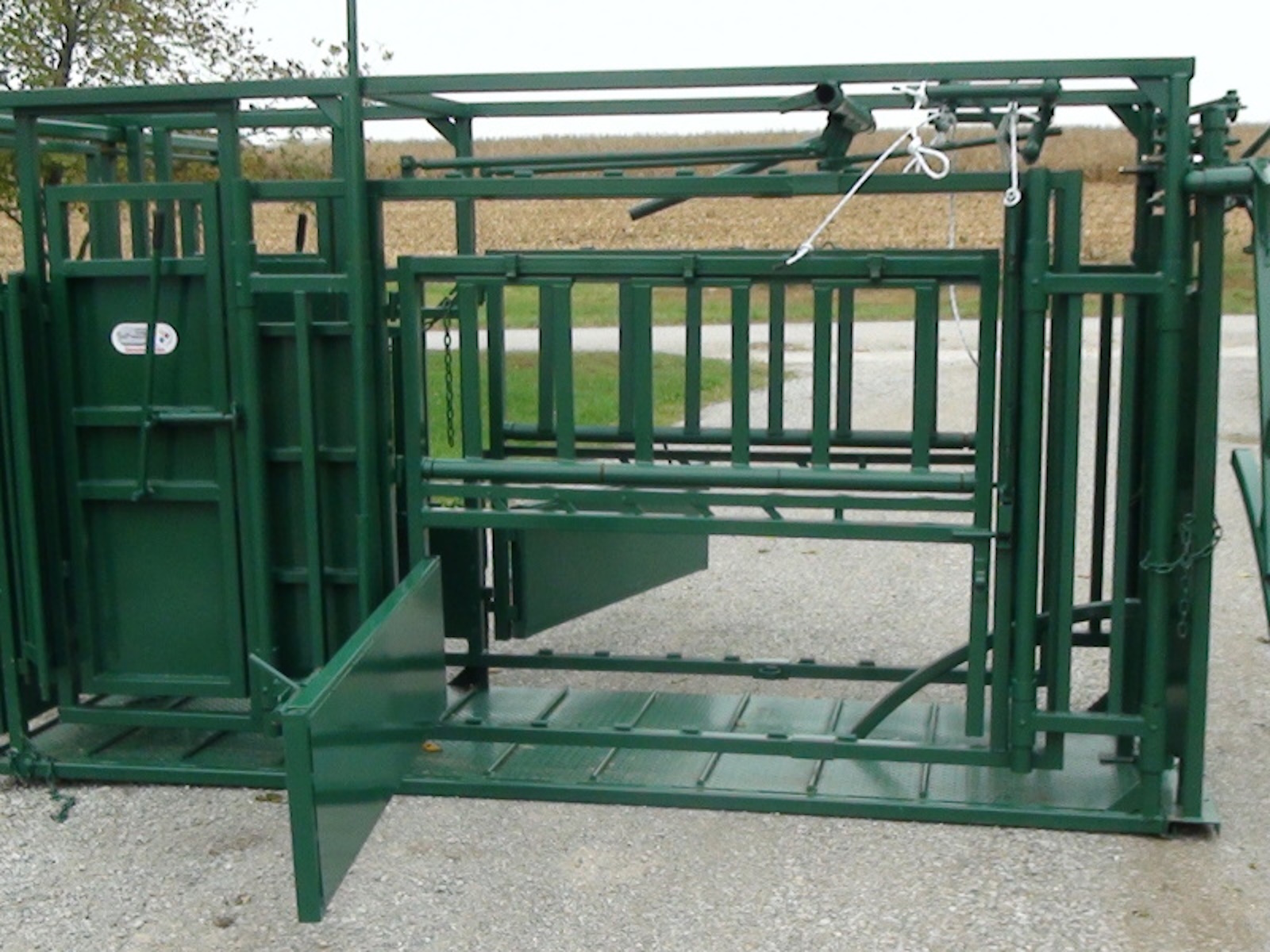

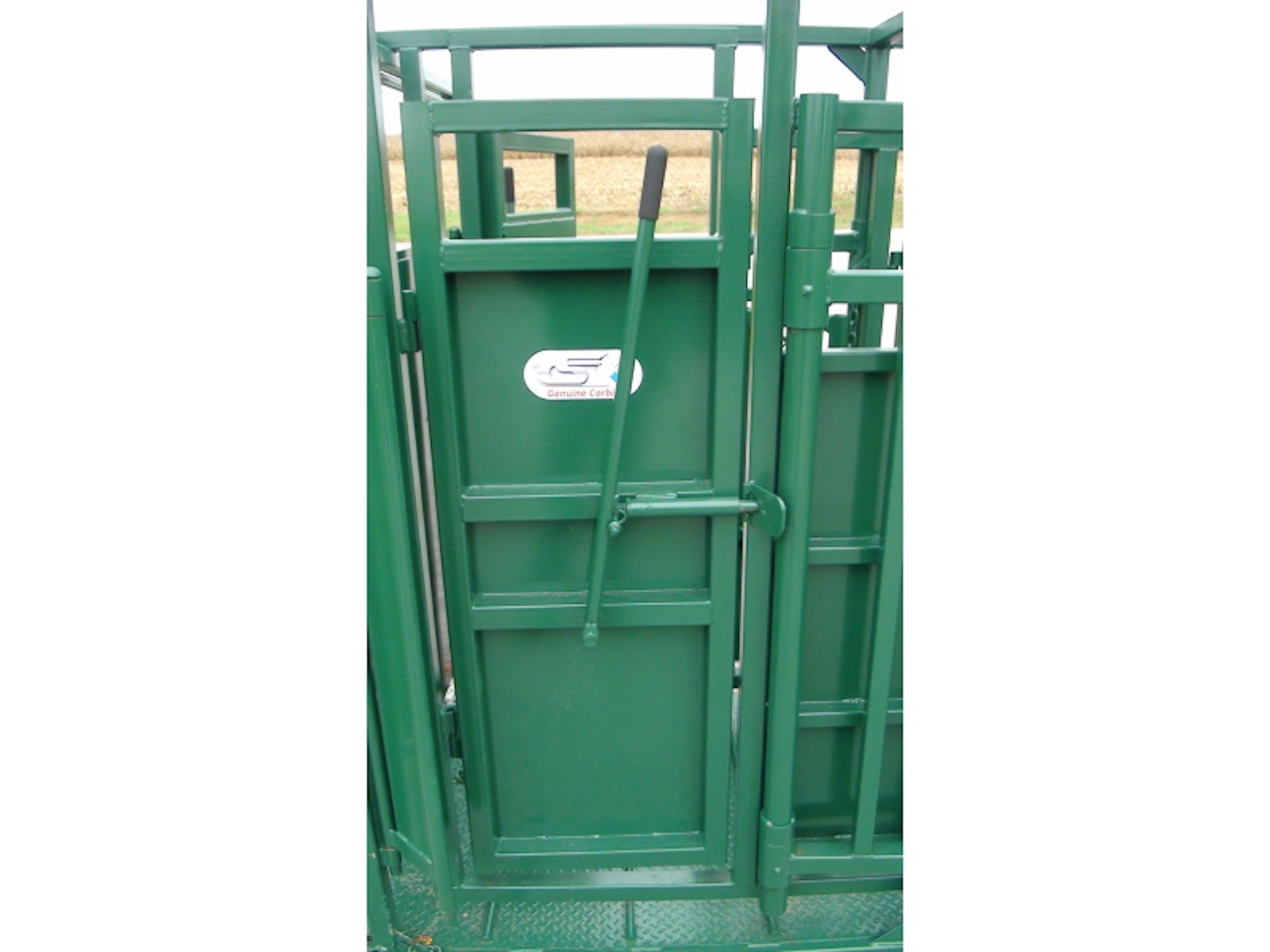

The Corbin Steel Squeeze Chute is equipped with a palpation gate on each side to allow access from either side or pass through. The latch on each palpation gate of the squeeze chute is easy to open, inside or outside the squeeze chute, with an elbow if your hands are full or even with your shoulder with the tall cowboy latch that comes on each gate

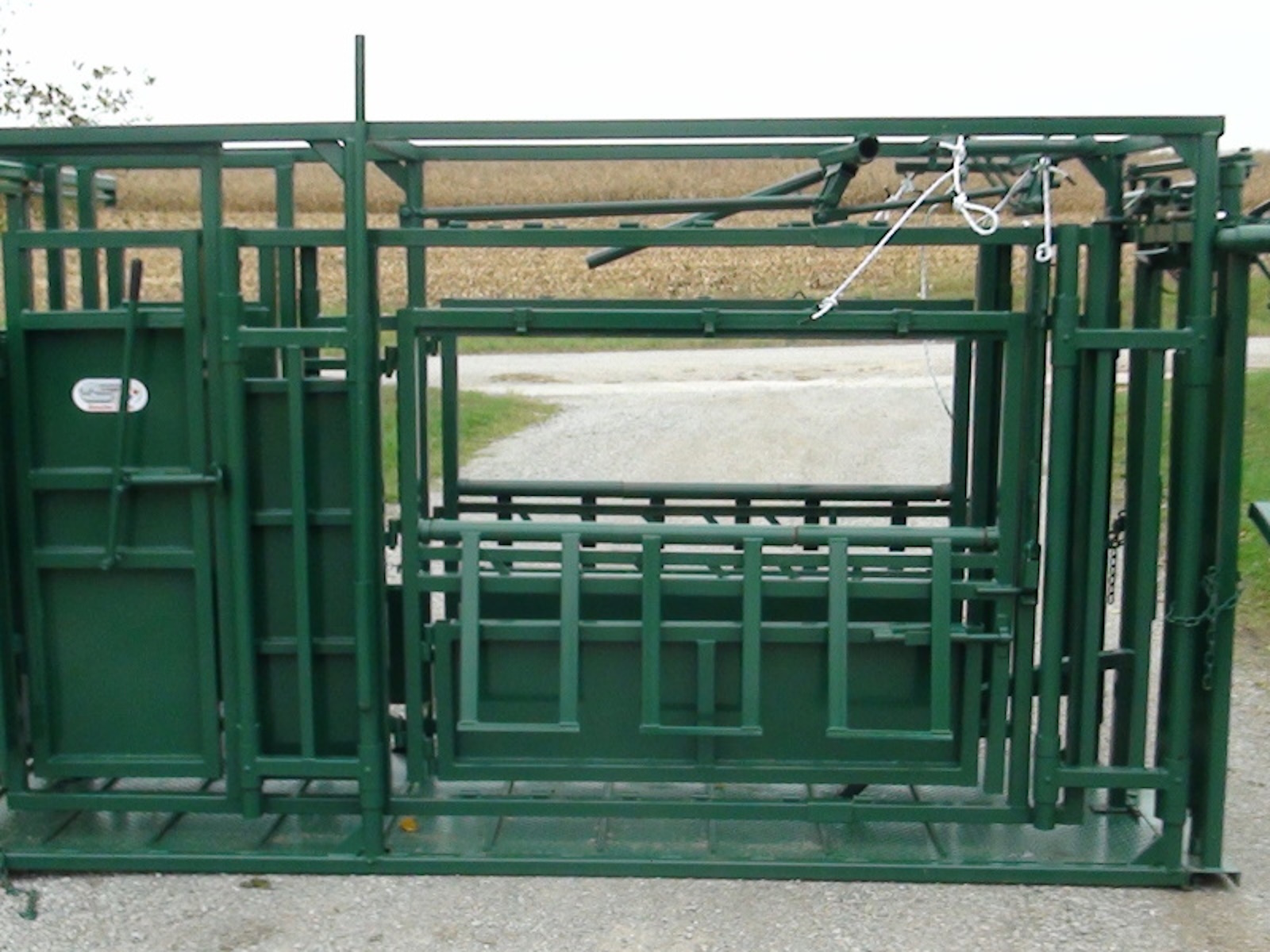

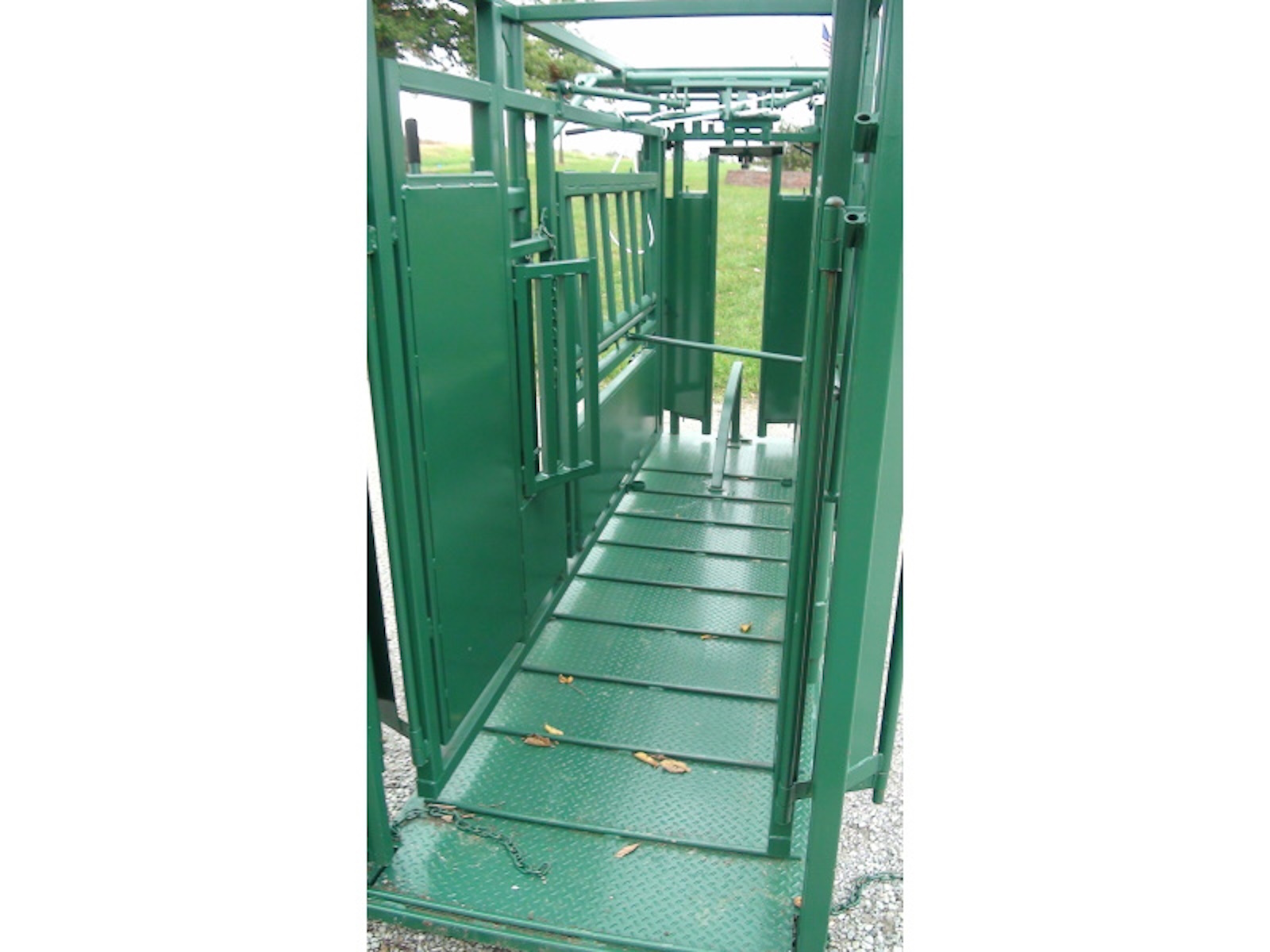

One of the biggest advantages of the palpation cage on the Corbin Steel Squeeze Chute is that it is built into the working sides so it will close in with the squeeze chute and not leave a large turning point for smaller animals at the entry of the squeeze chute.

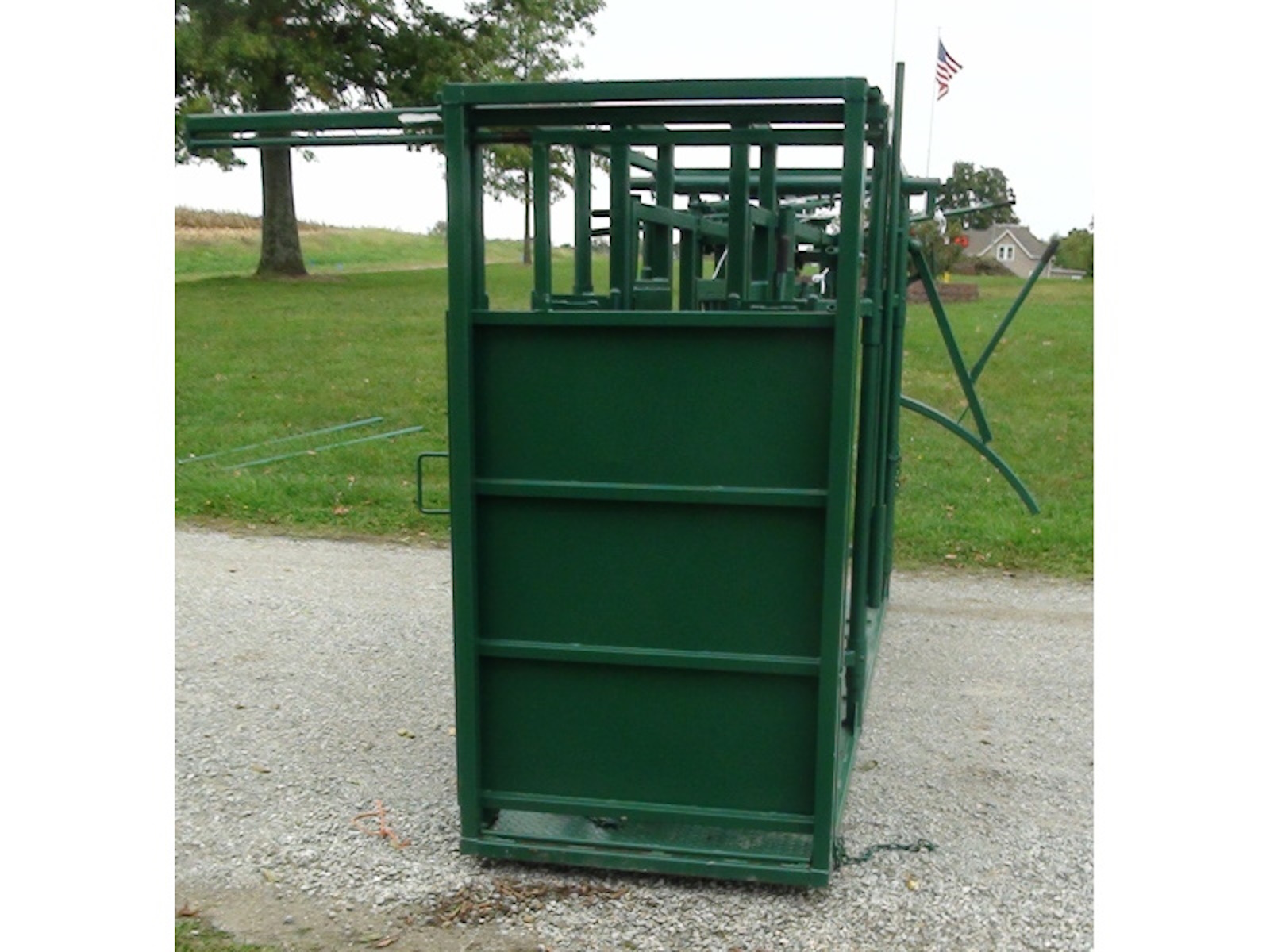

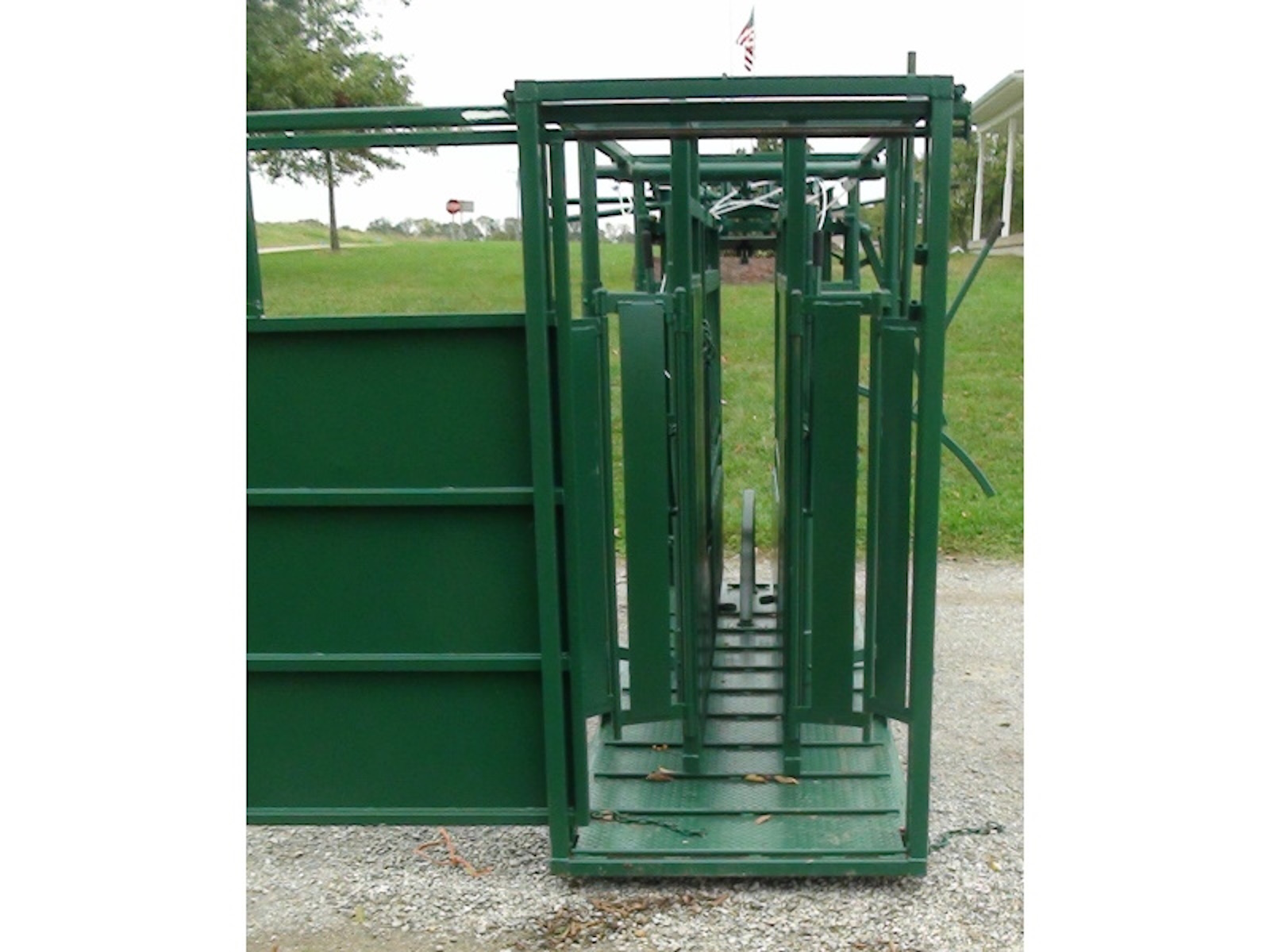

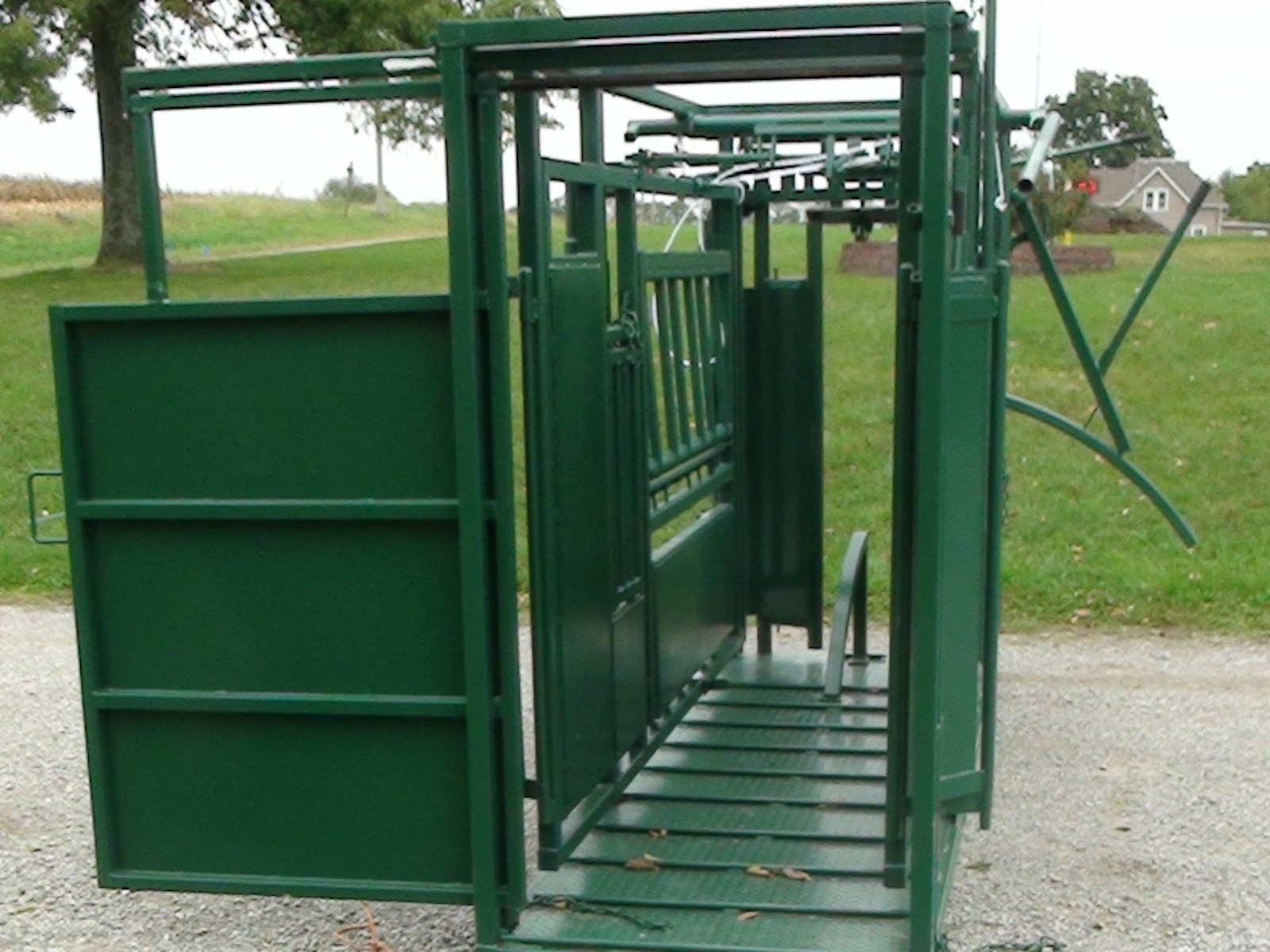

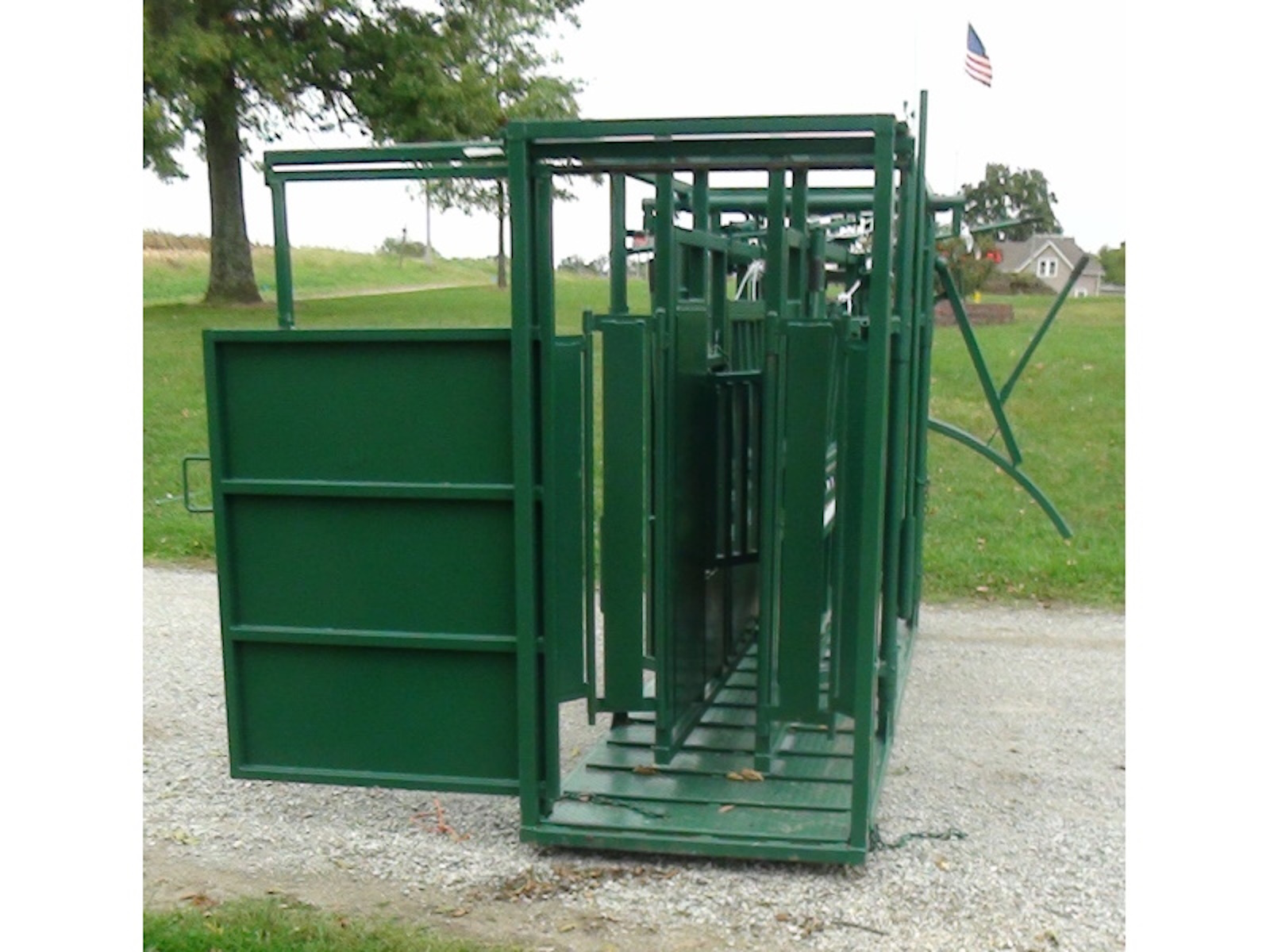

To keep cattle from getting to the person in the palpation cage there is a large sheeted horizontal sliding gate on the rear of each squeeze chute that can be closed and latched
