2026 Manitou Group M 40-4 D ST5

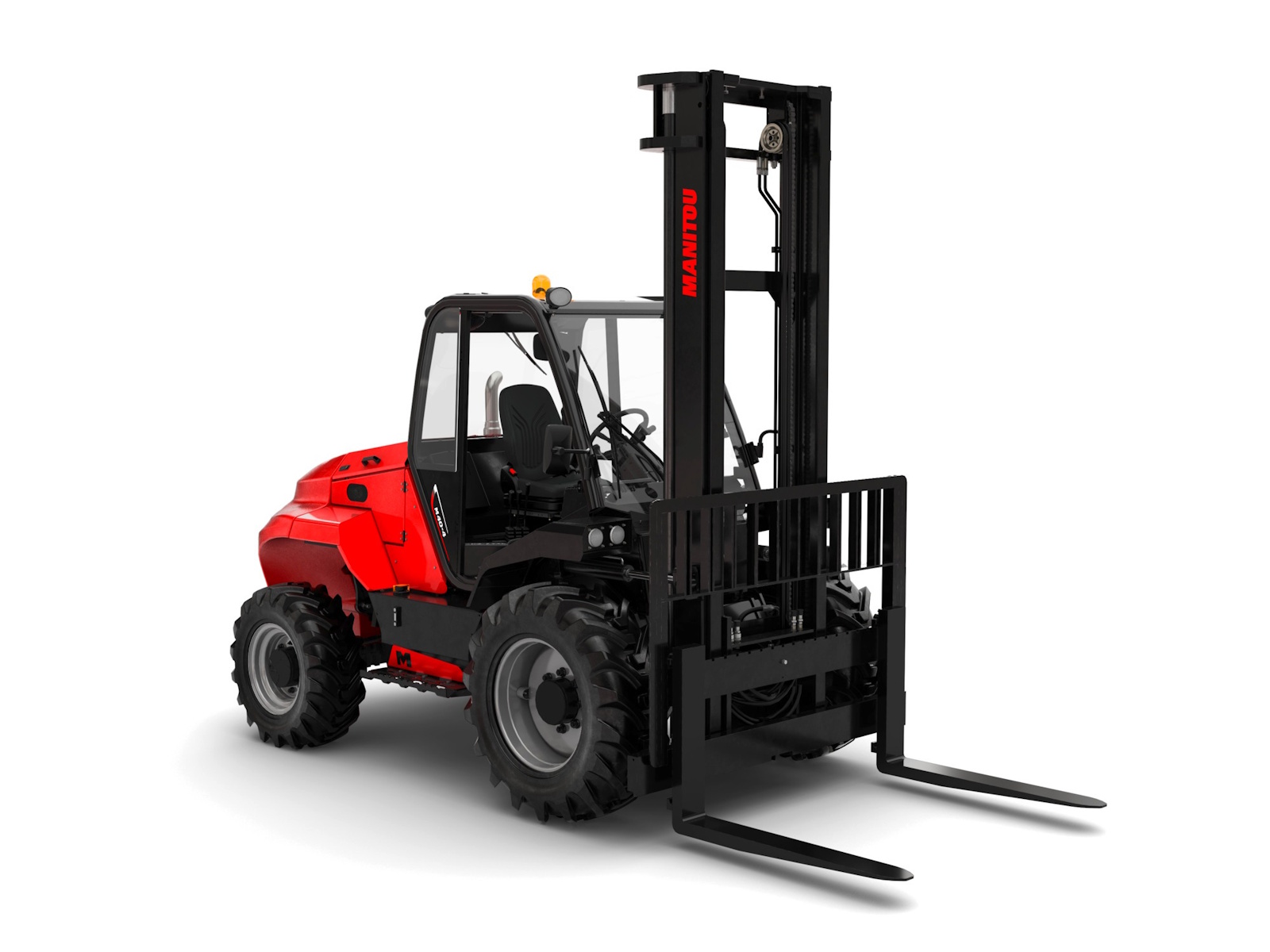

The M 40-4 is a rough-terrain forklift with 4-wheel drive. The ground clearance and crossing capacity offer performance and stability on all types of ground and even with long loads. Thanks to the varied choice of tires adapted to each situation, your versatility is enhanced. This rough-terrain forklift truck has a 74 hp engine and a lifting capacity of 4000 kg. For simplified maintenance, the hood offers wide access to the filtration components, gauges and engine. The masts, a true Manitou know-how, are designed to guarantee robustness over time even in extreme conditions of use.
Info
Industry
Agriculture
Make
Manitou Group
Model
M 40-4 D ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Diesel
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 30 in | Standard mast reference of the machine: FVD 37 | Forks section x width x length: 2 in x 6 in / 47 in | Fork carriage ISO 2328 (class/form) A/B: 3A | Travel speed (laden / unladen): 6 mph / 14 mph | Lifting speed (laden / unladen): 1 ft/s / 1 ft/s | Lowering speed (laden / unladen): 2 ft/s / 1 ft/s | Drawbar pull (Laden / Unladen): 11000 daN / 6600 daN | Rated speed: 2300 rpm | Working hydraulic pressure for attachments: 3046 PSI | Oil flow rate for attachments: 14 US gpm | Sound level at the driver's ear according to DIN 12 053: 76 dB
Load Capacity
8818 lb
Wheelbase
83 in
Weight
Service weight: 15355 lb | Weight on front axle (laden) / rear axle (laden): 19864 lb / 4310 lb | Weight on front axle (Unladen) / rear axle (Unladen): 5787 lb / 9568 lb
Tires
Pneumatic
Wheels
Dimensions of front wheels: 18-22,5 MPT-06 | Dimensions of rear wheels: 340/80 R18 XMCL | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 4 | Front wheel gauge: 64 in | Rear wheel gauge: 69 in
Height
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version): 98 in / 98 in | Seat height/stand height: 57 in
Length
191 in | Length to face of forks: 144 in
Width
82 in | Fork carriage width: 66 in | Aisle width for 1000 x 1200 pallet widthways: 265 in | Aisle width for 800 x 1200 pallet lengthways: 265 in
Ground Clearance
Ground clearance below mast: 12 in | Ground clearance at centre of wheelbase: 17 in
Turning Radius
180 in
Brakes
Service brake: Hydraulic
Transmission
Torque converter
Engine
Deutz / TCD 2,9 / Stage V
Power/Horsepower
75 Hp/55 kW
Cylinders
4 - 178 in³
