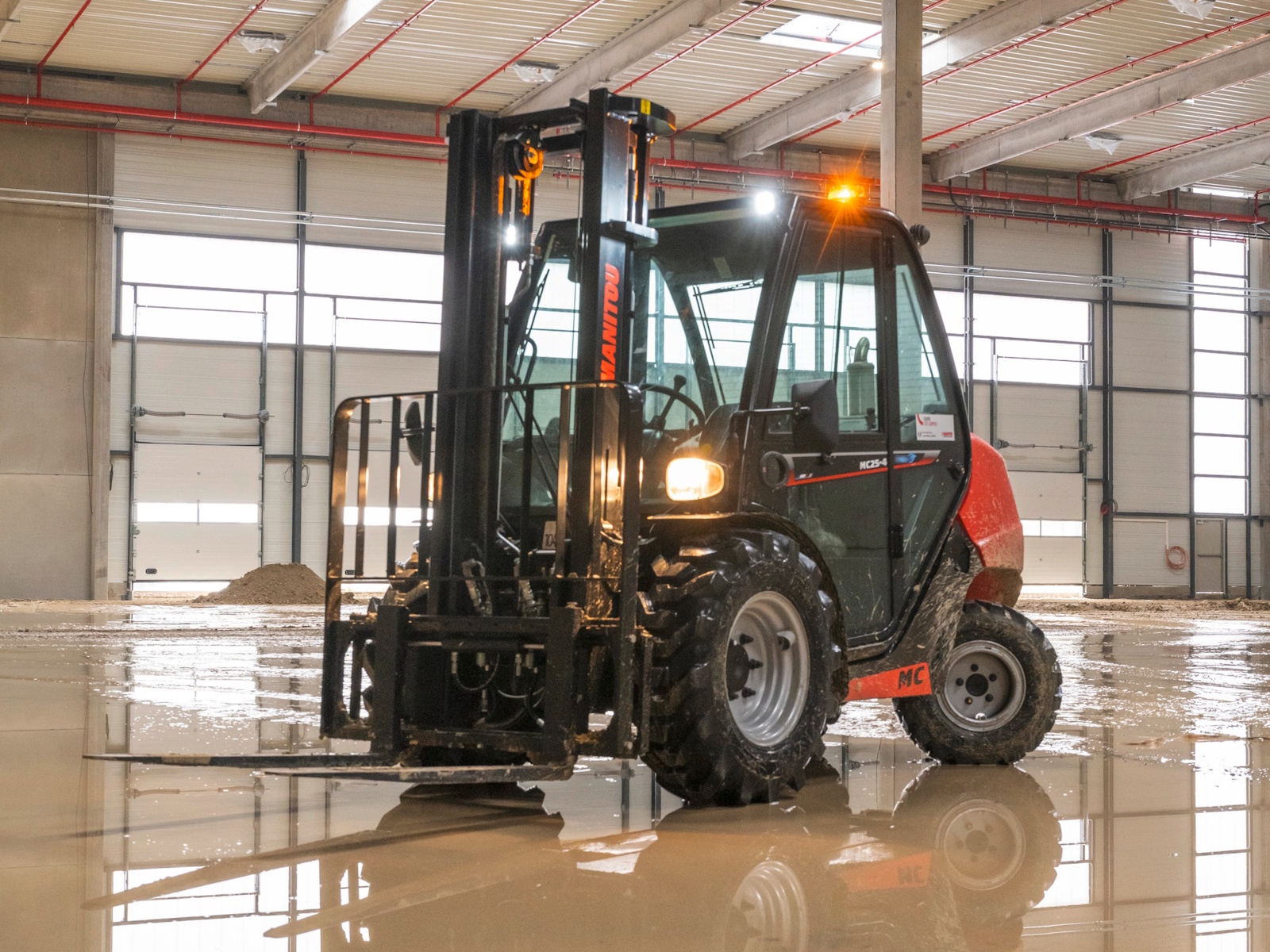

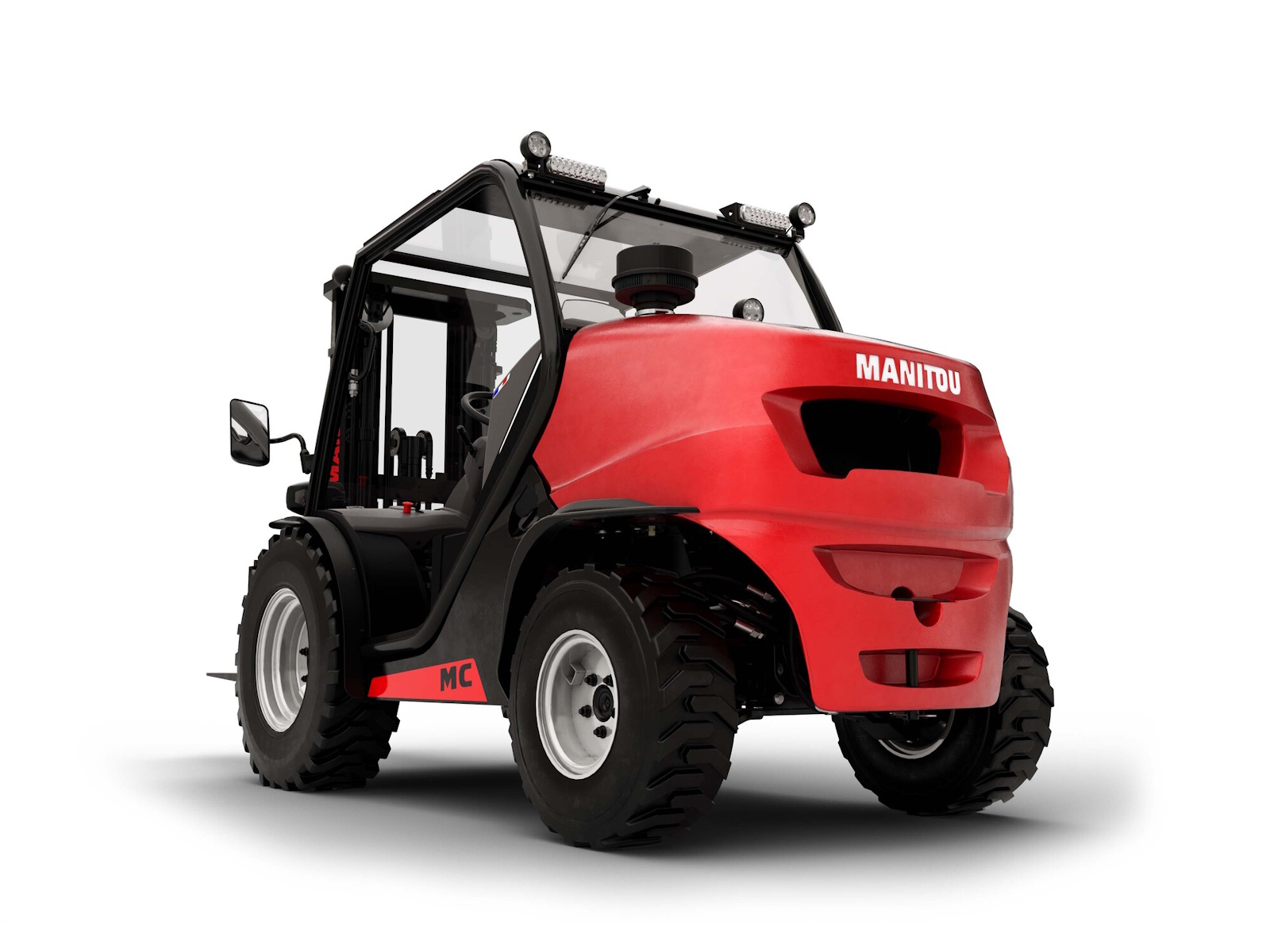

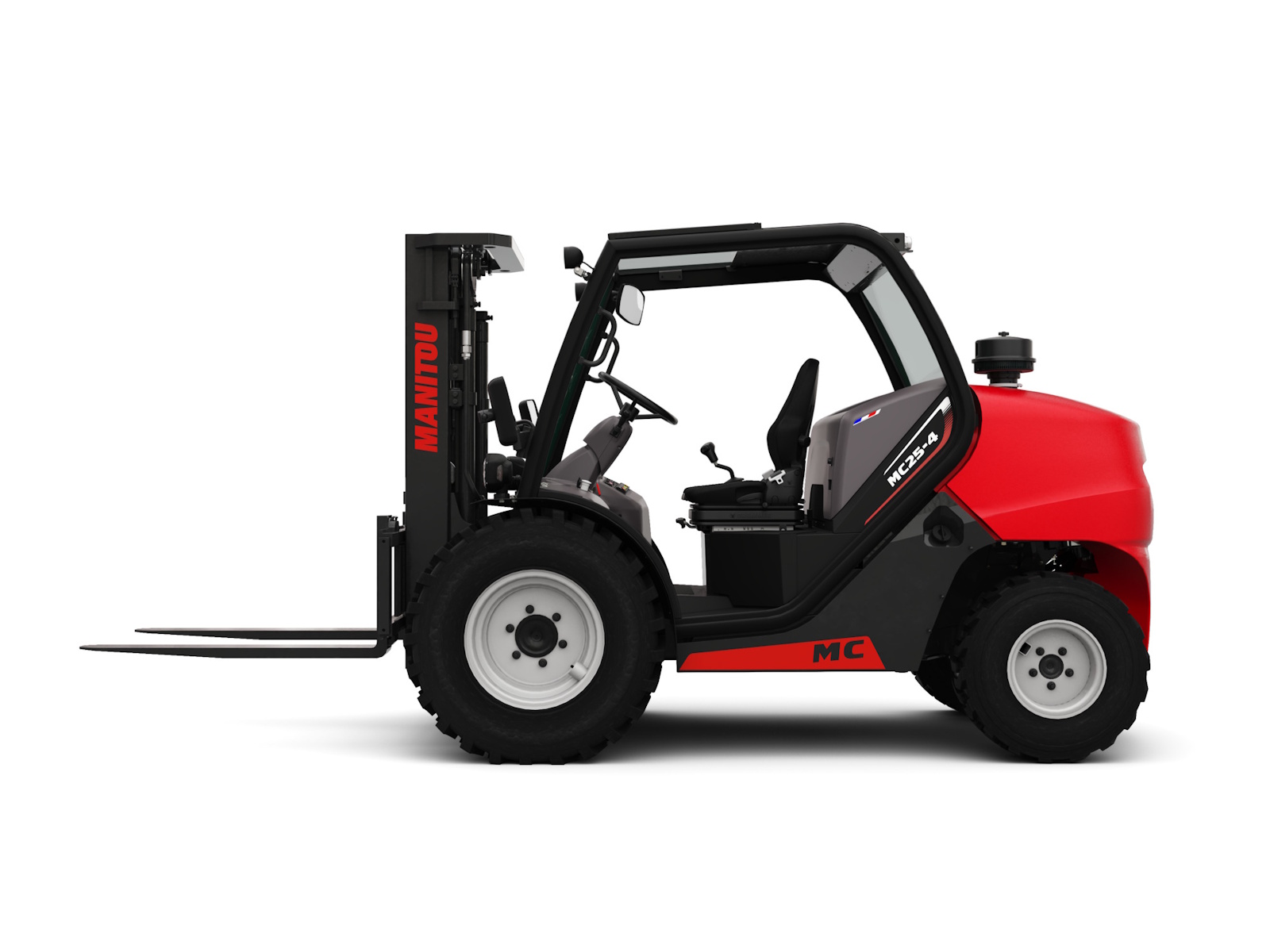

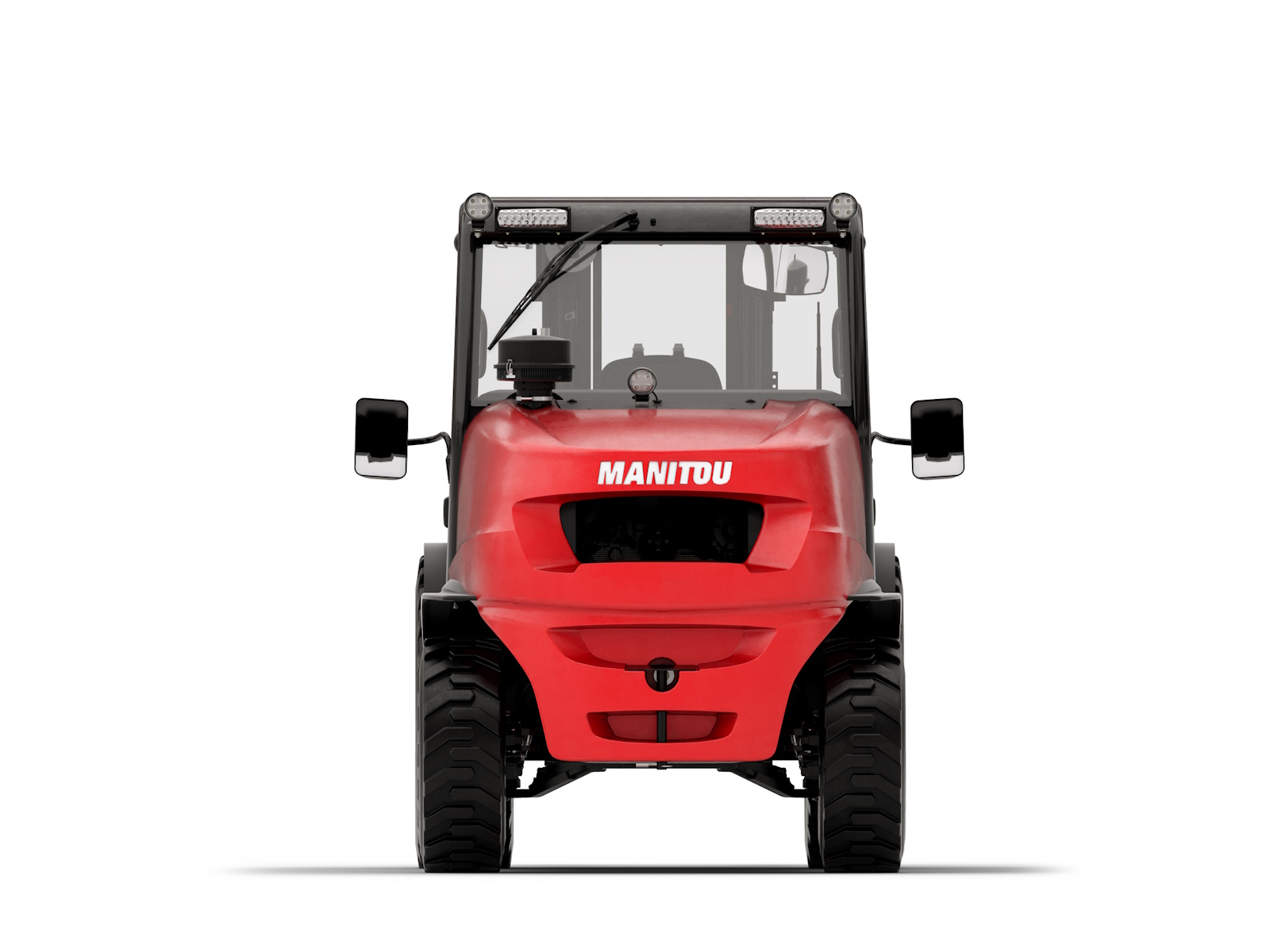

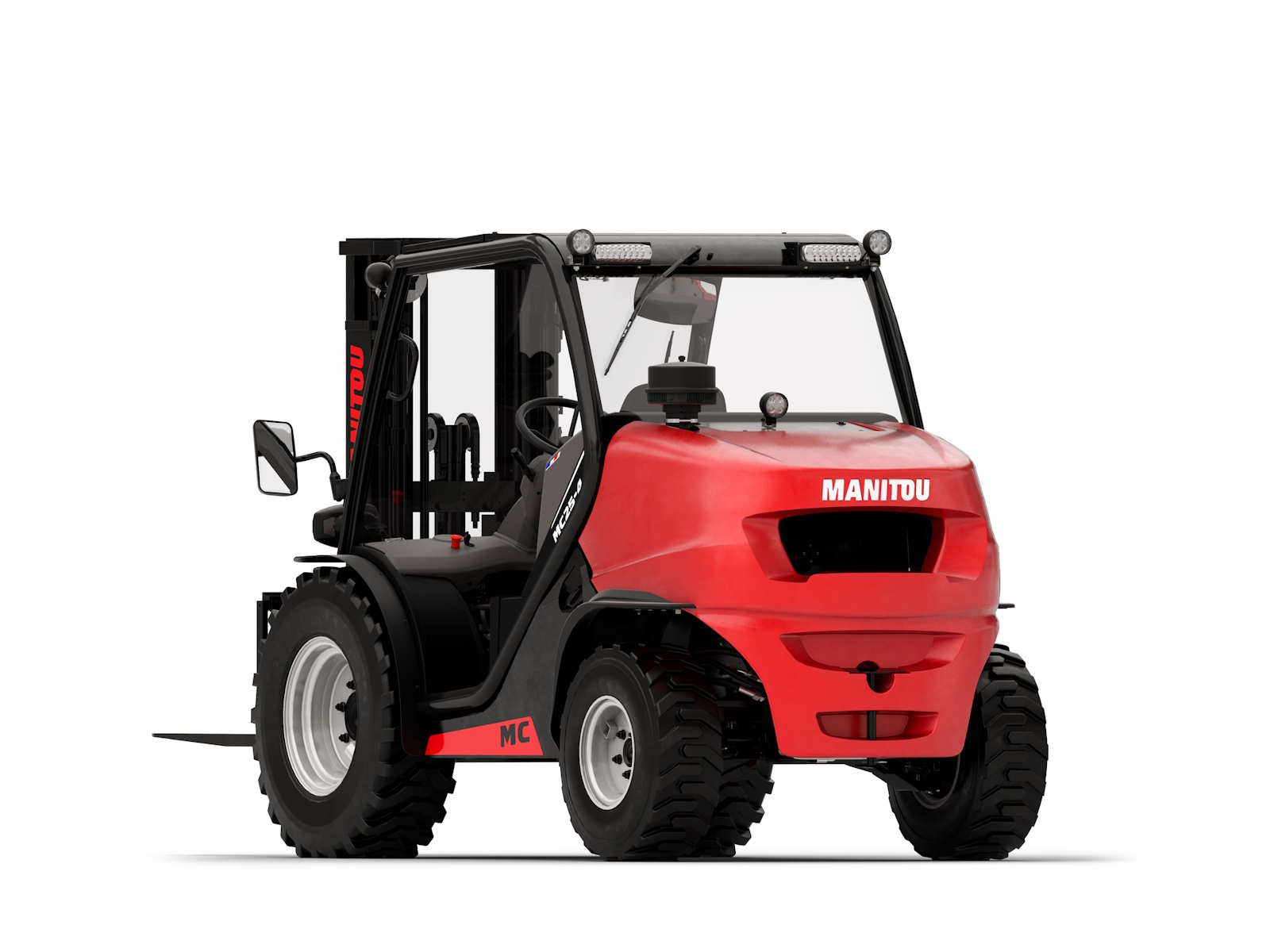

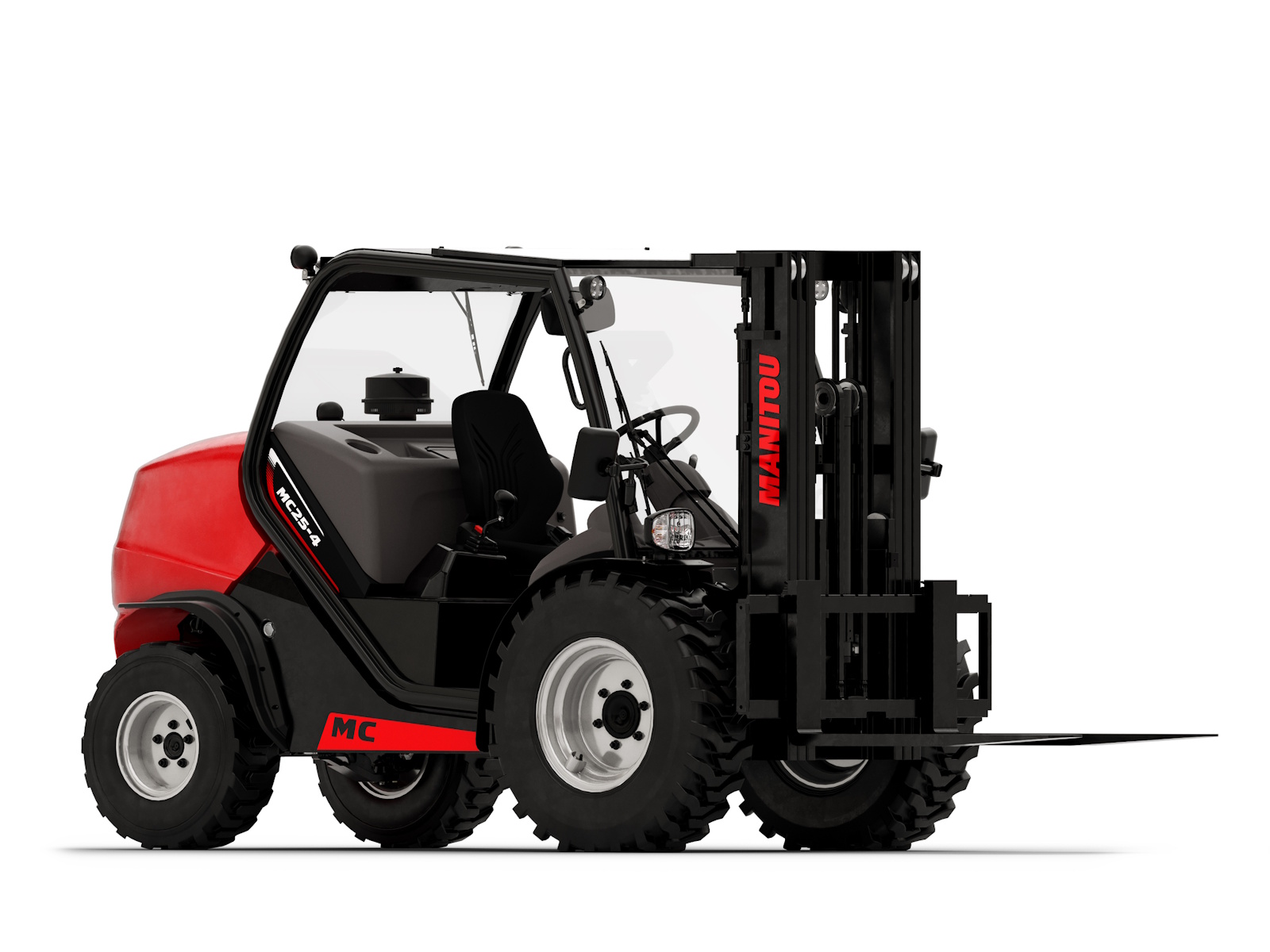

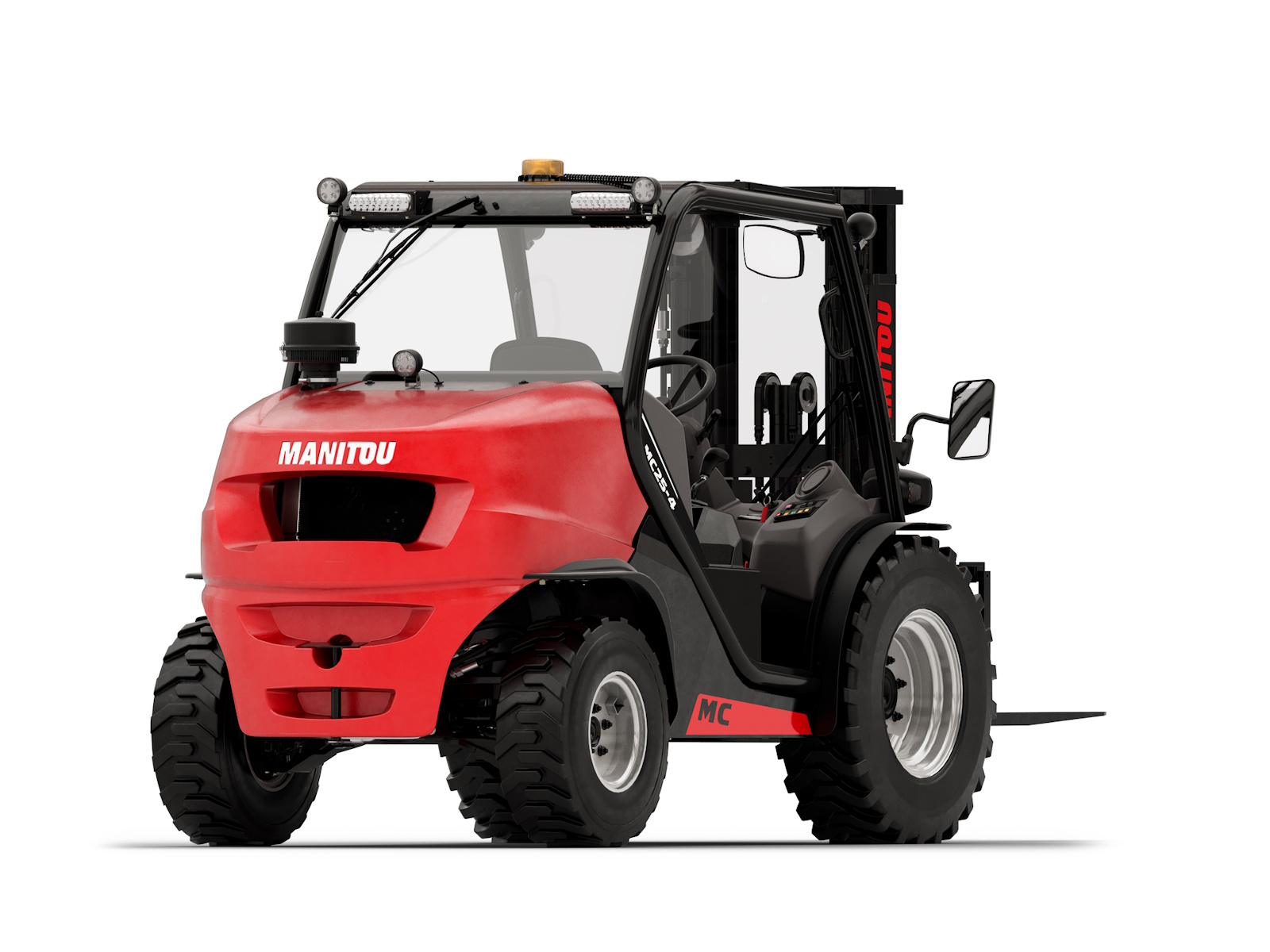

2026 Manitou Group MC 25-4 ST5

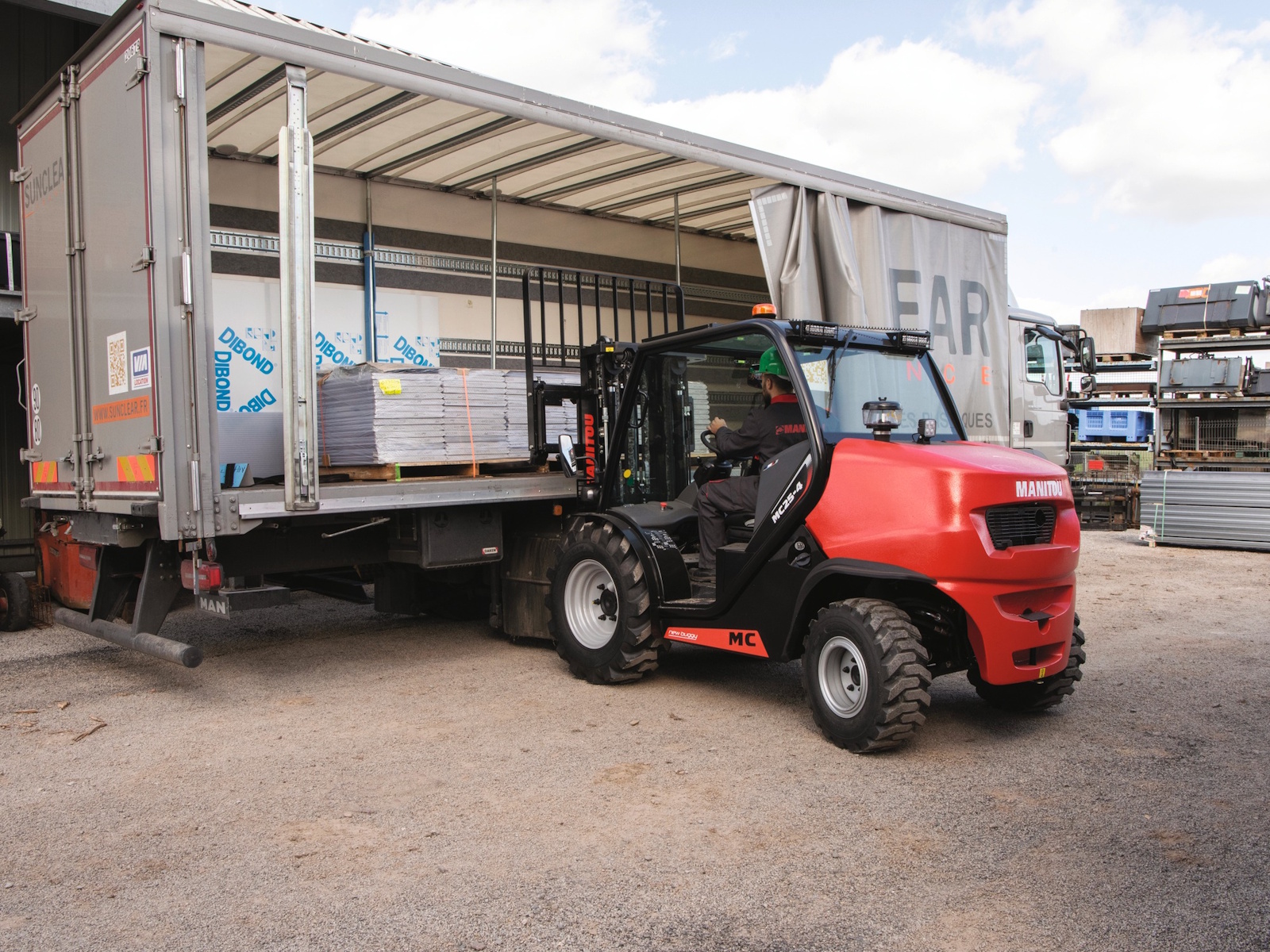

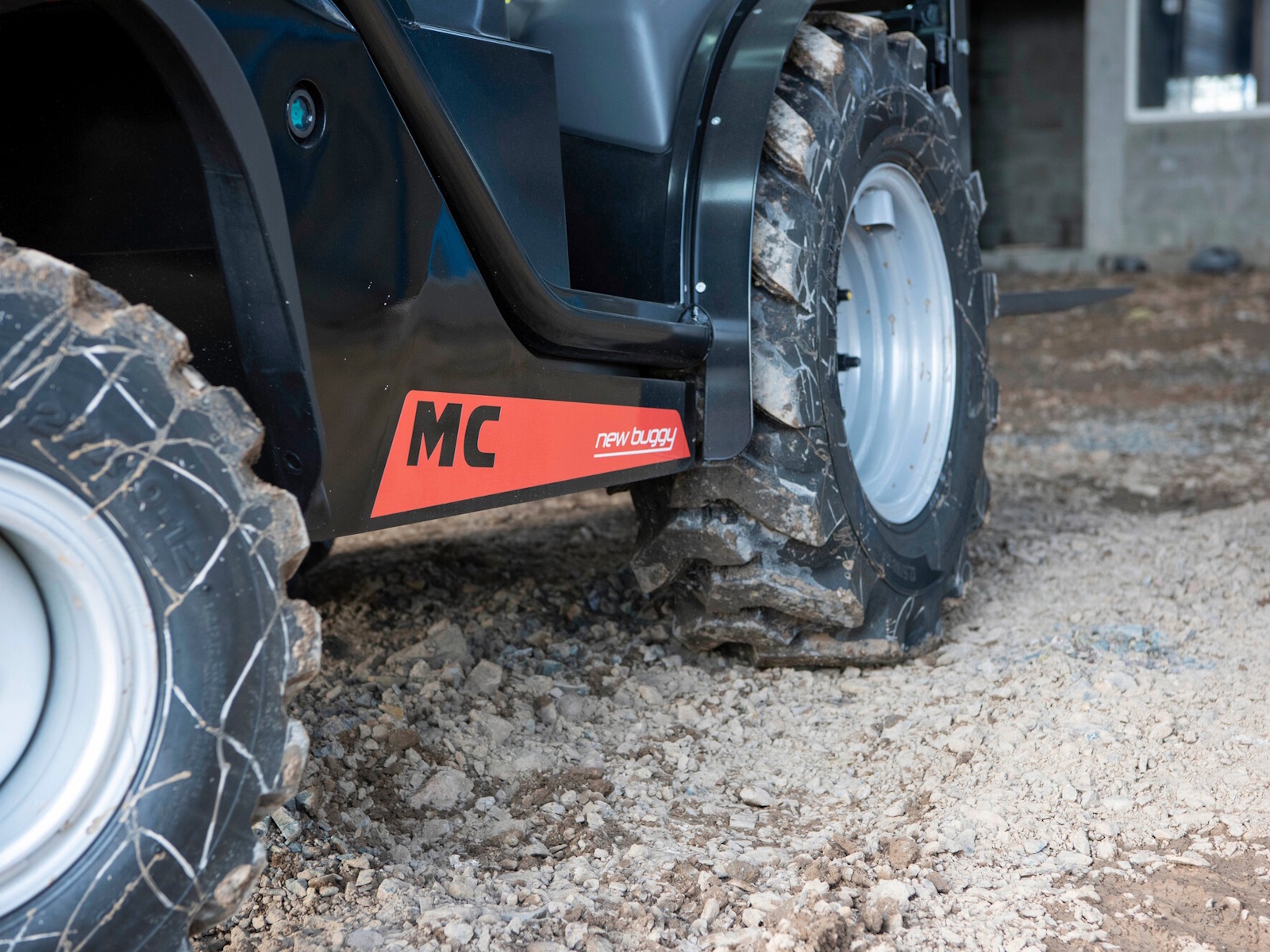

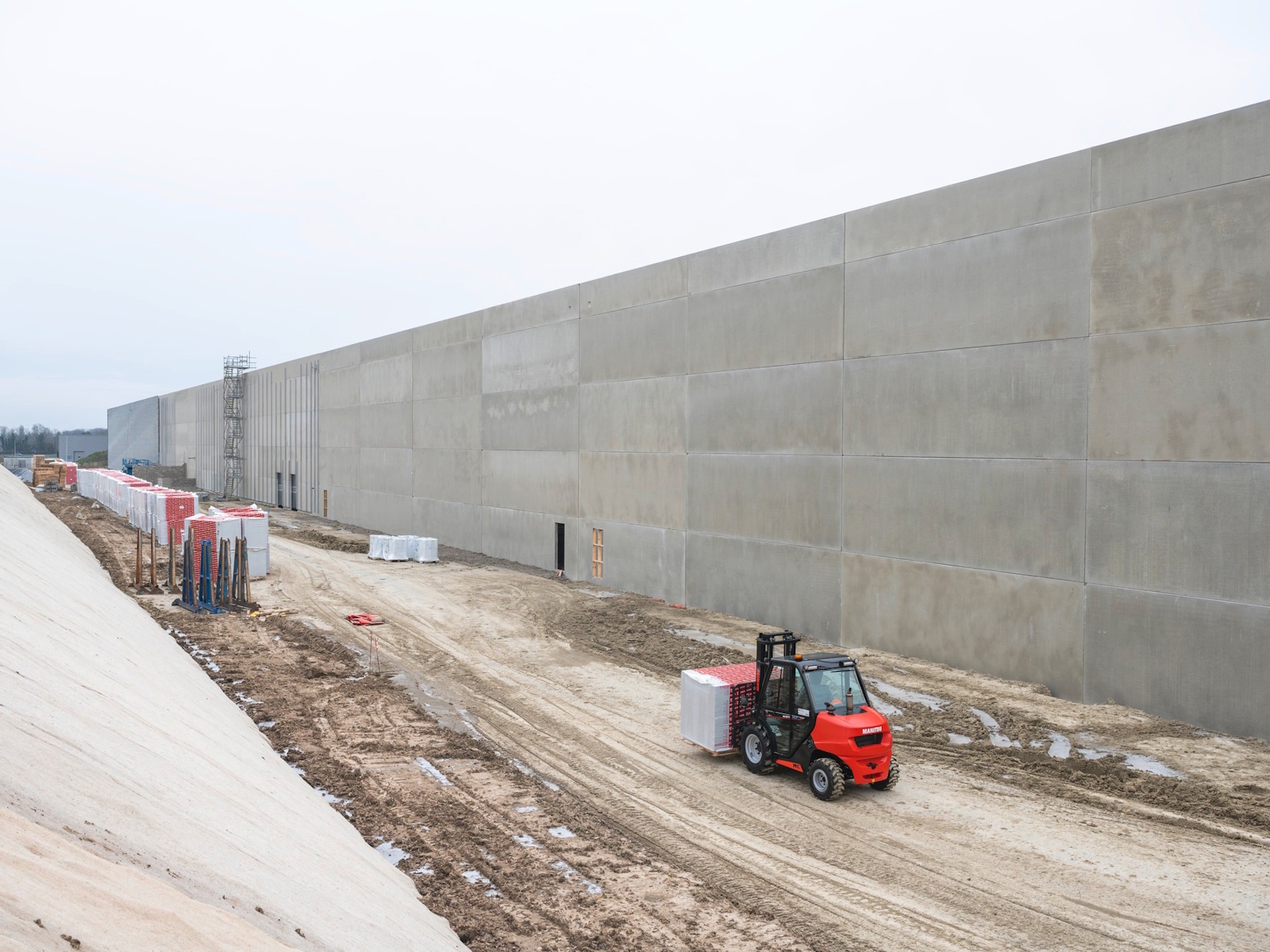

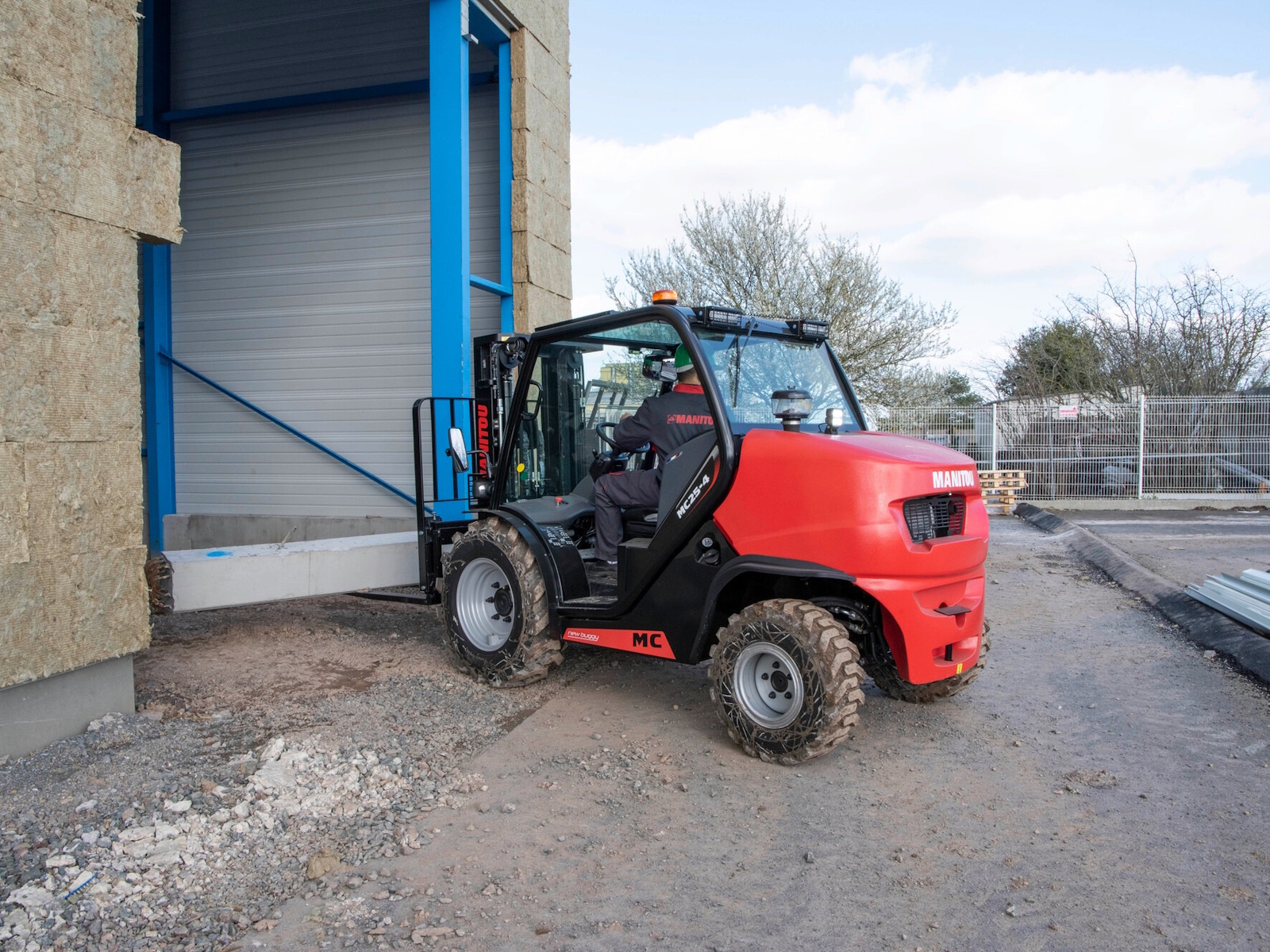

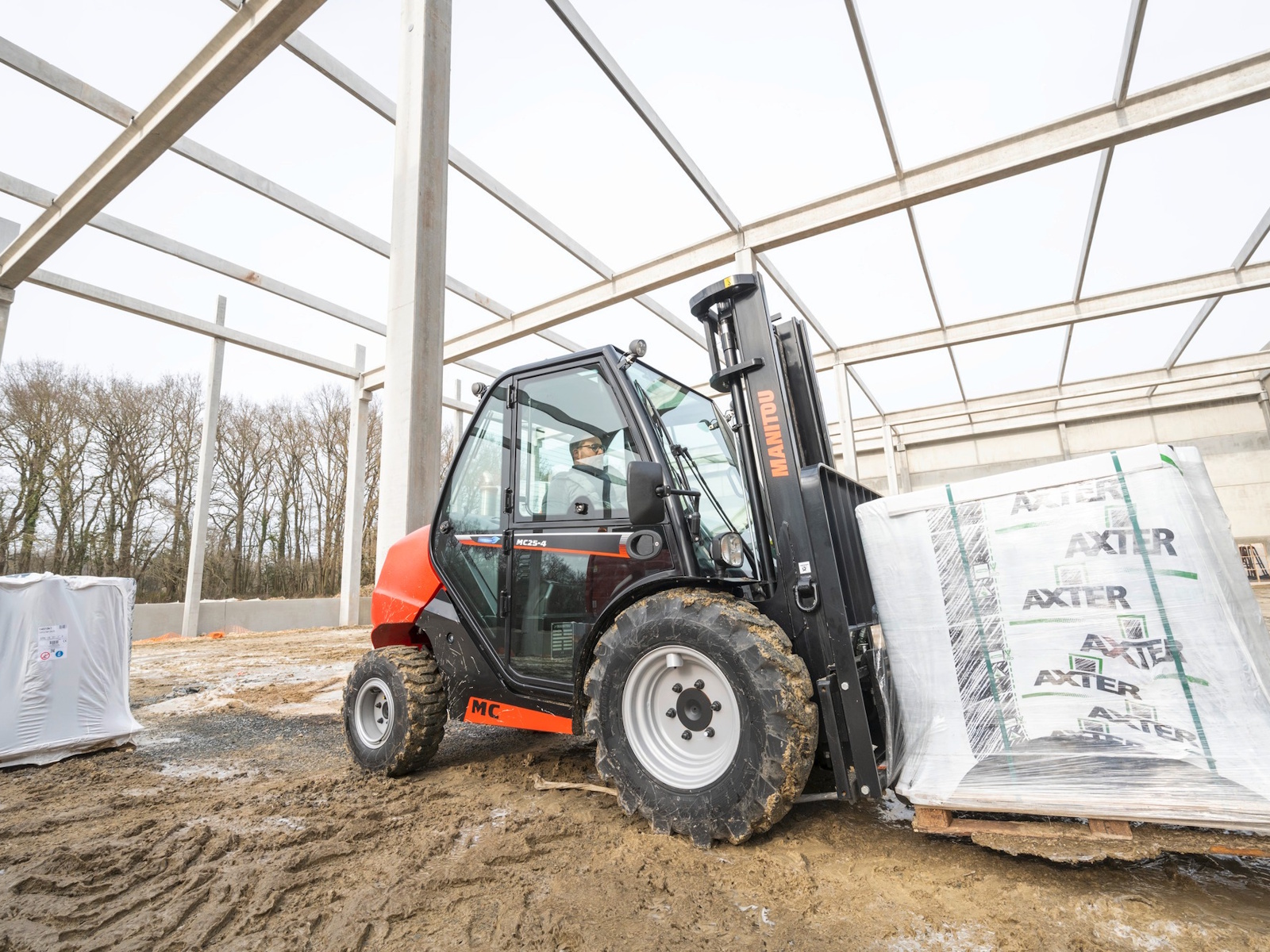

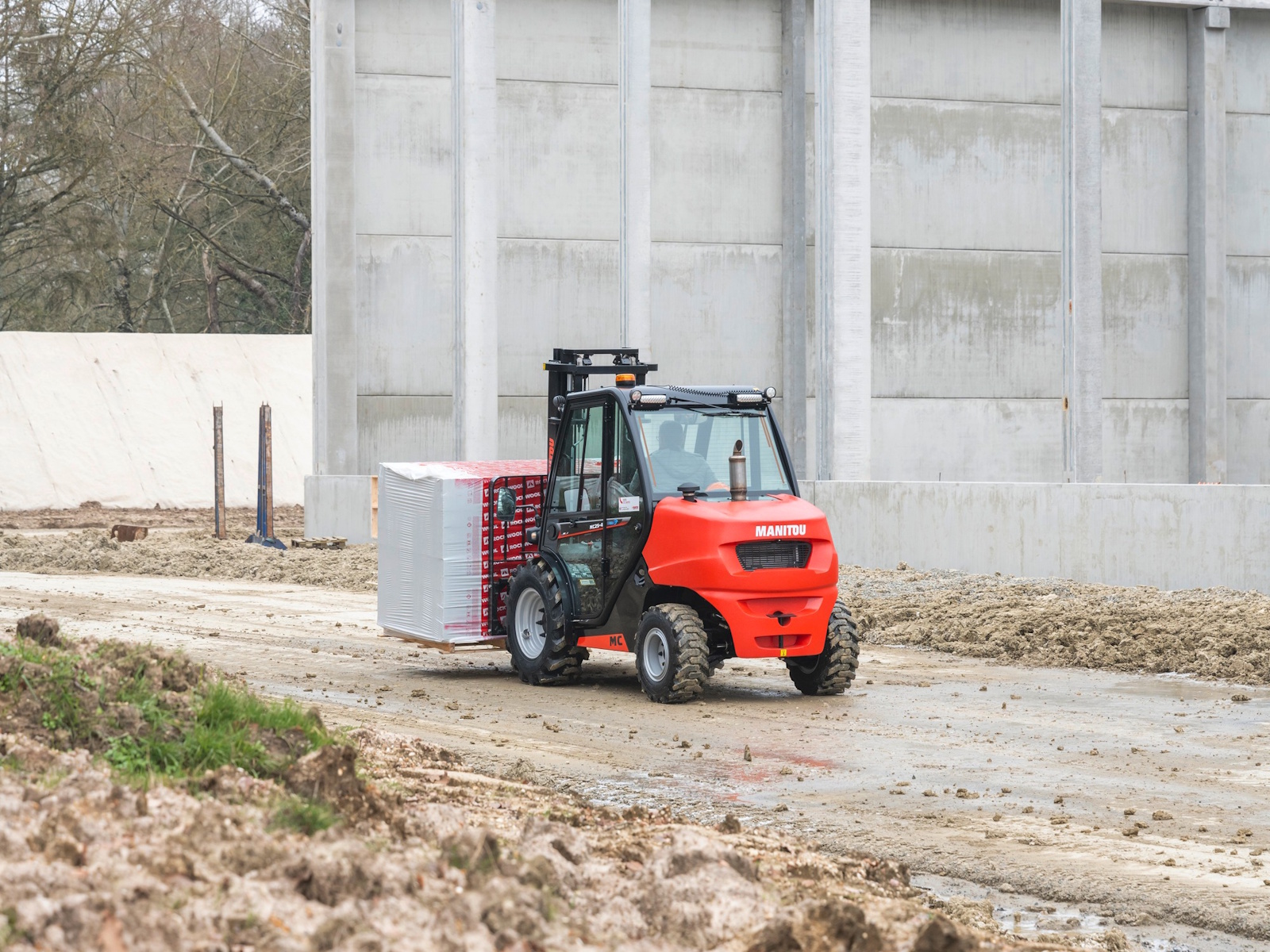

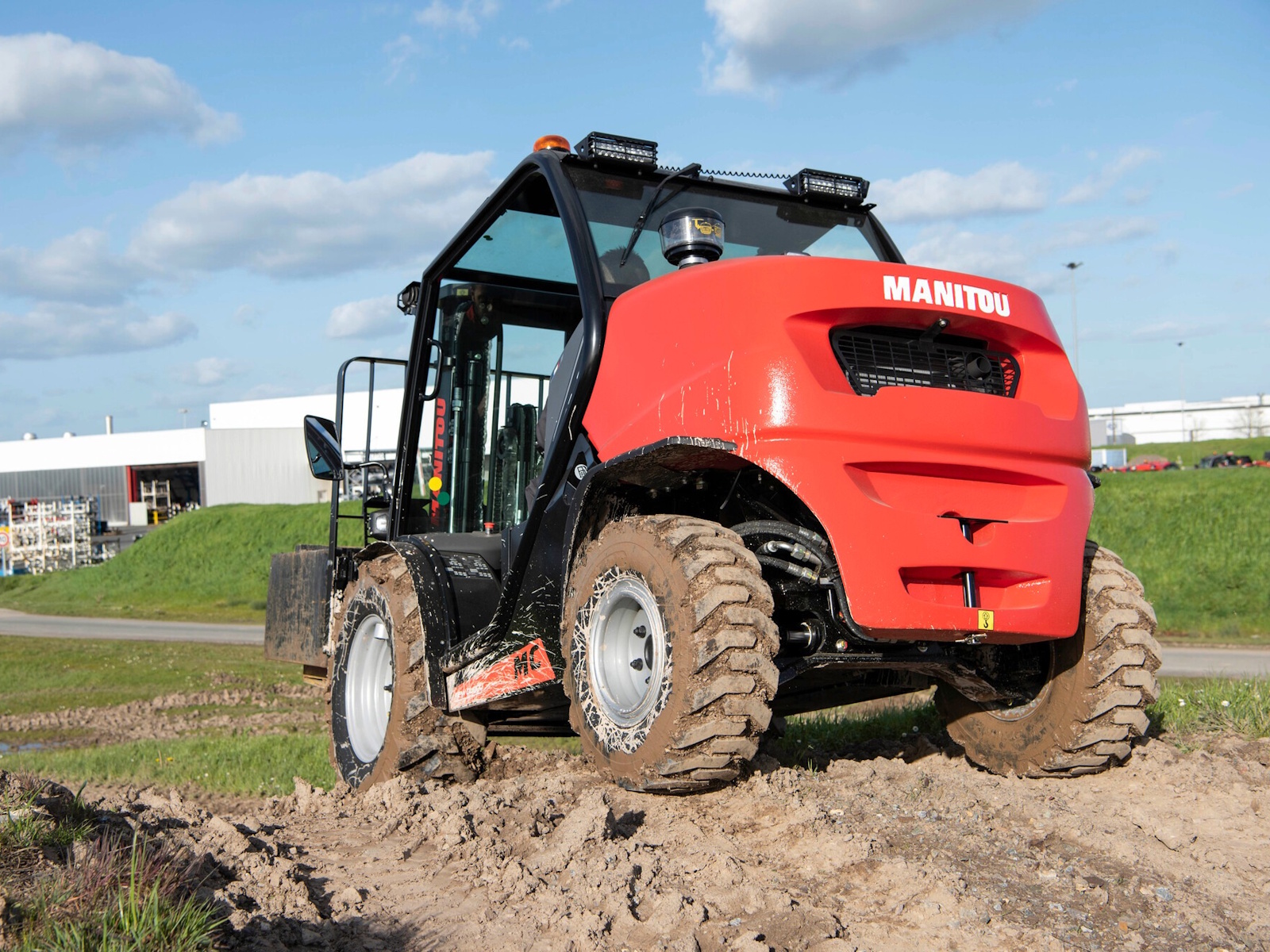

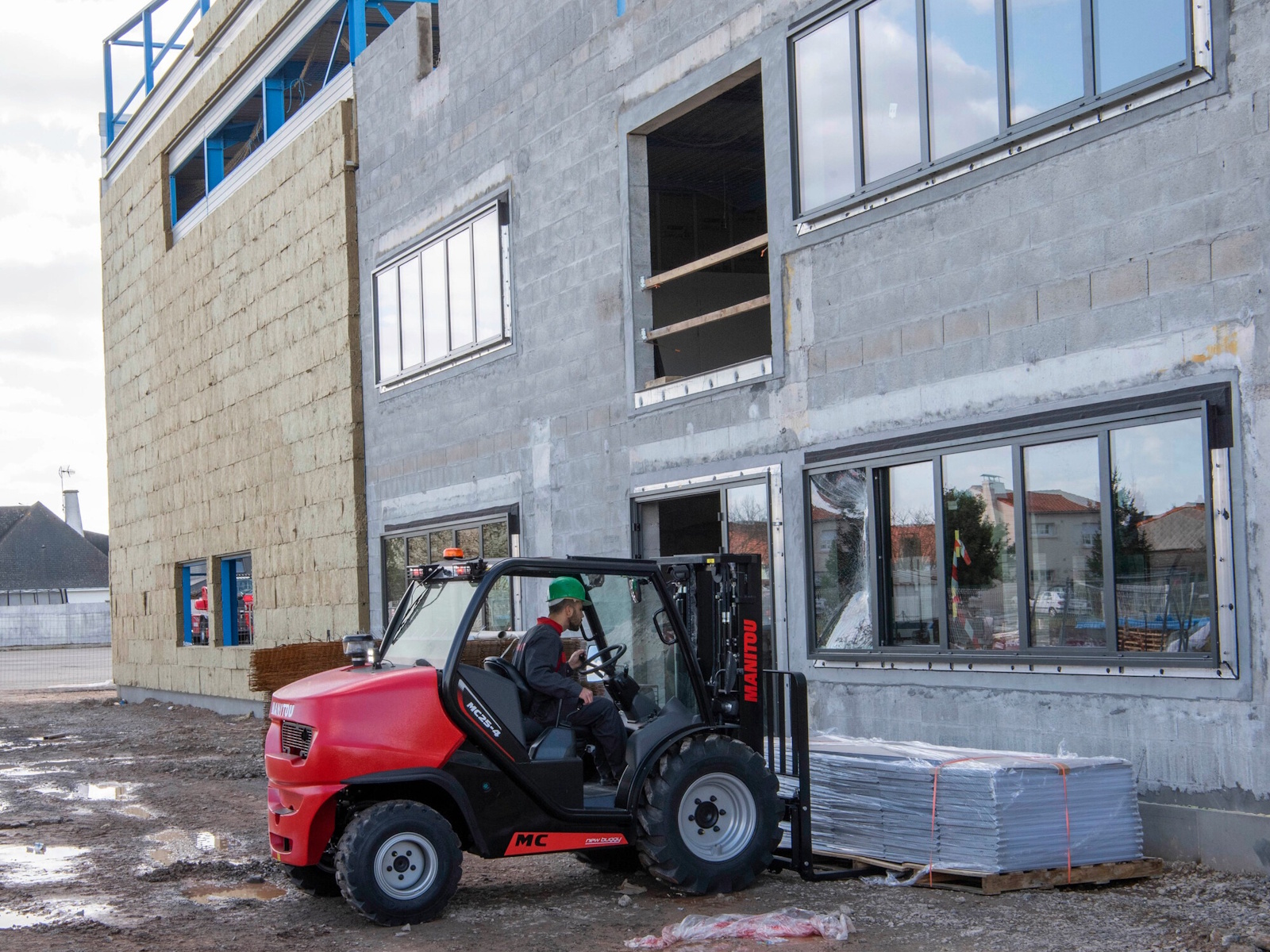

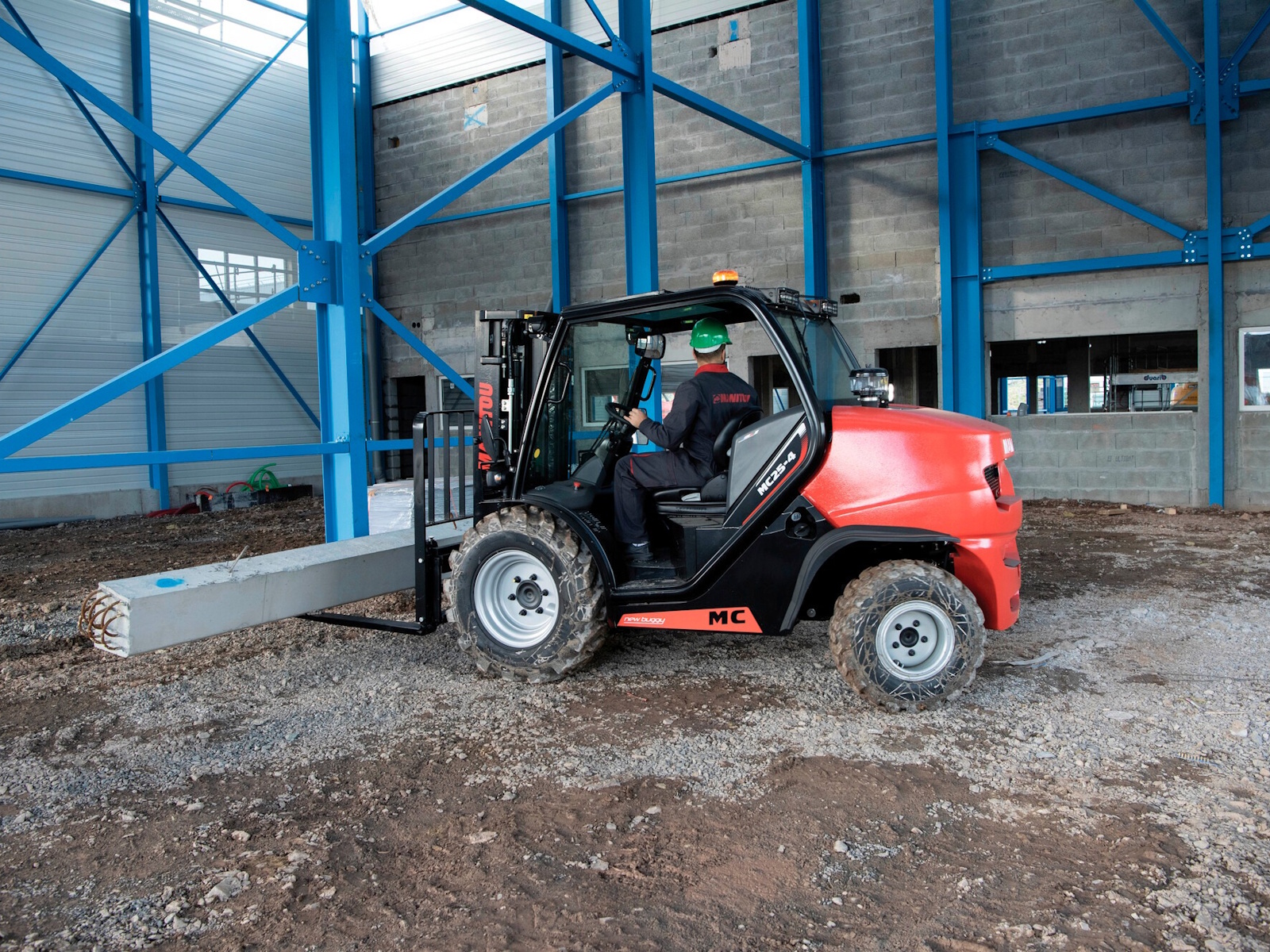

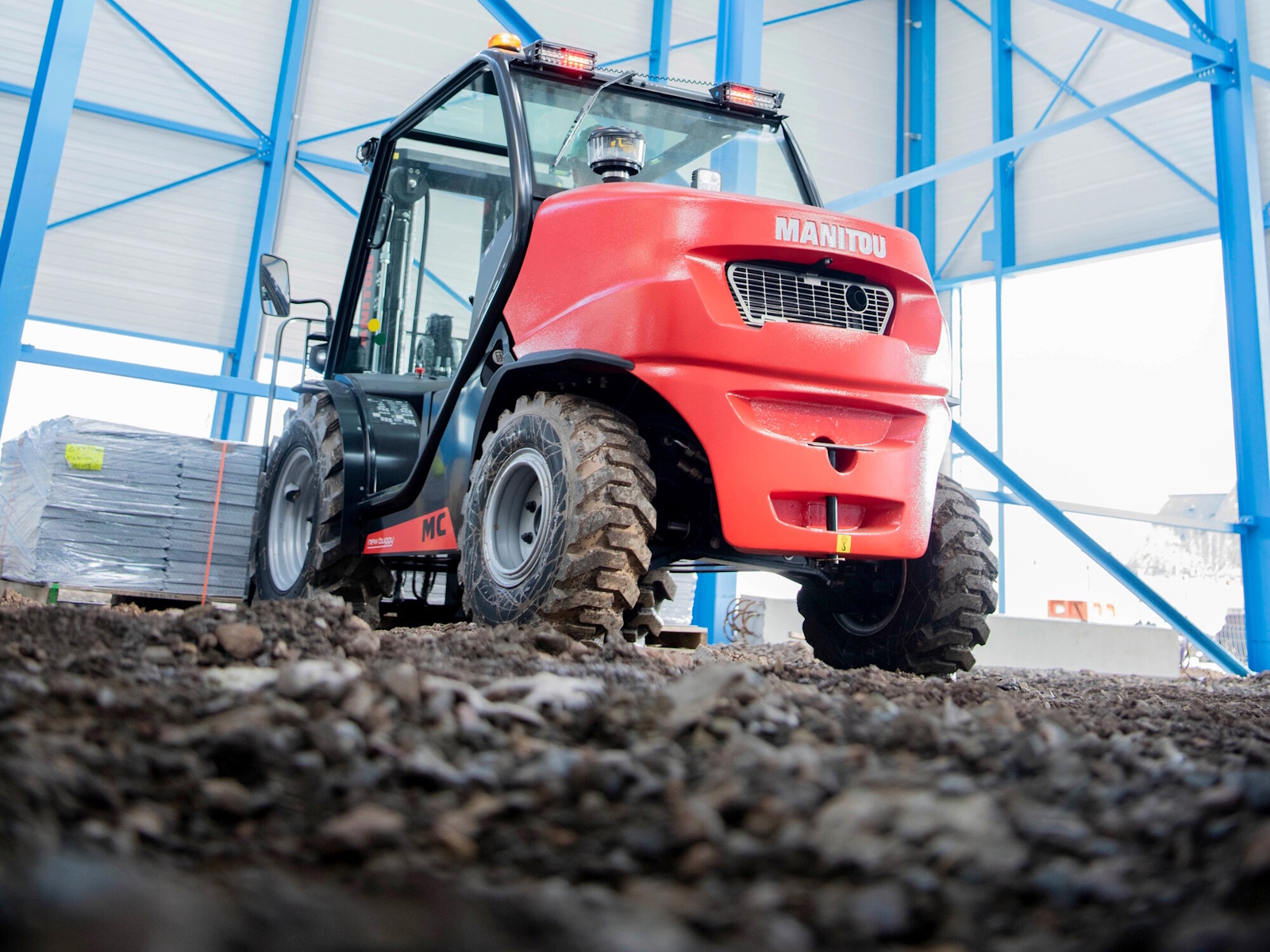

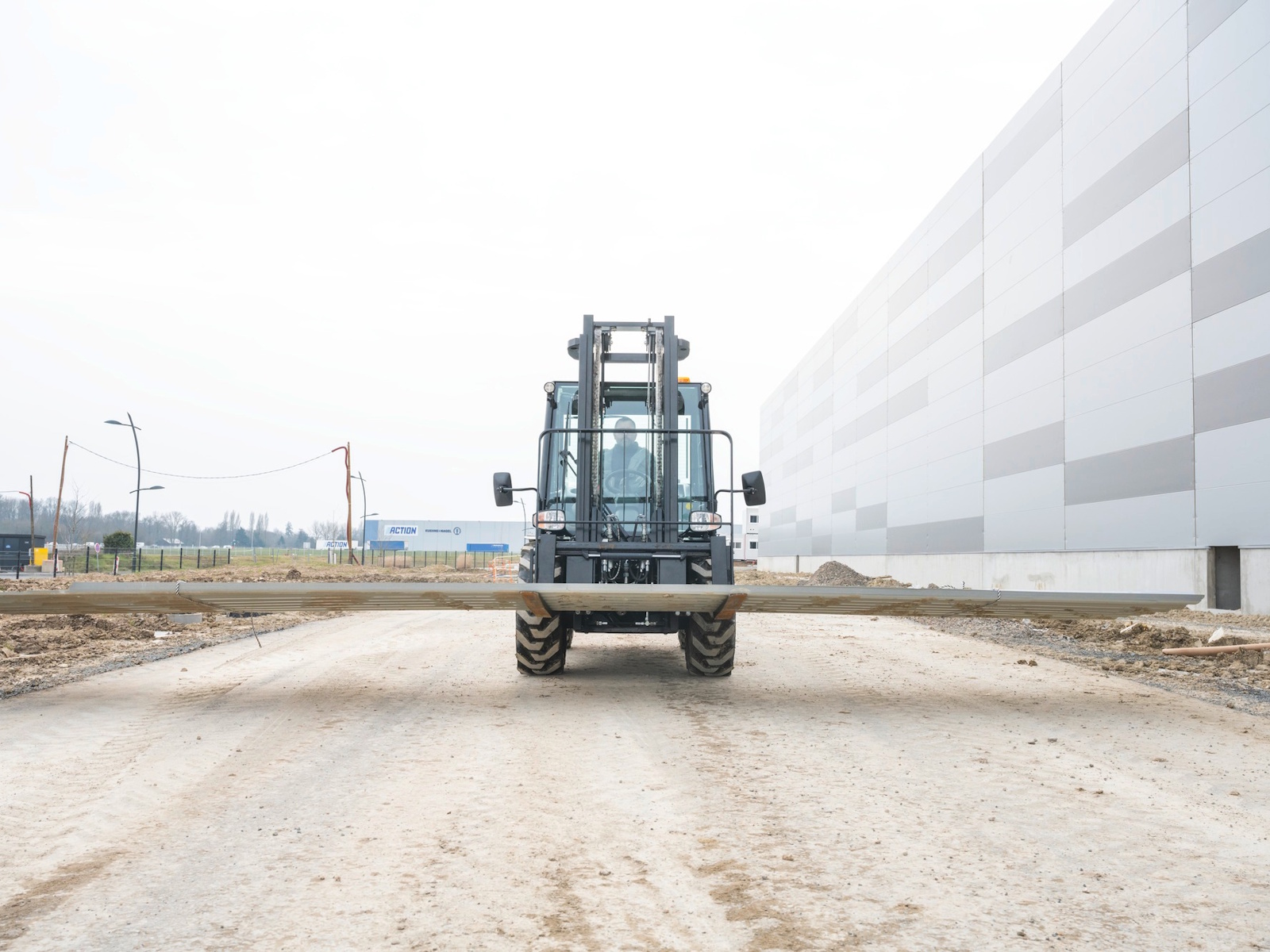

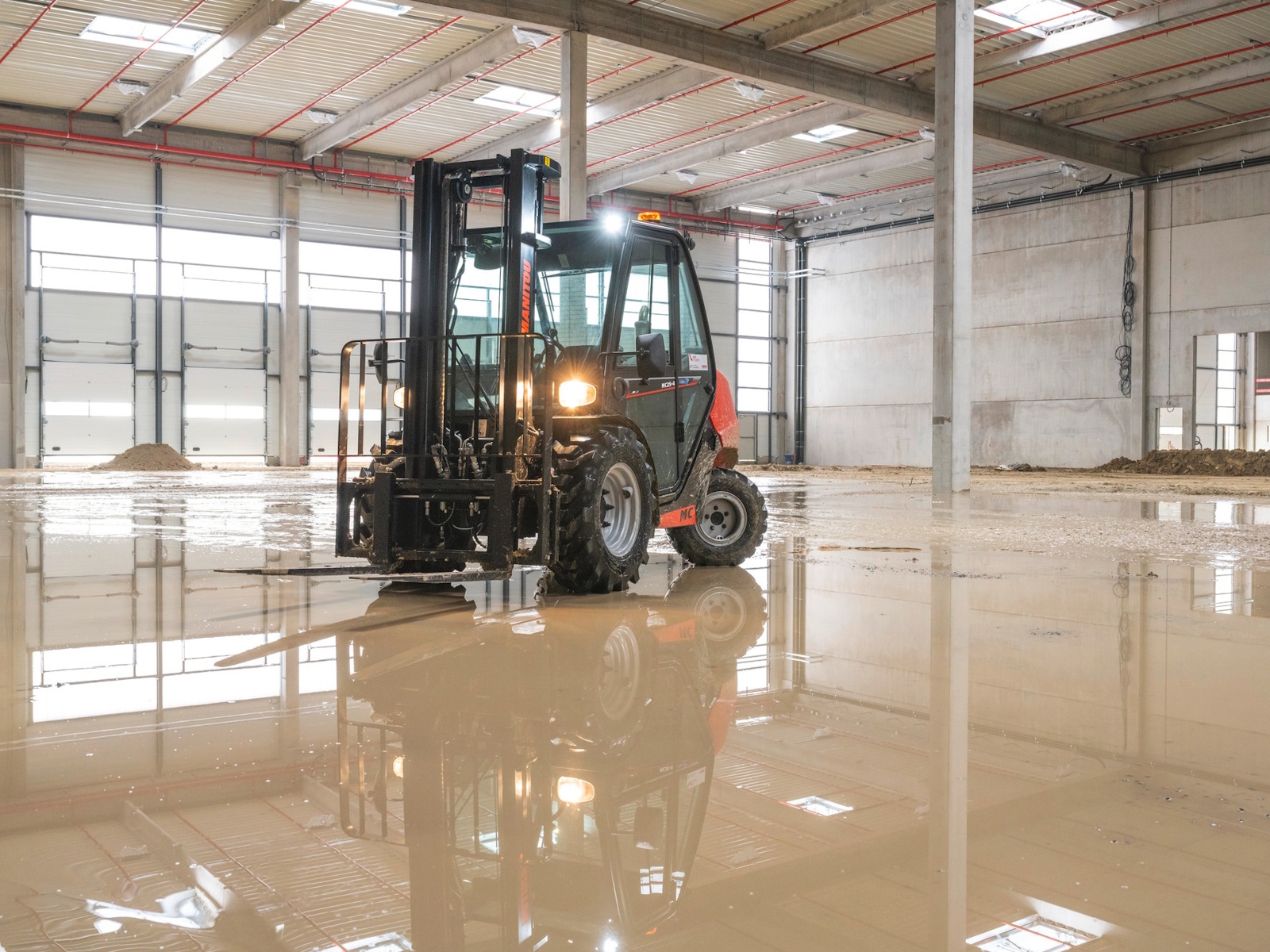

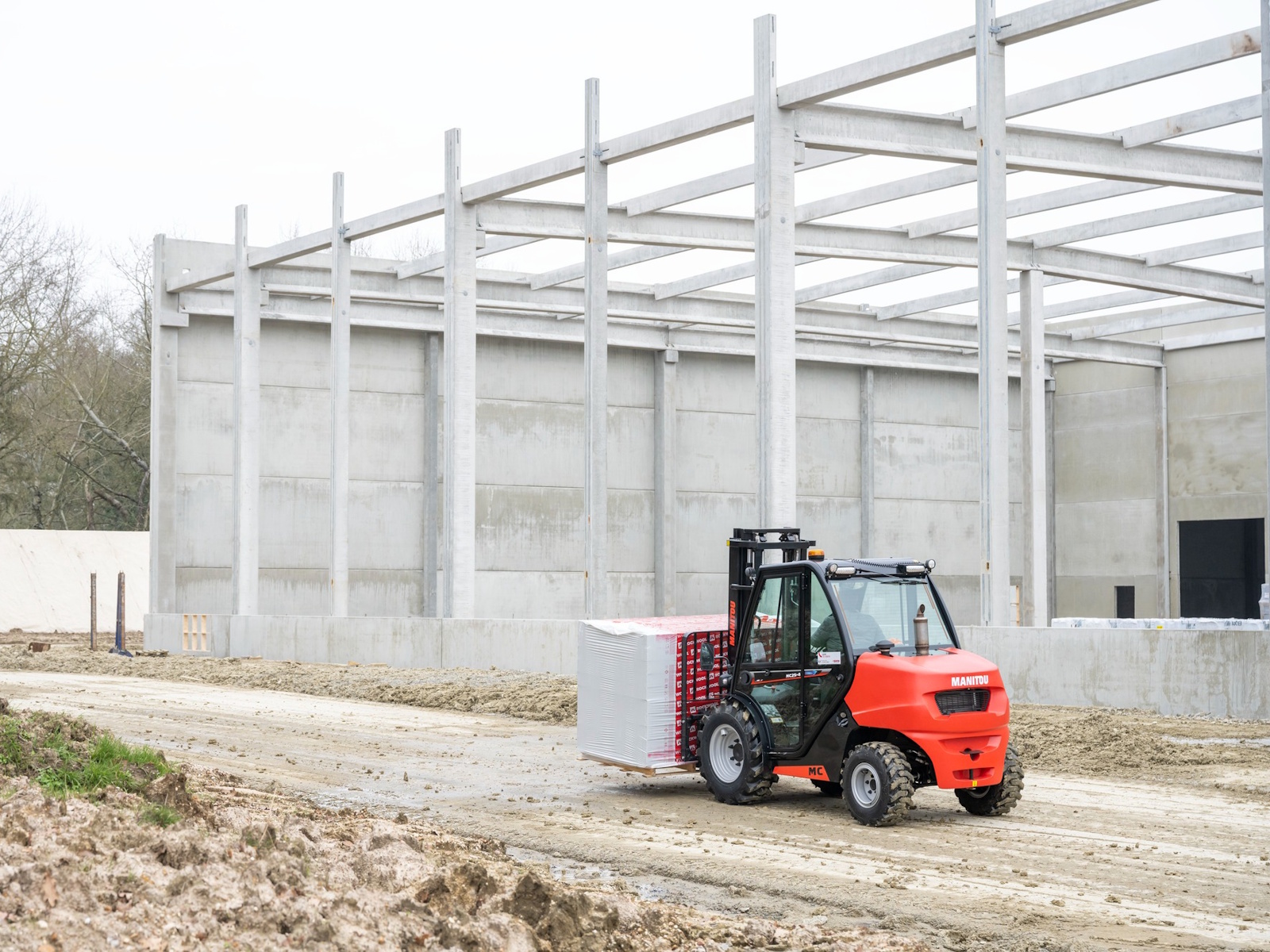

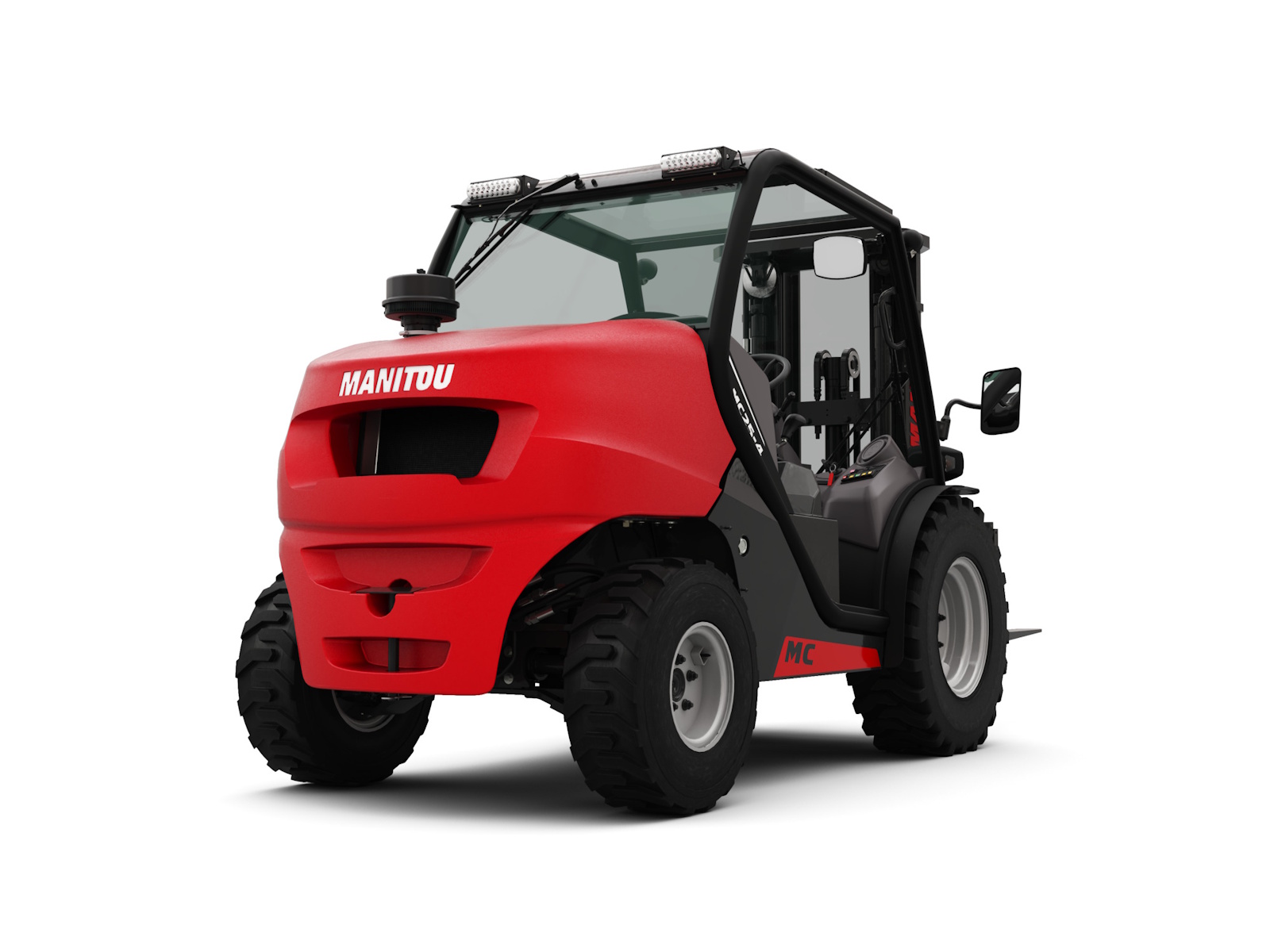

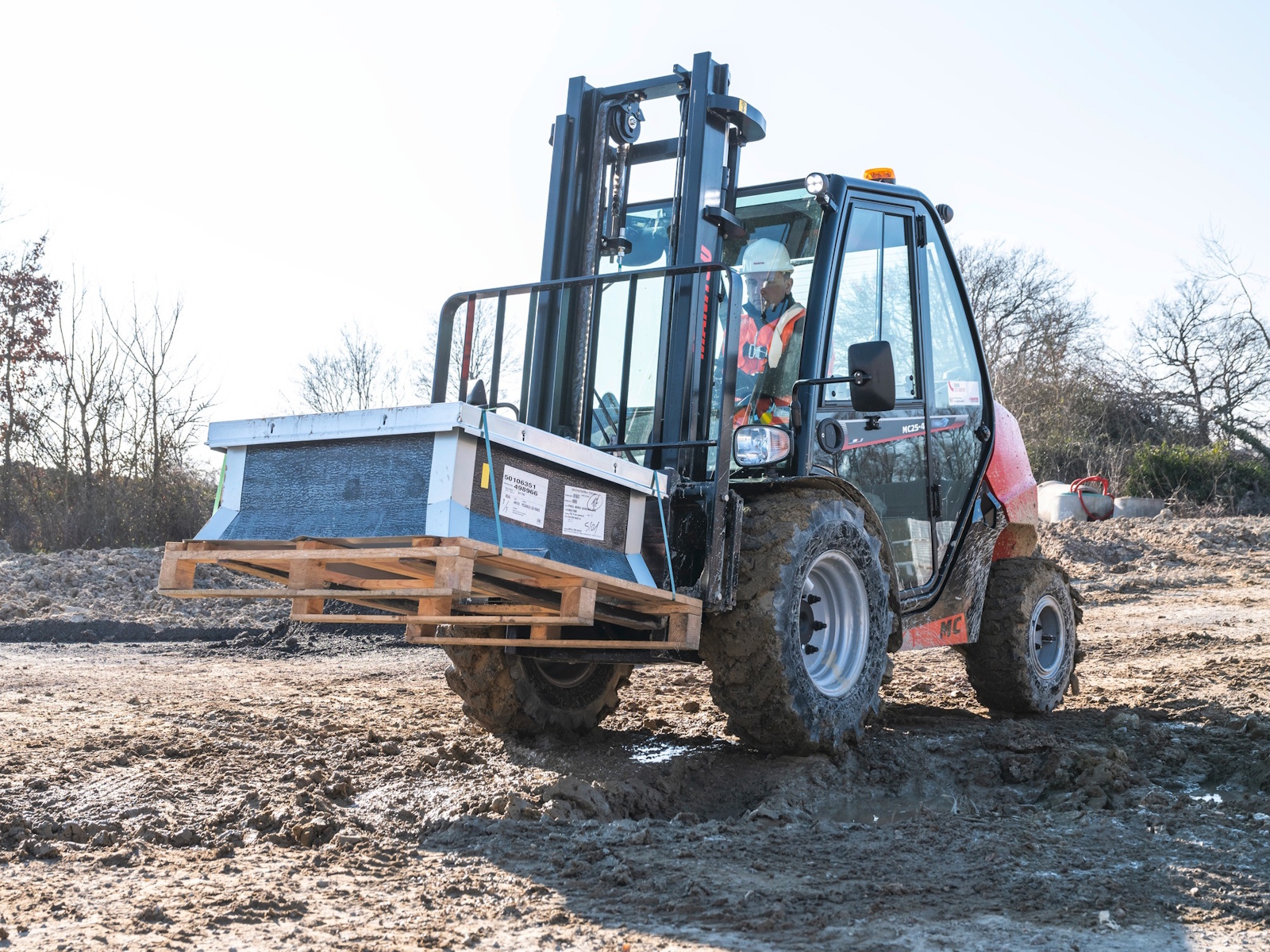

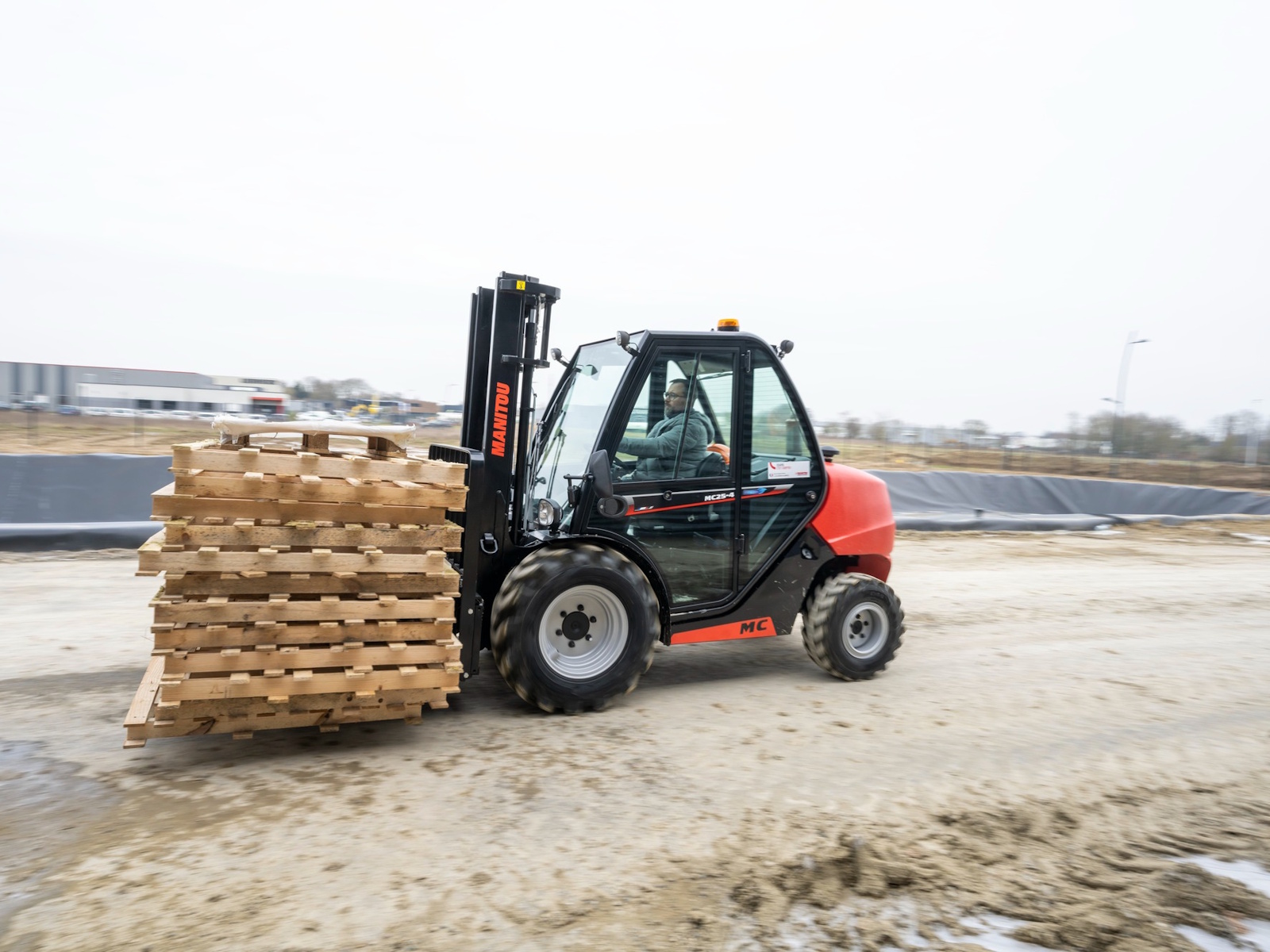

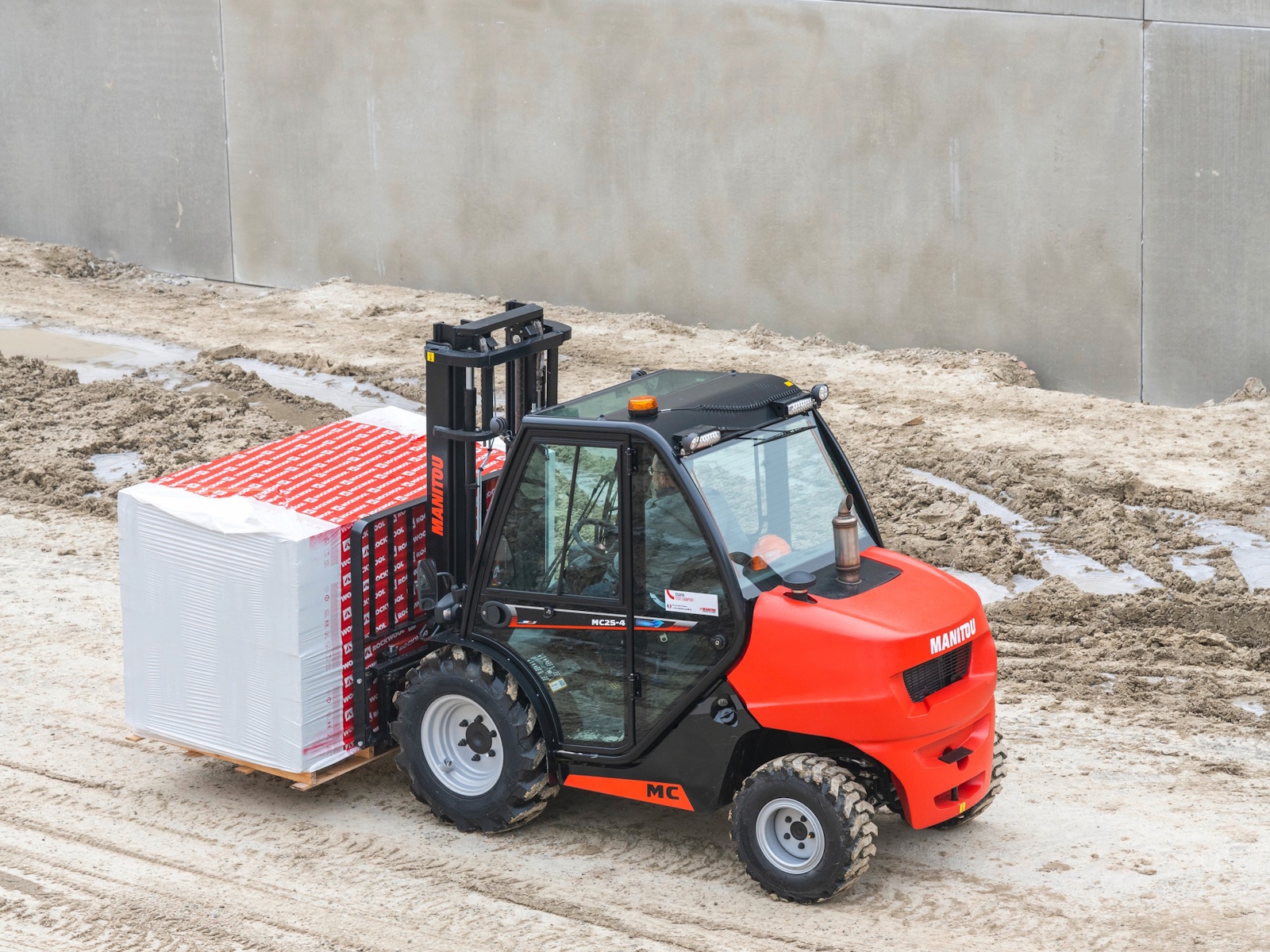

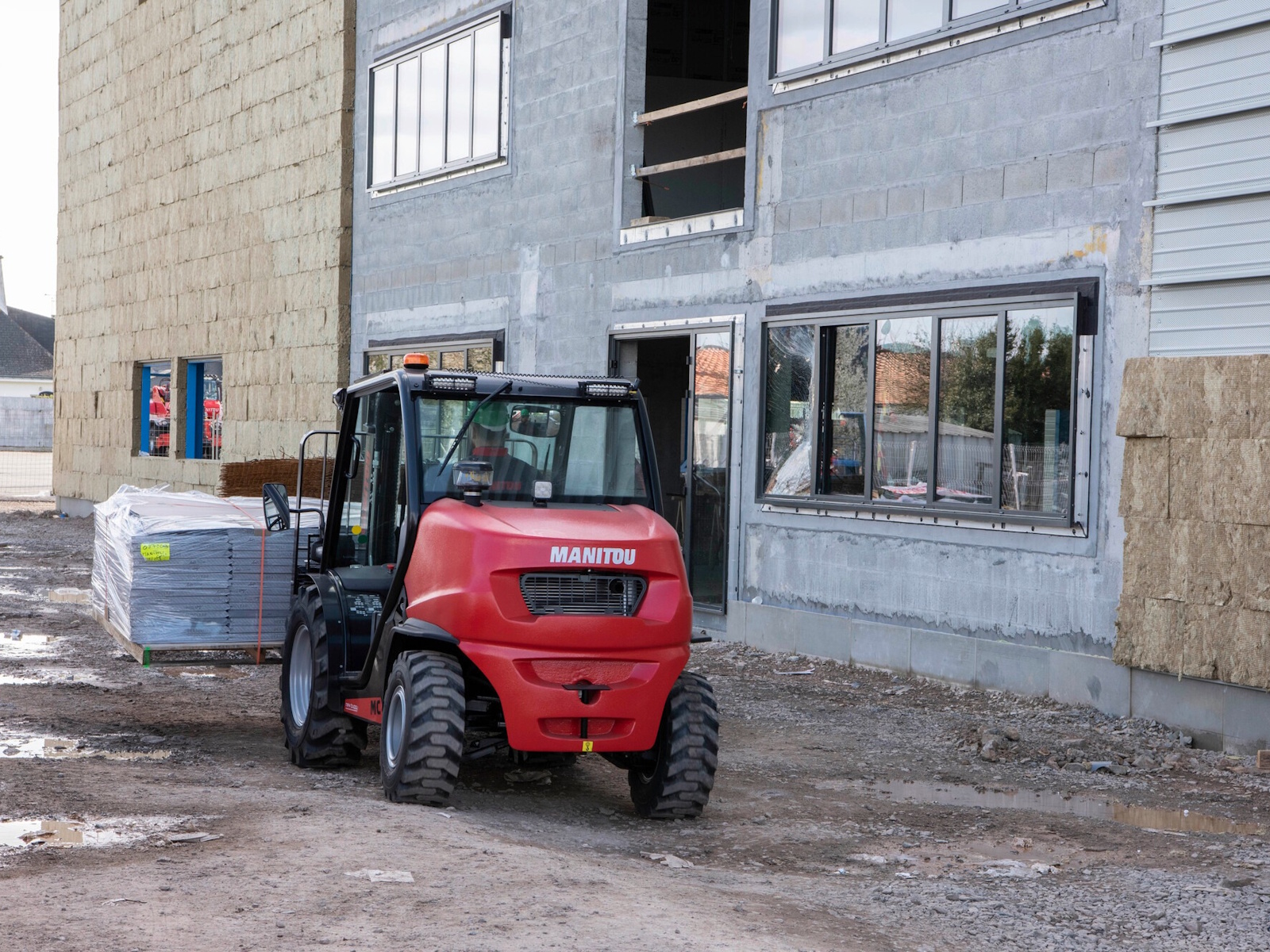

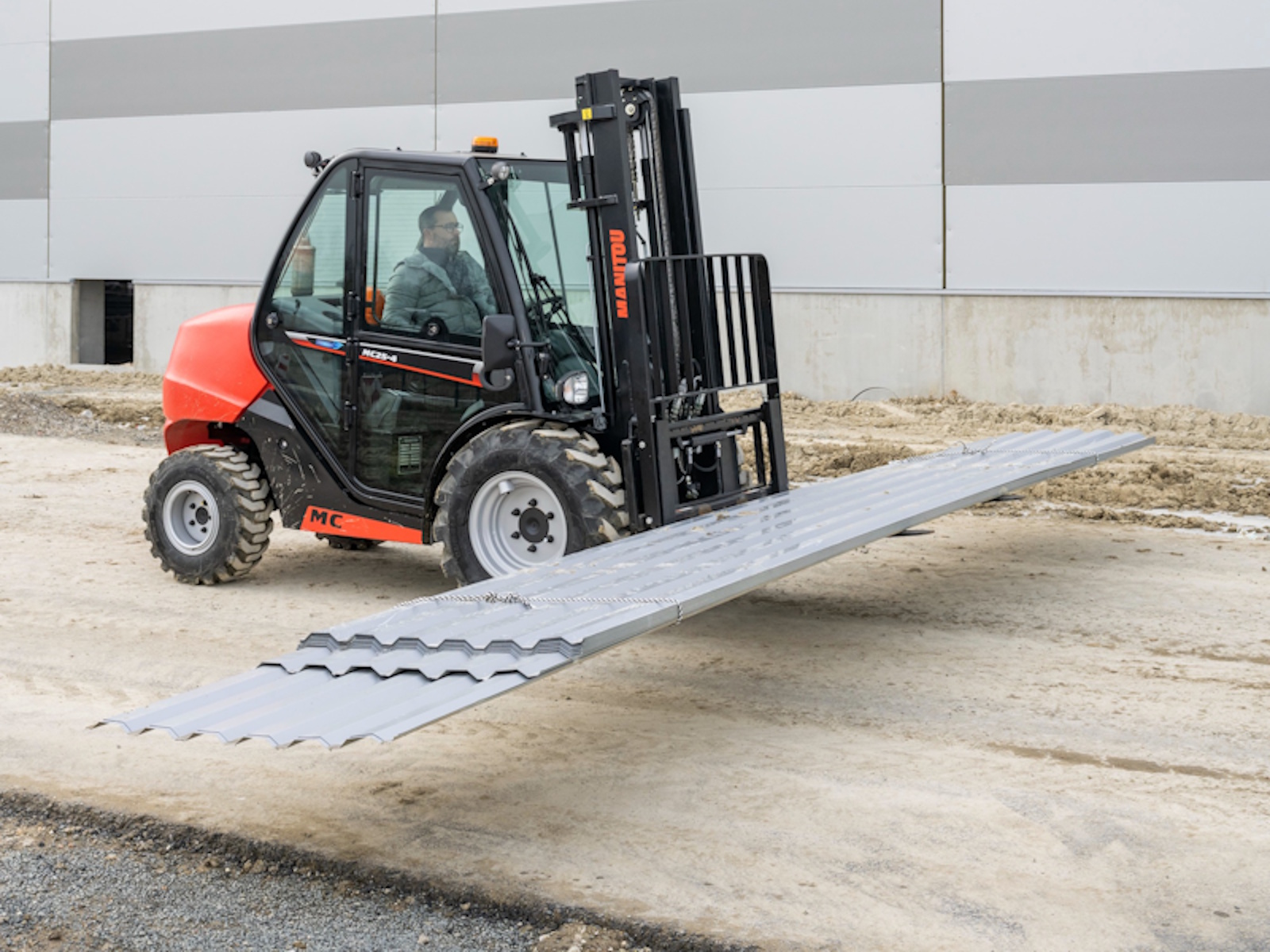

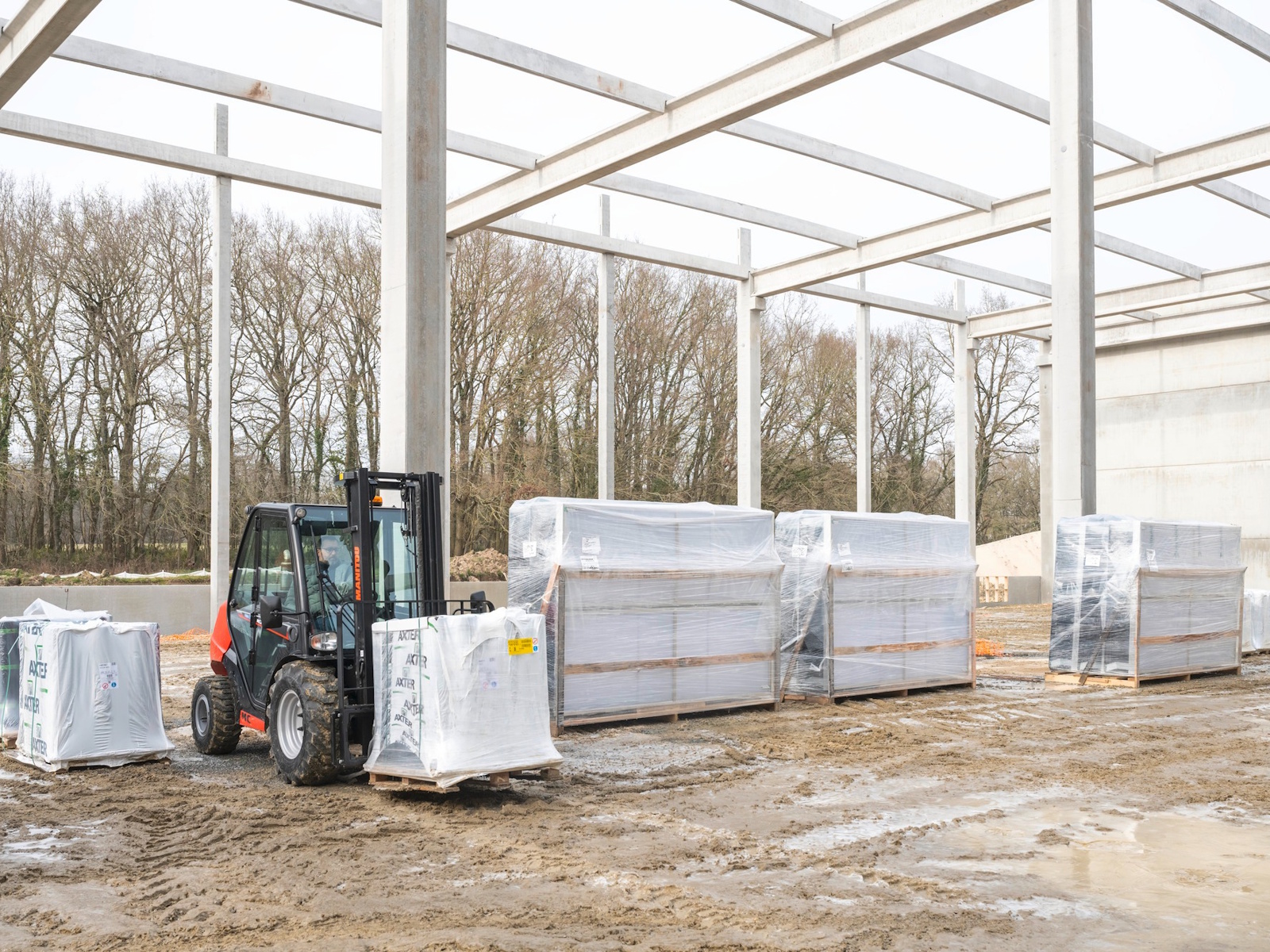

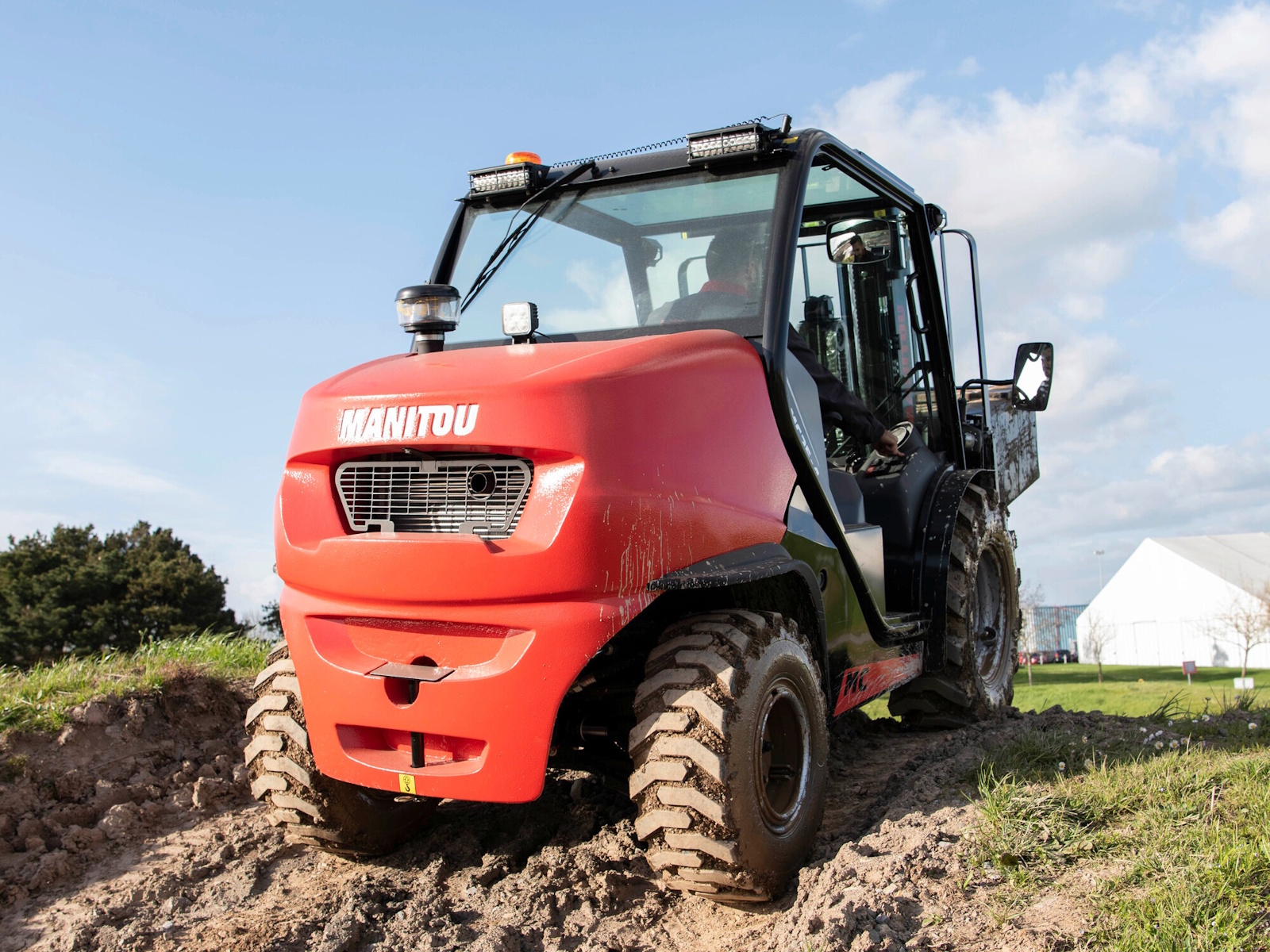

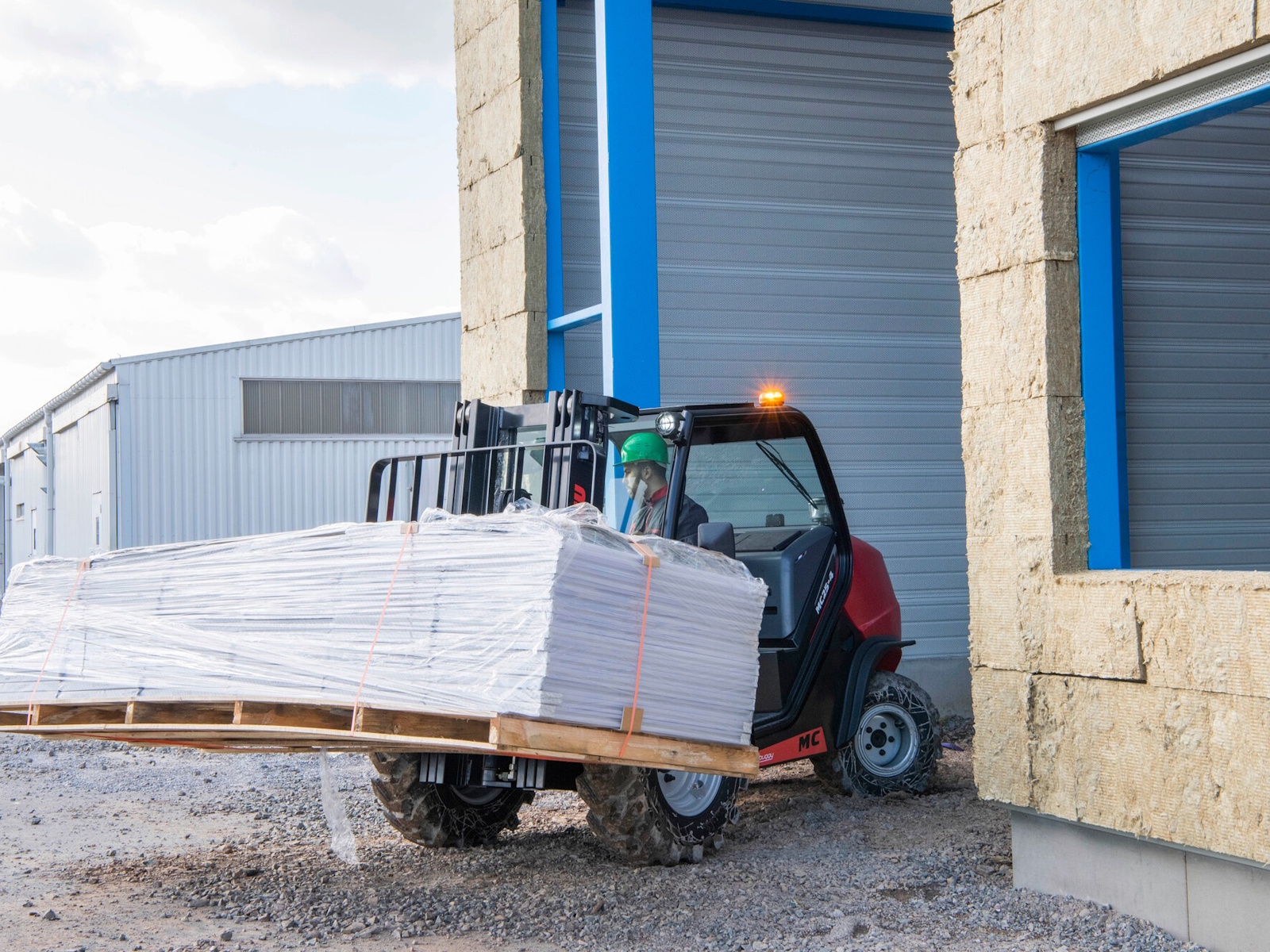

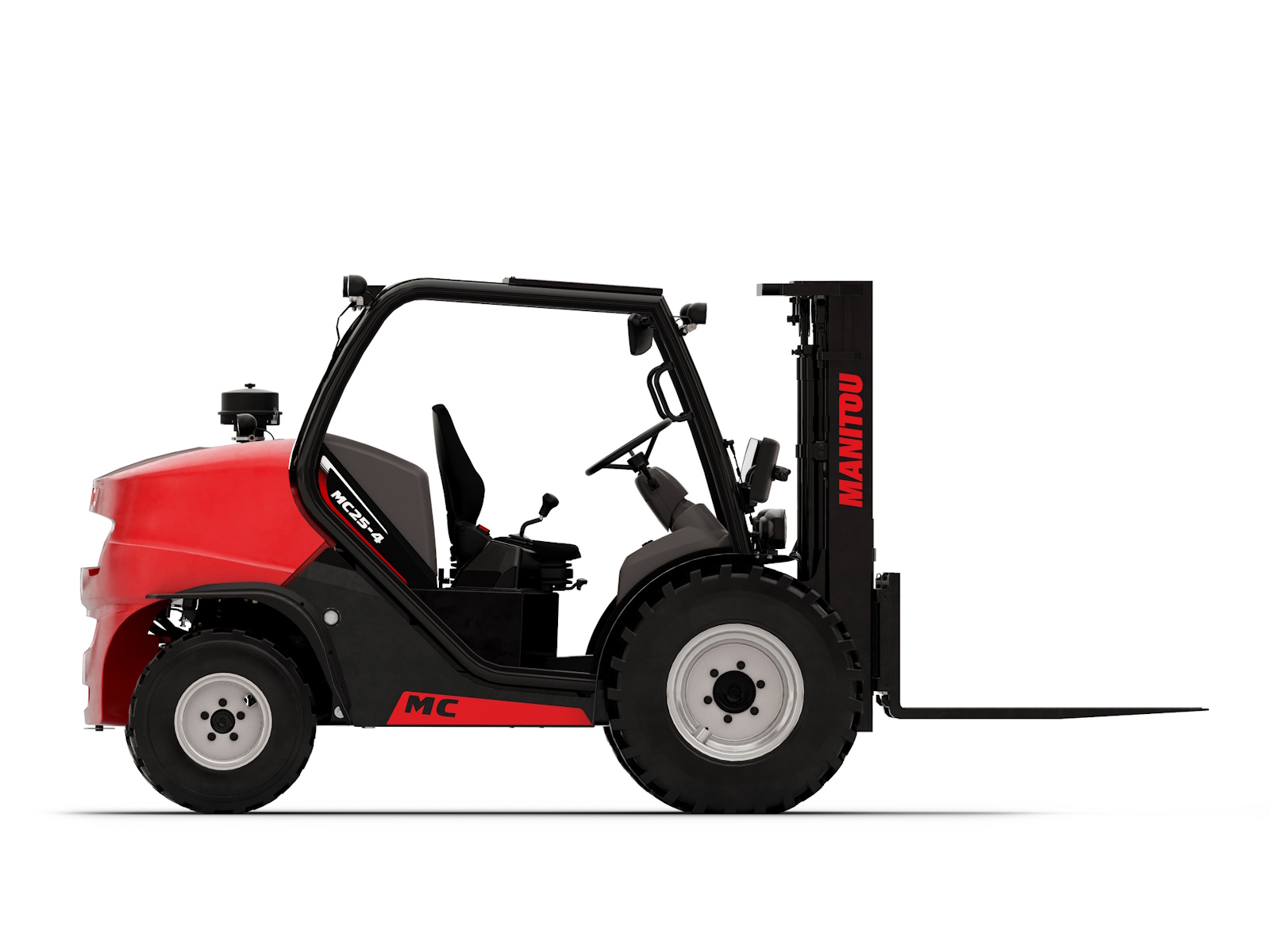

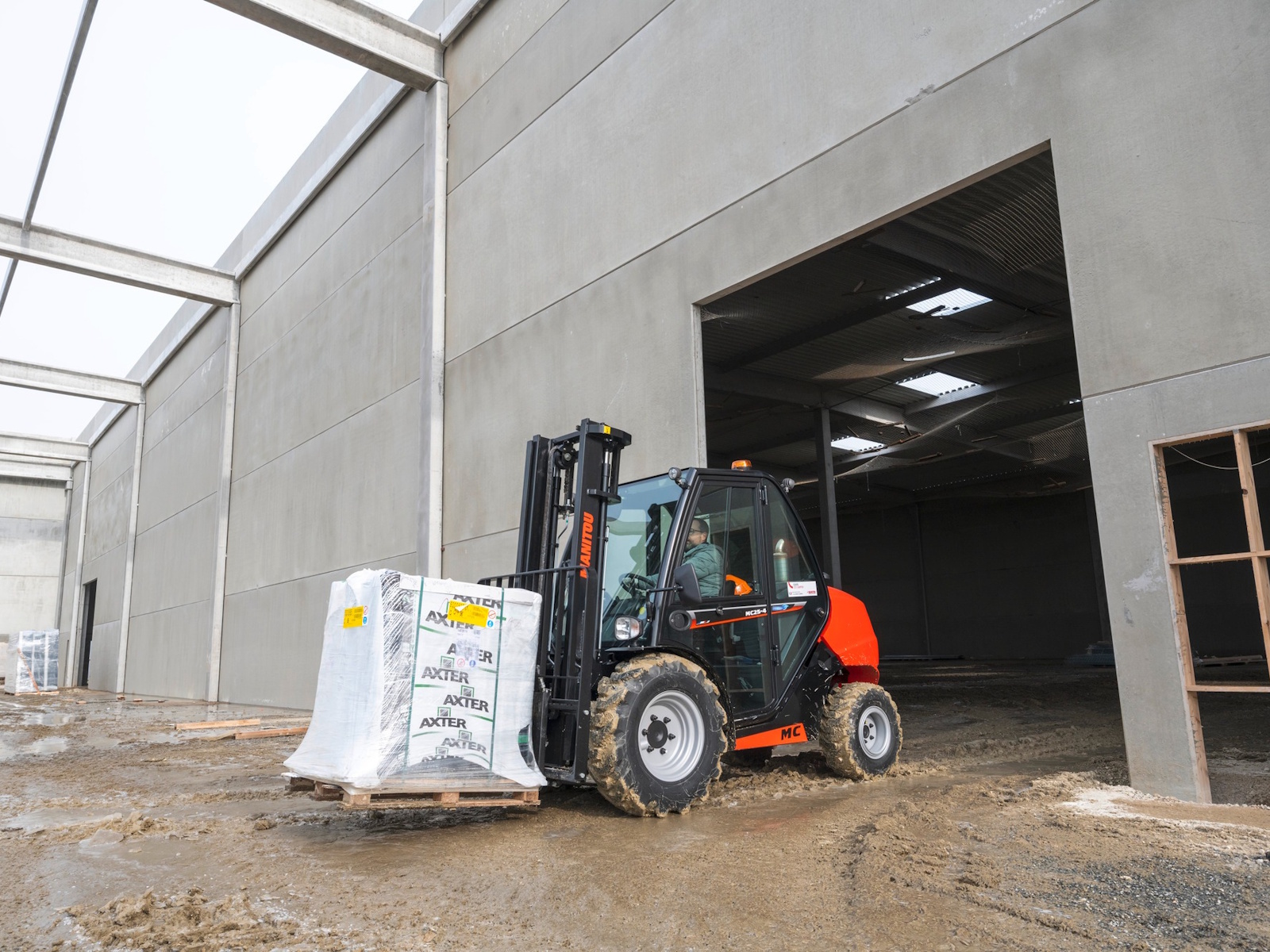

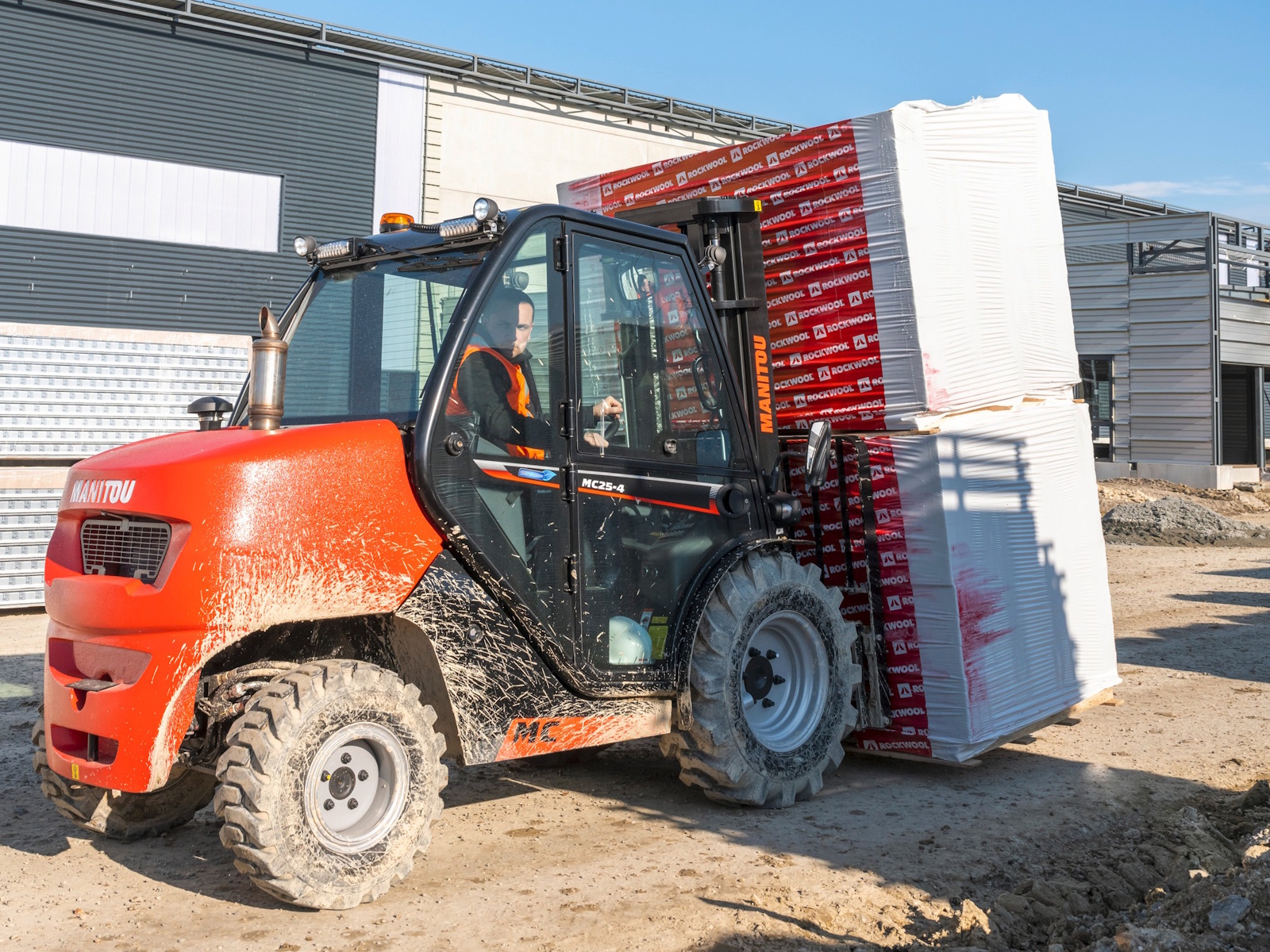

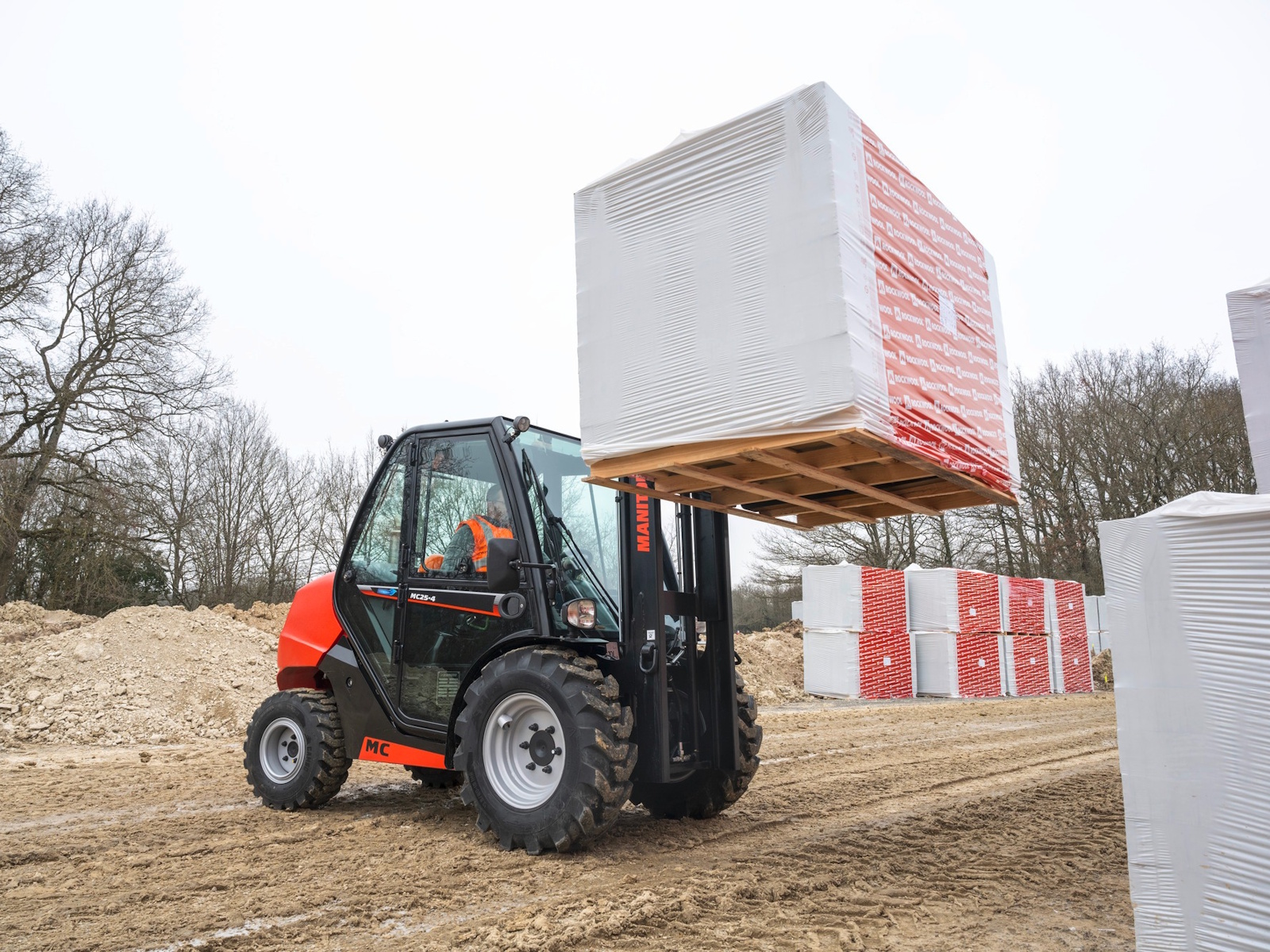

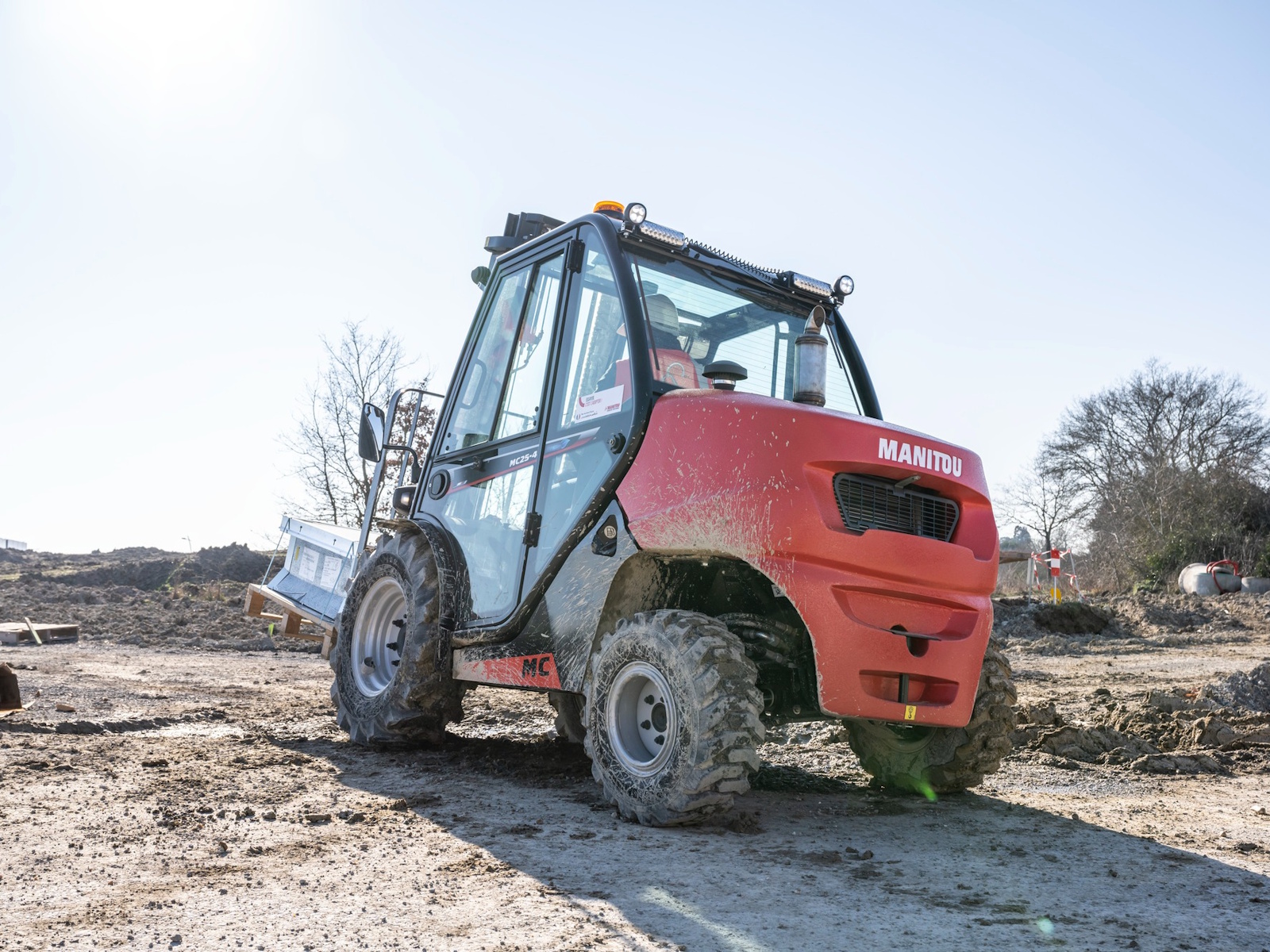

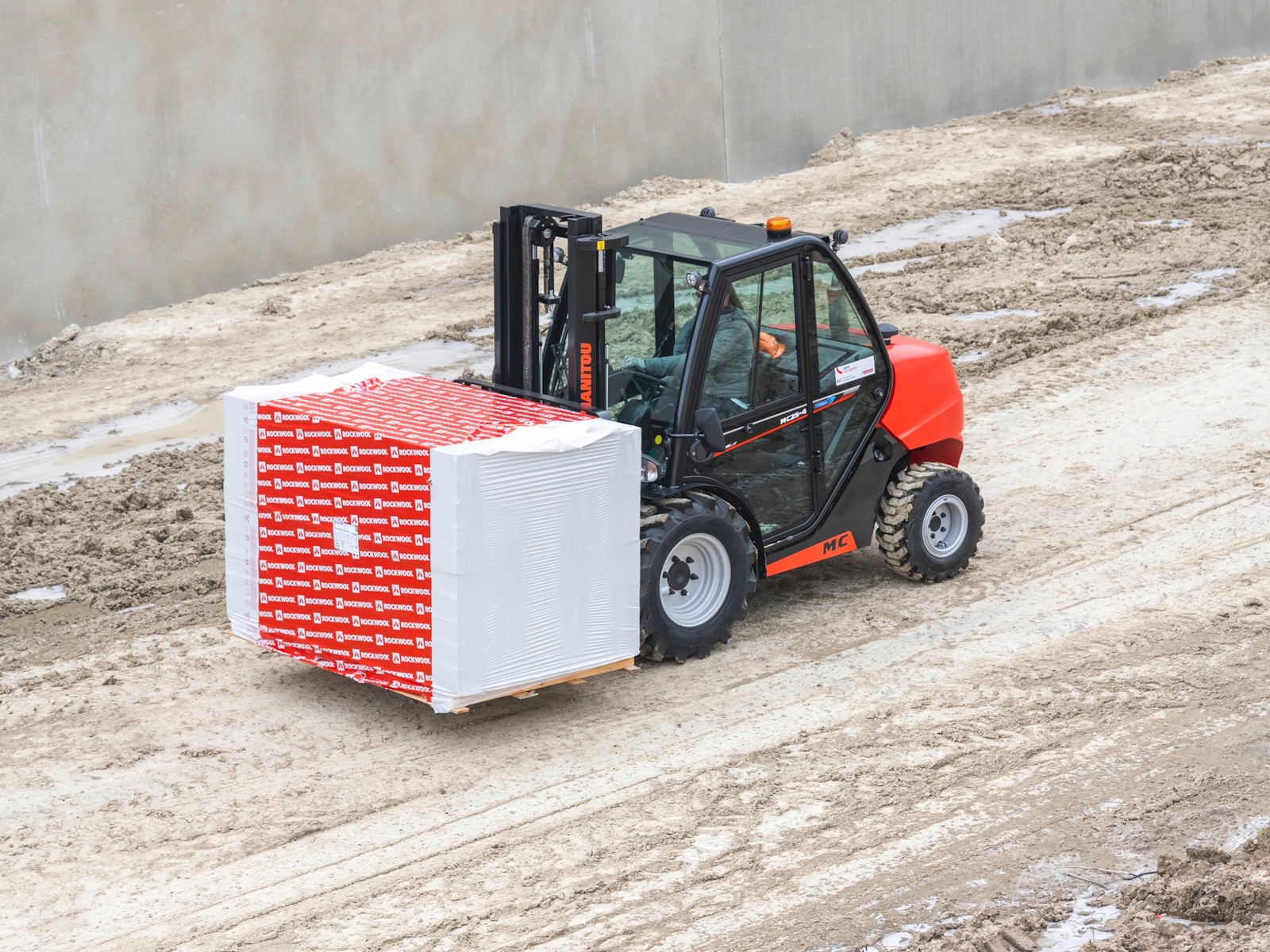

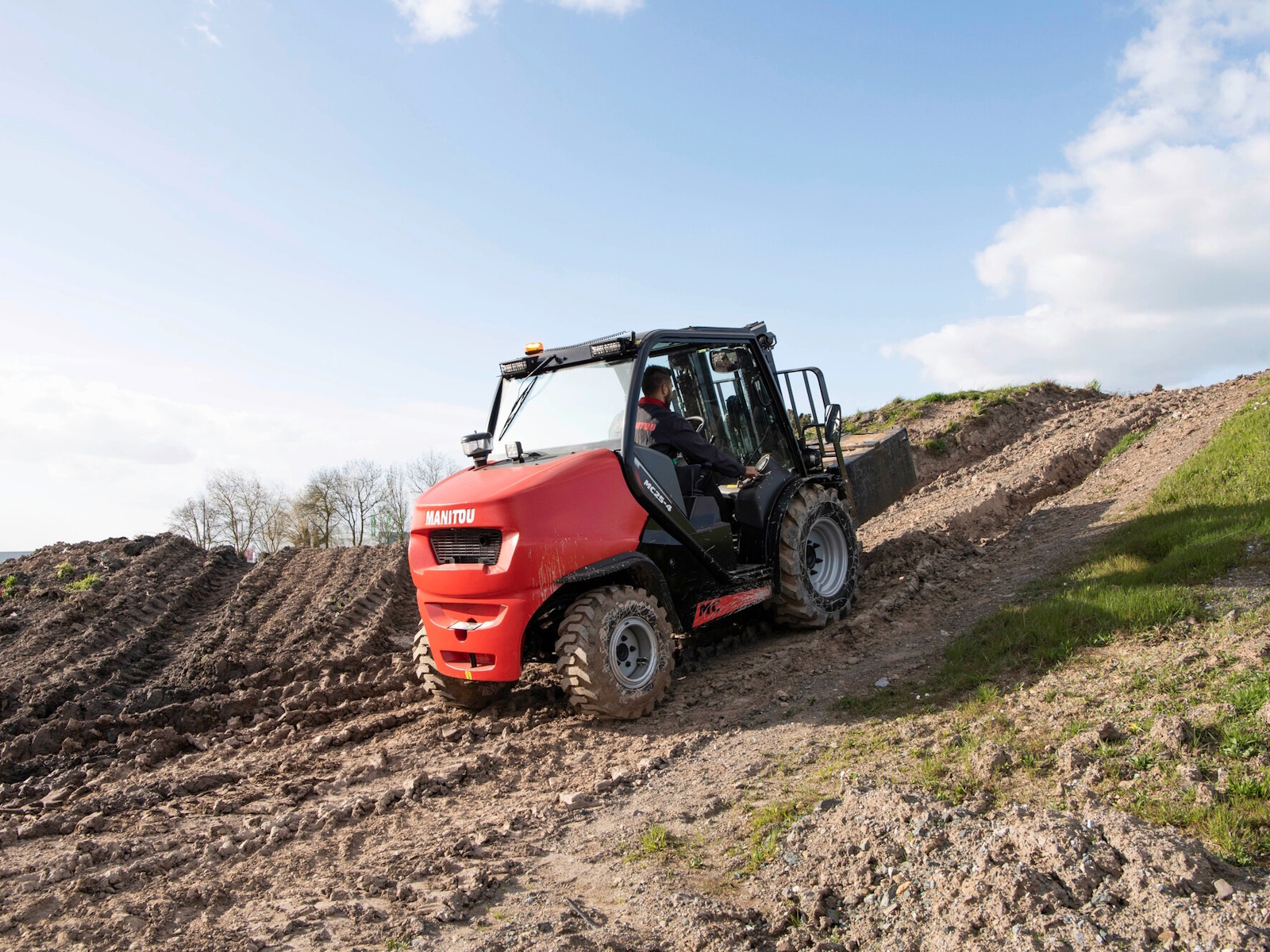

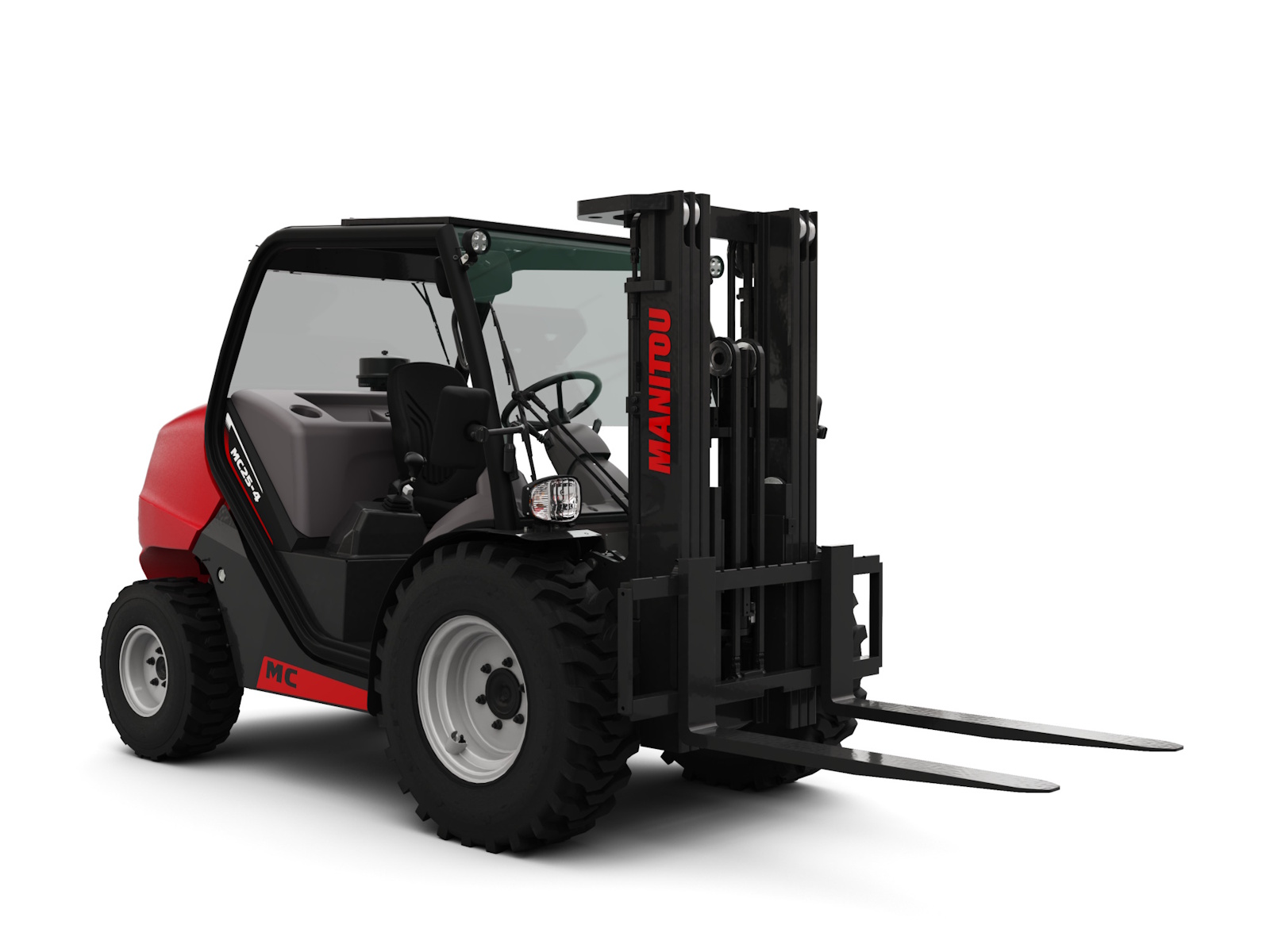

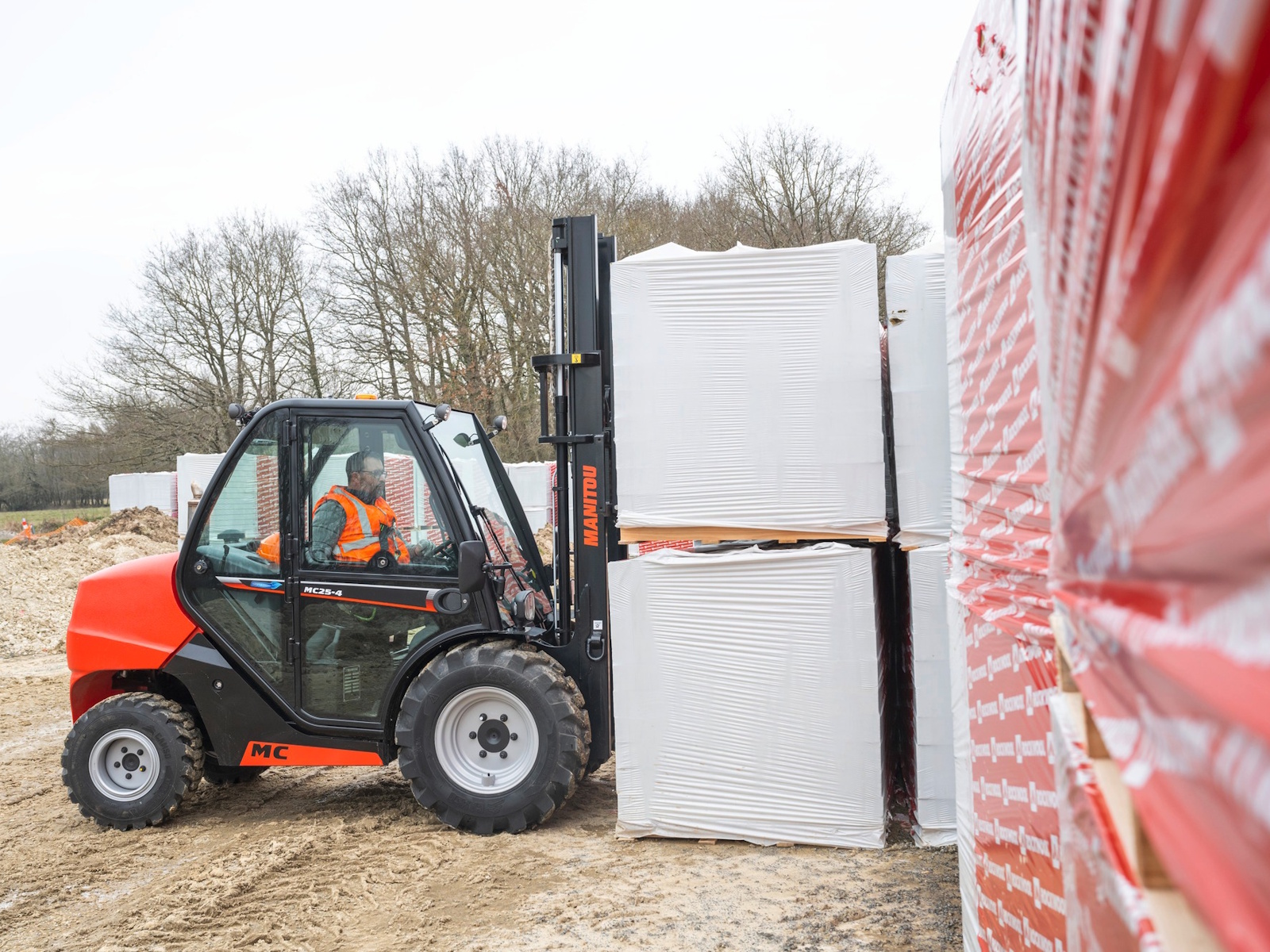

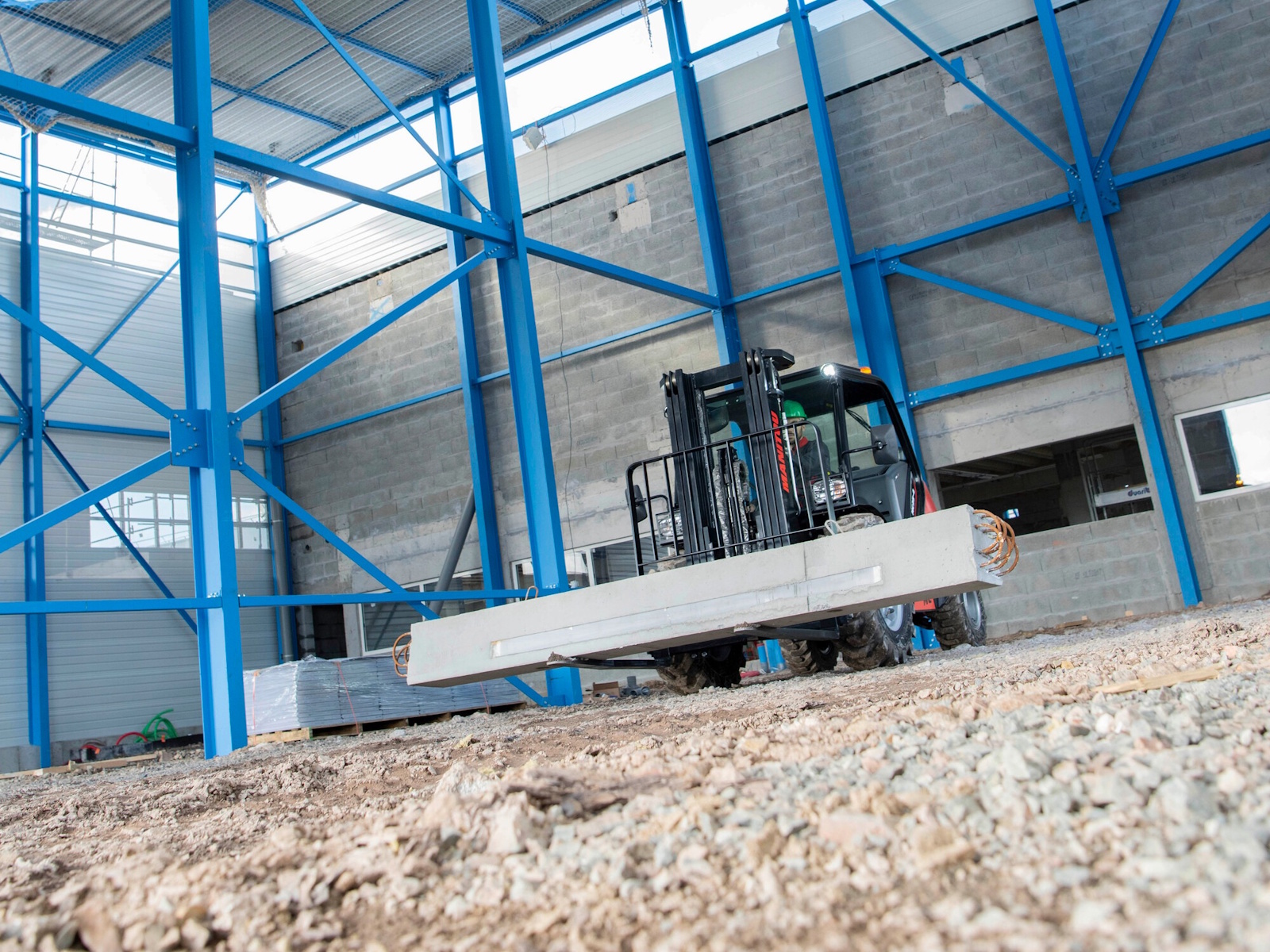

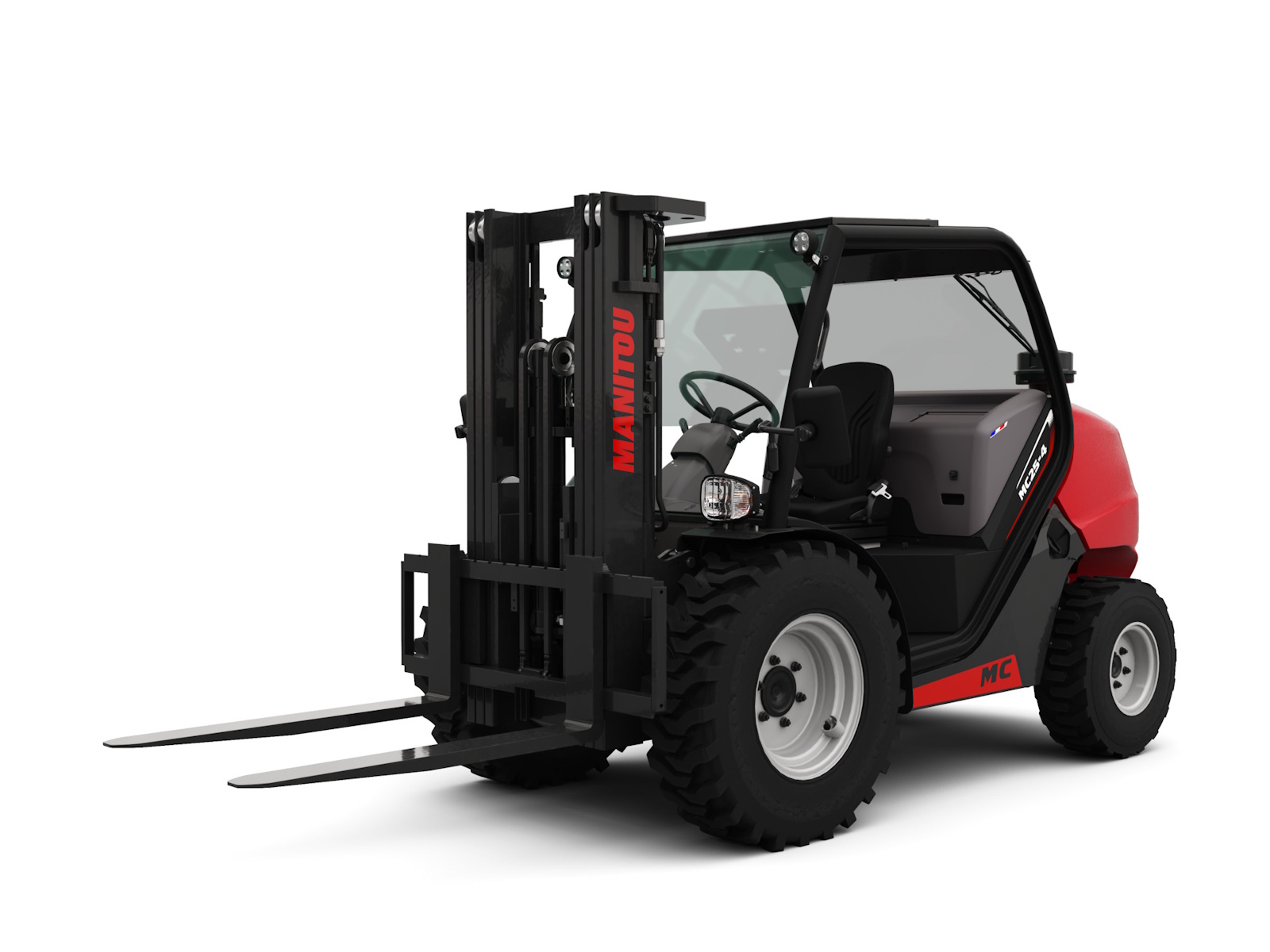

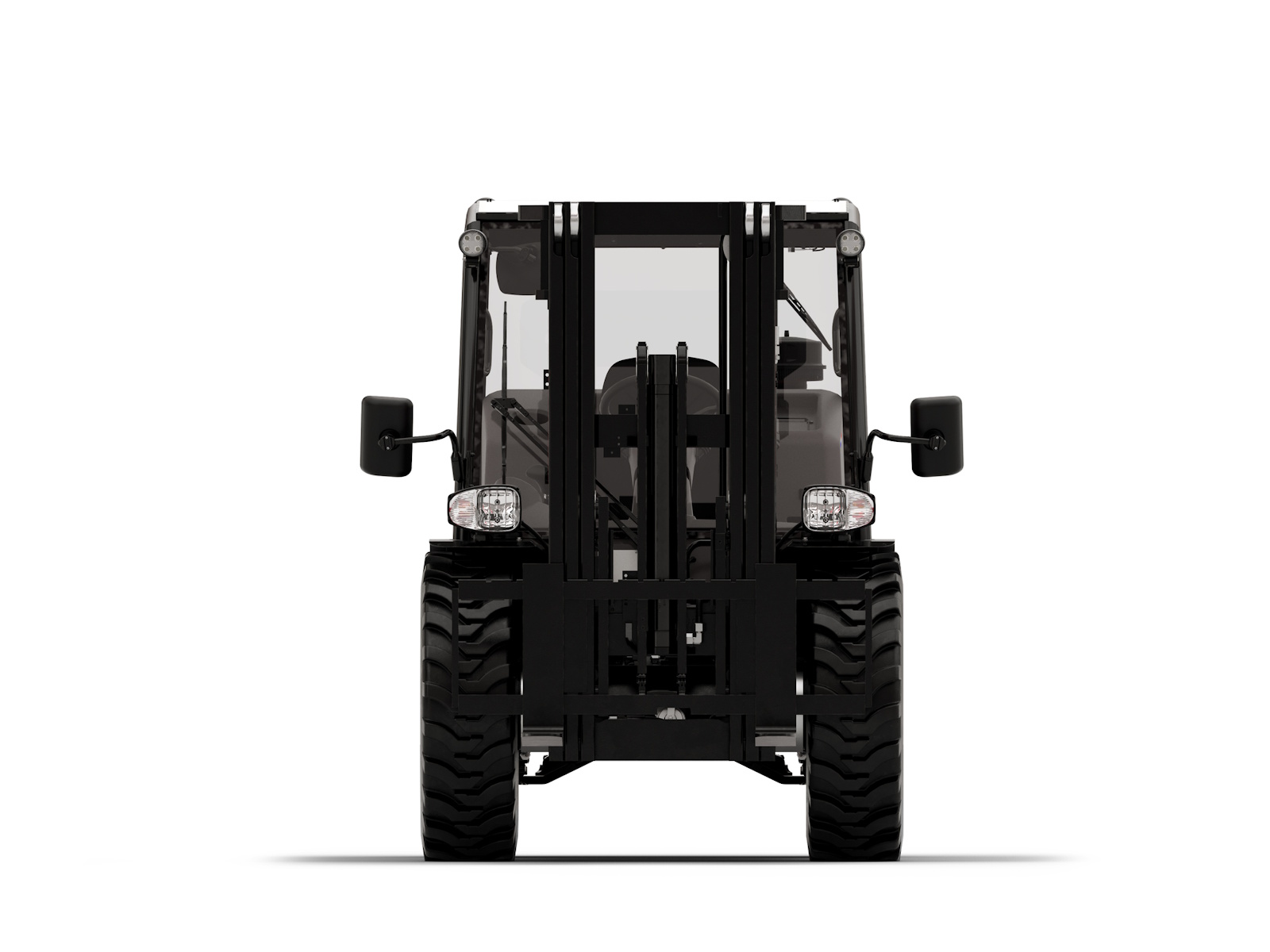

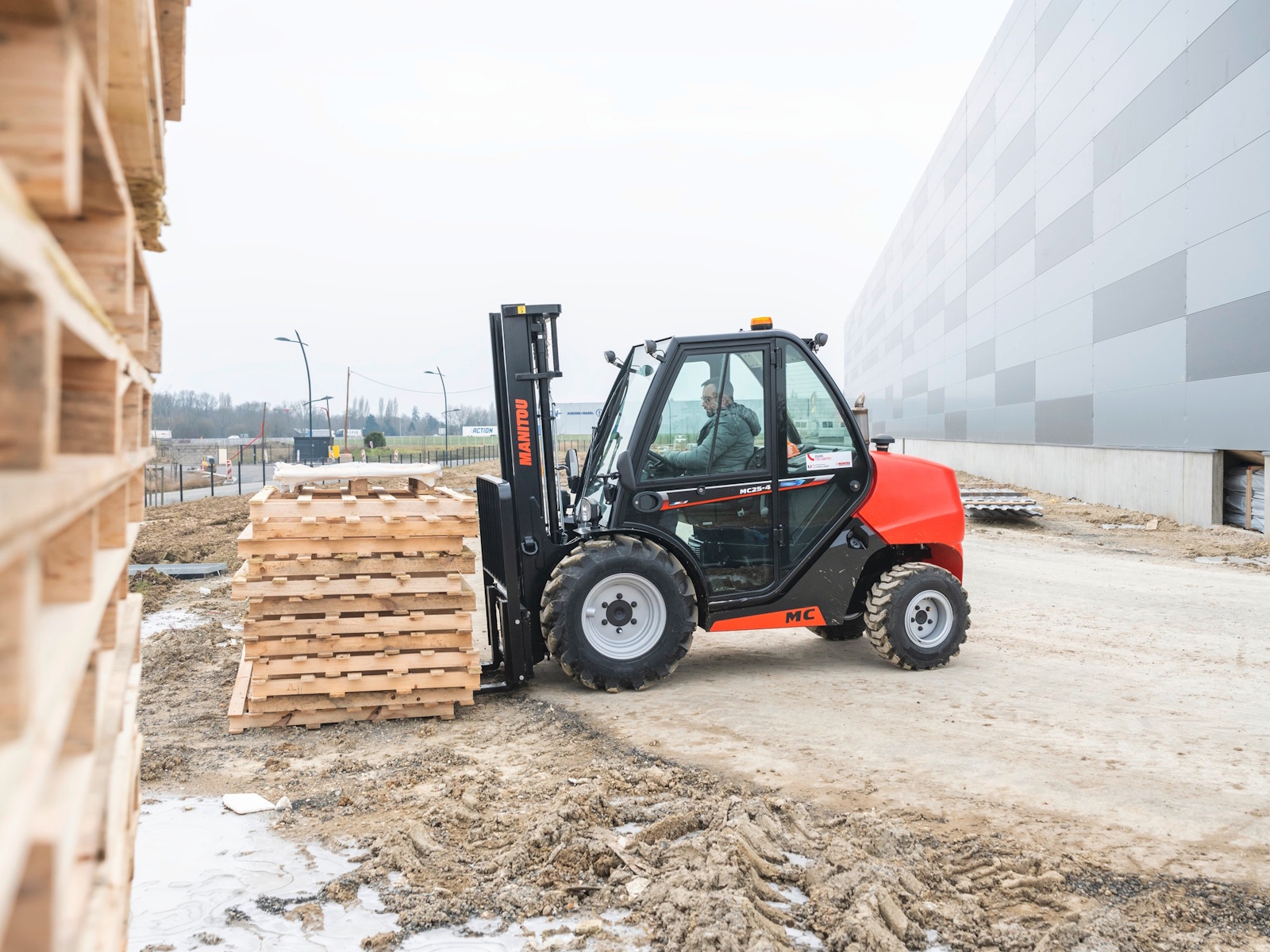

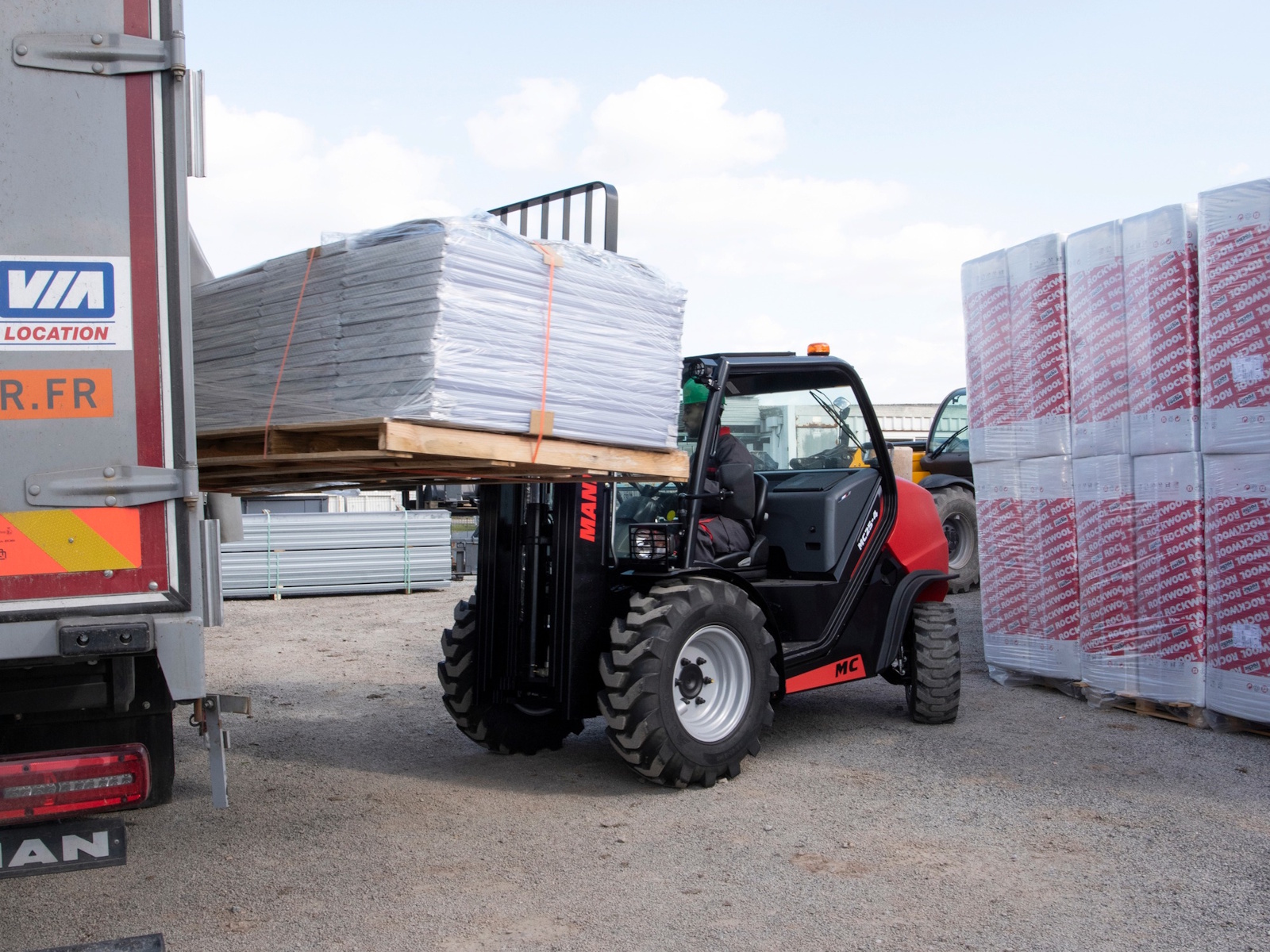

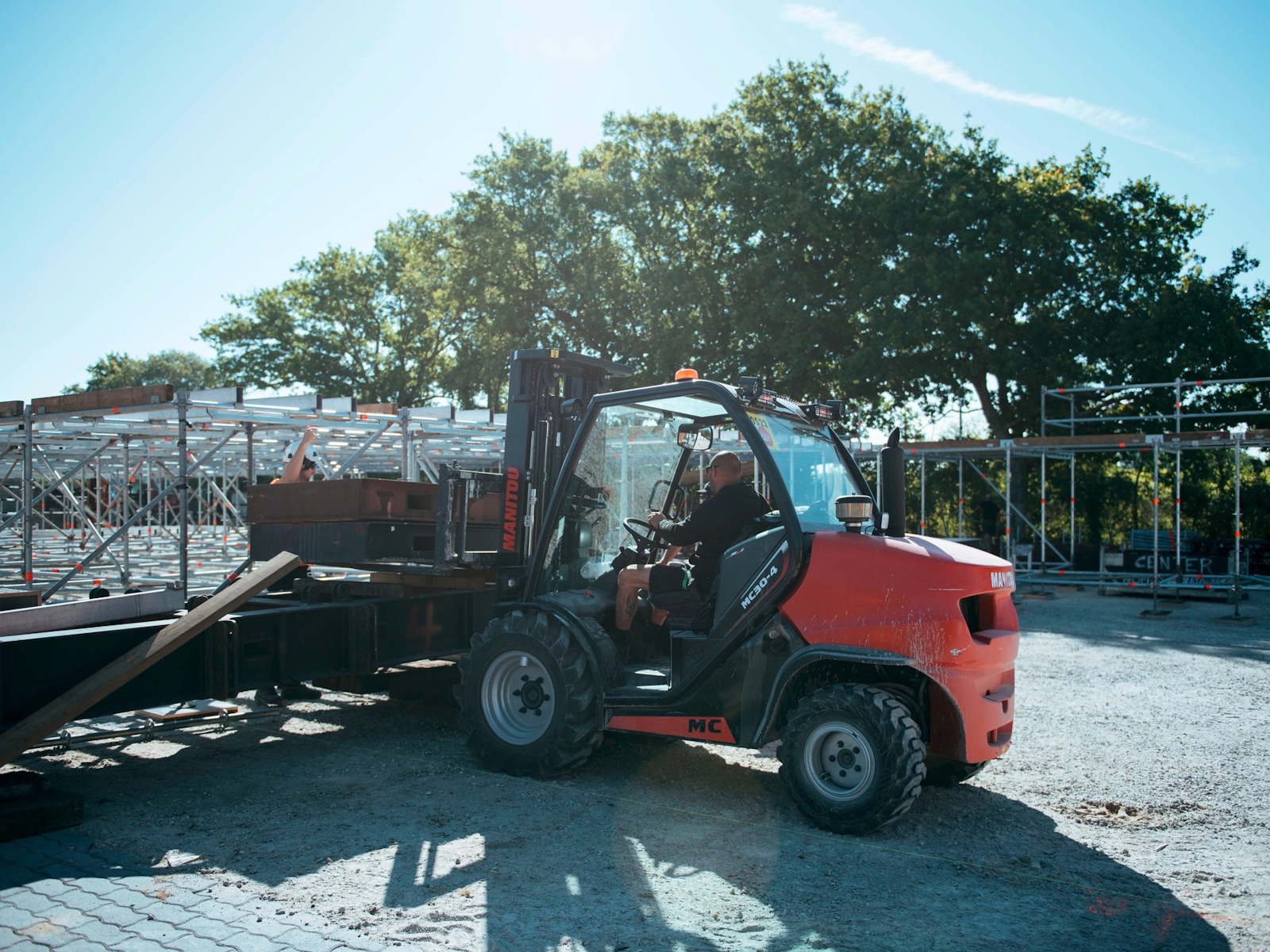

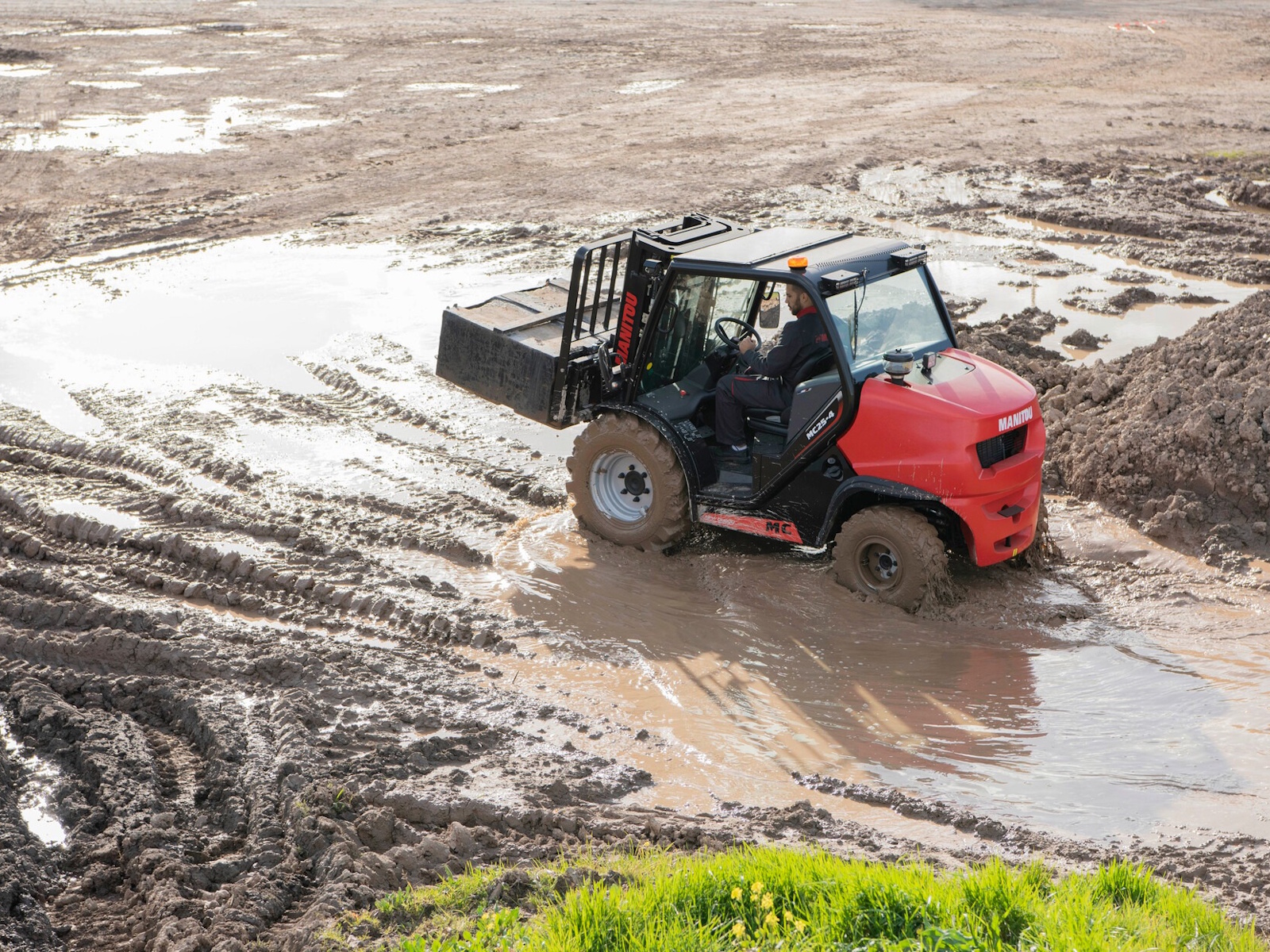

Discover the performance of the MC 25-4 Manitou, the world's best-selling compact all-terrain forklift. Offering an excellent crossing capacity, this particularly compact model is the machine you need to handle heavy loads (up to 2500 kg), even in the most confined areas of your operation or construction site. Its buggy version and its free lift triplex mast allow an overall height of less than 2m to work in basements and containers. The MC trucks designed by Manitou have a large ground clearance, an oscillating rear axle and a mast directly attached to the chassis. Optimize your transport and loading operations whatever your environment!
Info
Industry
Agriculture
Make
Manitou Group
Model
MC 25-4 ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Diesel
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 24 in | Standard mast reference of the machine: FVD 33 | Forks section x width x length 2 in x 4 in / 47 in | Fork carriage ISO 2328 (class/form) A/B: 2A | Travel speed (laden / unladen): 7 mph / 15 mph | Lifting speed (laden / unladen): 2 ft/s / 2 ft/s | Lowering speed (laden / unladen): 2 ft/s / 0.98 ft/s | Drawbar pull (Laden): 3100 daN | Gradeability (laden): 51 % | Rated speed: 2700 rpm | Type of drive control: Electronic | Working hydraulic pressure for attachments: 2901 PSI | Oil flow rate for attachments: 11 US gpm
Load Capacity
5512 lb
Wheelbase
75 in
Weight
Service weight: 9458 lb | Weight on front axle (laden) / rear axle (laden): 13162 lb / 1808 lb
Tires
Pneumatic
Wheels
Dimensions of front wheels: 12,5/80-18/12 SL R4 | Dimensions of rear wheels: 27x10-12 SKS | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 4 | Front wheel gauge: 46 in | Rear wheel gauge: 46 in
Height
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version): 85 in / 78 in | Seat height/stand height: 43 in
Length
165 in | Length to face of forks: 120 in
Width
57 in | Fork carriage width: 50 in
Ground Clearance
Ground clearance below mast: 12 in | Ground clearance at centre of wheelbase: 12 in
Turning Radius
134 in
Brakes
Service brake: Hydraulic brakes by loss of pressure
Transmission
Hydrostatic
Engine
Kubota / D1803 CRT E5B / Stage V
Power/Horsepower
50 Hp/37 kW
Cylinders
3 - 111 in³
