2026 Manitou Group ME 316 US

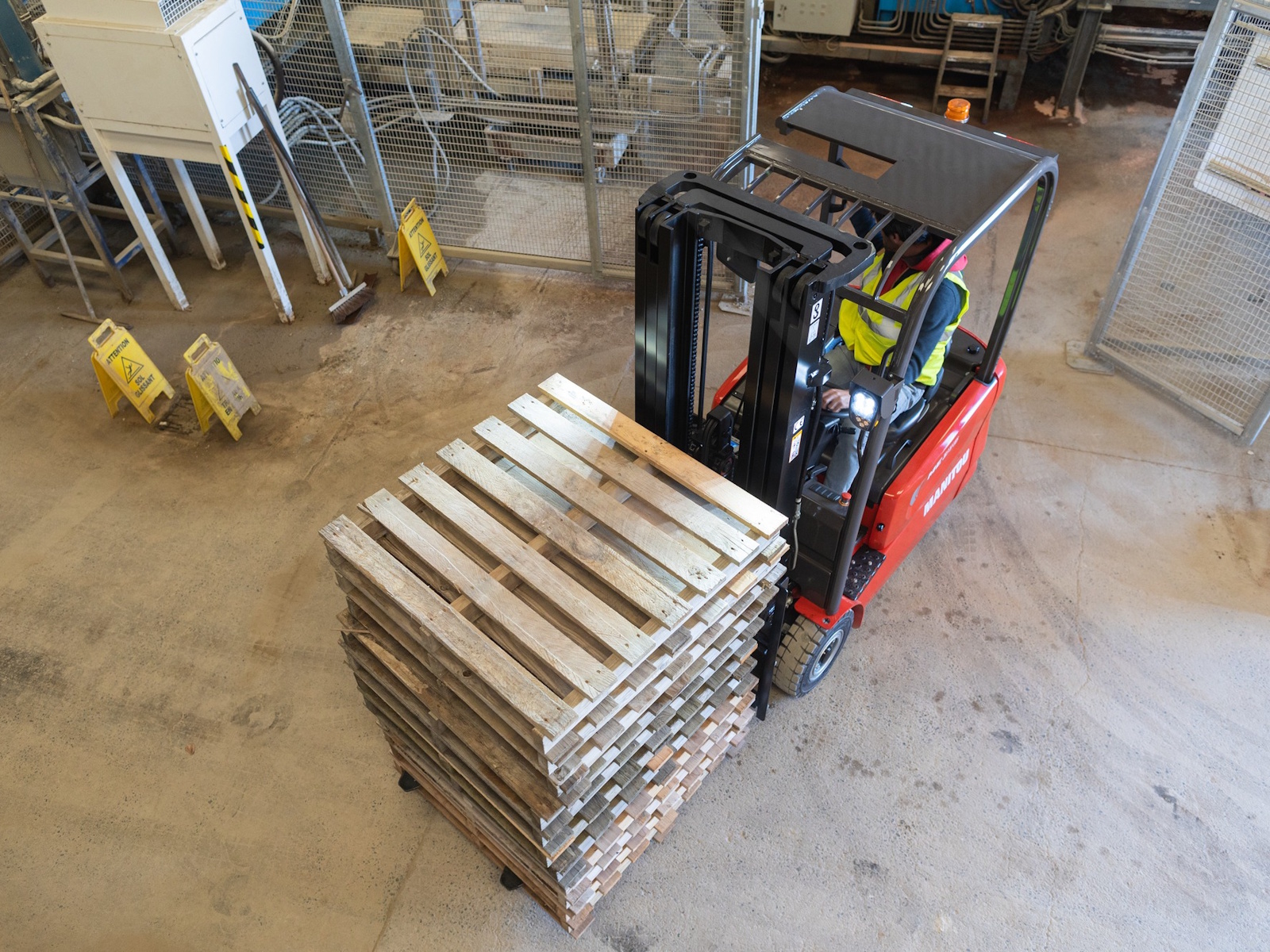

Discover the performance of the ME 316 forklift truck. Electric, this machine allows you to carry out all your handling operations. Truck loading / unloading, storage, feeding of production lines, warehousing ... Facilitate the transport of your goods and materials! The ME 316 can lift loads up to 1600 kg. Take advantage of its great versatility in daily use, its compact design and its optimal residual capacities at high heights!
Info
Industry
Agriculture
Make
Manitou Group
Model
ME 316 US
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Electrical - Lead
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 14 in | Forks section / width / length: 1 in x 4 in x 42 in | Fork carriage ISO 2328 (class/form) A/B: 2A | Travel speed (laden / unladen): 10 mph-11 mph | Lifting speed (laden / unladen): 1 ft/s-2 ft/s | Lowering speed (laden / unladen): 2 ft/s-1 ft/s | Drawbar pull (Laden / Unladen): 750 daN / 772 daN | Gradeability (laden / unladen): 16 % / 18 % | Number of drive motor / Drive motor rating S2 60 min: 2 / 4.50 kW | Lift motor rating at S3 15%: 8.60 kW | Battery according to DIN 43531/35/36 A, B, C: DIN43531 A | Energy consumption according to VDI cycle (kWh/h): 4.30 kWh/h | Type of drive control: Electronic | Working hydraulic pressure for attachments: 2611 PSI | Oil flow rate for attachments: 9 US gpm | Measured/guaranteed mean noise level at the ear of the operator: < 70 dB | Sound level at the driver's ear according to DIN 12 053: 70 dB
Load Capacity
3527 lb
Wheelbase
53 in
Weight
Service weight: 6878 lb | Weight on front axle (laden) / rear axle (laden): 9039 lb / 1367 lb | Weight on front axle (Unladen) / rear axle (Unladen): 3175 lb / 3704 lb
Tires
Solid tires
Wheels
Dimensions of front wheels: 18x7-8 | Dimensions of rear wheels: 15x4,5-8 | Number of front wheels / rear wheels: 2 / 1 | Number of drive wheels: 2 | Front wheel gauge: 36 in | Rear wheel gauge: 7 in
Height
Seat height/stand height: 39 in | Height of overhead guard (cabin): 80 in | Height of towing bar (coupling height): 20 in
Length
117 in | Length to face of forks: 75 in
Width
43 in | Fork carriage width: 39 in | Aisle Width for pallets 1000 x 1200 crossways: 127 in | Aisle width for 800 x 1200 pallet lengthways: 132 in
Ground Clearance
Ground clearance below mast: 4 in | Ground clearance at centre of wheelbase: 4 in
Turning Radius
61 in
Brakes
Service brake: Oil bath
Battery
Battery voltage / capacity: 48 V / 575 Ah
