2026 Manitou Group ME 430 US

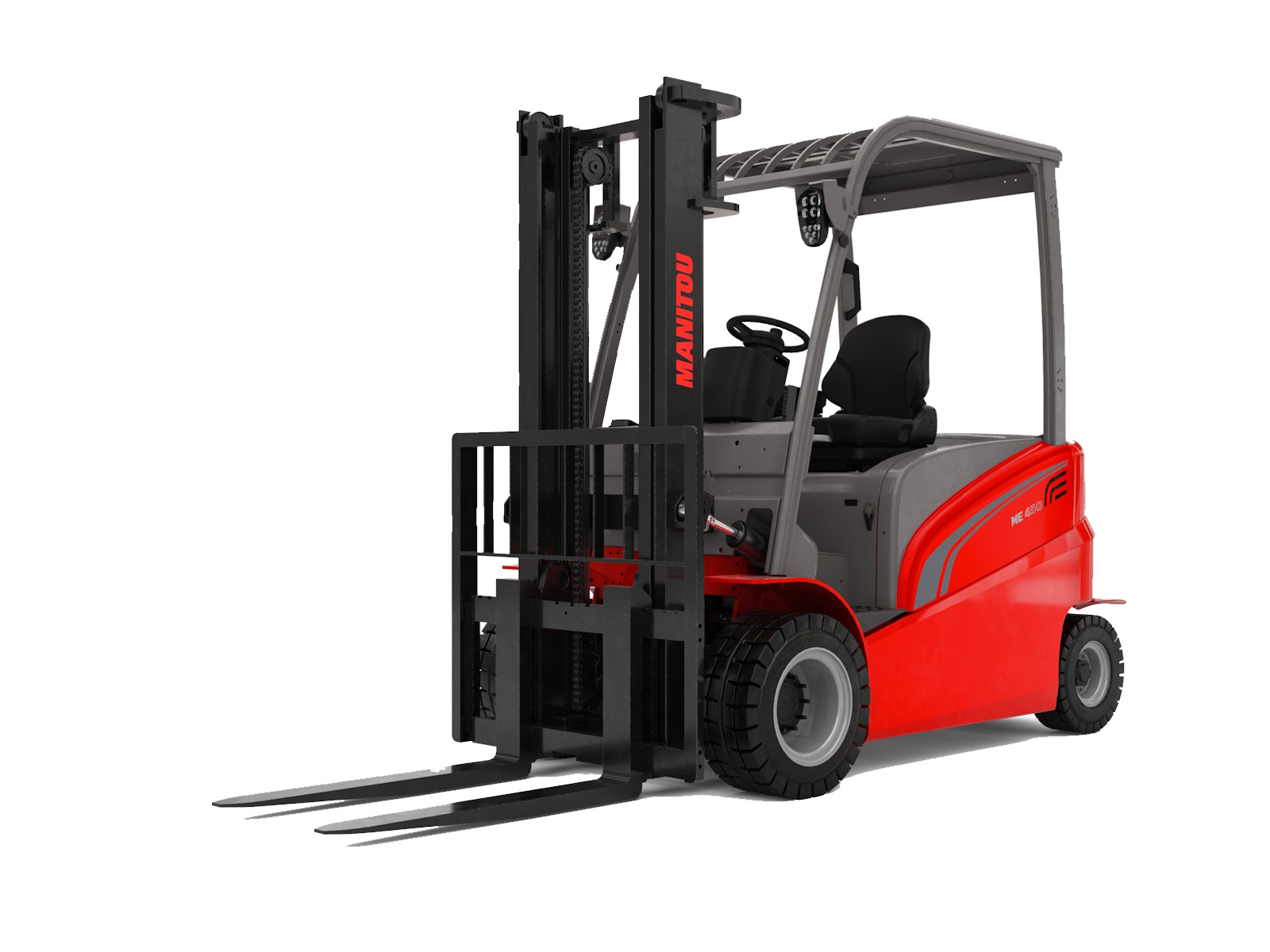

Are you looking for a handling solution that is both compact and capable of transporting heavy loads with precision? Discover the performance of the ME 430 Manitou electric forklift truck. Equipped with soft solid tires and a long-range 80 V battery, our truck meets all your requirements. Move loads weighing up to 3,000 kg and perform all your operations efficiently, even in the narrow aisles of your warehouses, logistics platforms or production sites
Info
Industry
Agriculture
Make
Manitou Group
Model
ME 430 US
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Electrical - Lead
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 18 in | Forks section / width / length: 2 in x 5 in x 45 in | Fork carriage ISO 2328 (class/form) A/B: 3A | Travel speed (laden / unladen): 12 mph-12 mph | Lifting speed (laden / unladen): 1 ft/s-2 ft/s | Lowering speed (laden / unladen): 2 ft/s-1 ft/s | Drawbar pull (Laden / Unladen): 1740 daN / 1680 daN | Gradeability (laden / unladen): 14 % / 20 % | Drive motor rating S2 60 min: 18.50 kW | Lift motor rating at S3 15%: 25.40 kW | Battery according to DIN 43531/35/36 A, B, C: DIN43536 A | Battery voltage / capacity: 80 V / 700 Ah | Energy consumption according to VDI cycle (kWh/h): 11.50 kWh/h | Type of drive control: Electronic | Working hydraulic pressure for attachments: 3046 PSI | Oil flow rate for attachments: 17 US gpm | Measured/guaranteed mean noise level at the ear of the operator: < 72 dB | Sound level at the driver's ear according to DIN 12 053: 72 dB
Load Capacity
6614 lb
Wheelbase
69 in
Weight
Service weight: 11574 lb | Weight on front axle (laden) / rear axle (laden): 16182 lb / 2161 lb | Weight on front axle (Unladen) / rear axle (Unladen): 5670 lb / 5684 lb
Tires
Solid tires
Wheels
Dimensions of front wheels: 23 x 9-10 | Dimensions of rear wheels: 18 x 7-8 | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 2 | Front wheel gauge: 42 in | Rear wheel gauge: 38 in
Height
Seat height/stand height: 47 in | Height of overhead guard (cabin): 88 in | Height of towing bar (coupling height): 25 in
Length
144 in | Length to face of forks: 98 in
Width
50 in | Fork carriage width: 43 in | Aisle Width for pallets 1000 x 1200 crossways: 159 in | Aisle width for 800 x 1200 pallet lengthways: 167 in
Ground Clearance
Ground clearance below mast: 4 in | Ground clearance at centre of wheelbase: 5 in
Turning Radius
94 in | Internal turning radius (over tyres): 29 in
Brakes
Service brake: Oil bath
