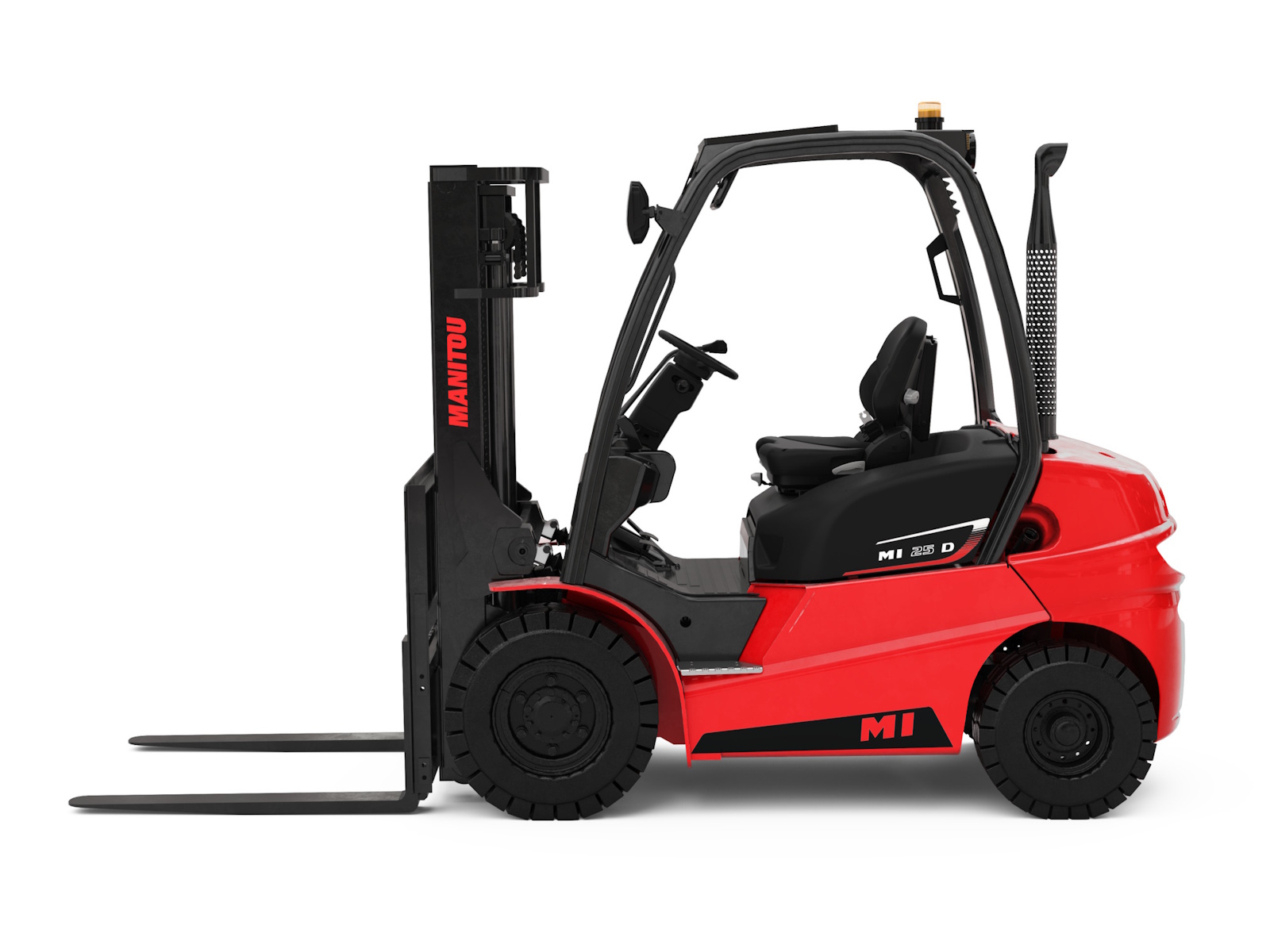

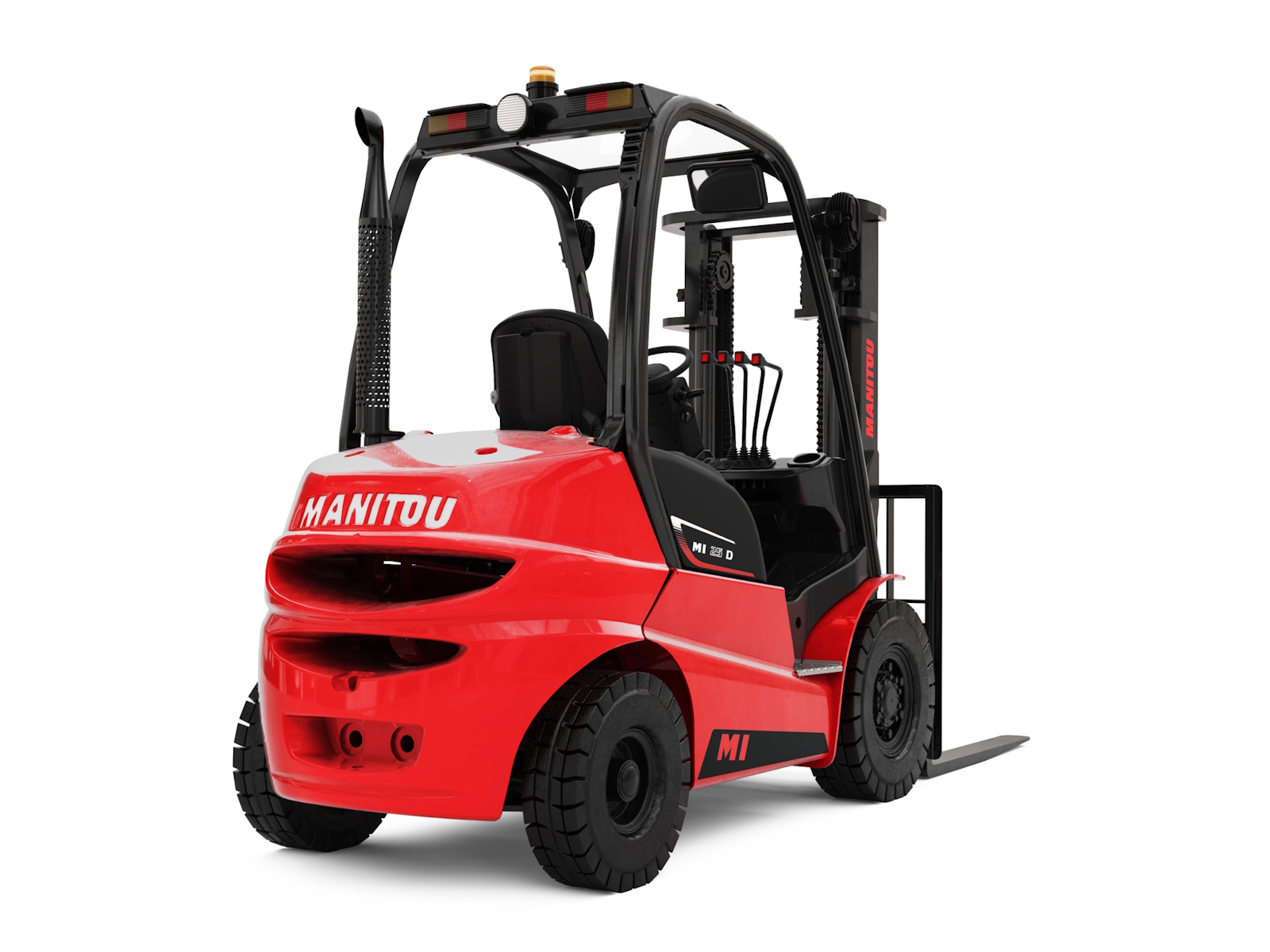

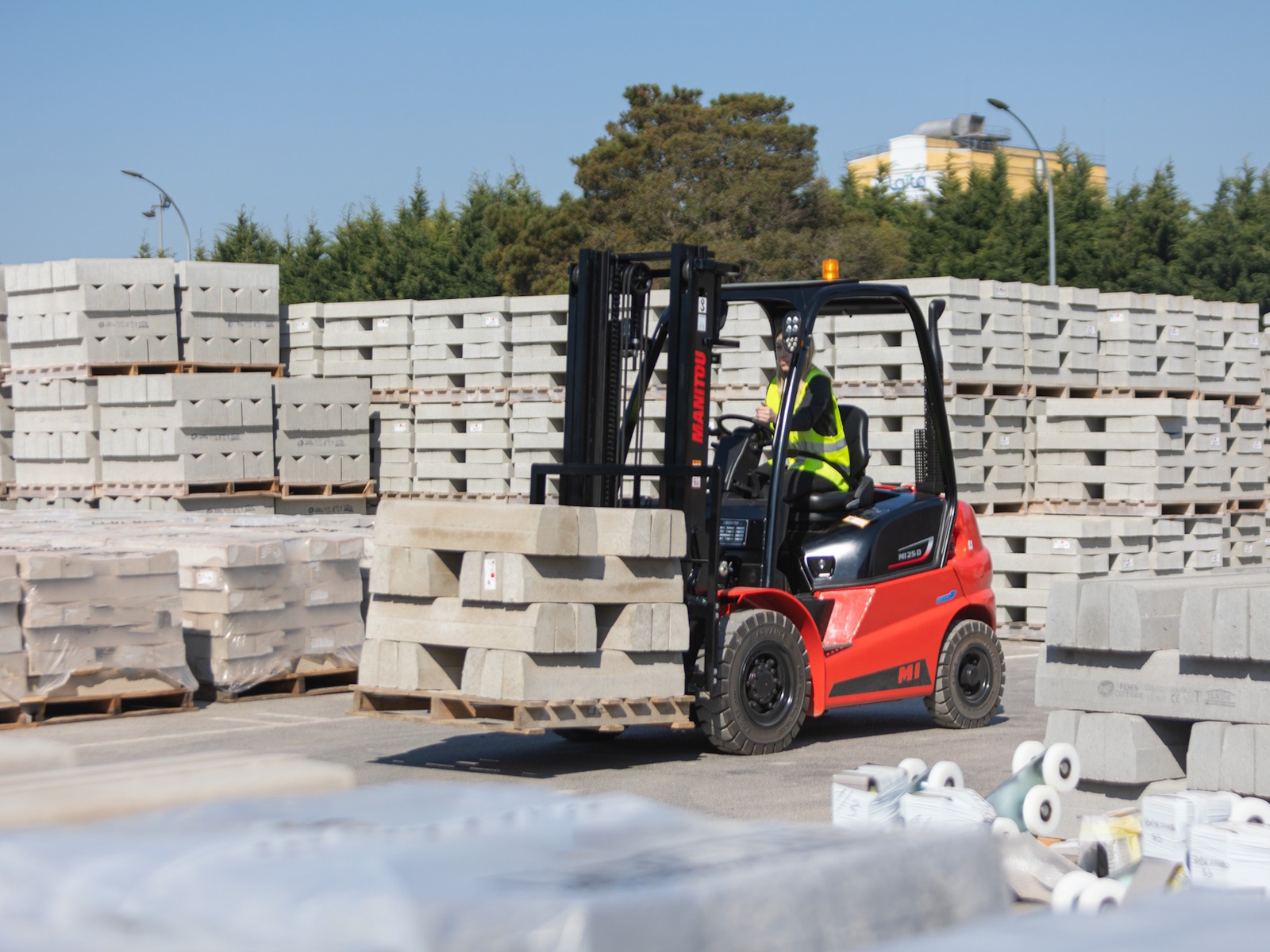

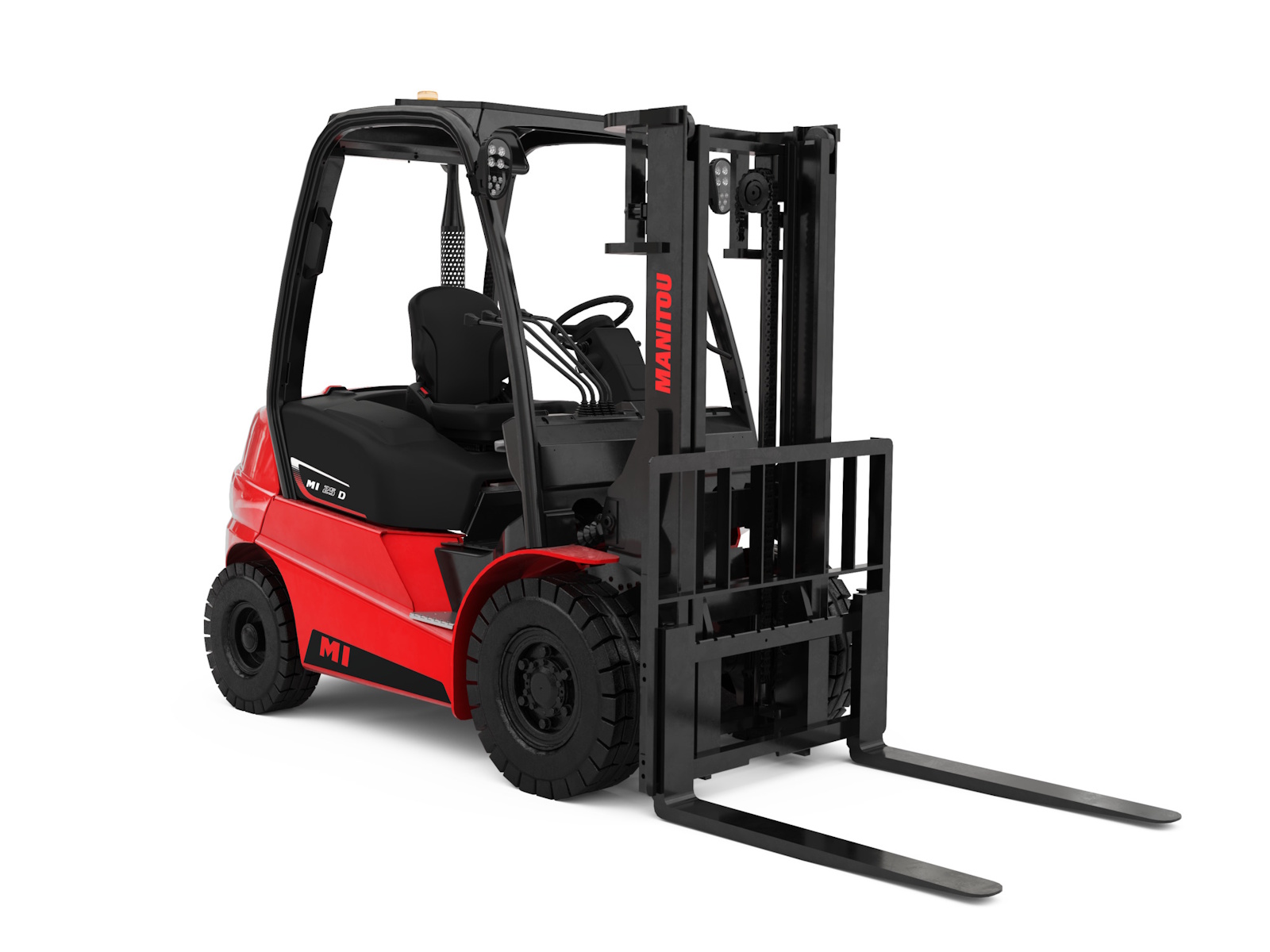

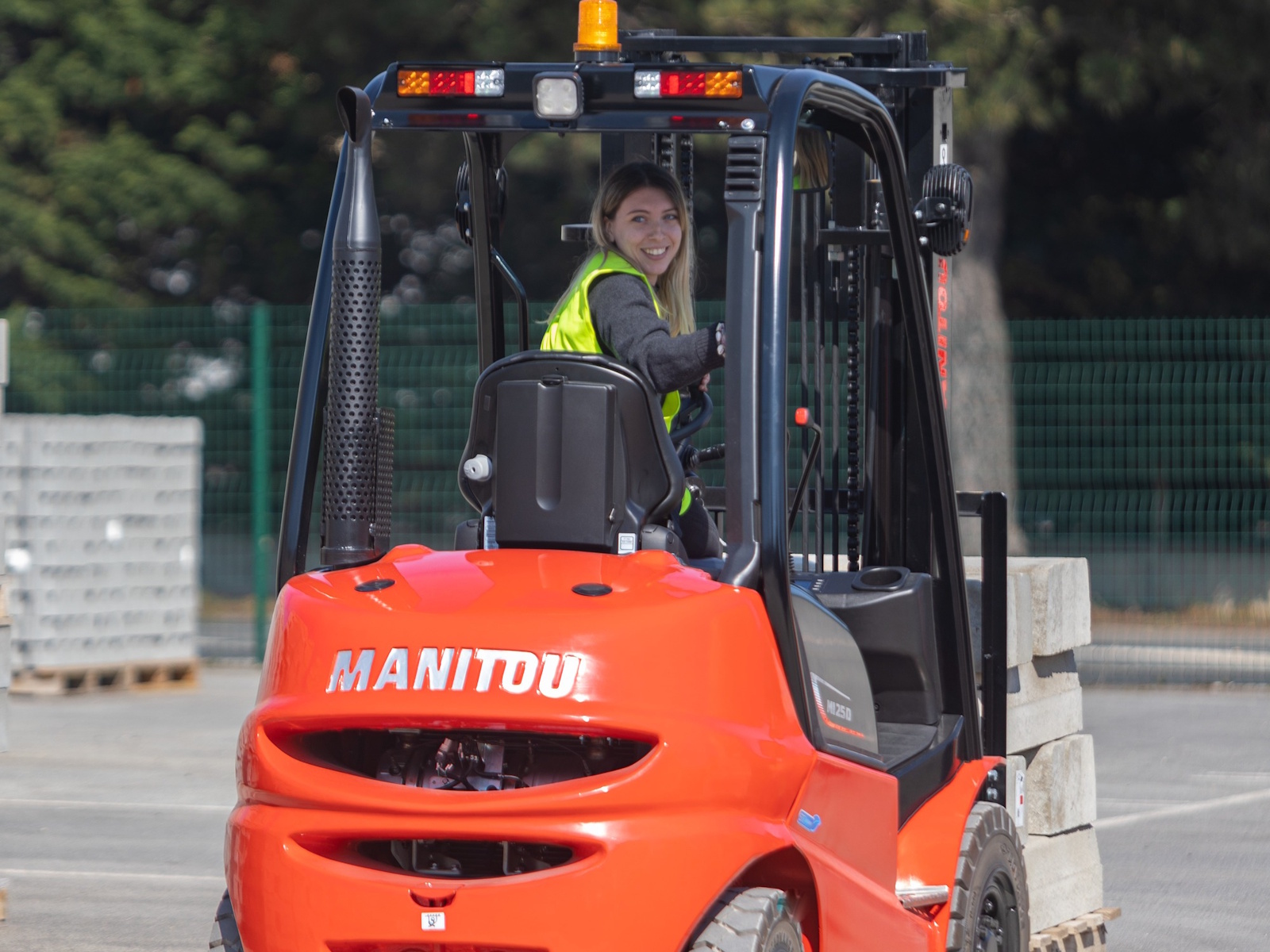

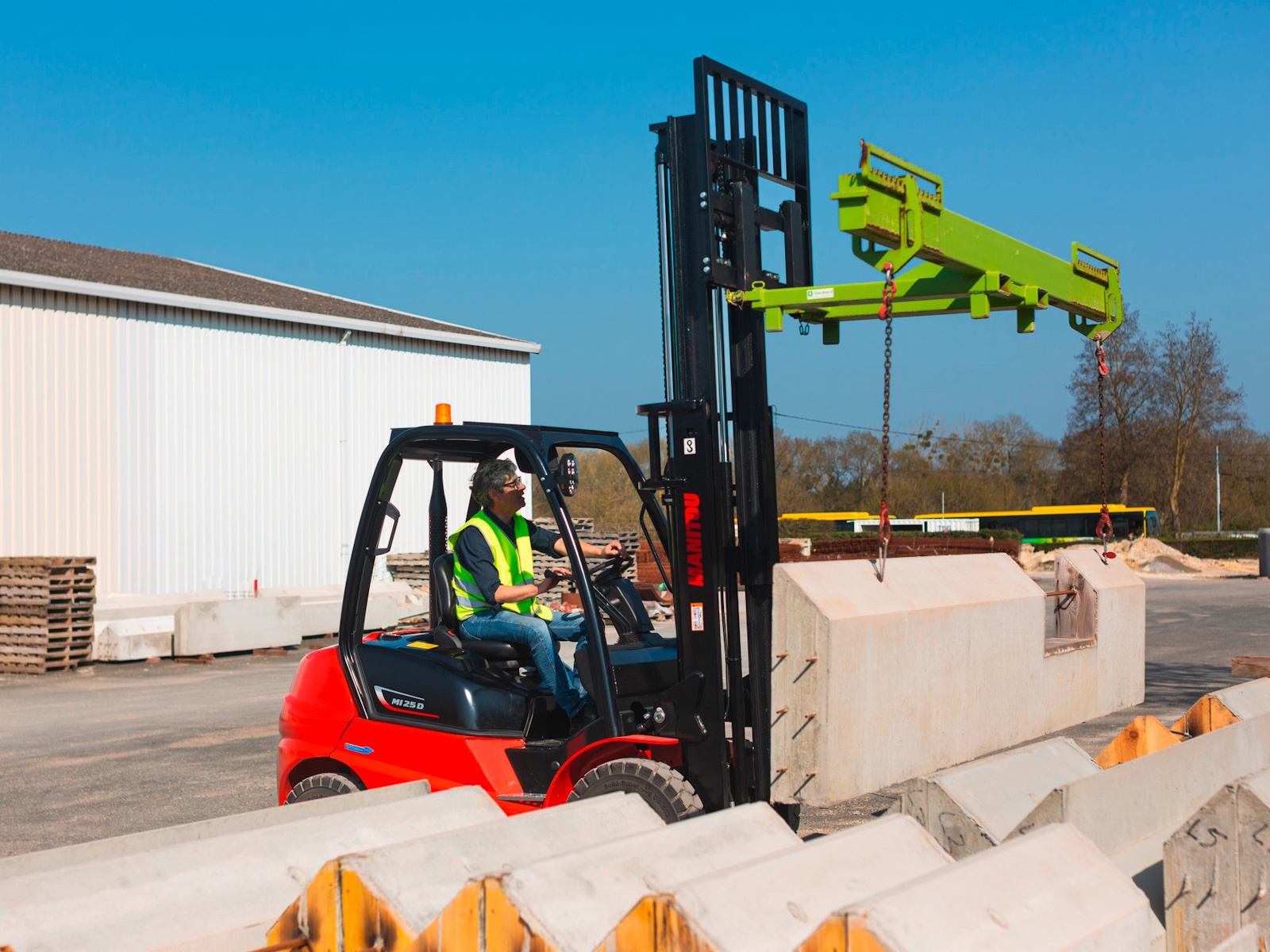

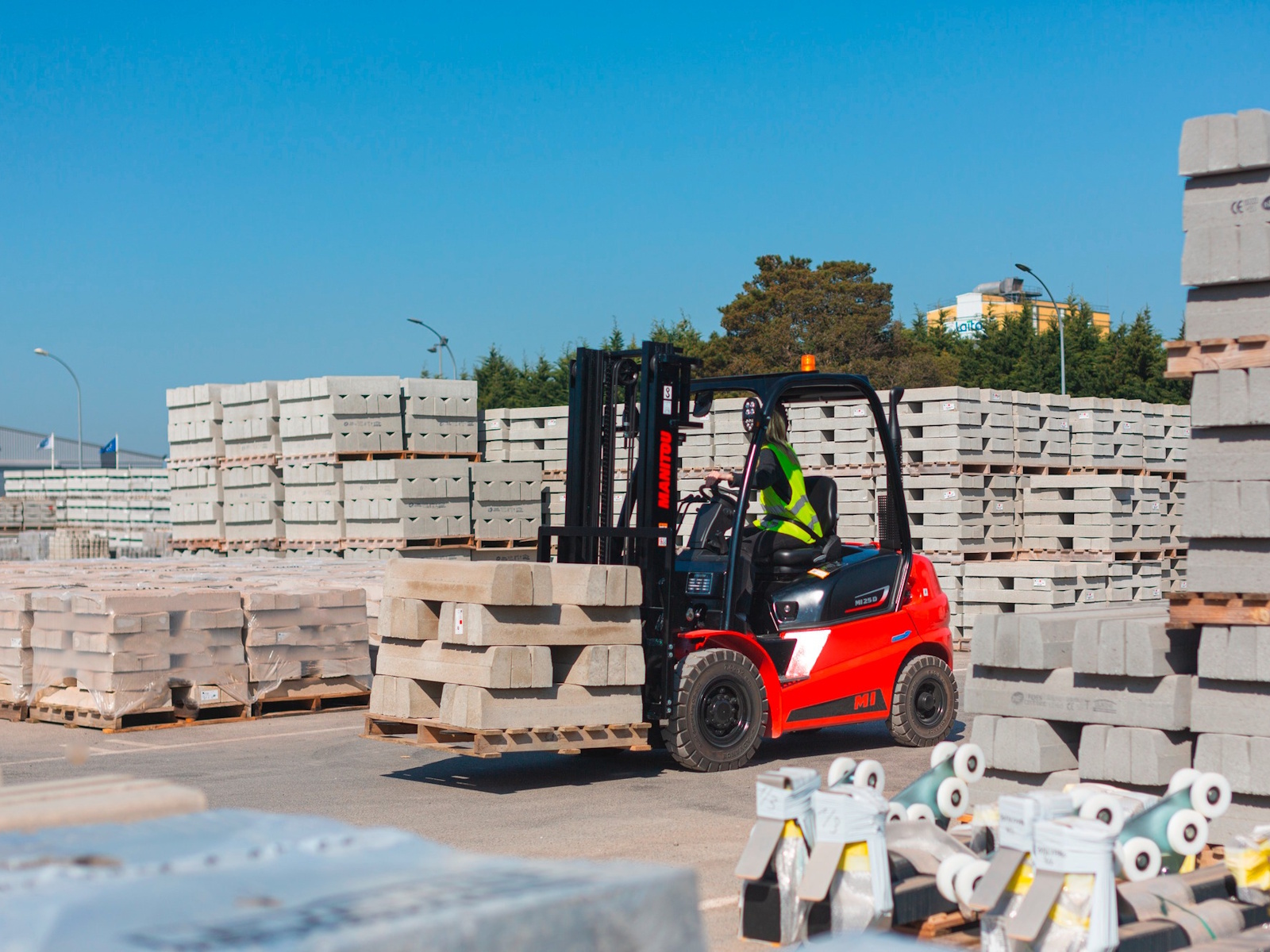

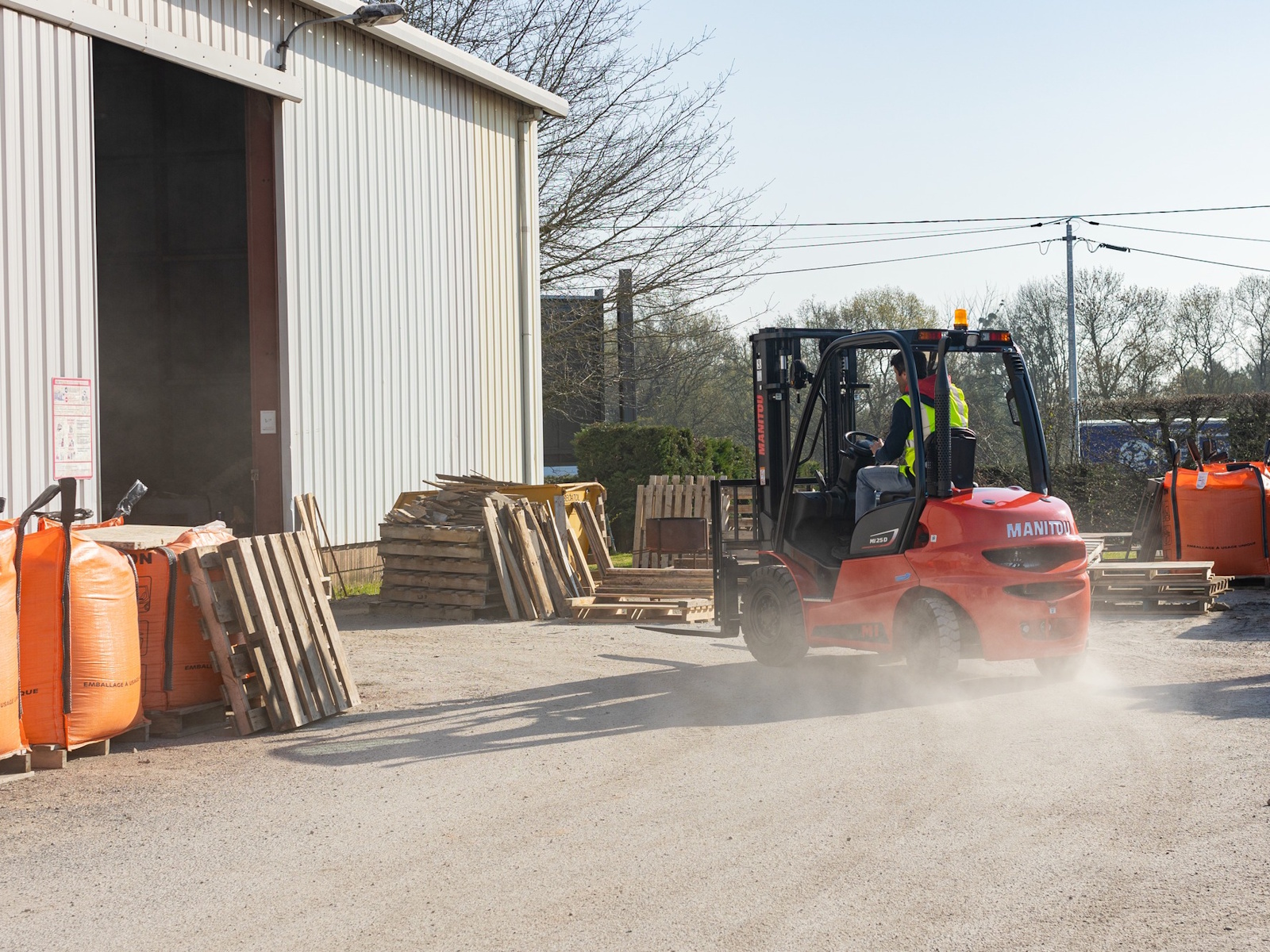

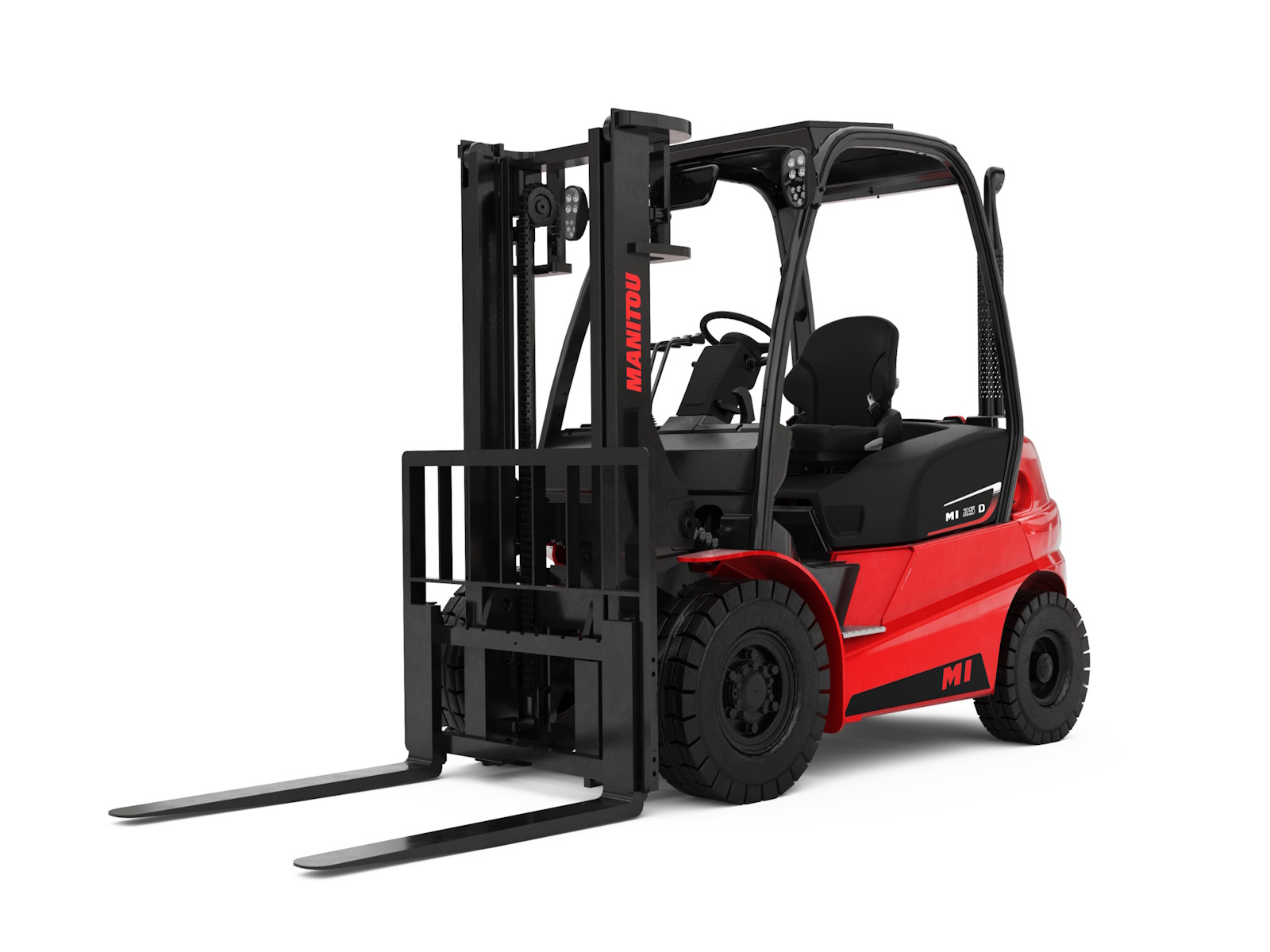

2026 Manitou Group MI 25 D ST5 US

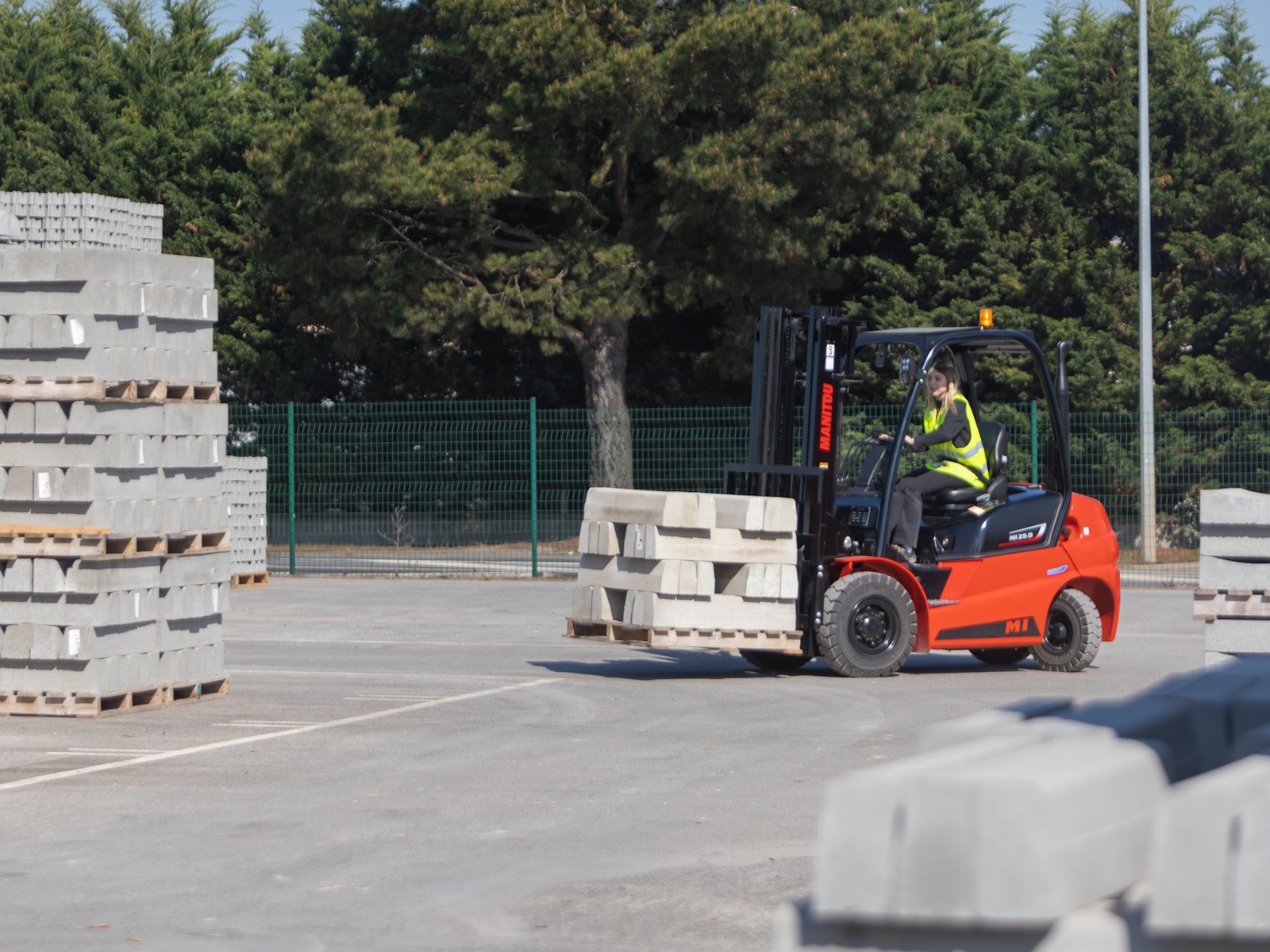

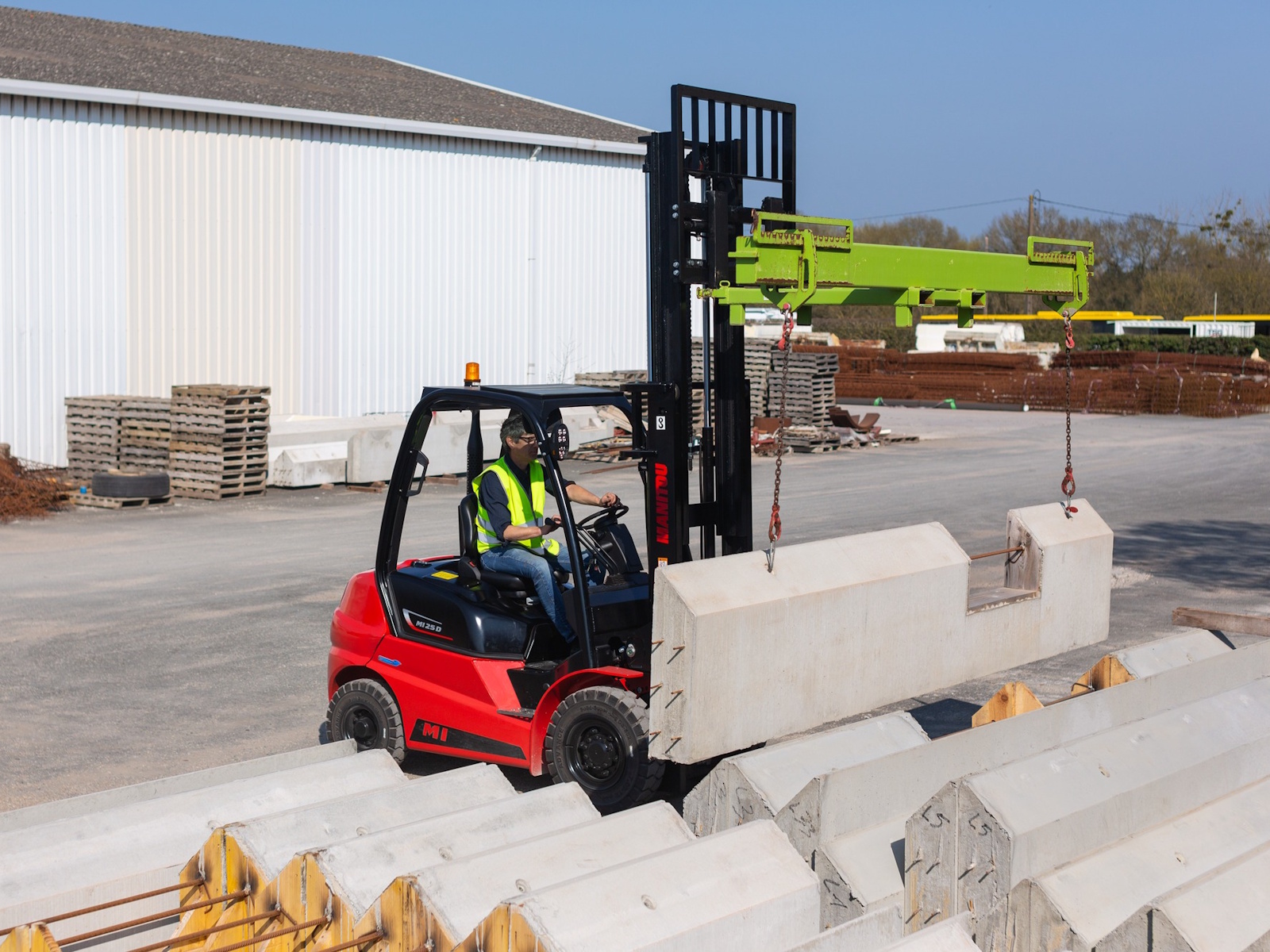

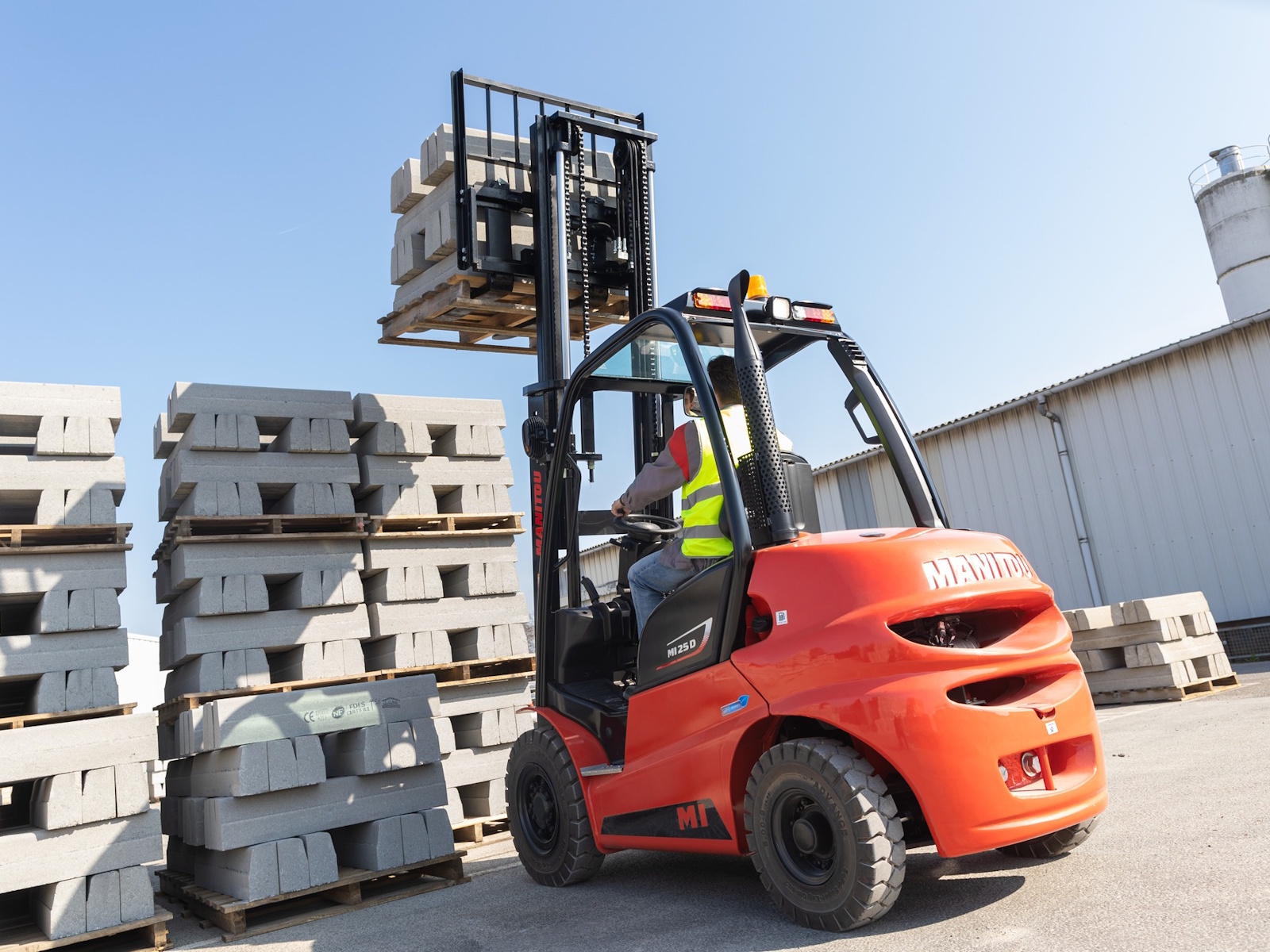

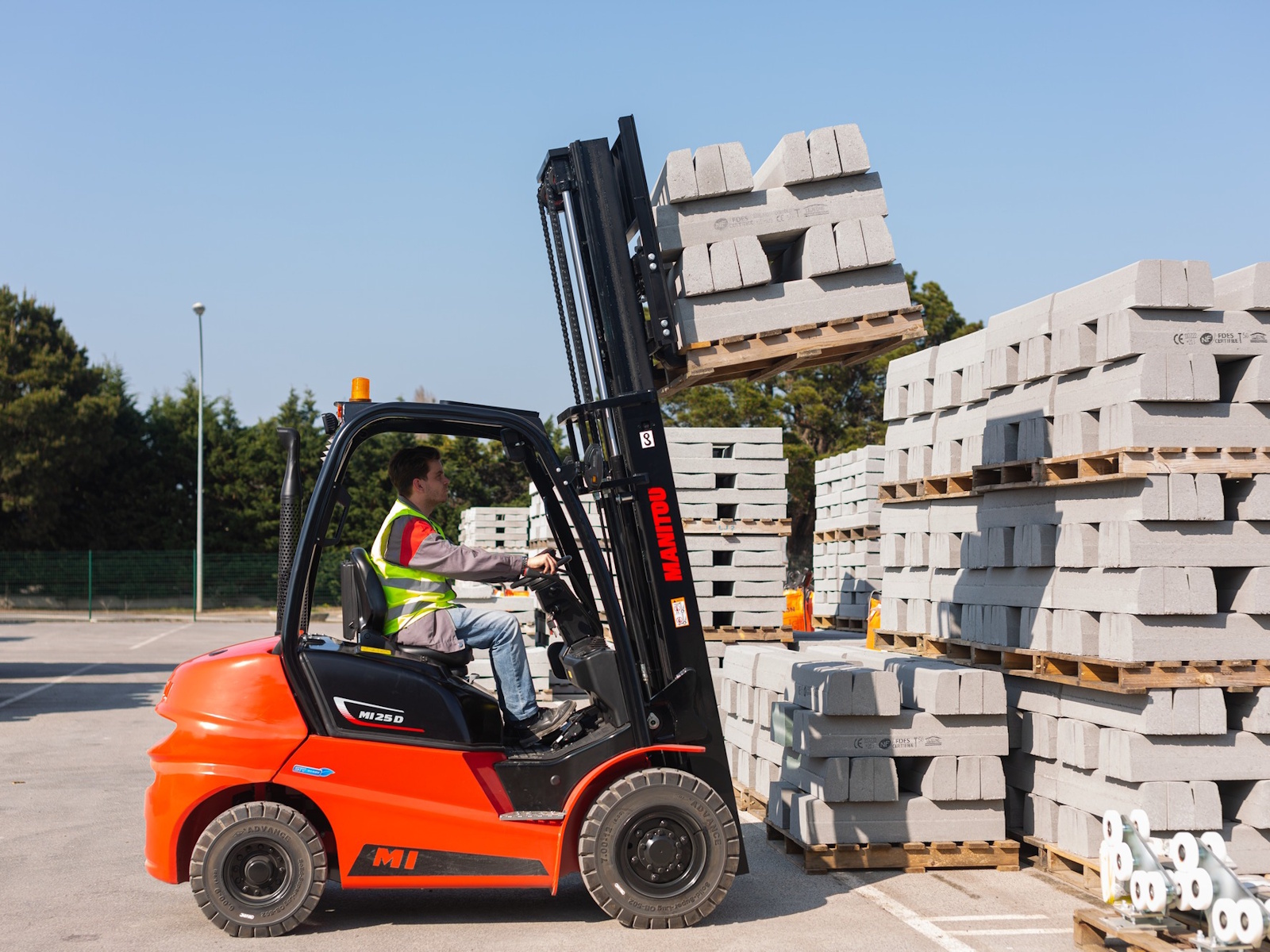

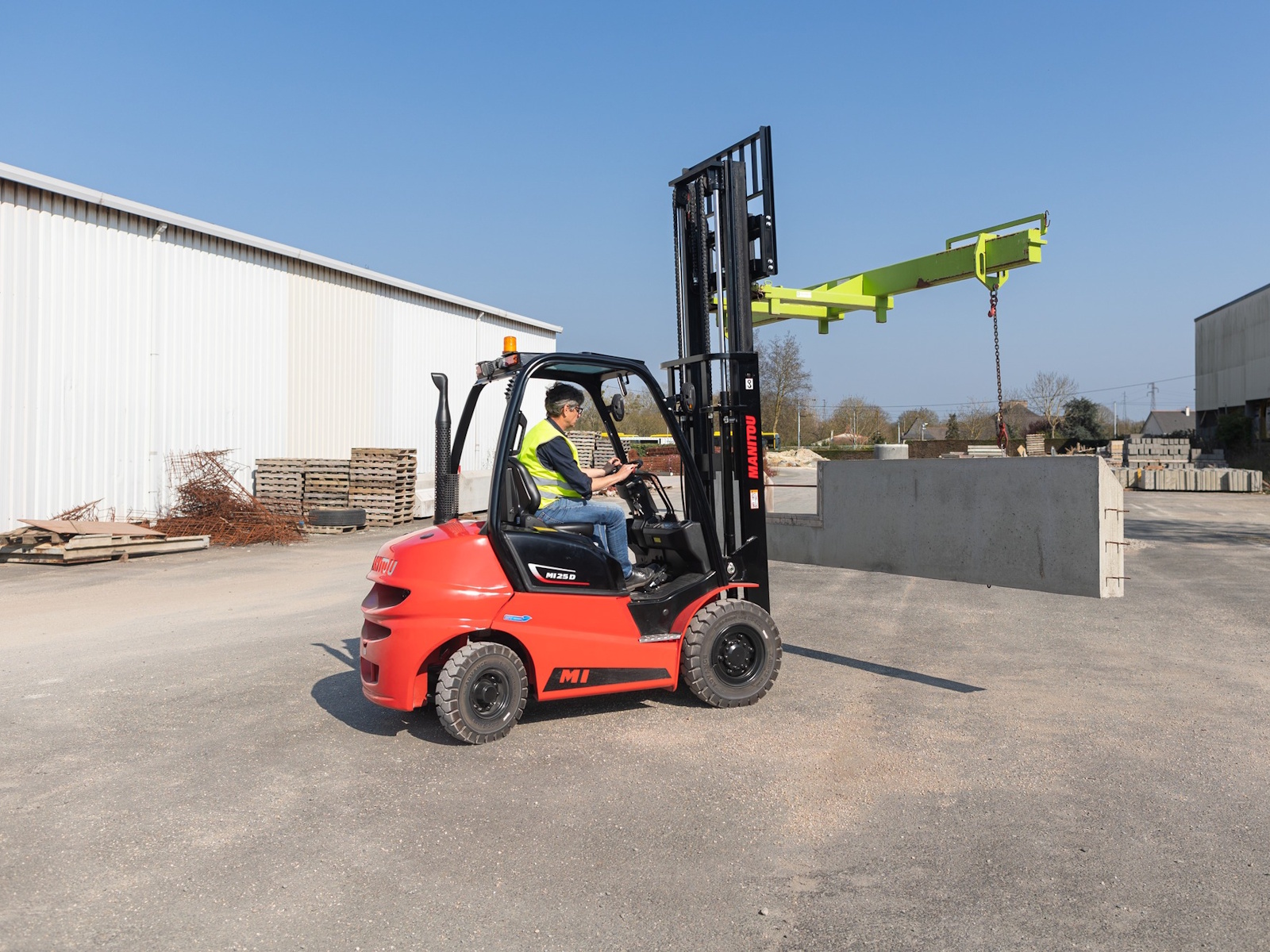

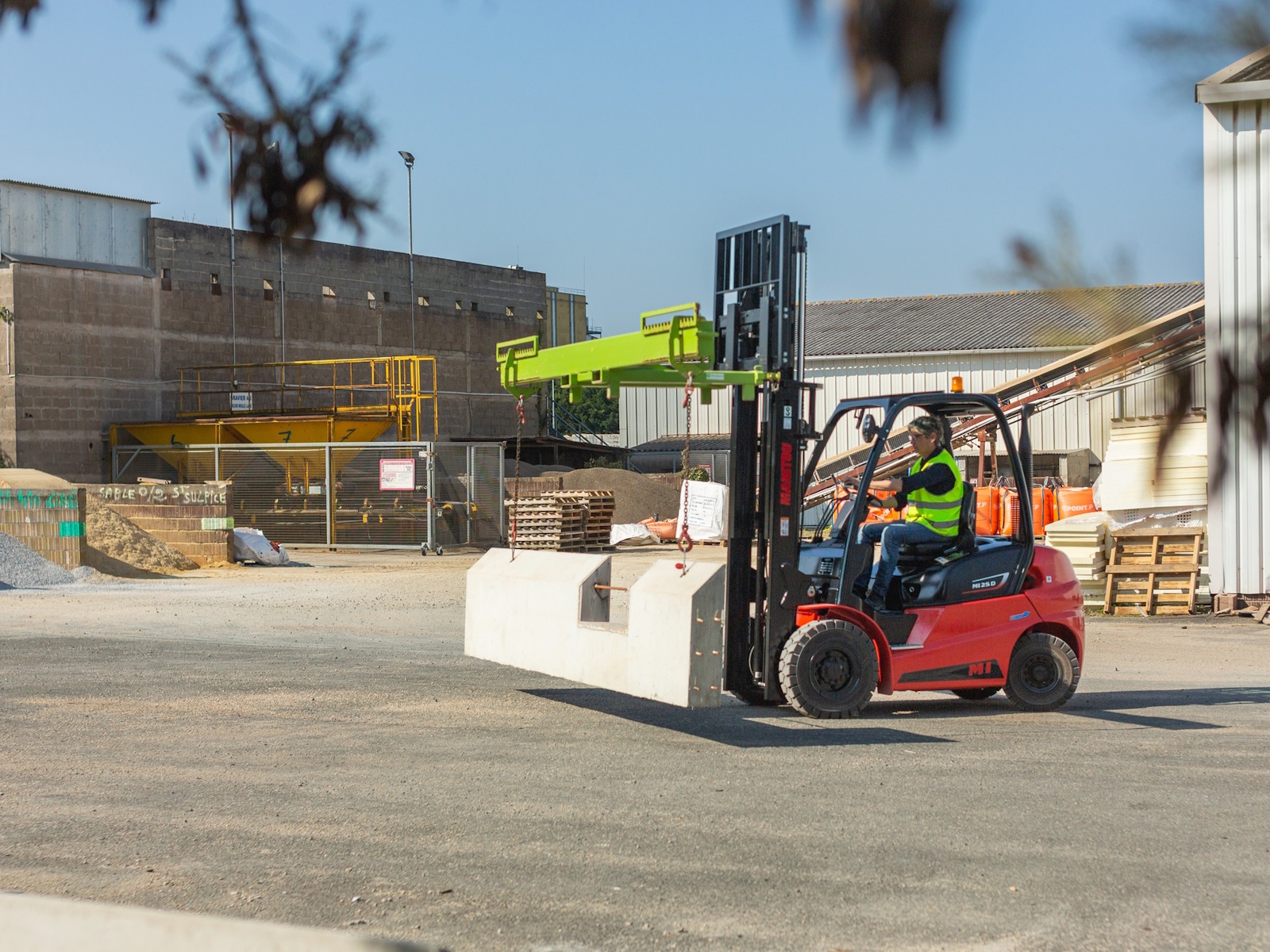

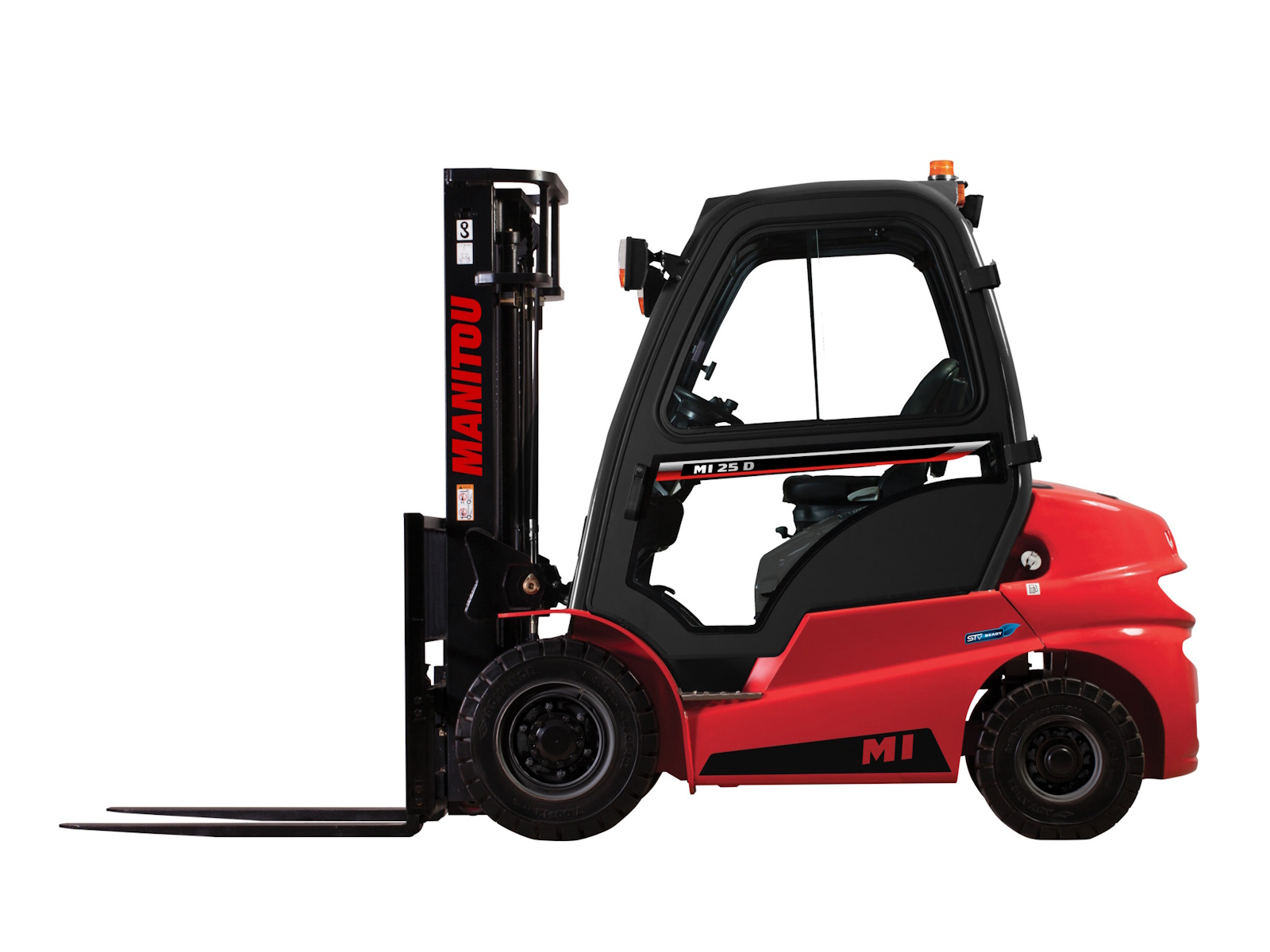

Optimise your handling operations with the MI 25 D forklift. Equipped with a 37 kW diesel engine, this Manitou model has a load capacity of 2500 kg and a lifting height of 6.5 metres (max). Designed with carefully selected components, it will efficiently support you in all your applications. Truck loading/unloading, storing and moving goods... Take advantage of its numerous standard and optional equipment to gain in productivity!
Info
Industry
Agriculture
Make
Manitou Group
Model
MI 25 D ST5 US
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Diesel
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 18 in | Forks section / width / length: 2 in x 5 in x 45 in | Fork carriage ISO 2328 (class/form) A/B: 2A | Travel speed (laden / unladen): 11 mph-11 mph | Lifting speed (laden / unladen): 2 ft/s-2 ft/s | Lowering speed (laden / unladen): 2 ft/s-2 ft/s | Drawbar pull (Laden / Unladen): 1940 daN / 1240 daN | Gradeability (laden / unladen): 20 % / 20 % | Rated speed: 2400 rpm | Working hydraulic pressure for attachments: 2321 PSI | Oil flow rate for attachments: 9 US gpm | Measured/guaranteed mean noise level at the ear of the operator: < 84 dB
Load Capacity
5512 lb
Wheelbase
63 in
Weight
Service weight: 8818 lb | Weight on front axle (laden) / rear axle (laden): 12644 lb / 1687 lb | Weight on front axle (Unladen) / rear axle (Unladen): 3770 lb / 5049 lb
Tires
Solid tires
Wheels
Dimensions of front wheels: 7.00-12 12 | Dimensions of rear wheels: 6.00-9 10 | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 2 | Front wheel gauge: 38 in | Rear wheel gauge: 38 in
Height
Seat height/stand height: 47 in | Height of overhead guard (cabin): 83 in | Height of towing bar (coupling height): 14 in
Length
145 in | Length to face of forks: 100 in
Width
45 in | Overall width - Single wheels: 45 in | Overall width - Twinned wheels: 63 in | Fork carriage width: 41 in | Aisle Width for pallets 1000 x 1200 crossways: 155 in | Aisle width for 800 x 1200 pallet lengthways: 163 in
Ground Clearance
Ground clearance below mast: 5 in | Ground clearance at centre of wheelbase: 7 in
Turning Radius
89 in | Internal turning radius (over tyres): 6 in
Brakes
Service brake: Hydraulic
Engine
Kubota / V2607-CR-E5B / Stage V
Power/Horsepower
51 Hp/37.40 kW
Cylinders
4 - 160 in³
