2026 Manitou Group MI 30 D ST5 US
Get in Touch
Description

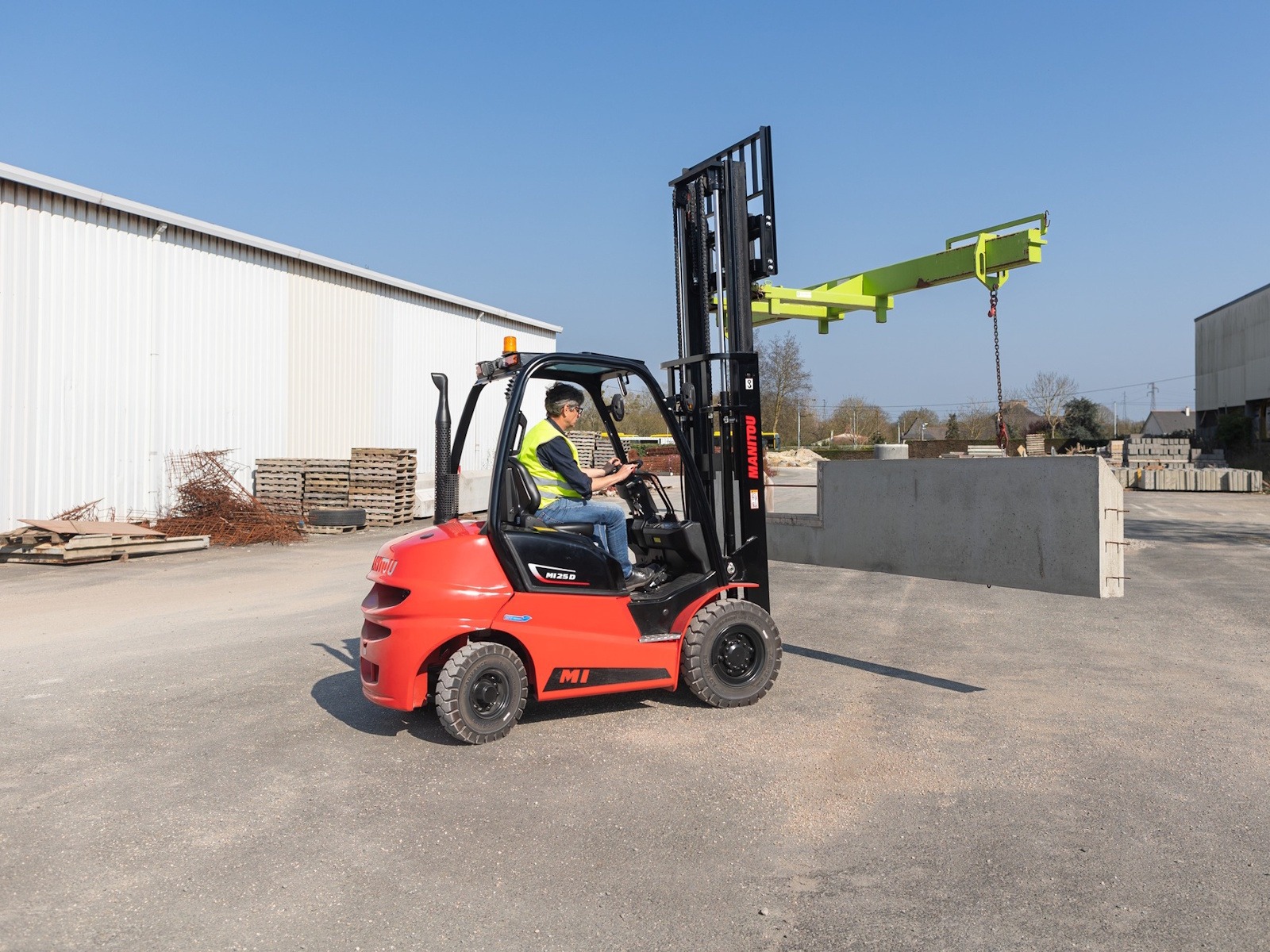

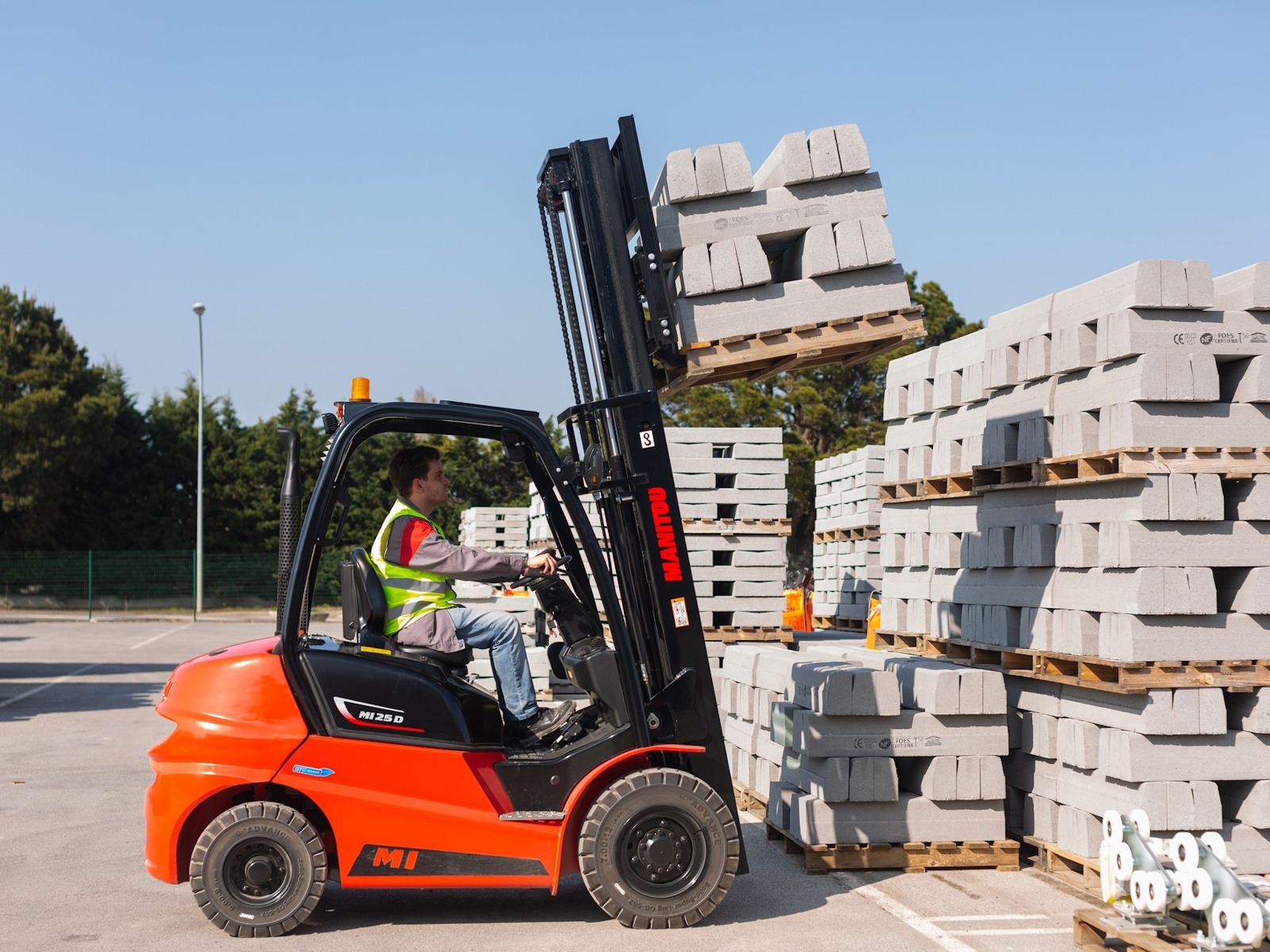

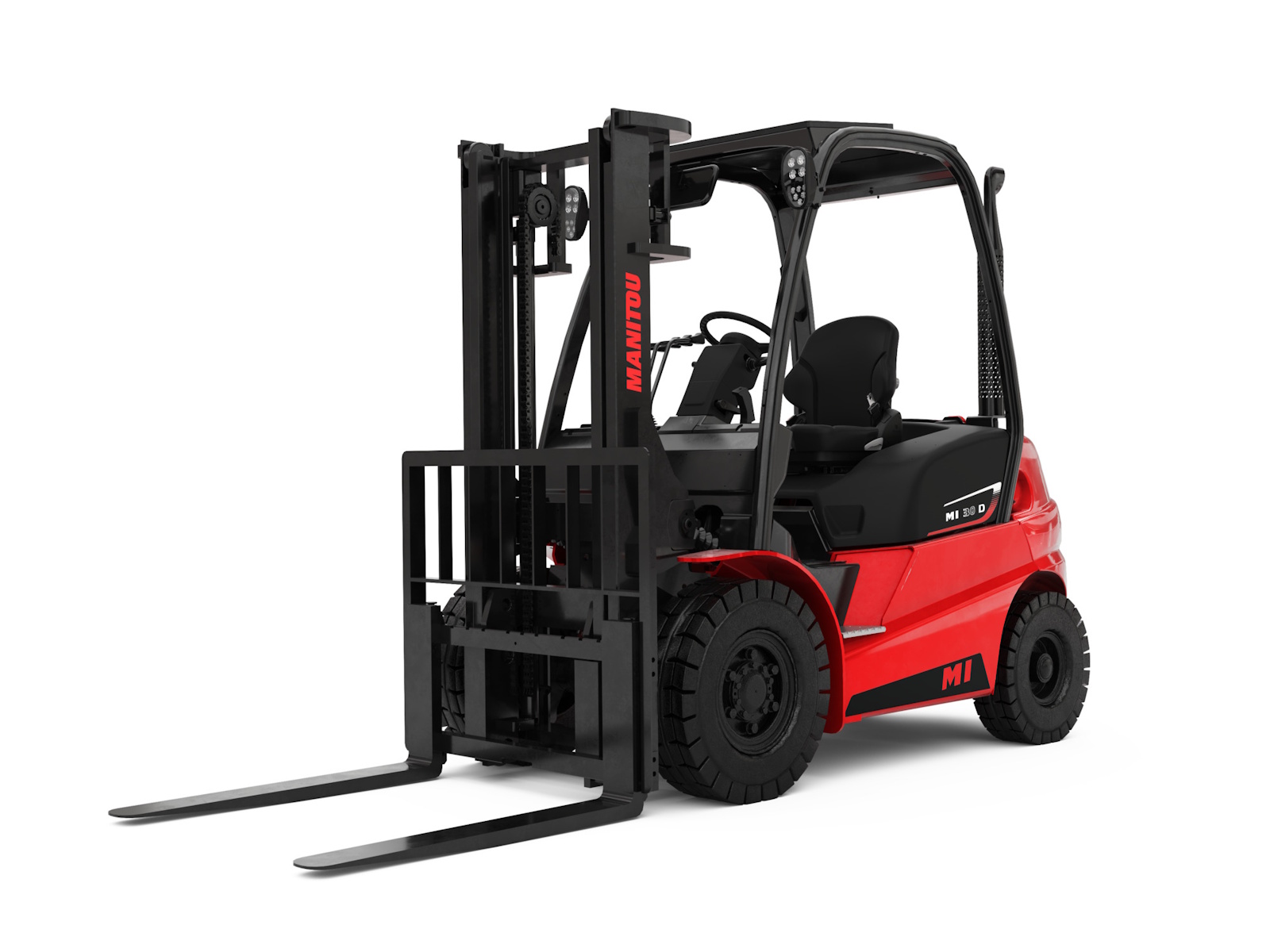

2026 Manitou Group MI 30 D ST5 US

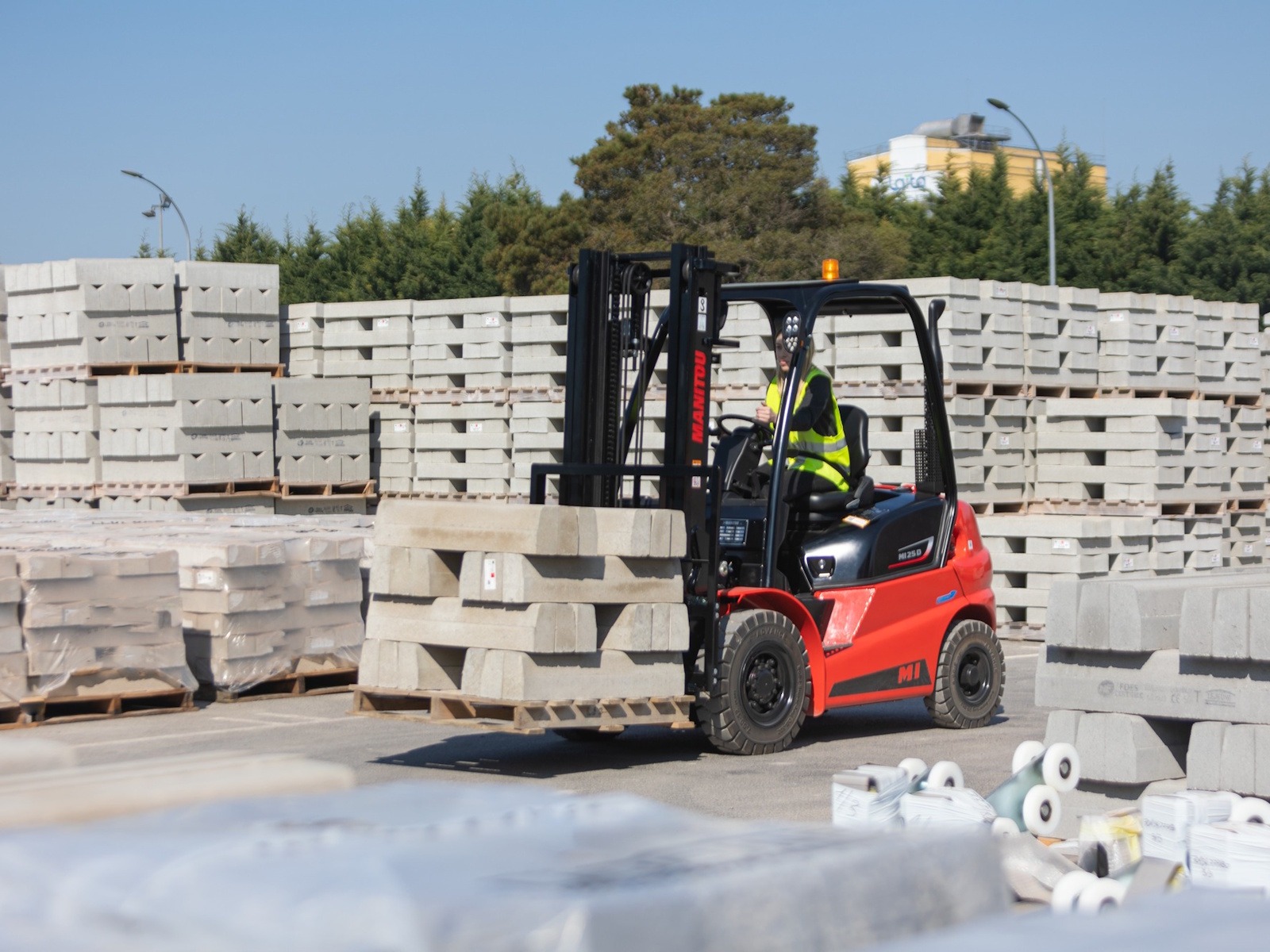

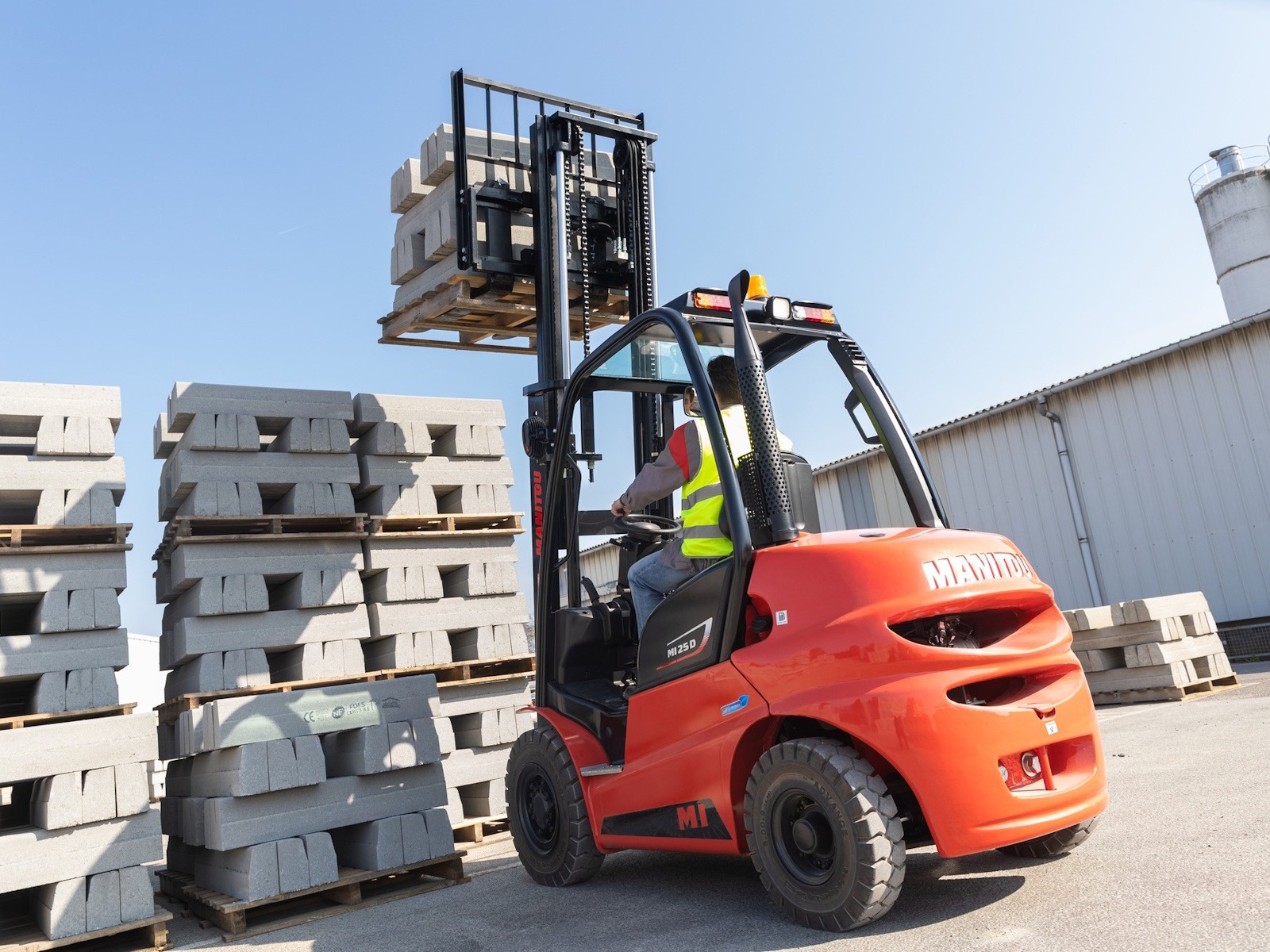

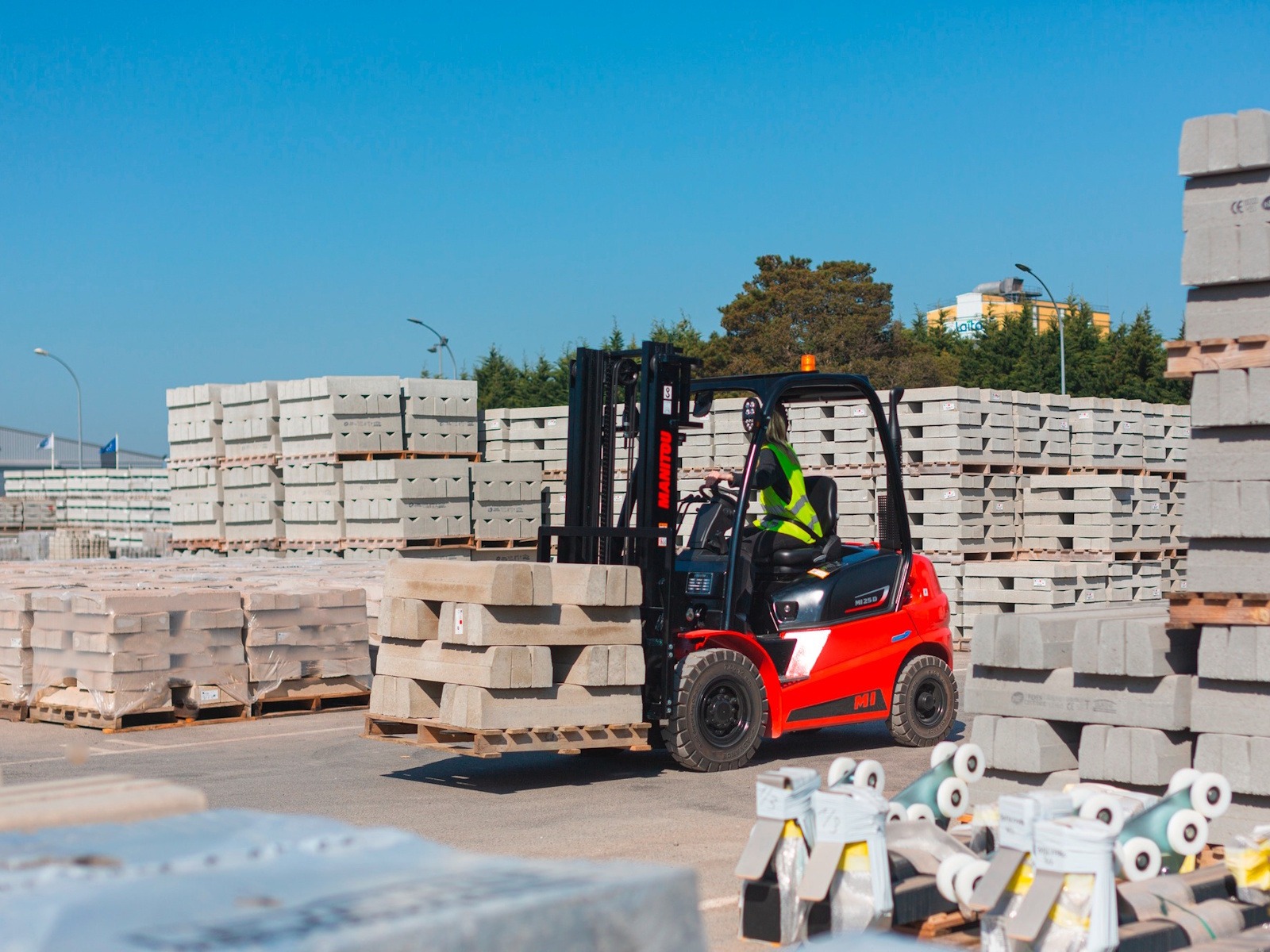

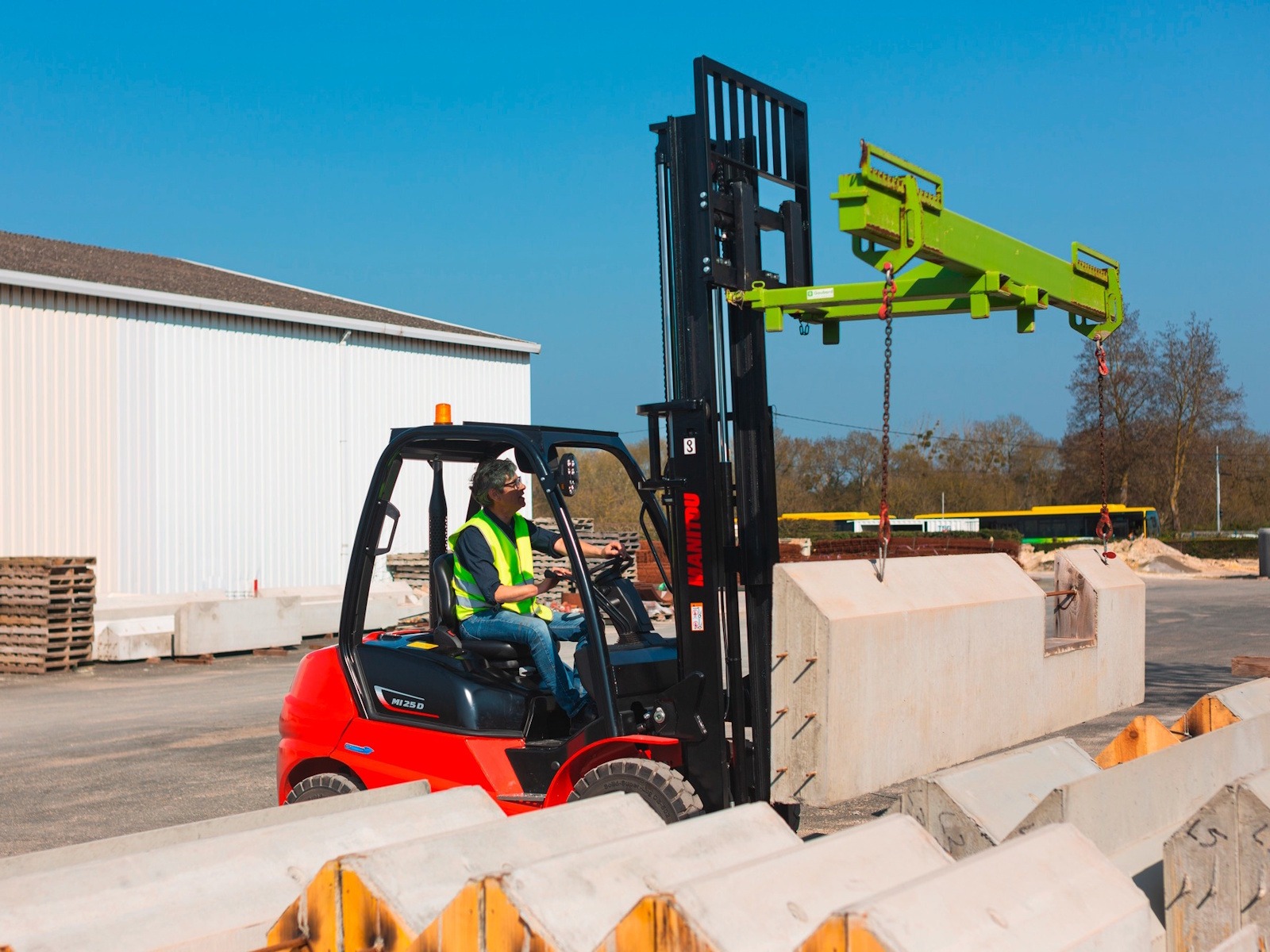

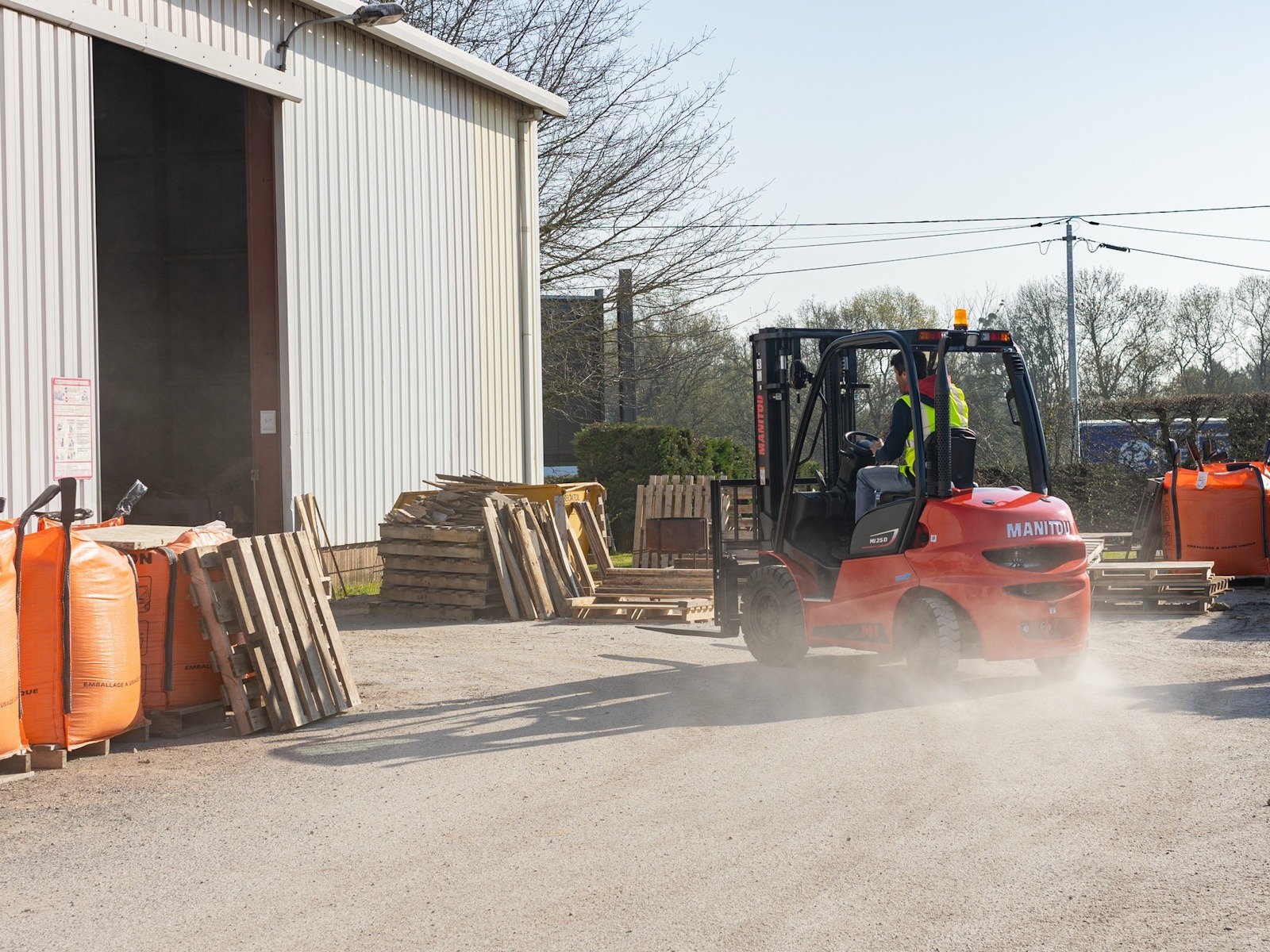

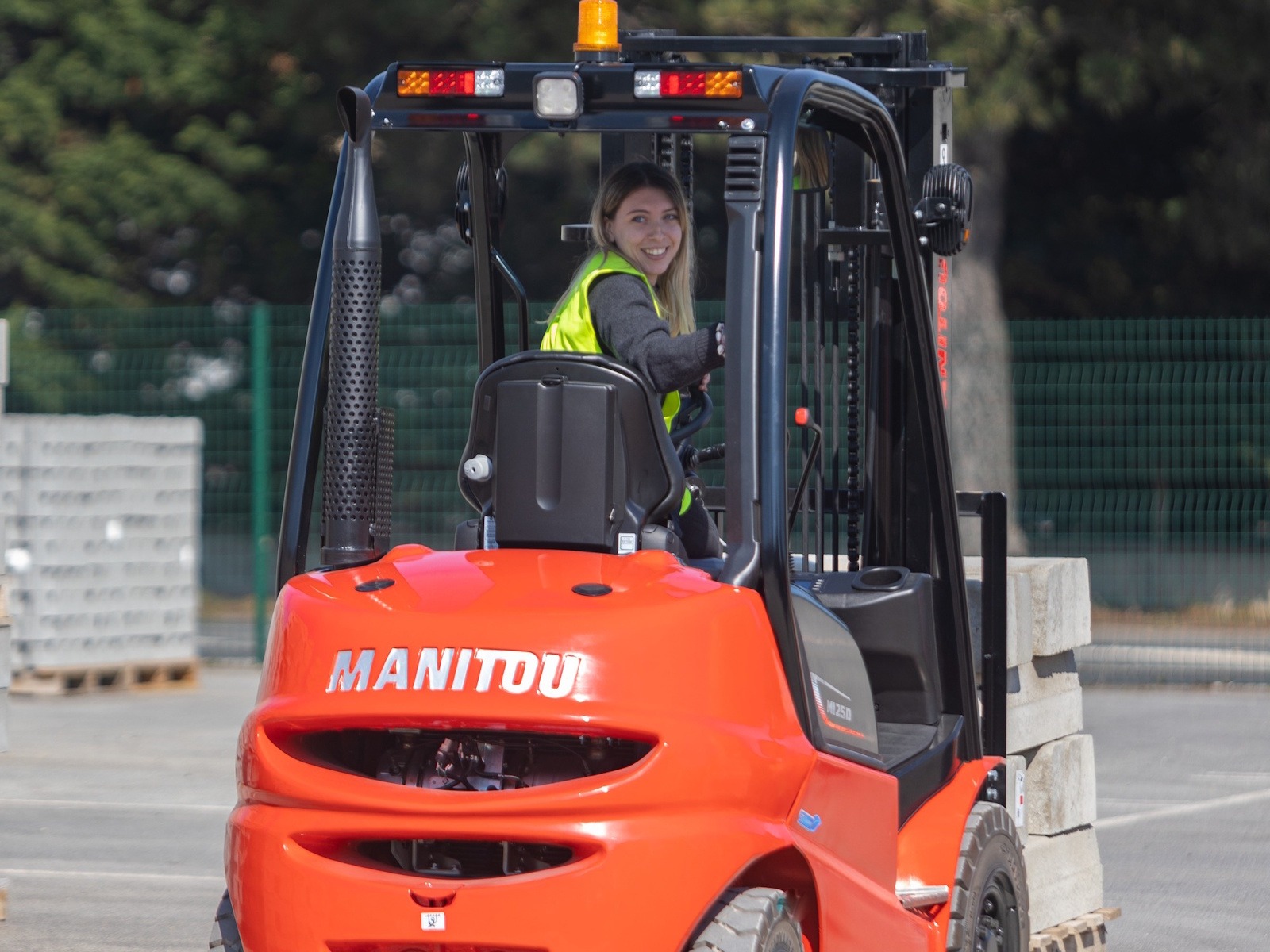

Discover the advantageous features of the MI 30 D forklift truck! This model is perfectly suited for various applications in the industrial markets, both indoors and outdoors: loading/unloading trucks, transporting goods, warehousing needs, supplying production lines, logistics operations... Carry out your daily tasks with one and the same truck! The MI 30 D offers a maximum load capacity of 3000 kg. Its driving performance, exceptional visibility at height and high lifting speeds will allow you to optimise your logistics flows and your productivity!
Info
Industry
Agriculture
Make
Manitou Group
Model
MI 30 D ST5 US
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Diesel
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 19 in | Forks section / width / length: 2 in x 5 in x 45 in | Fork carriage ISO 2328 (class/form): A/B 3A | Travel speed (laden / unladen): 11 mph-11 mph | Lifting speed (laden / unladen): 2 ft/s-2 ft/s | Lowering speed (laden / unladen): 1 ft/s-2 ft/s | Drawbar pull (Laden / Unladen): 1950 daN / 1380 daN | Gradeability (laden / unladen): 20 % / 20 % | Rated speed: 2400 Hz | Working hydraulic pressure for attachments: 2321 PSI | Oil flow rate for attachments: 9 US gpm | Measured/guaranteed mean noise level at the ear of the operator: < 84 dB
Load Capacity
6614 lb
Wheelbase
67 in
Weight
Service weight: 10163 lb | Weight on front axle (laden) / rear axle (laden): 14661 lb / 2116 lb | Weight on front axle (Unladen) / rear axle (Unladen): 4101 lb / 6063 lb
Tires
Solid tires
Wheels
Dimensions of front wheels: 28-9-15 12 | Dimensions of rear wheels: 6.50-10 10 | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 2 | Front wheel gauge: 40 in | Rear wheel gauge: 38 in
Height
Seat height/stand height: 48 in | Height of overhead guard (cabin): 84 in | Height of towing bar (coupling height): 14 in
Length
152 in | Length to face of forks: 107 in
Width
48 in | Overall width - Single wheels: 48 in | Overall width - Twinned wheels: 68 in | Fork carriage width: 43 in | Aisle Width for pallets 1000 x 1200 crossways: 163 in | Aisle width for 800 x 1200 pallet lengthways: 171 in
Ground Clearance
Ground clearance below mast: 5 in | Ground clearance at centre of wheelbase: 8 in
Turning Radius
97 in | Internal turning radius (over tyres): 6 in
Brakes
Service brake: Hydraulic
Engine
Kubota / V2607-CR-E5B / Stage V
Power/Horsepower
51 Hp/37.40 kW
Cylinders
4 - 160 in³
