Description
2026 Manitou Group MI 30 G US

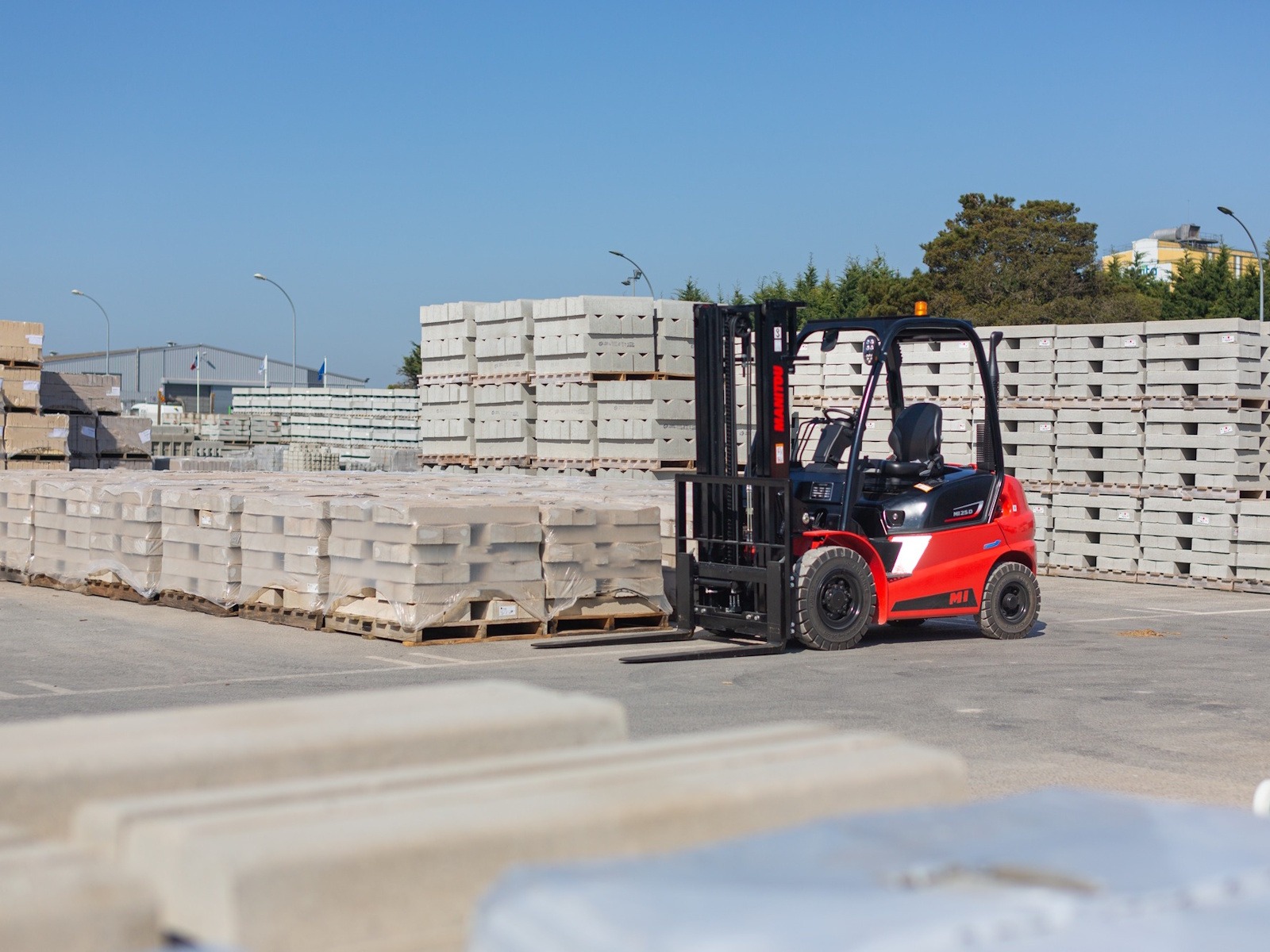

The MI 30 G is a heat engine-powered masted forklift designed for intense industrial application both indoors and outdoors, sure to please both forklift operators and fleet managers with its innovative design. Adjustable and accessible controls, optimal visibility and security systems are just the starting point, with ease of maintenance, robustness and reliability included as standard issue as well.The inching pedal feature provides a smooth and precise approach during manoeuvres, for comfort and flexibility on a daily basis, whilst access to the driver's position is made easier by the low footstep, doors on both sides and a large, sturdy handle grip on the left side.
Info
Industry
Agriculture
Make
Manitou Group
Model
MI 30 G US
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
LPG
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 19 in | Standard mast reference of the machine: FVD 33 | Forks section / width / length: 2 in x 5 in x 45 in | Fork carriage ISO 2328 (class/form) A/B: 3A | Travel speed (laden / unladen): 11 mph-11 mph | Lifting speed (laden / unladen): 1 ft/s-2 ft/s | Lowering speed (laden / unladen): 2 ft/s-2 ft/s | Drawbar pull (Laden / Unladen): 1740 daN / 1080 daN | Gradeability (laden / unladen): 20 % / 20 % | Rated speed: 2400 rpm | Working hydraulic pressure for attachments: 2321 PSI | Oil flow rate for attachments: 19 US gpm | Measured/guaranteed mean noise level at the ear of the operator: < 80 dB | Sound level at the driver's ear according to DIN 12 053: 80 dB
Load Capacity
6614 lb
Wheelbase
67 in
Weight
Service weight: 9899 lb | Weight on front axle (laden) / rear axle (laden): 14462 lb / 2050 lb | Weight on front axle (Unladen) / rear axle (Unladen): 3979 lb / 5919 lb
Tires
Solid tires
Wheels
Dimensions of front wheels: 28-9-15 12 | Dimensions of rear wheels: 6.50-10 10 | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 2 | Front wheel gauge: 40 in | Rear wheel gauge: 38 in
Height
Seat height/stand height: 48 in | Height of overhead guard (cabin): 84 in | Height of towing bar (coupling height): 14 in
Length
152 in | Length to face of forks: 107 in
Width
48 in | Overall width - Single wheels: 48 in | Fork carriage width: 43 in | Aisle Width for pallets 1000 x 1200 crossways: 163 in | Aisle width for 800 x 1200 pallet lengthways: 171 in
Ground Clearance
Ground clearance below mast: 5 in | Ground clearance at centre of wheelbase: 8 in
Turning Radius
97 in | Internal turning radius (over tyres): 6 in
Brakes
Service brake: Hydraulic
Transmission
Torque converter
Engine
GCT (ex-Nissan) / K25
Power/Horsepower
63 Hp/46 kW
Cylinders
4 - 152 in³
