Description
2026 Manitou Group MAN'GO 33

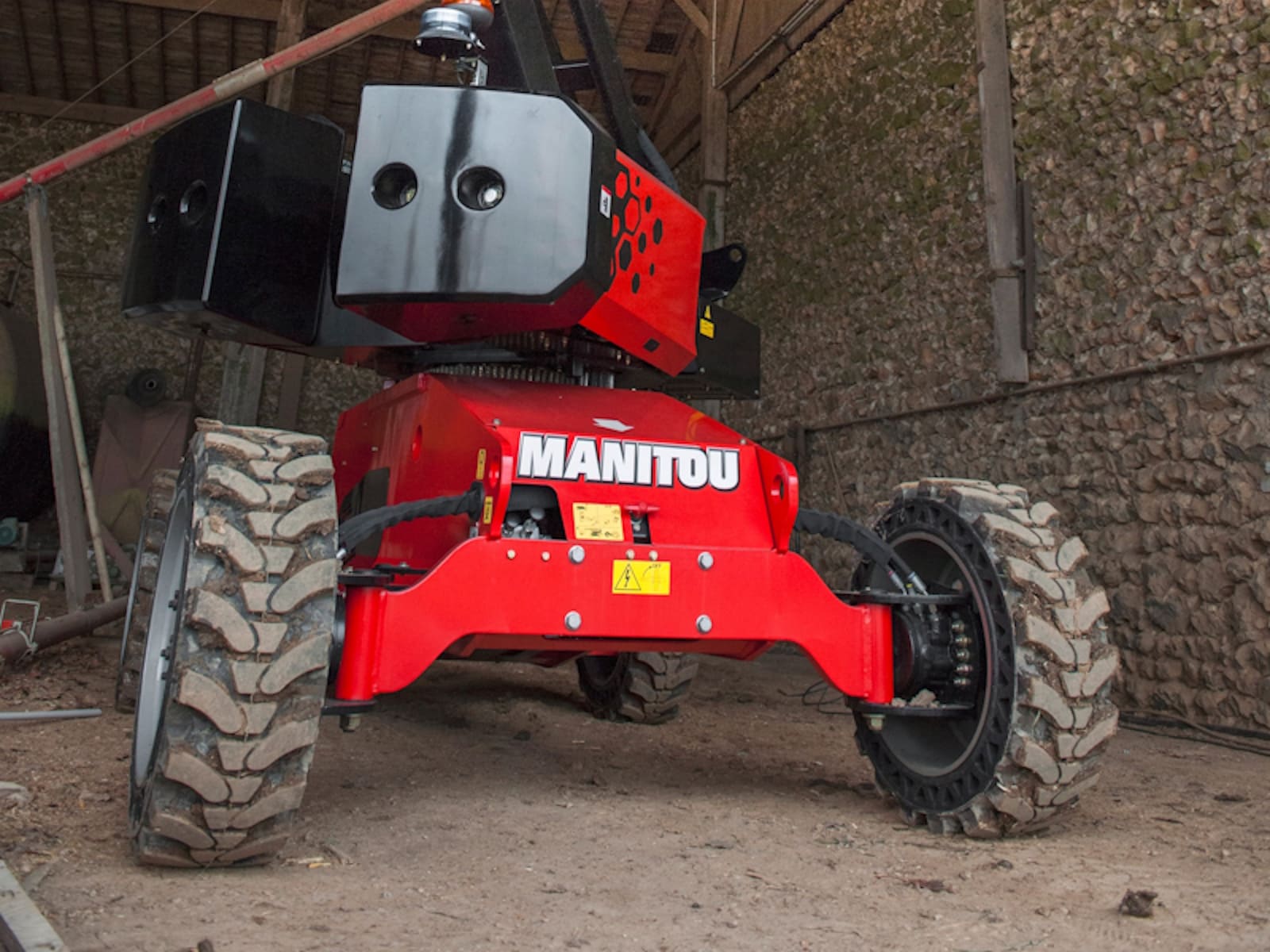

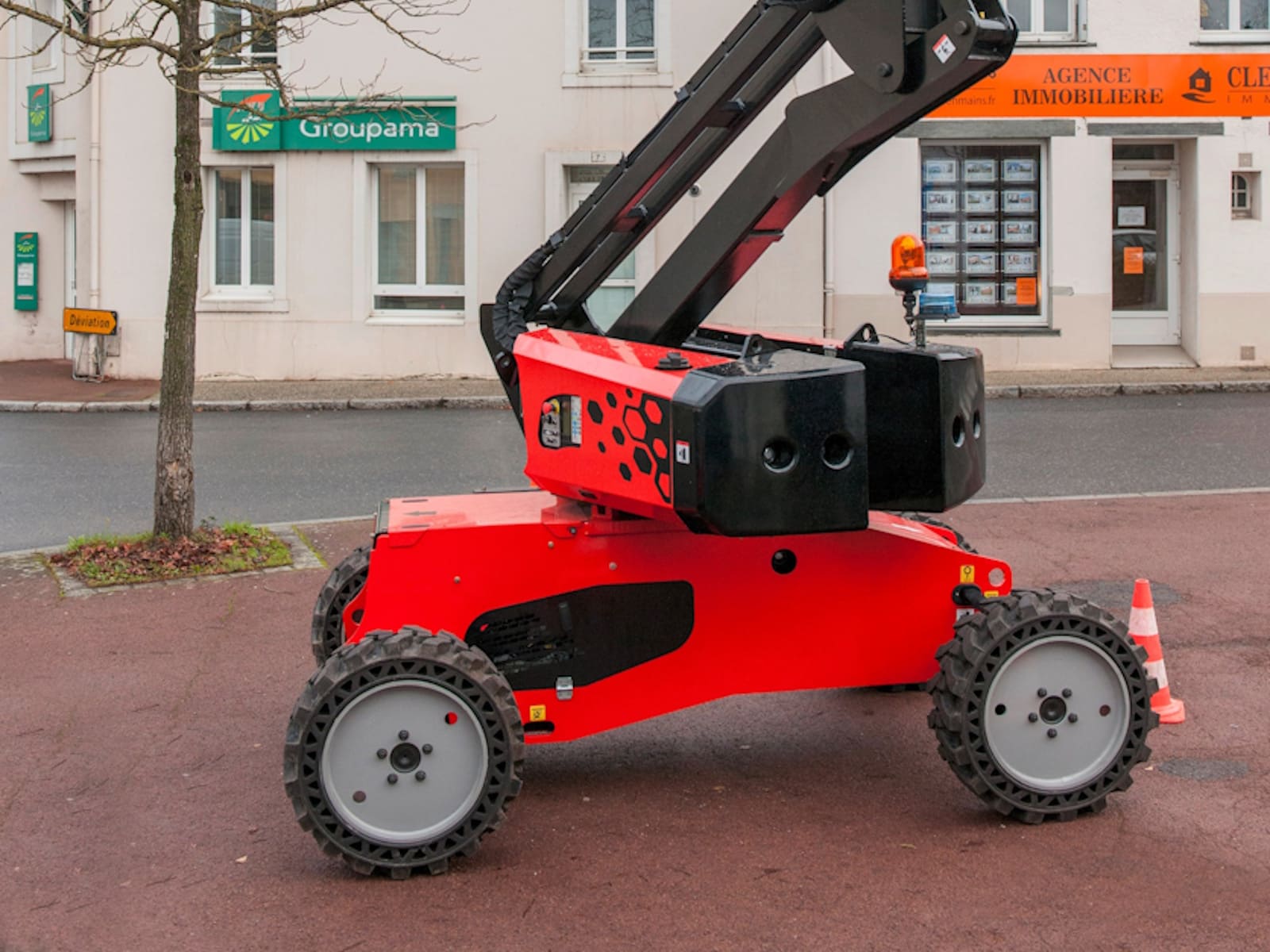

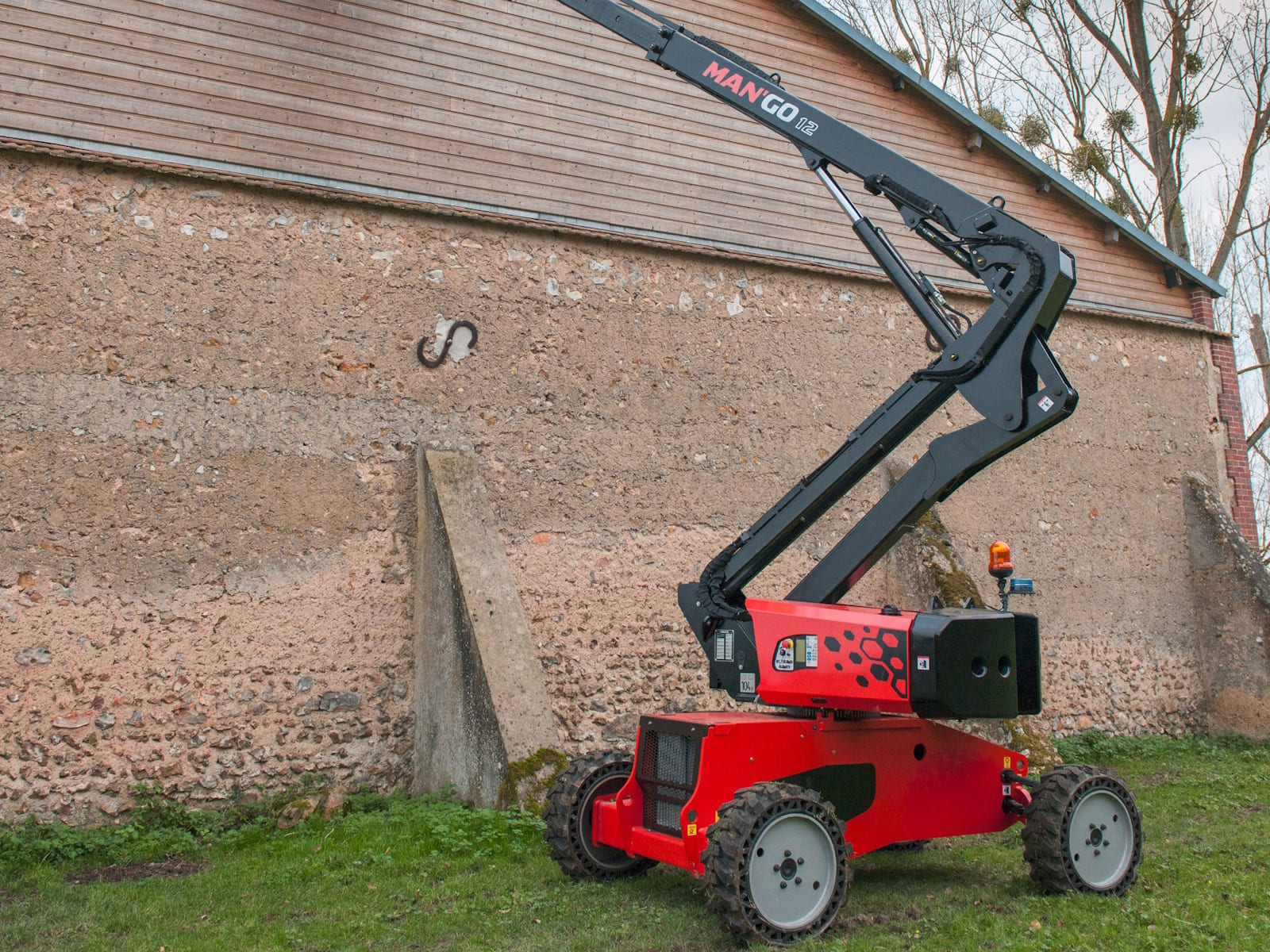

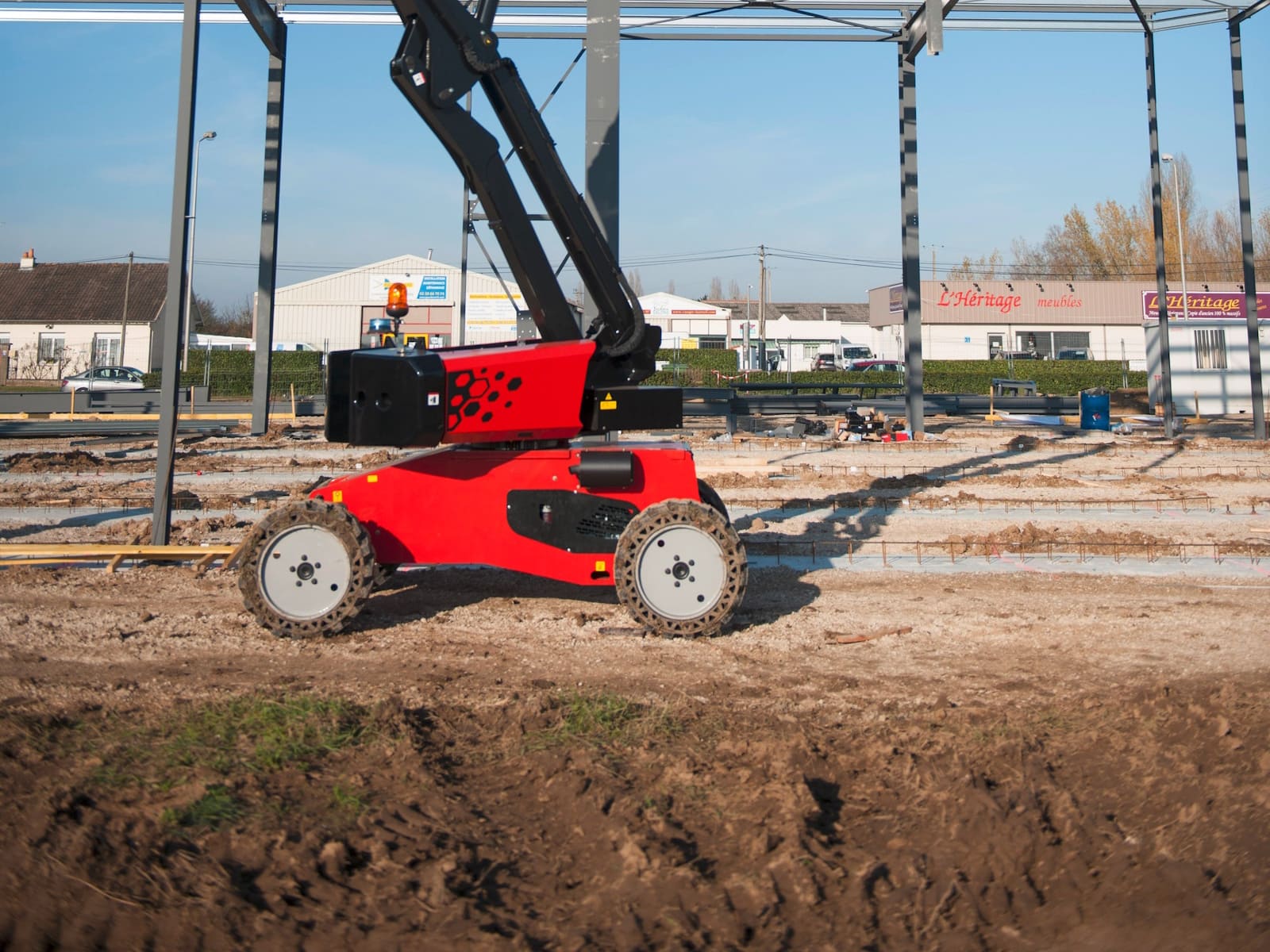

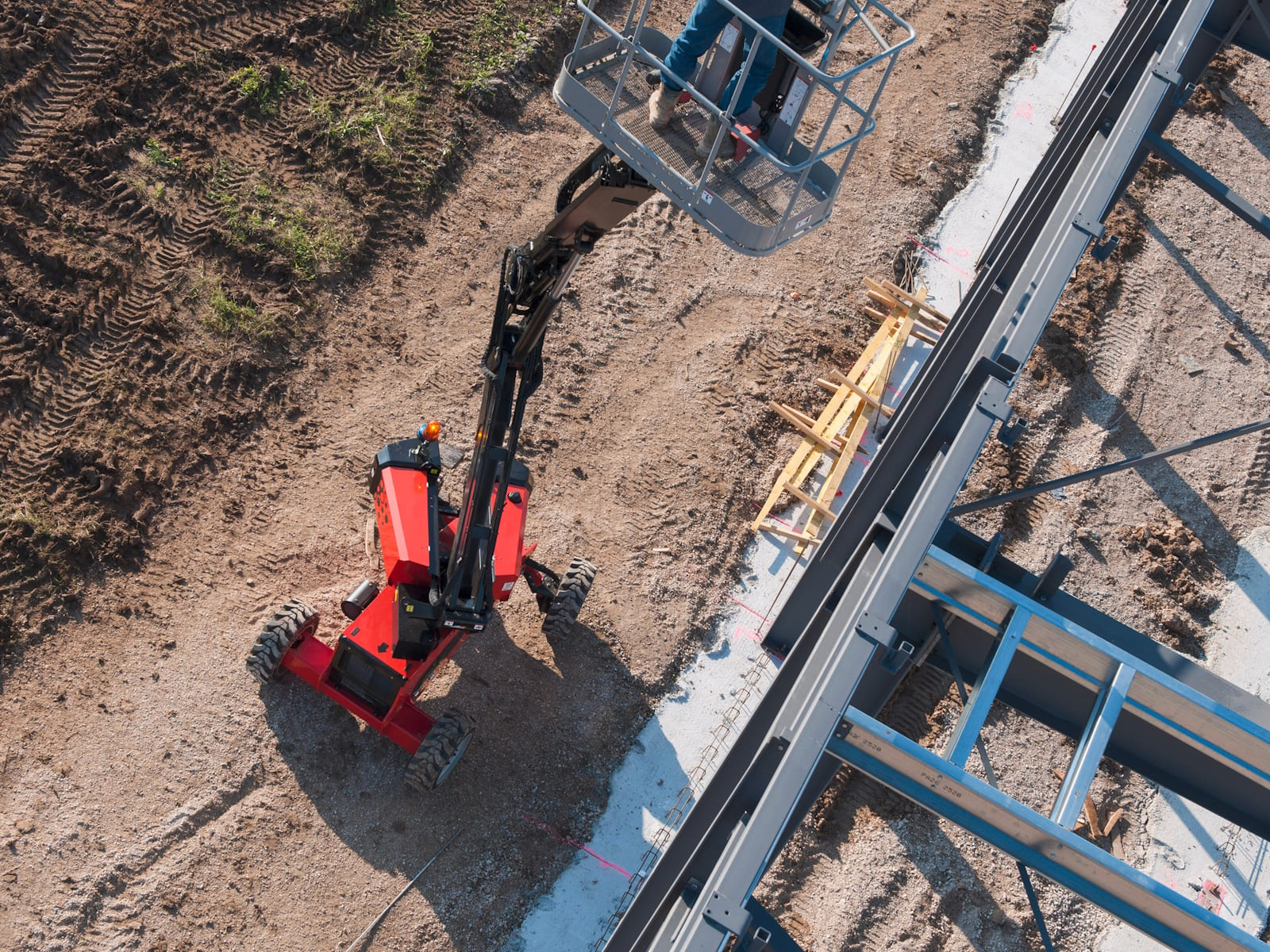

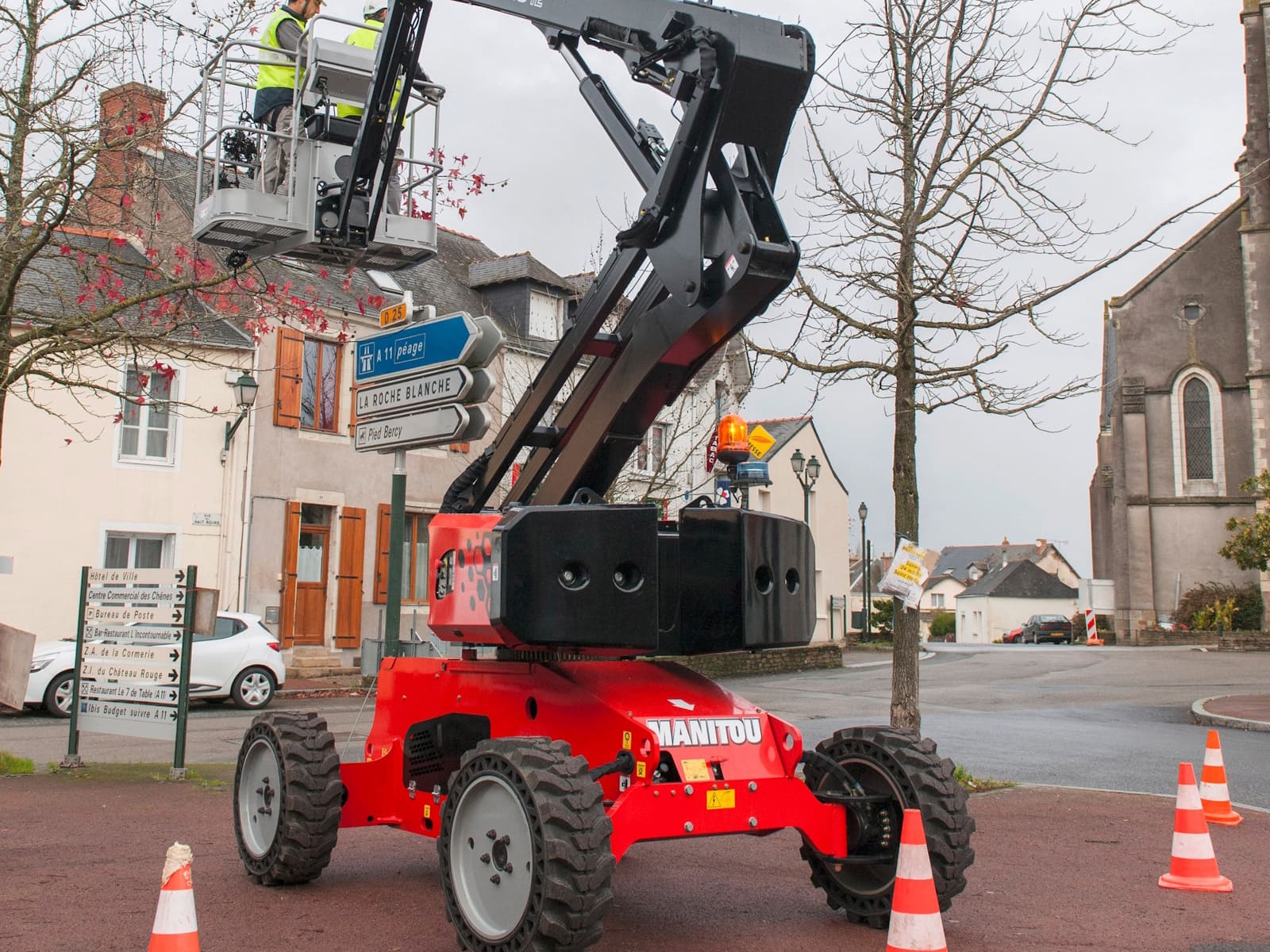

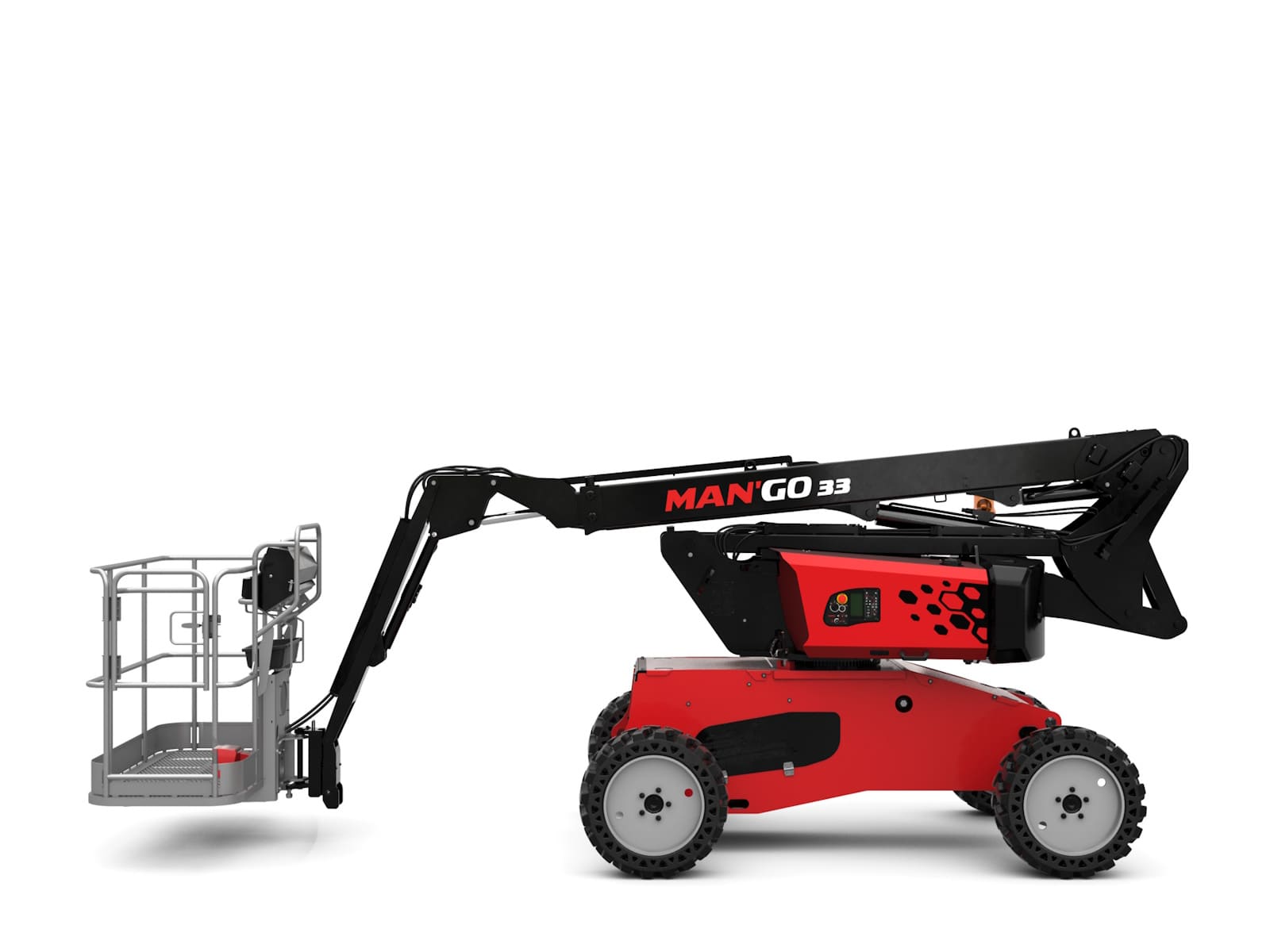

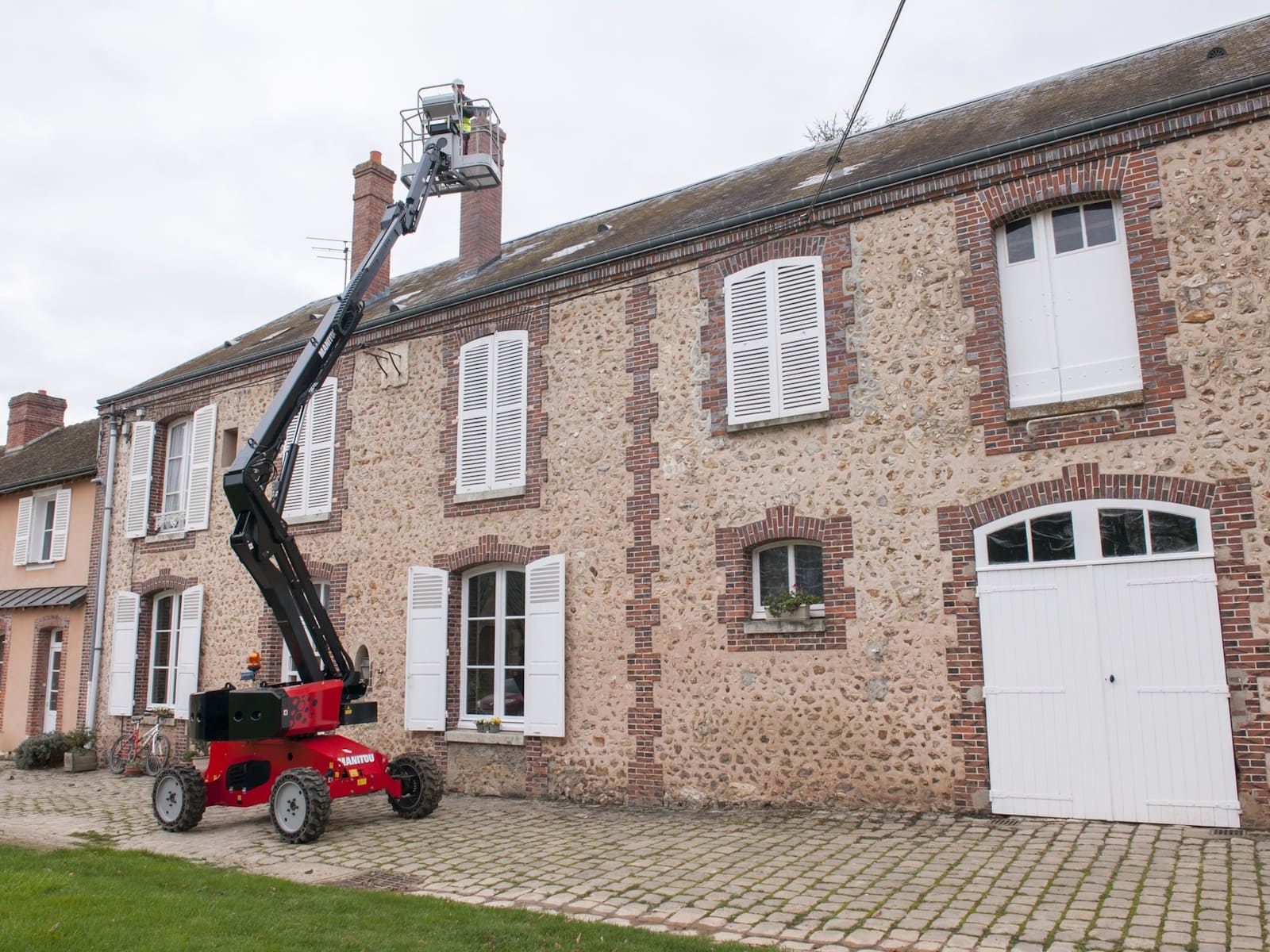

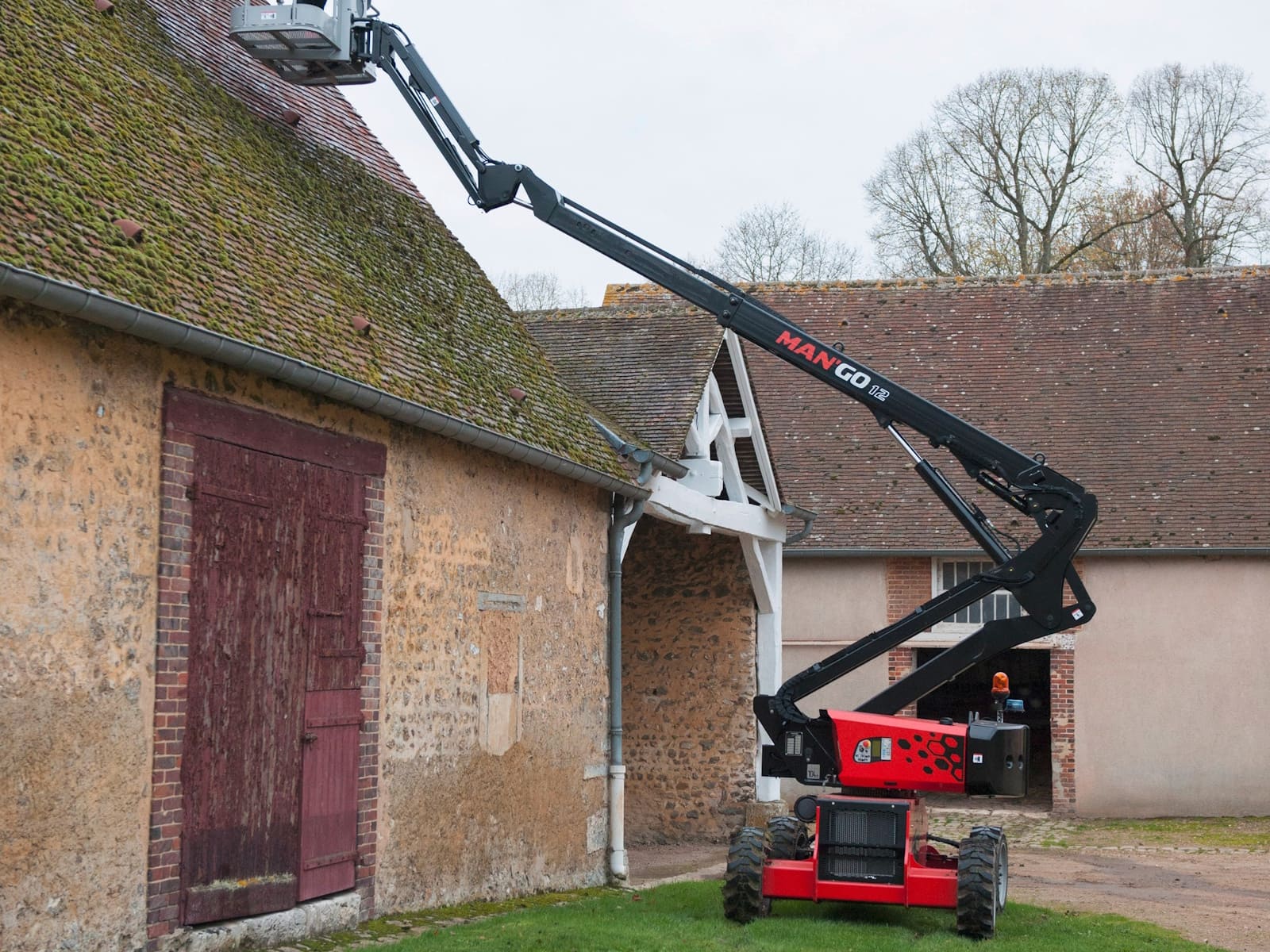

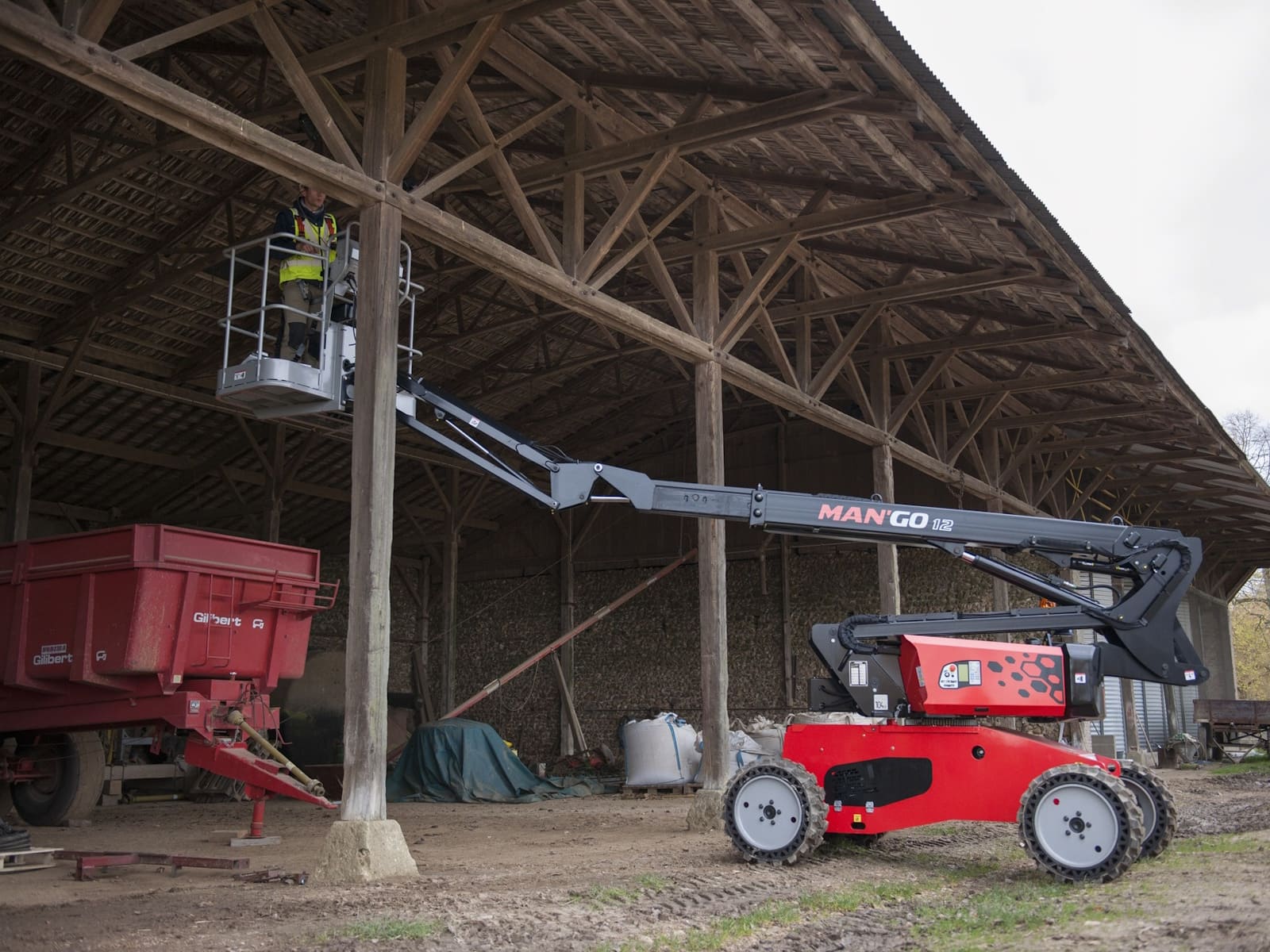

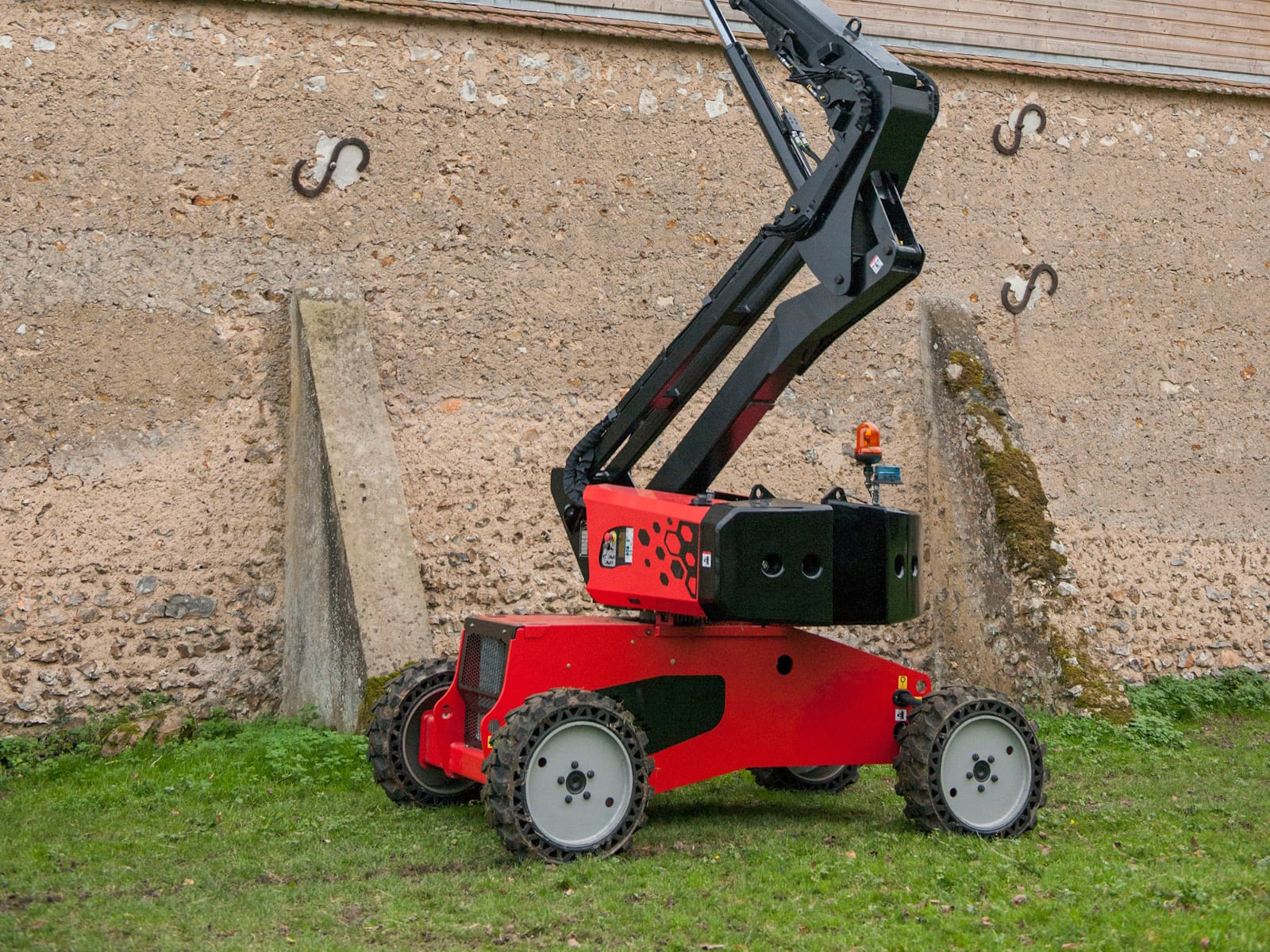

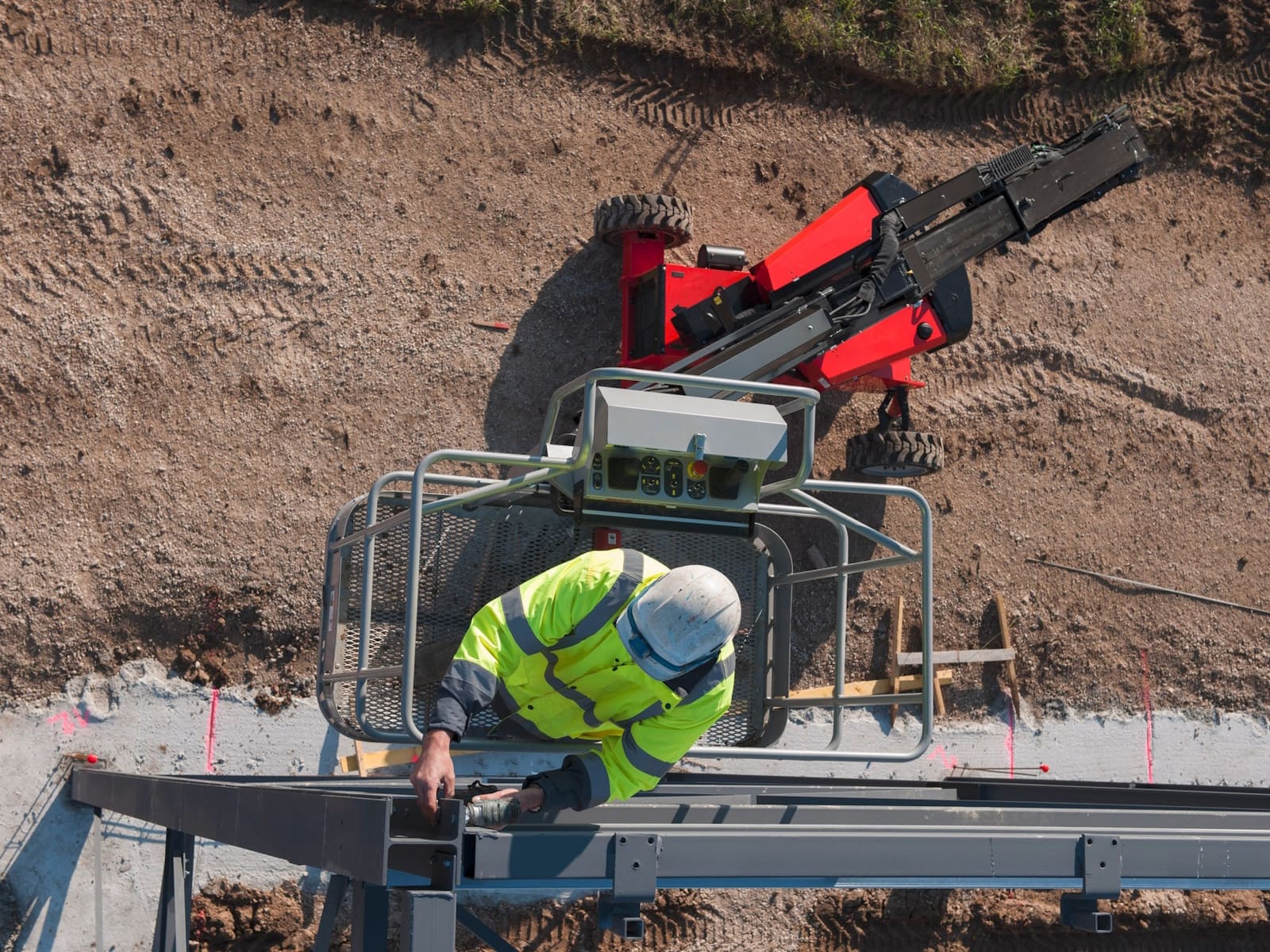

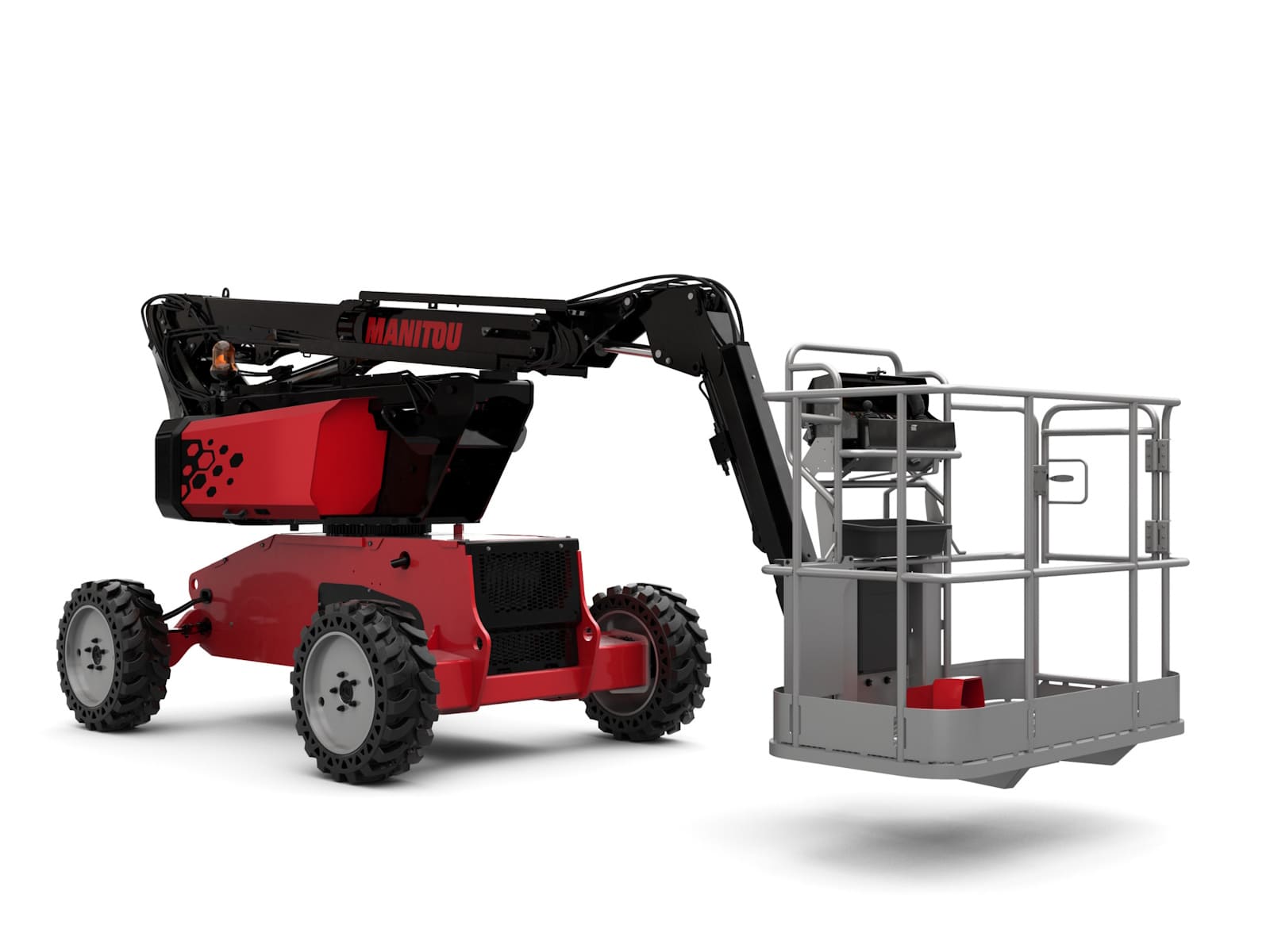

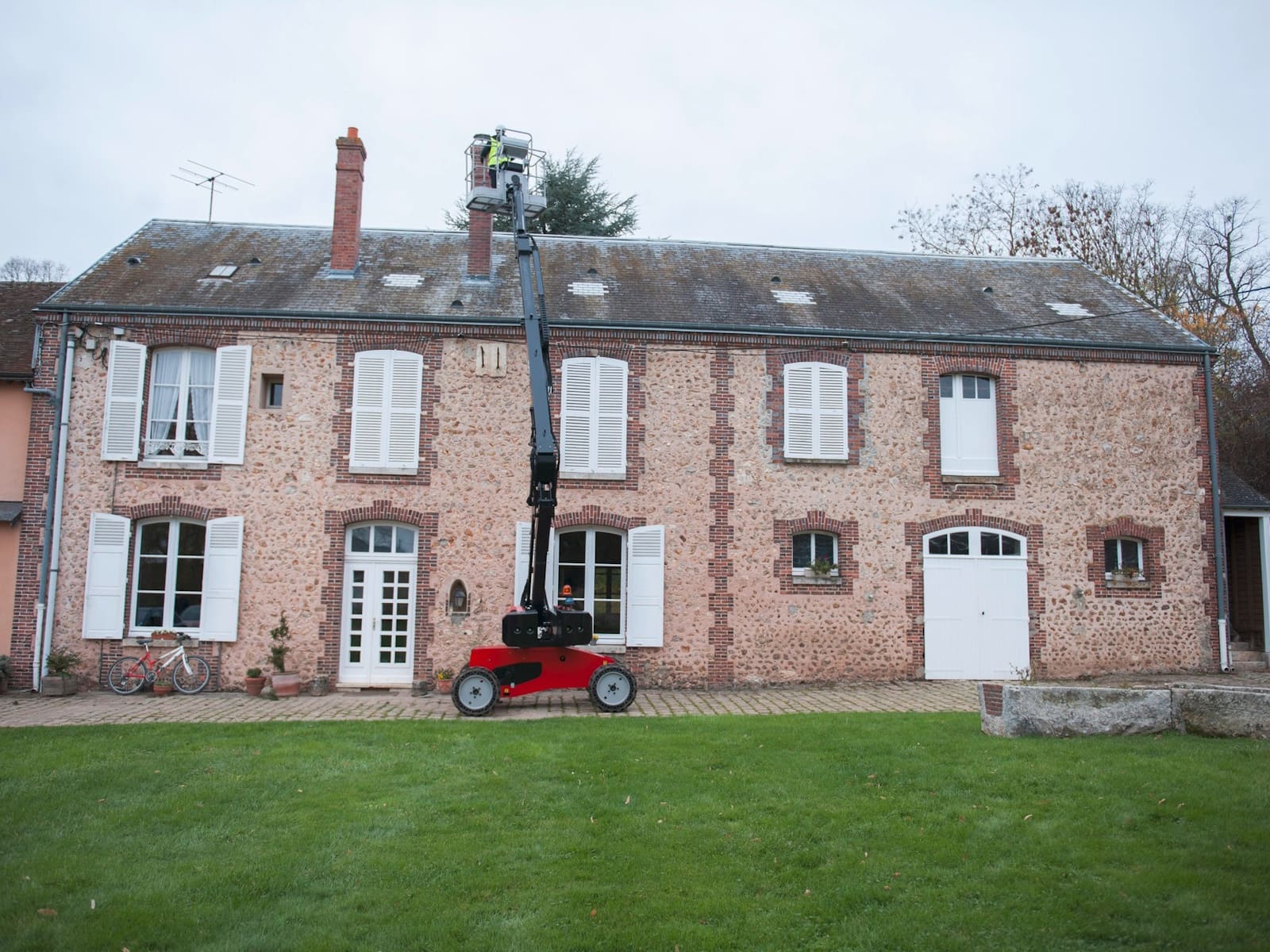

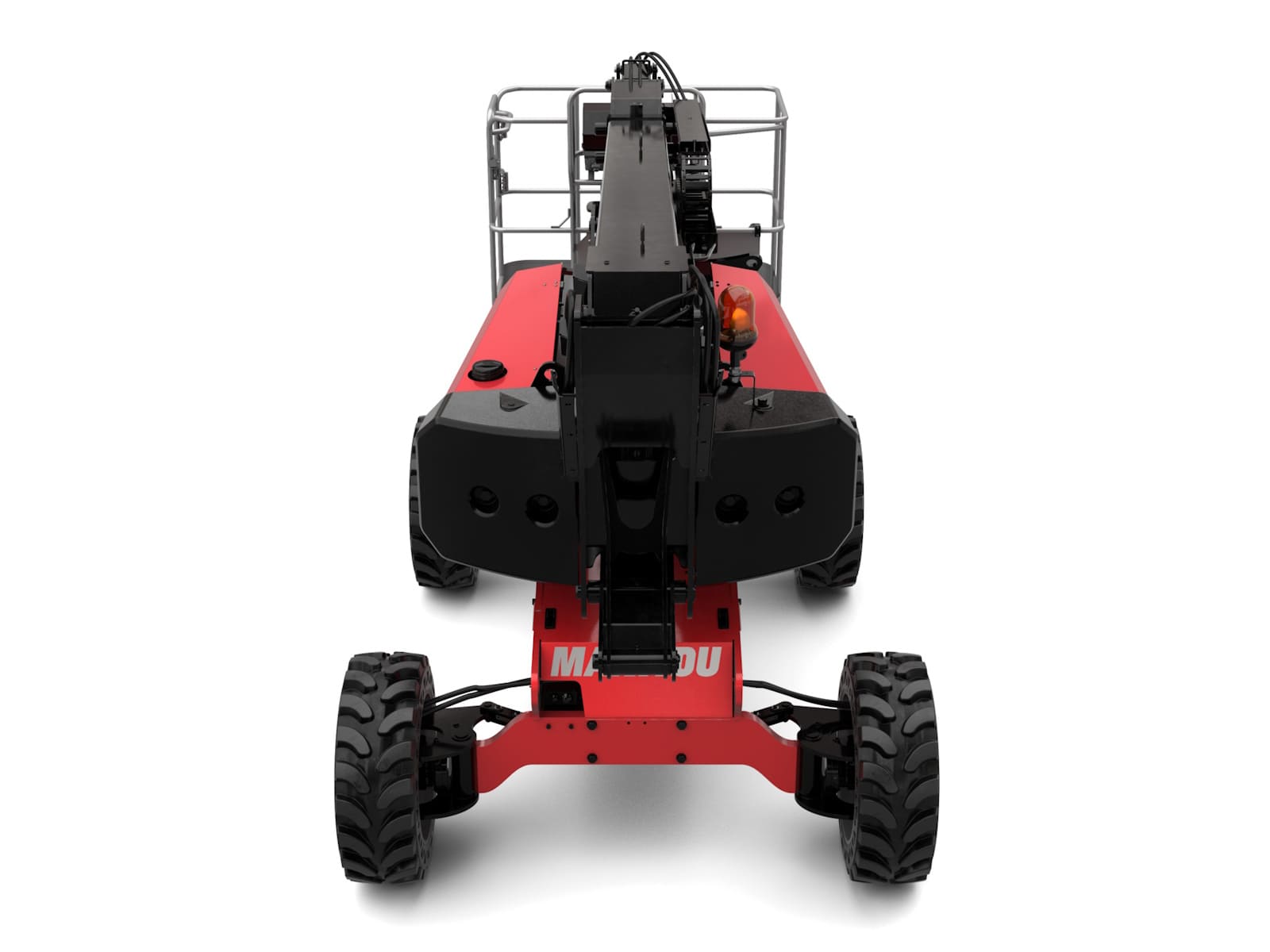

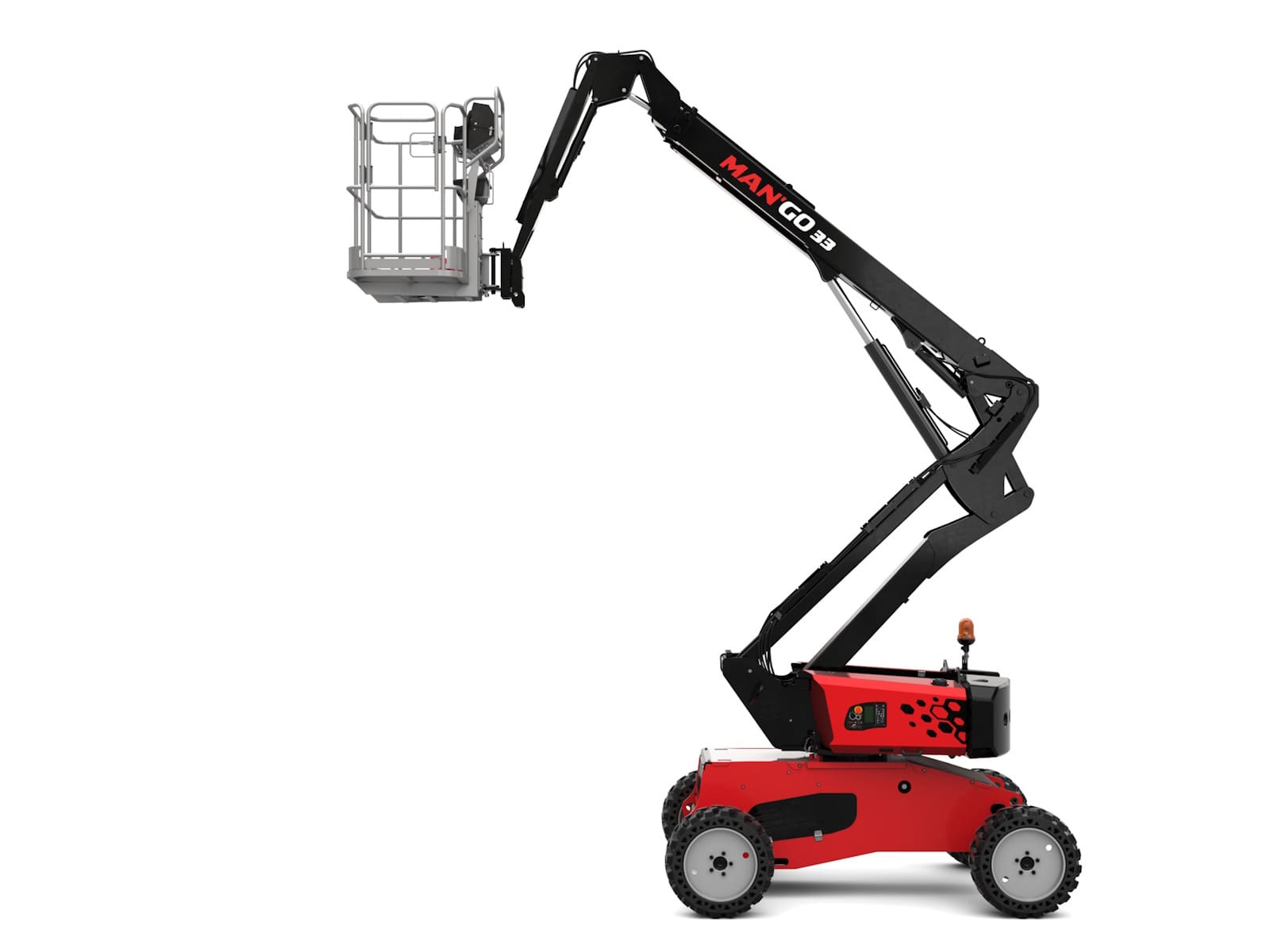

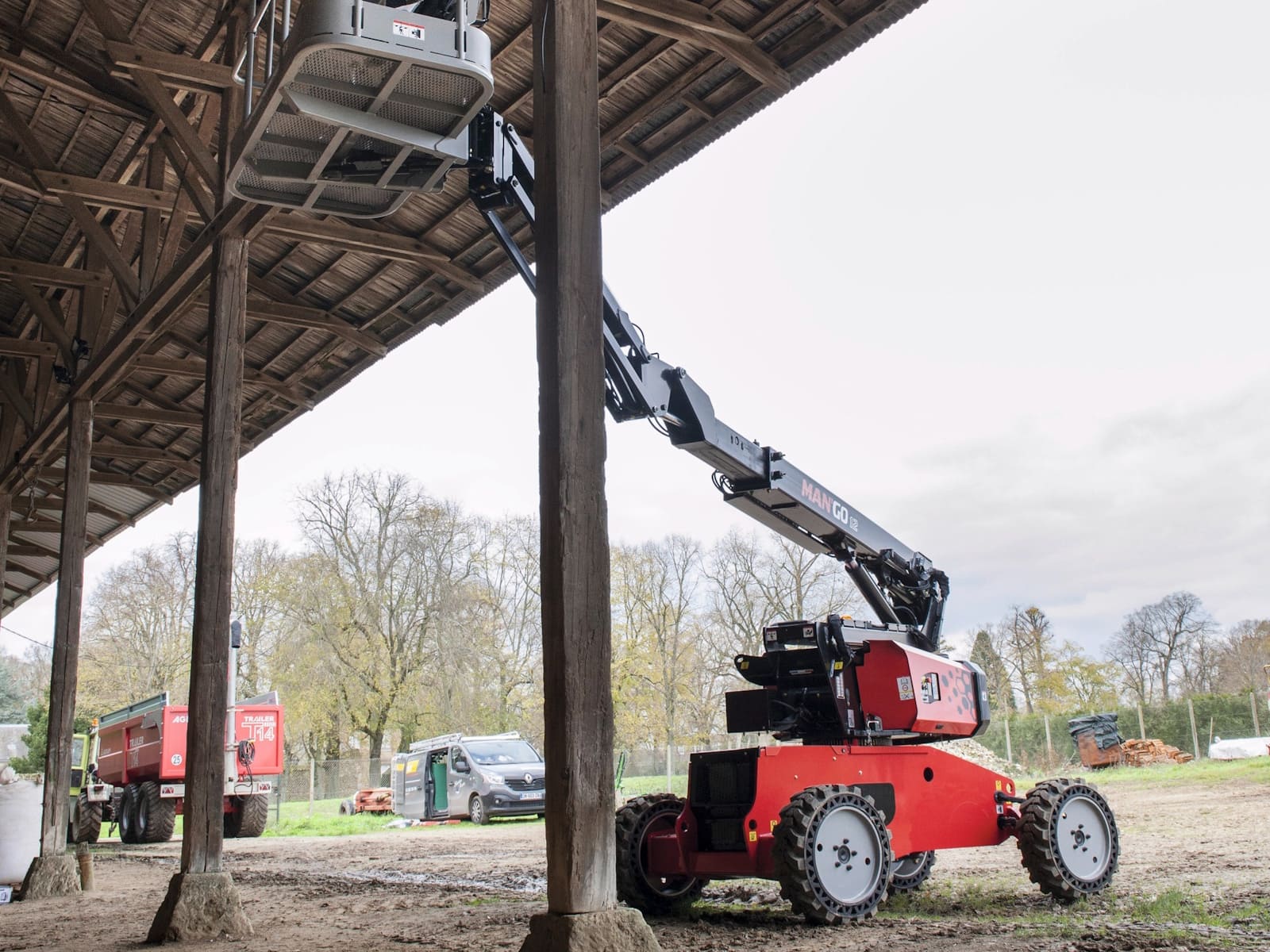

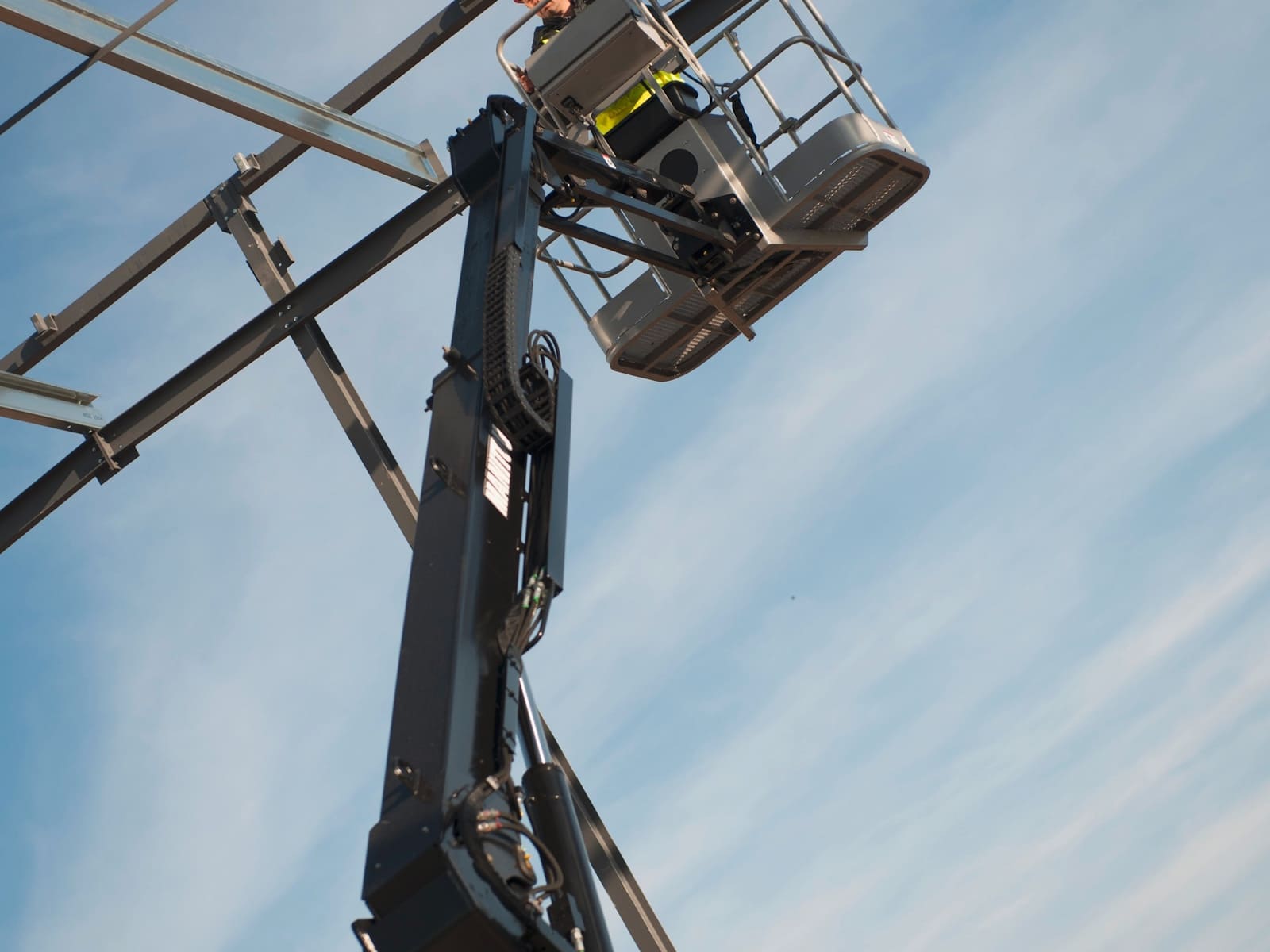

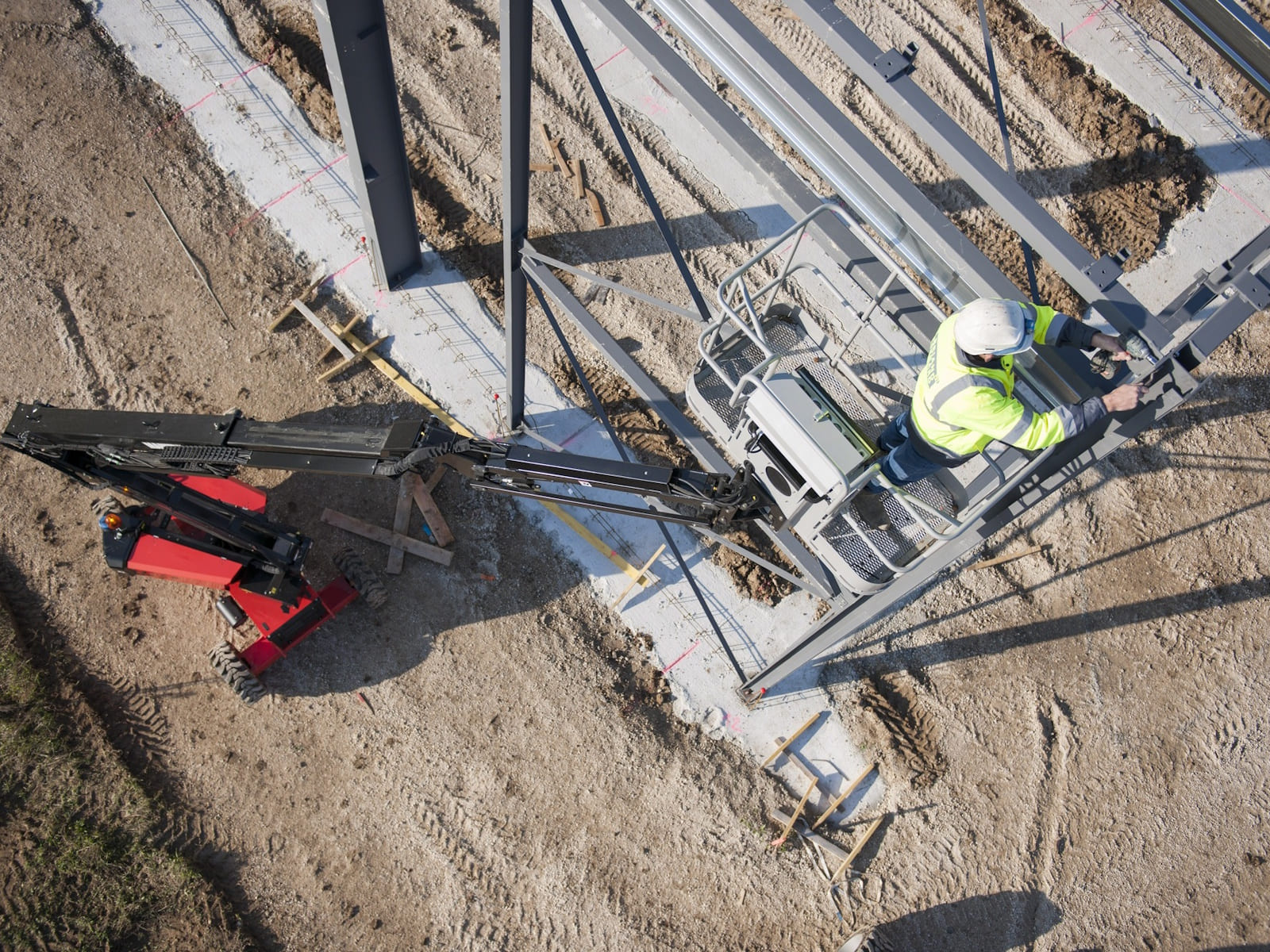

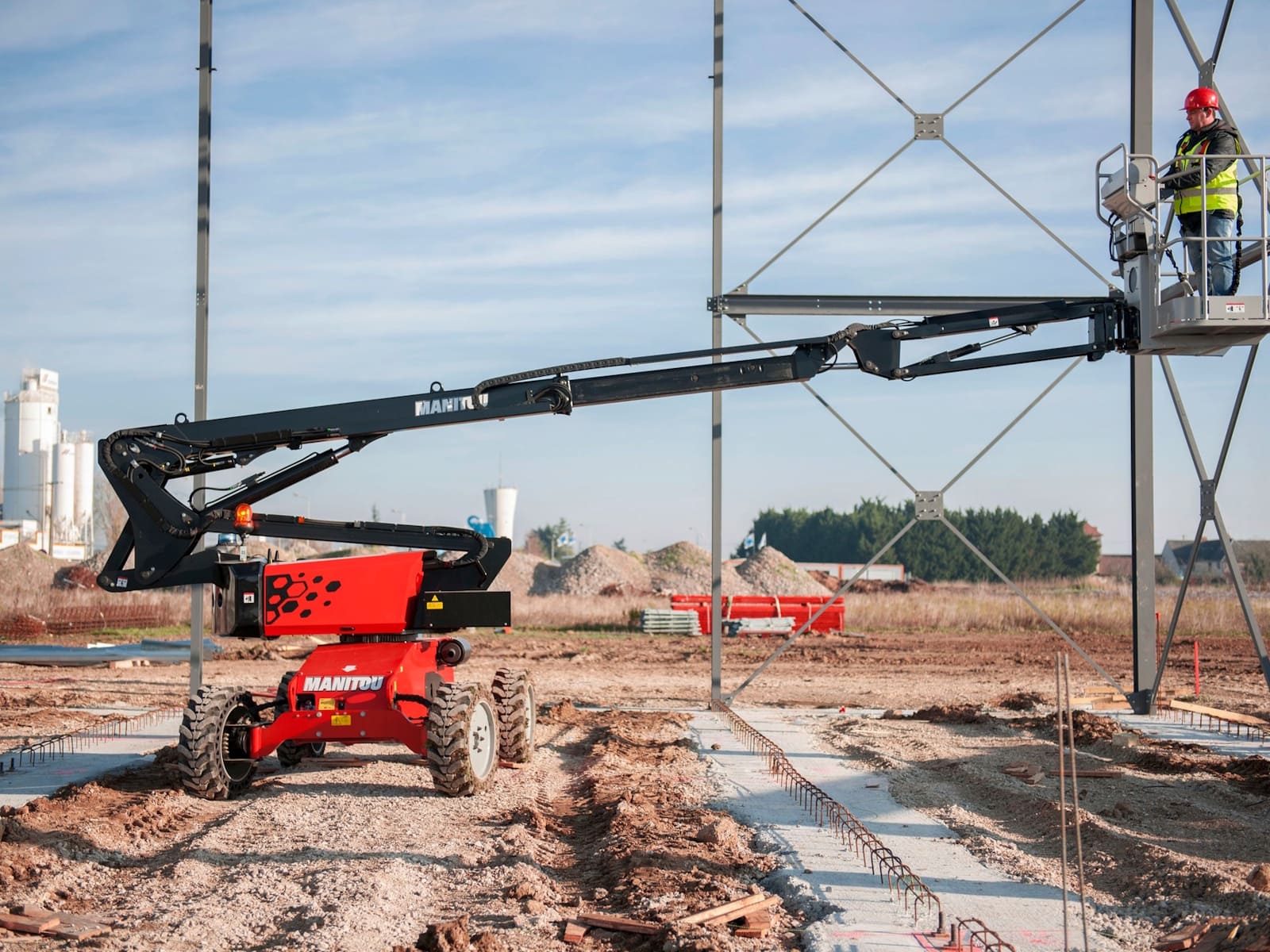

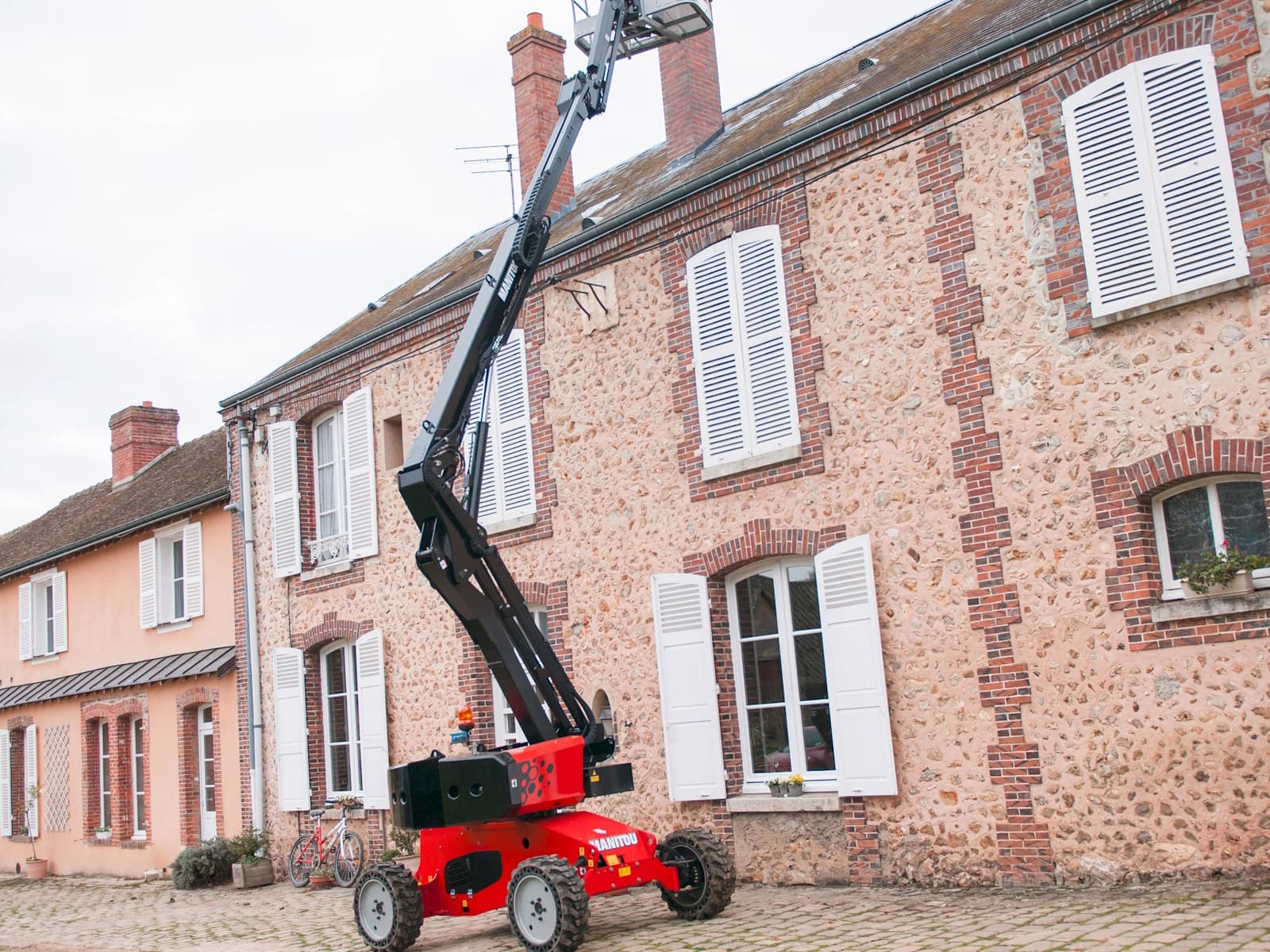

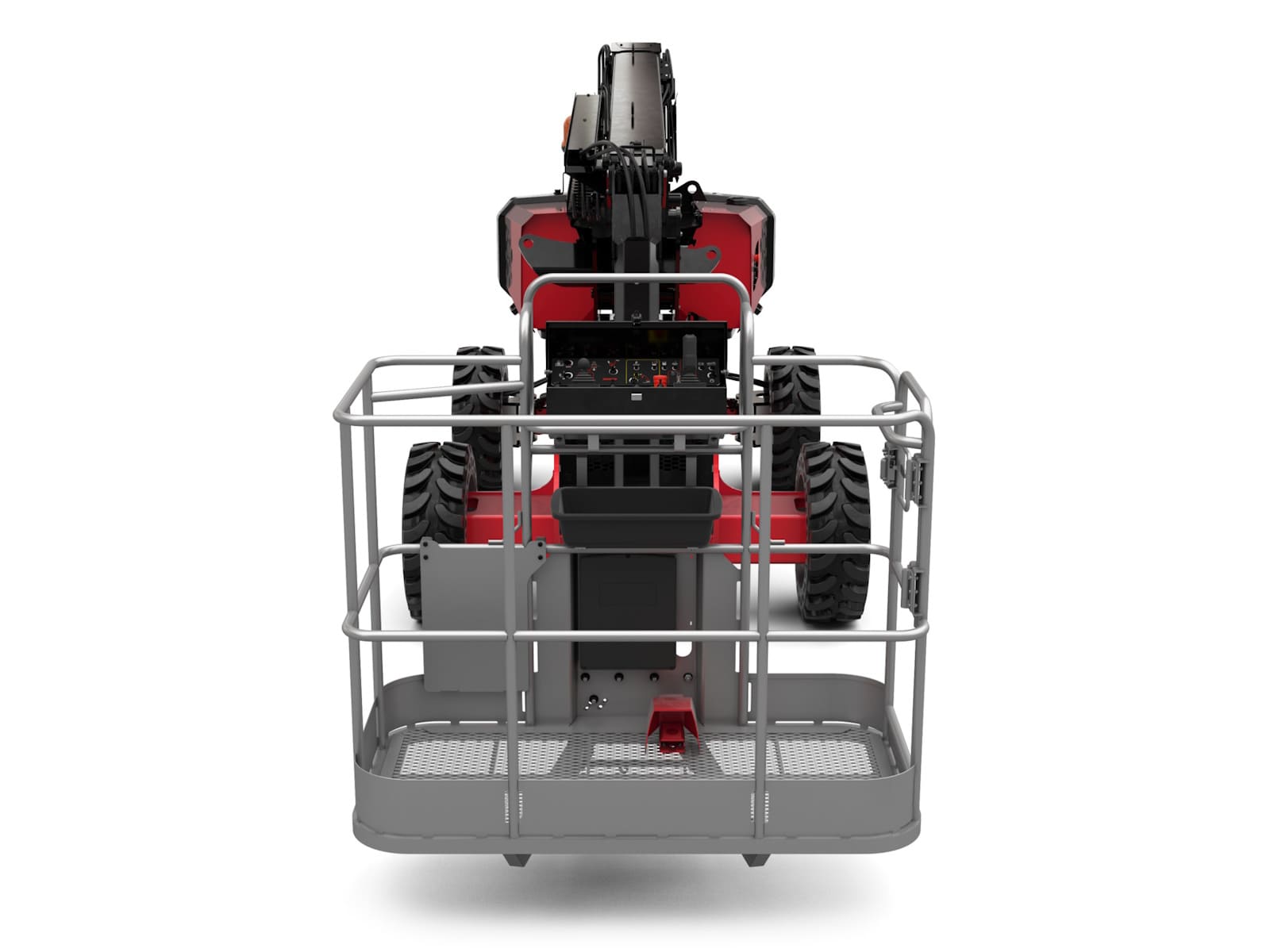

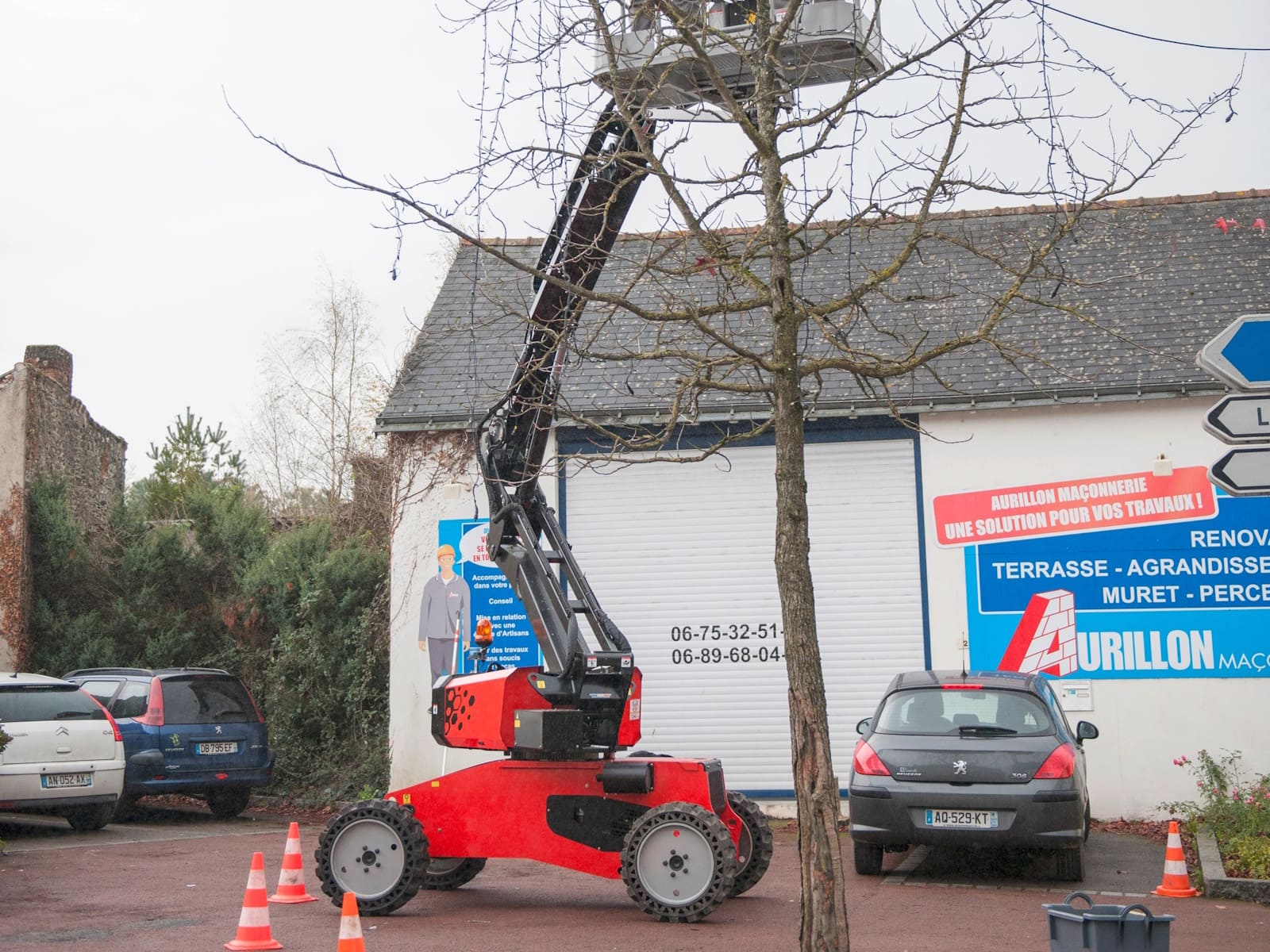

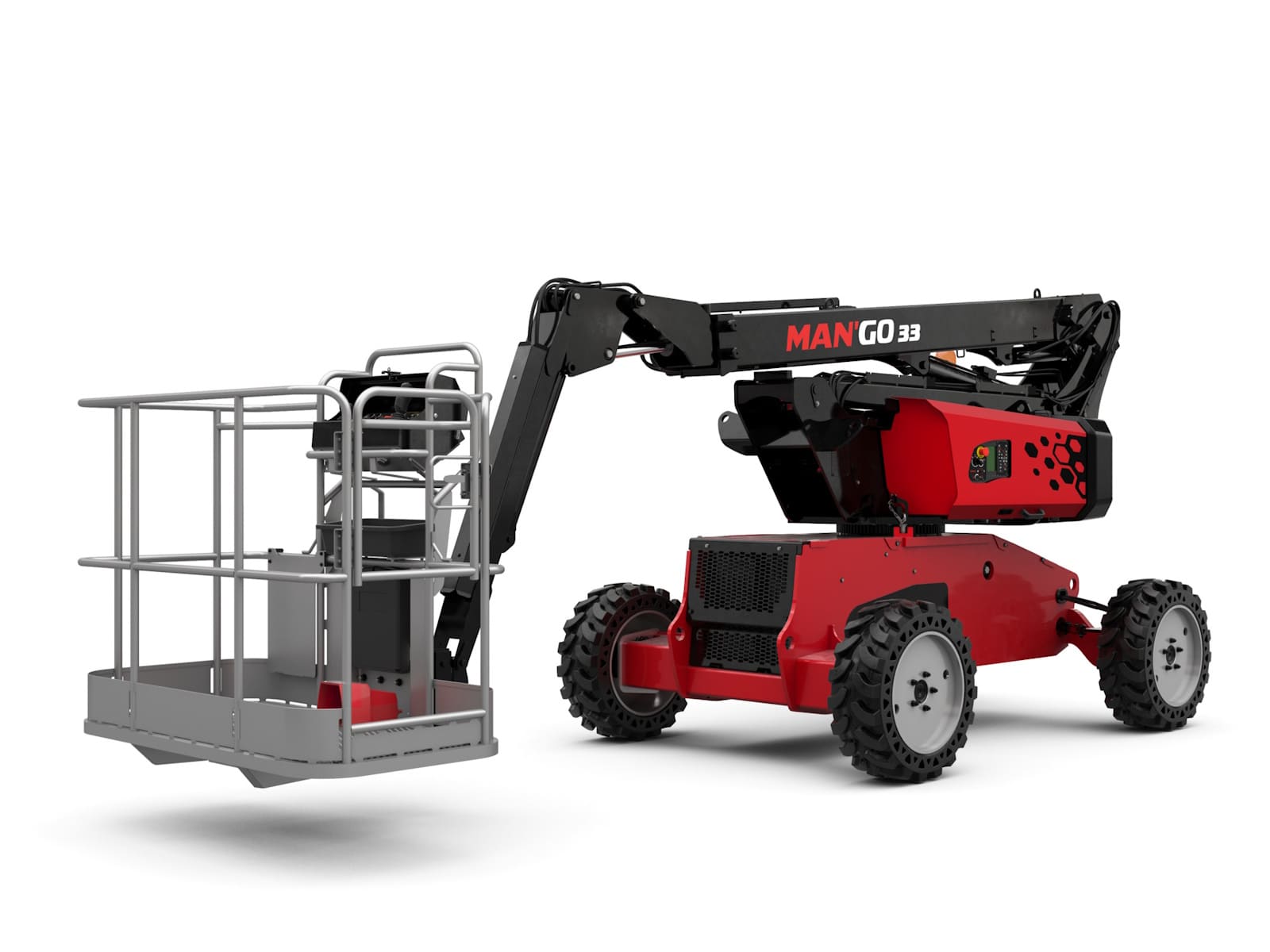

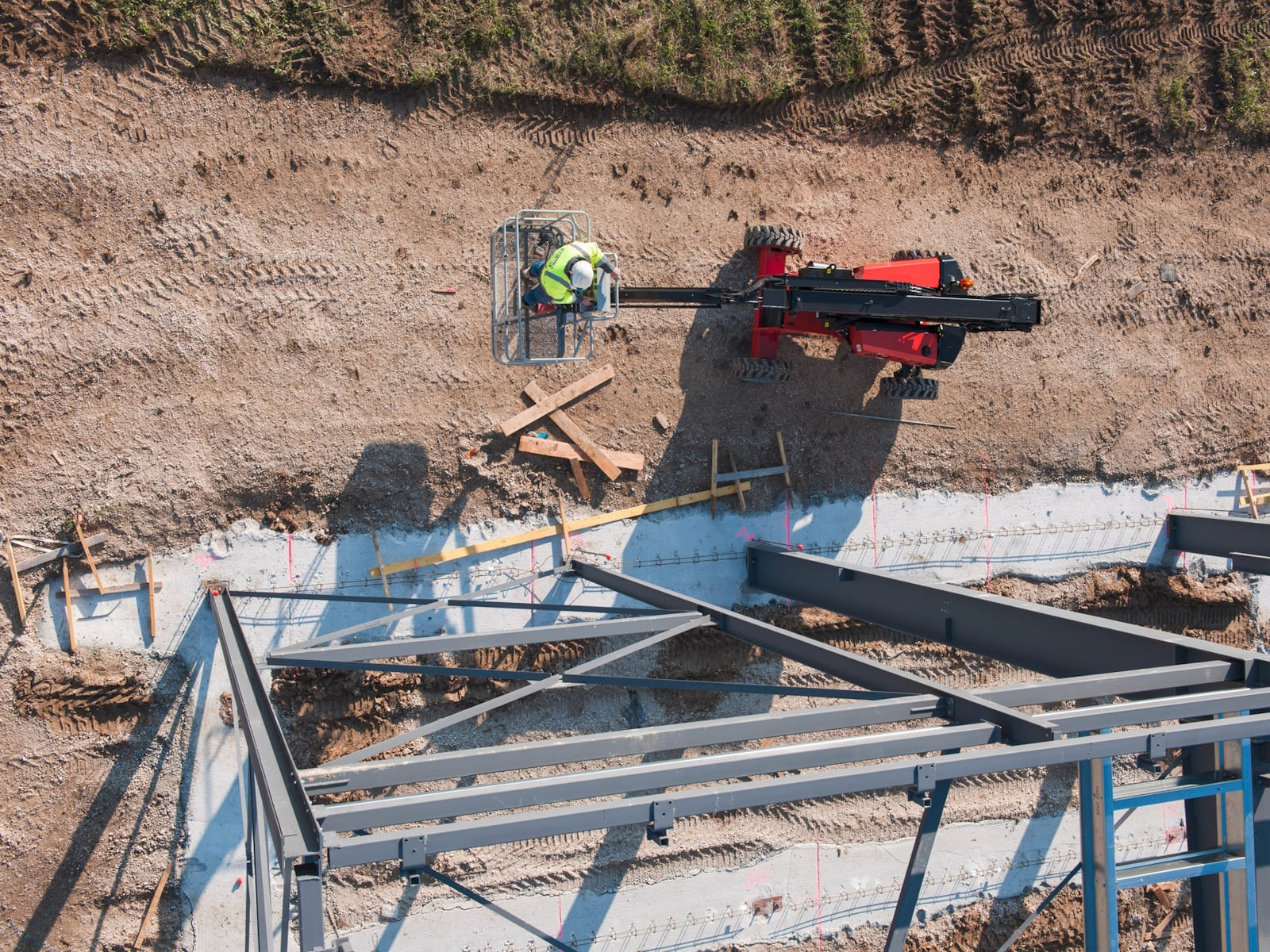

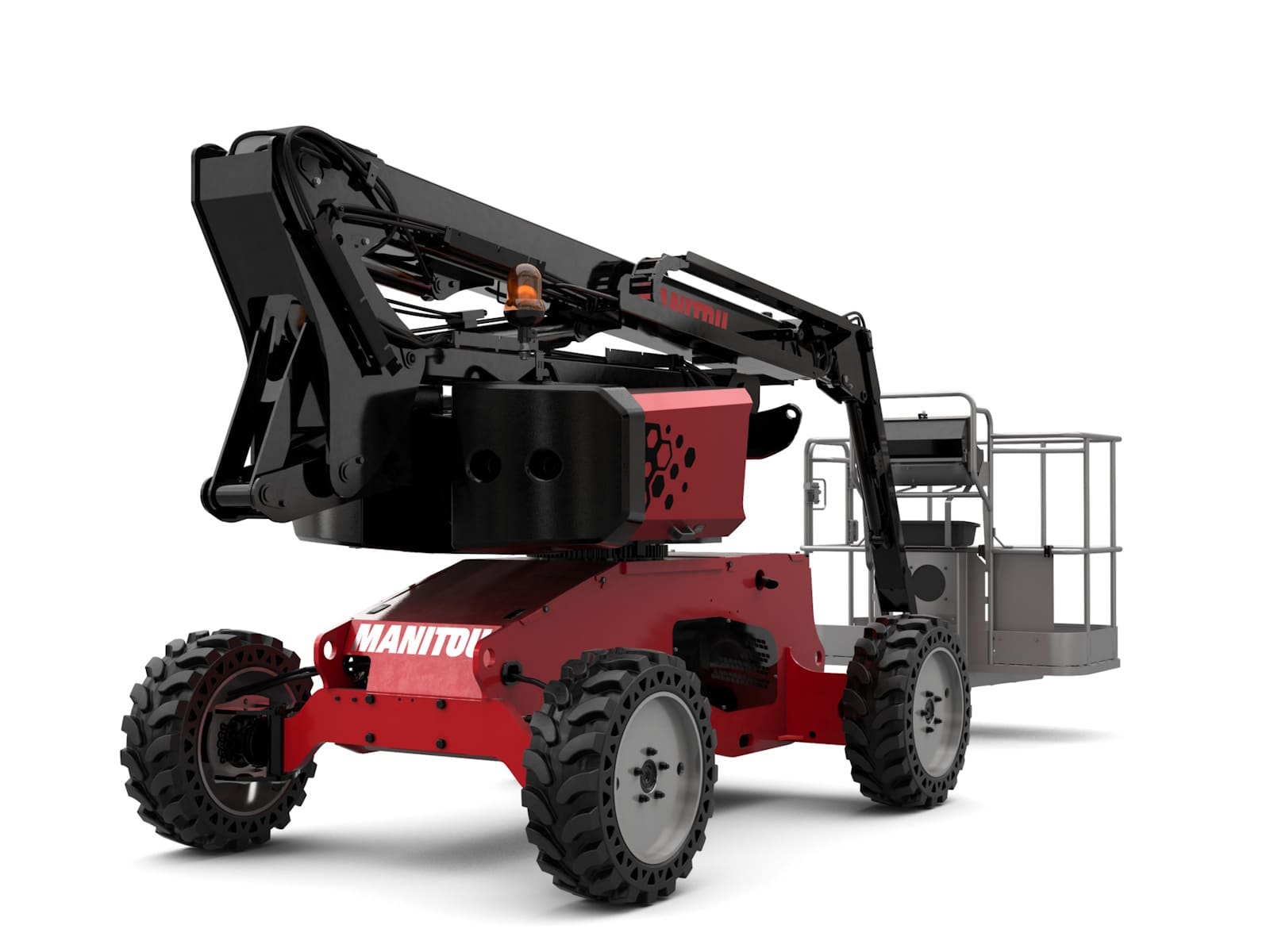

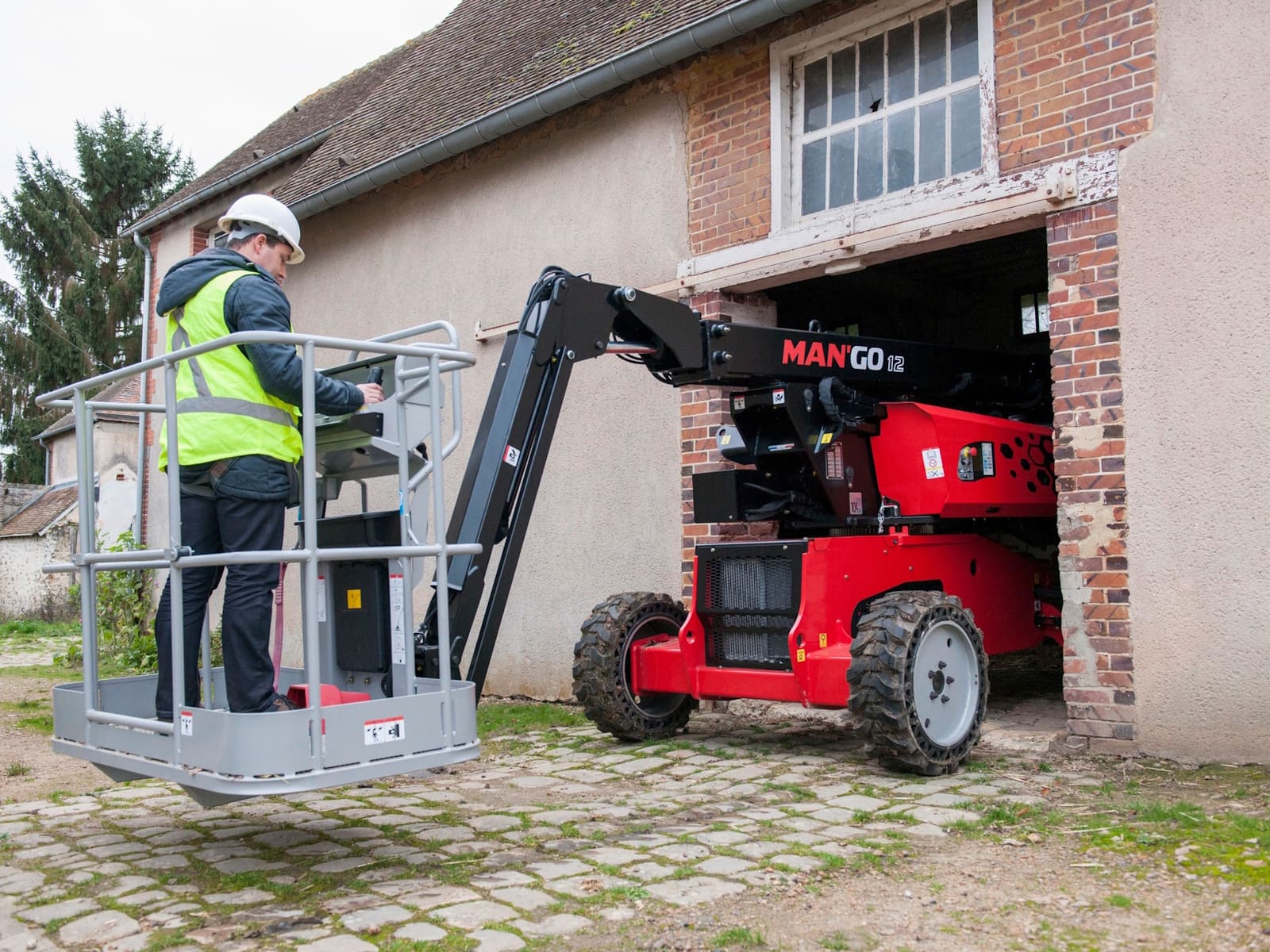

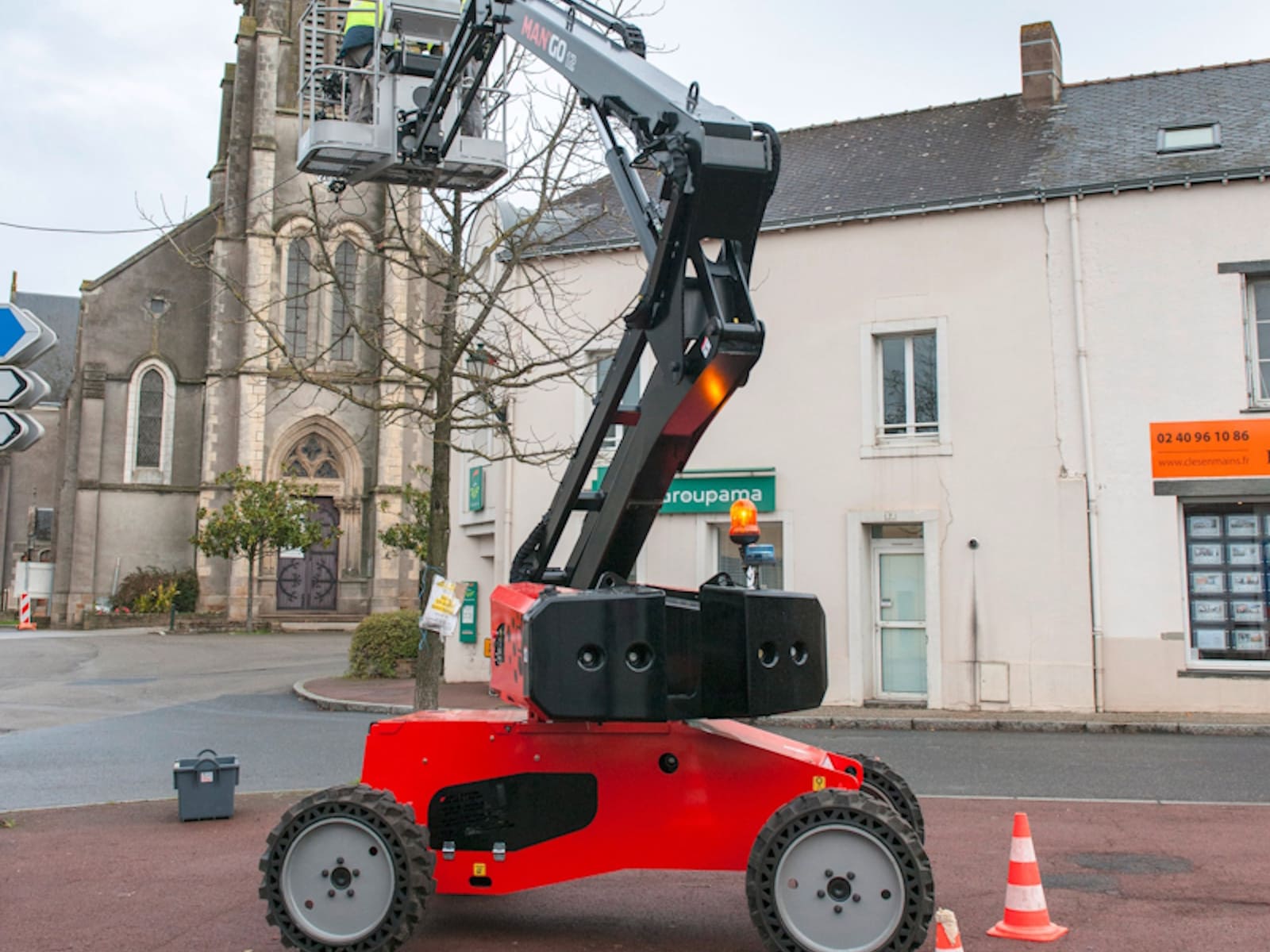

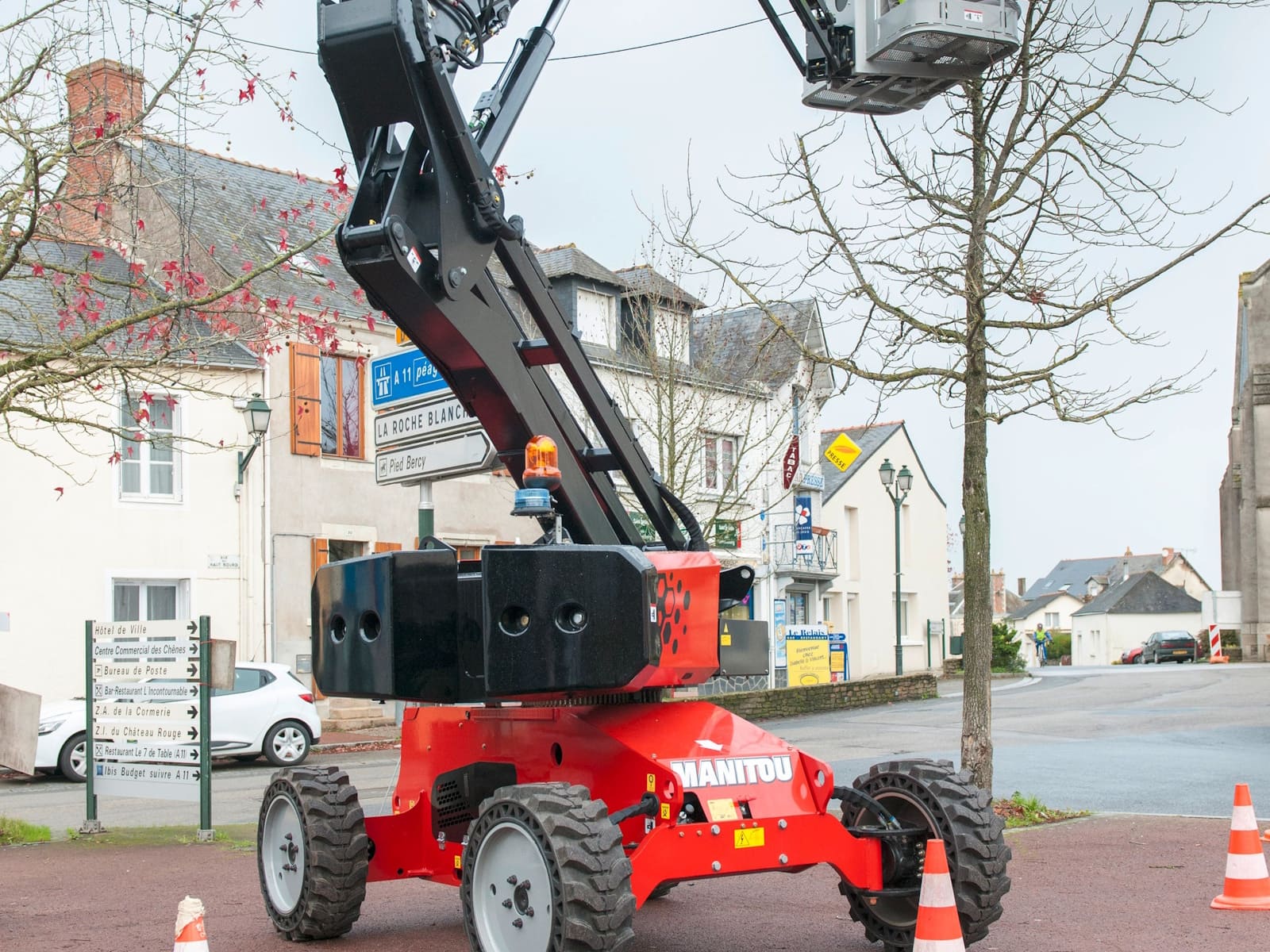

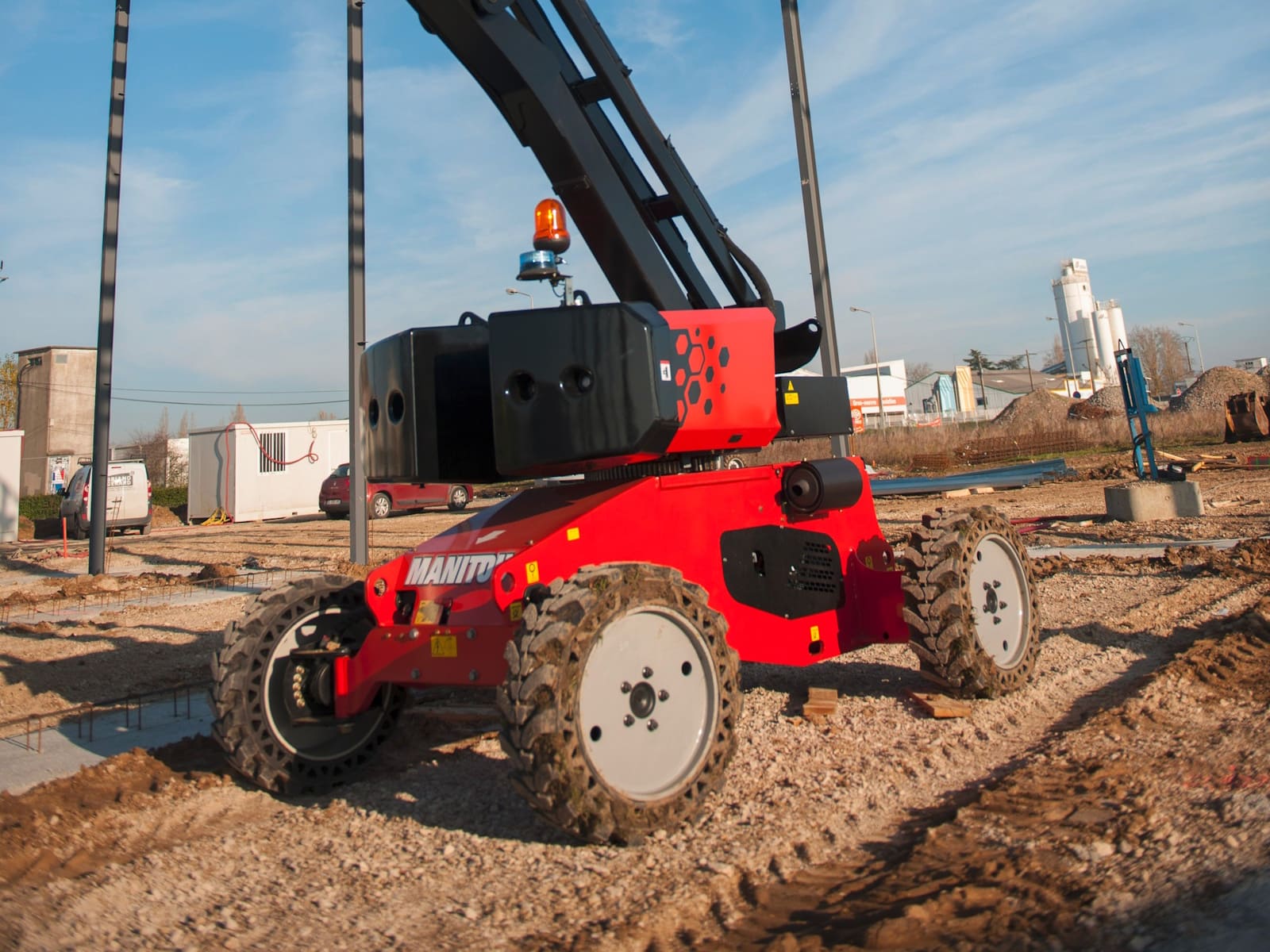

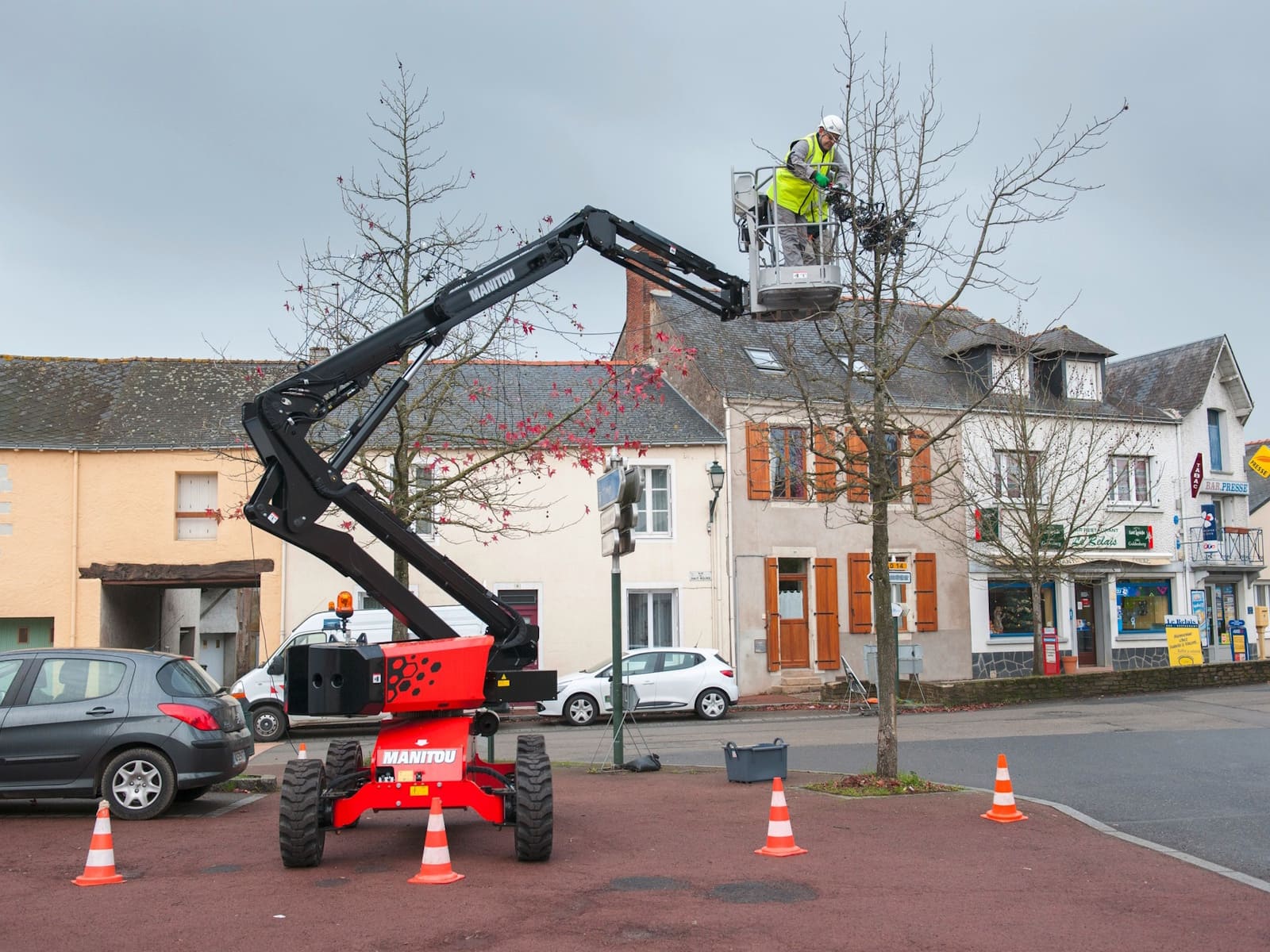

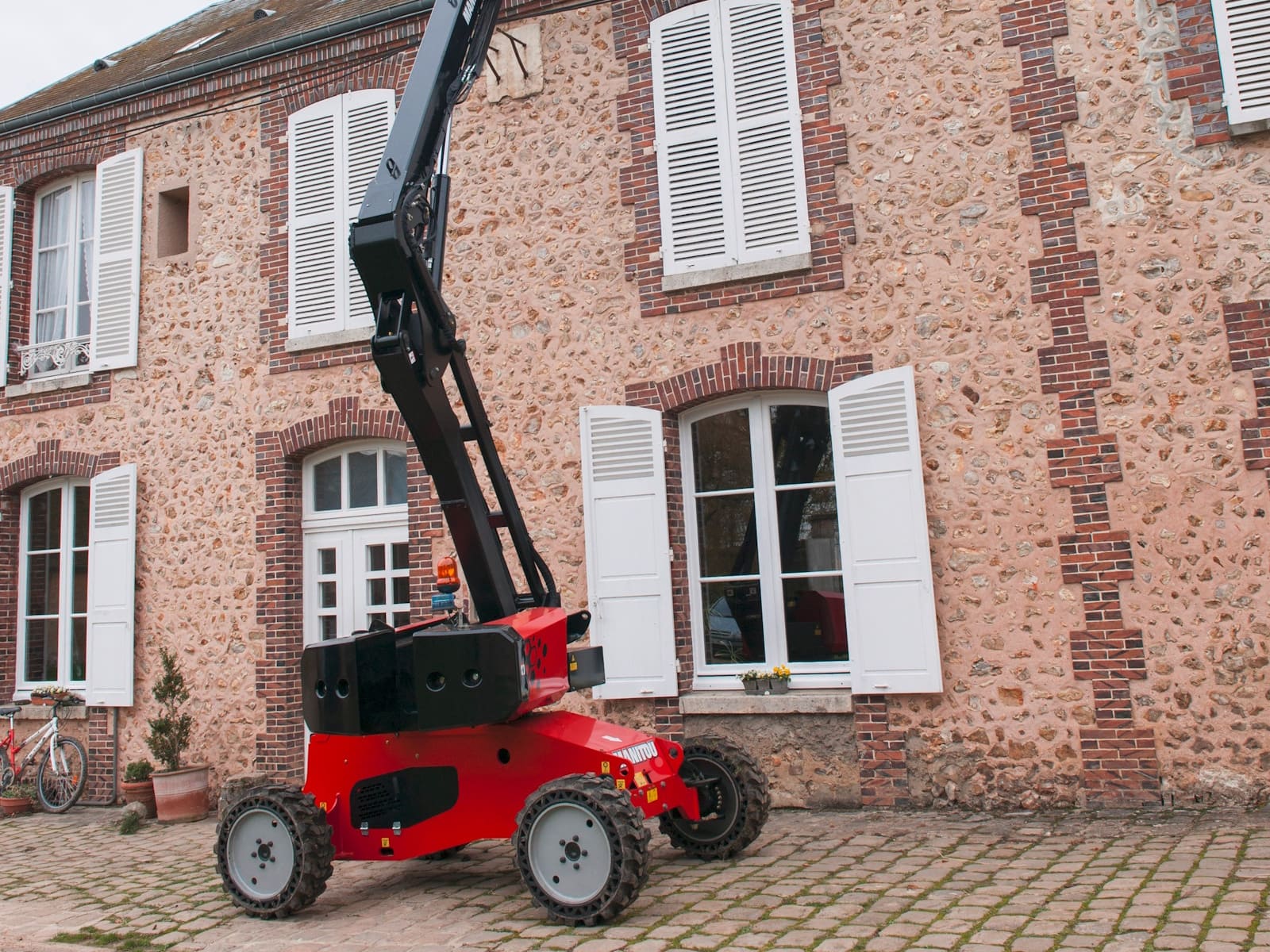

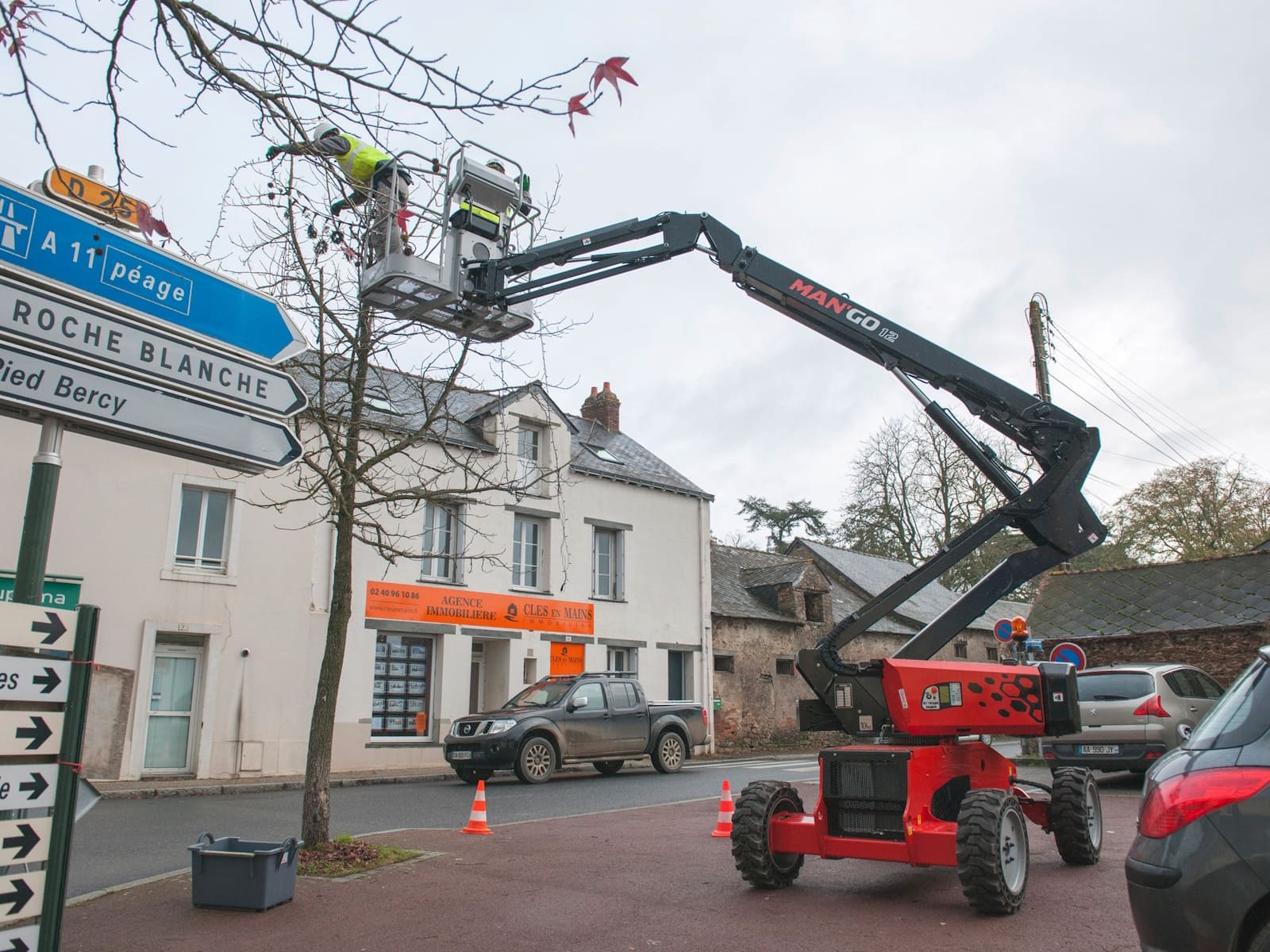

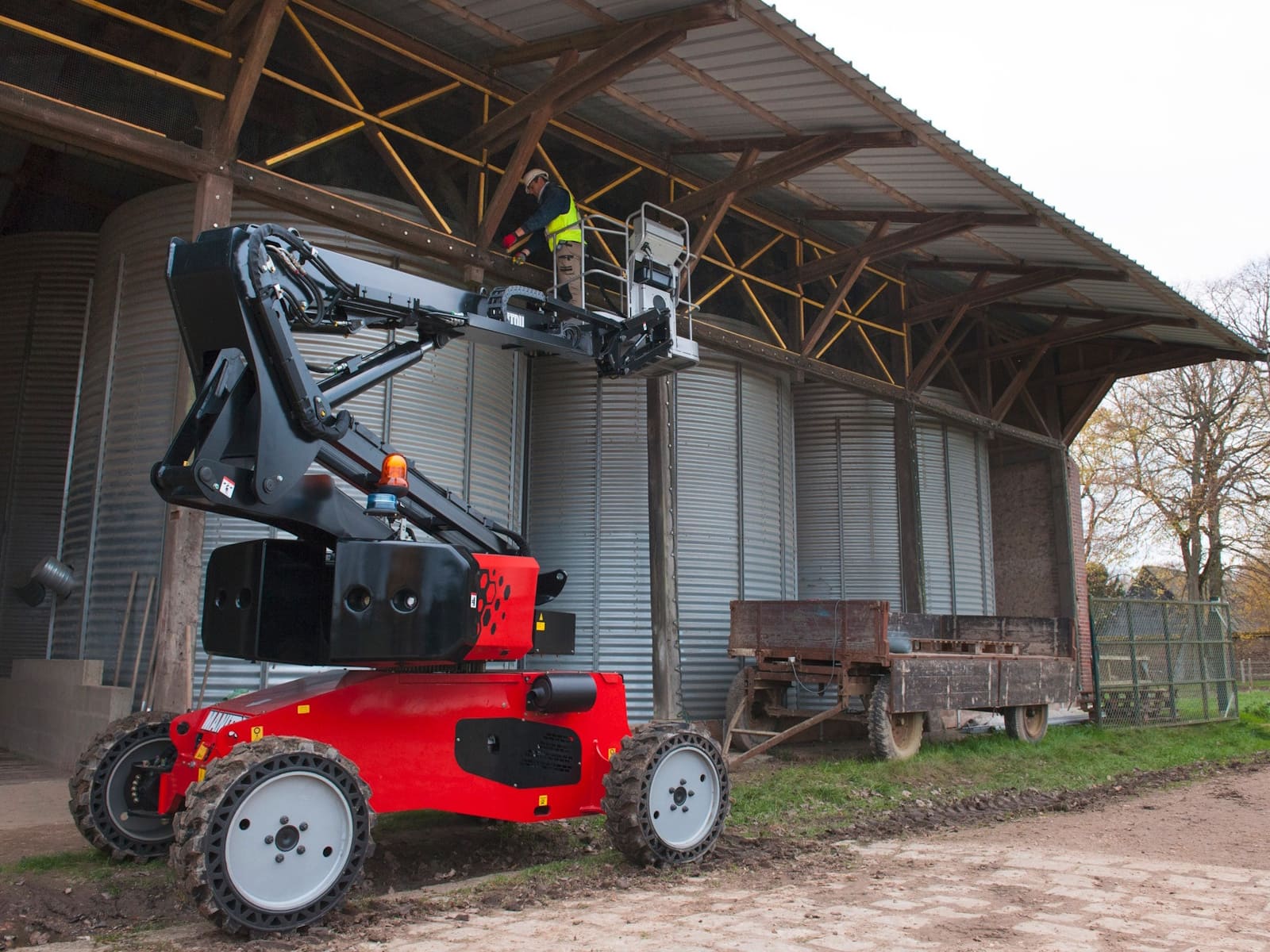

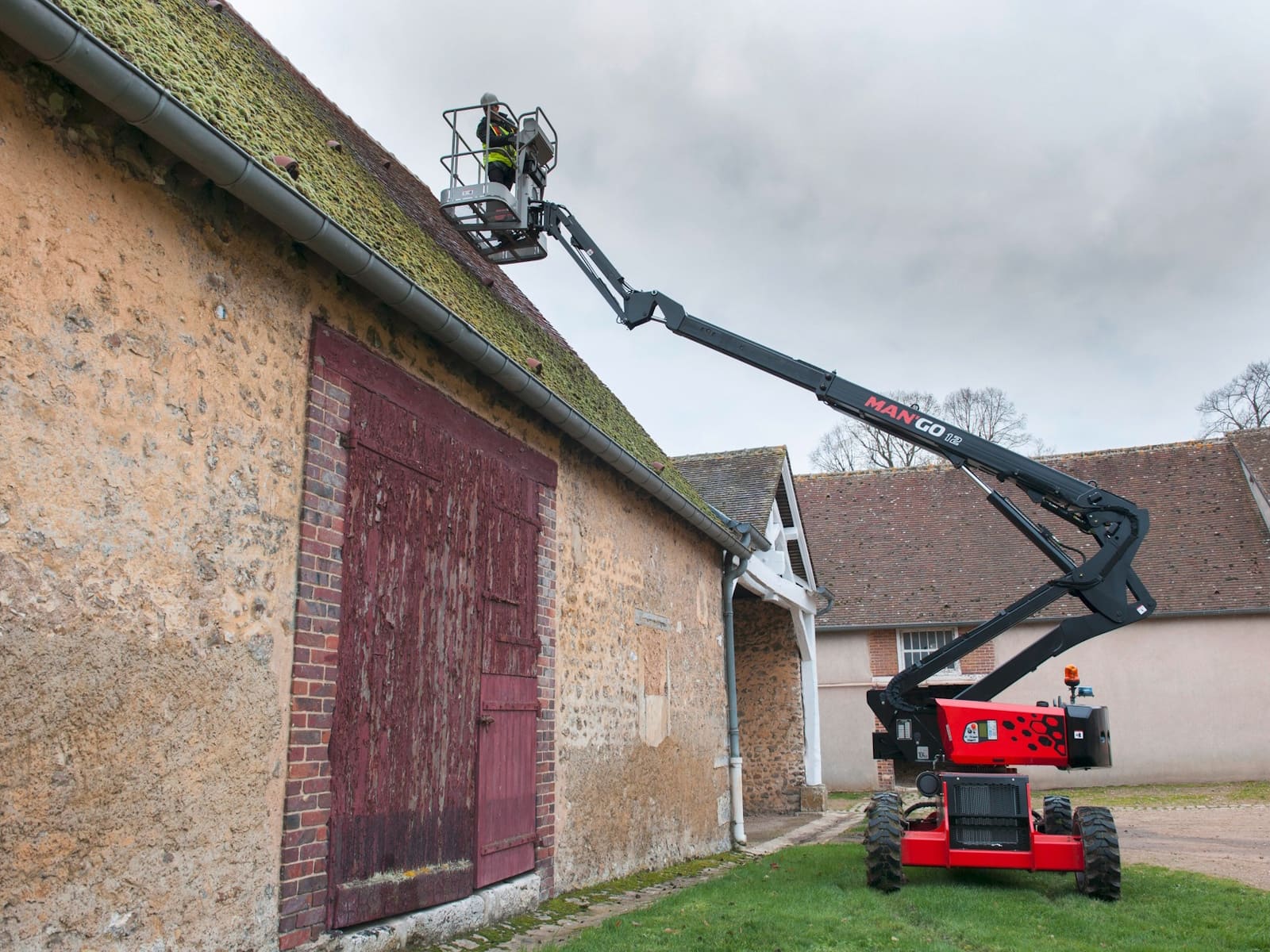

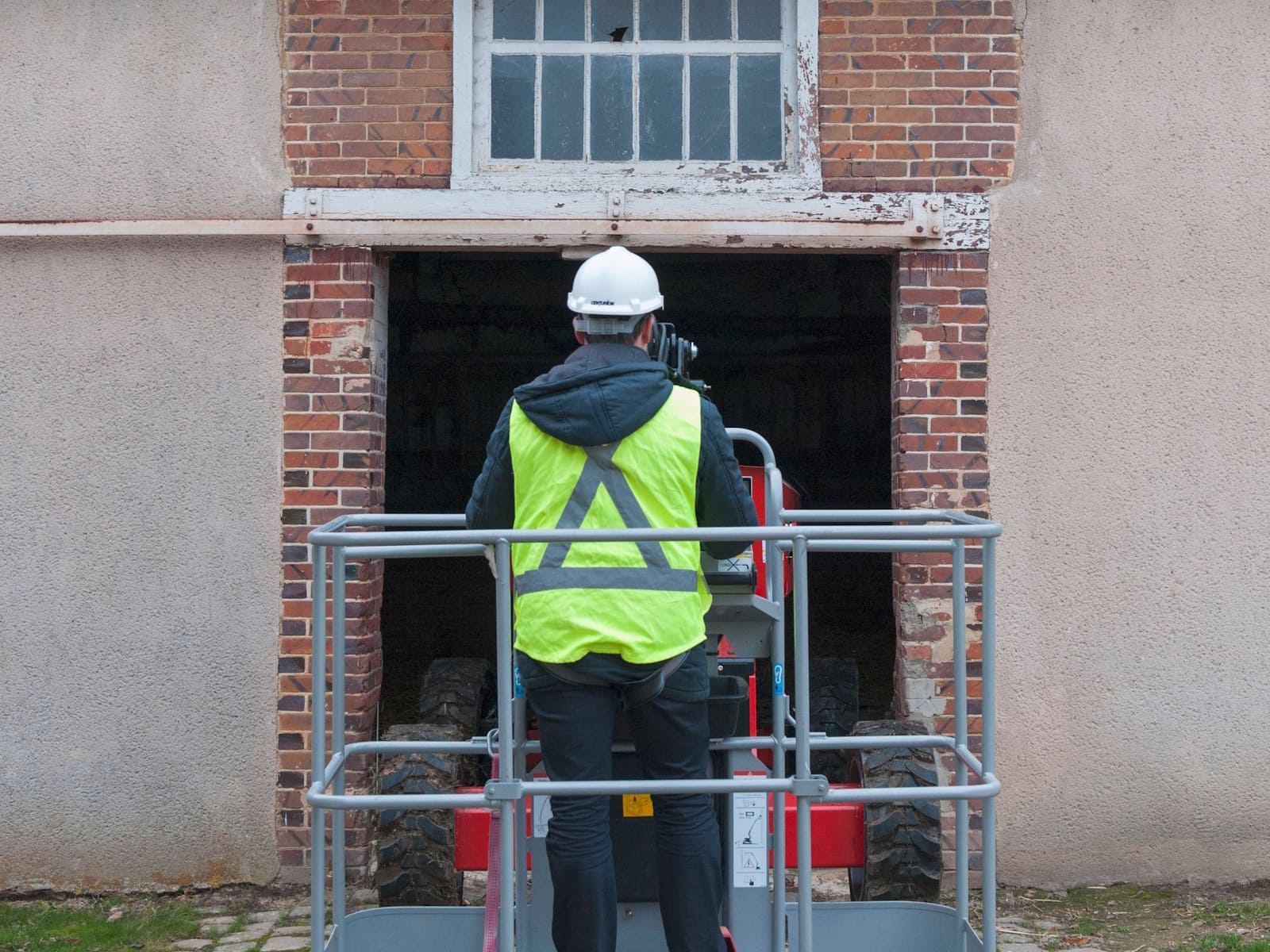

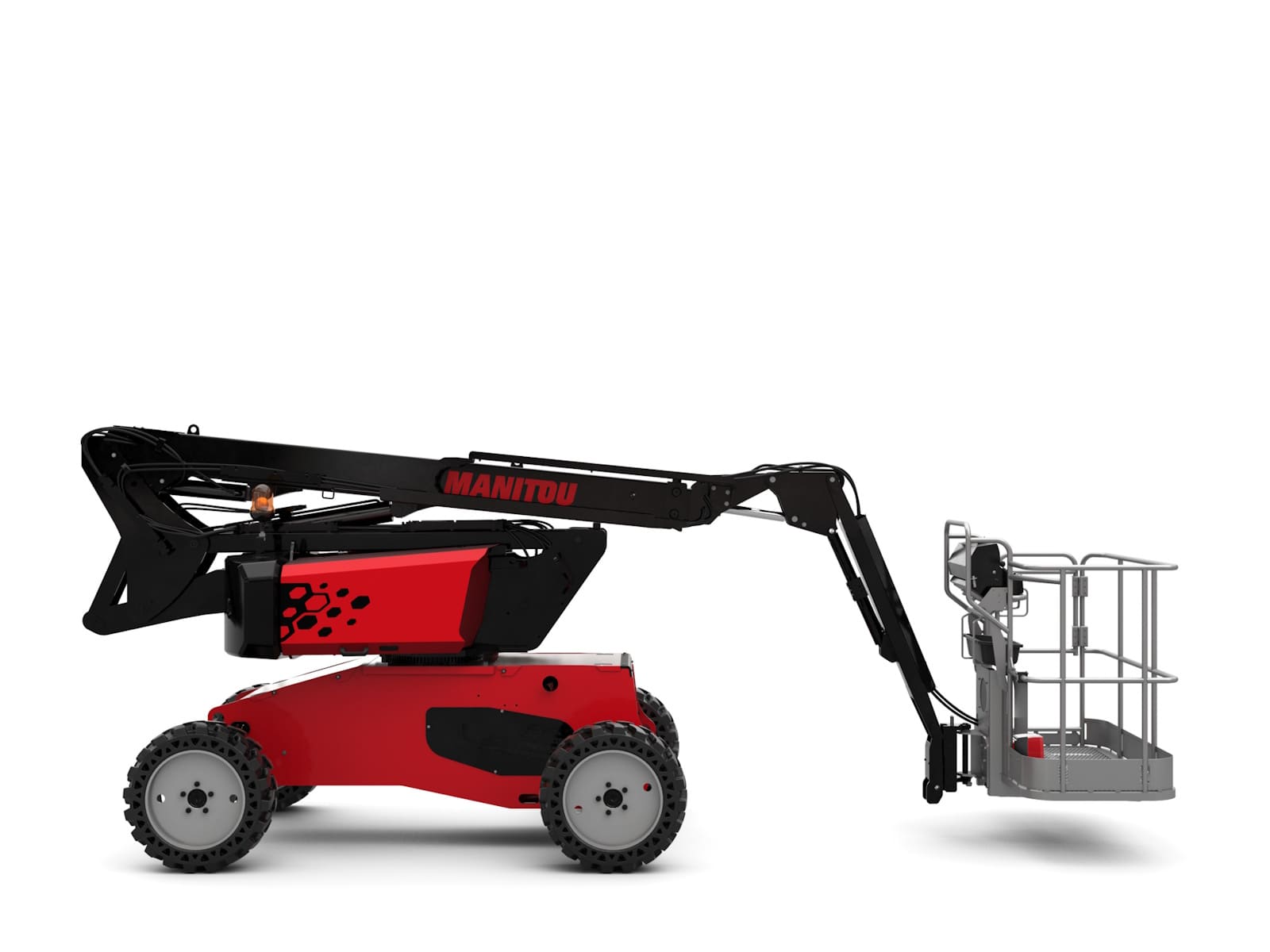

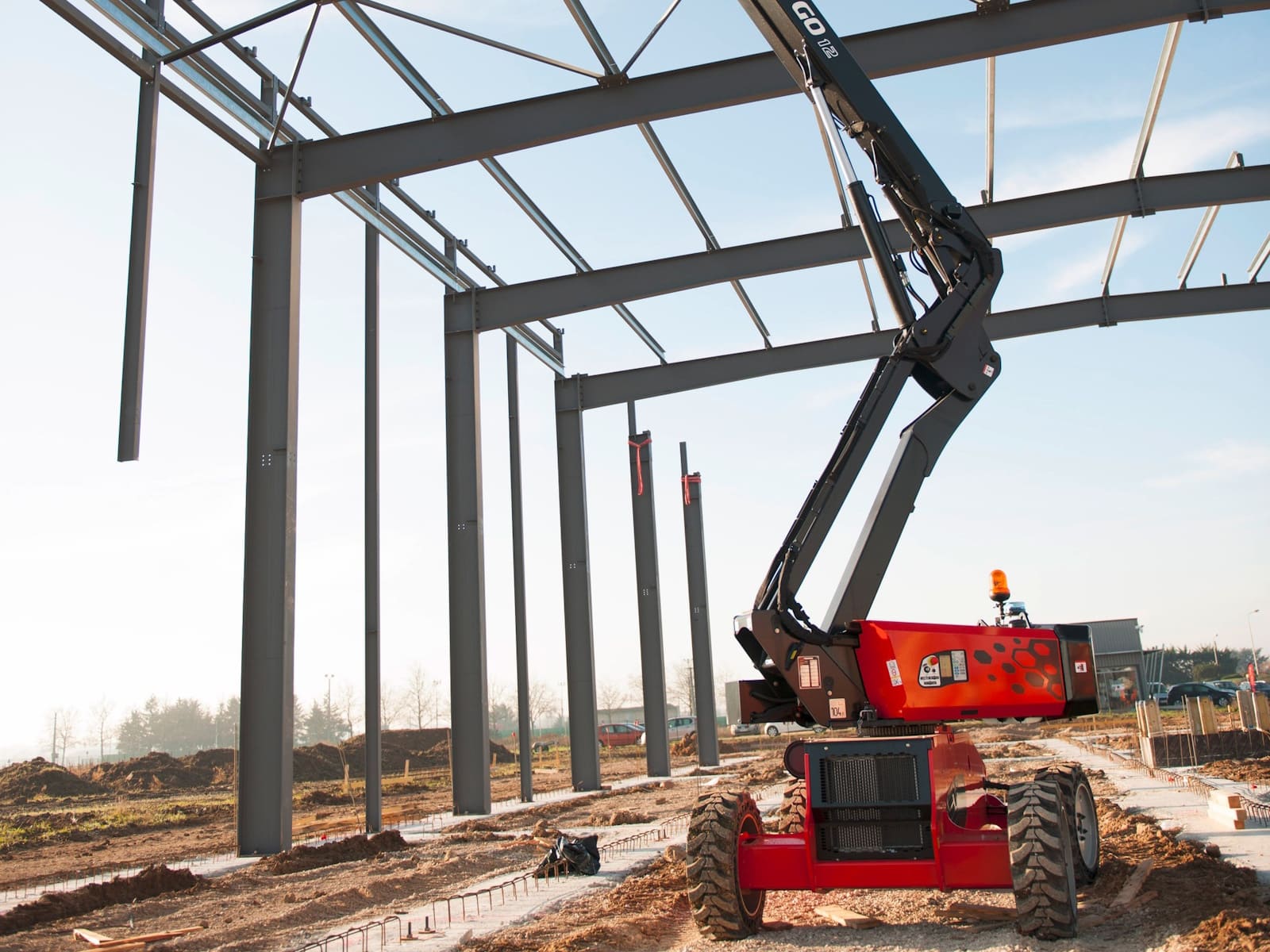

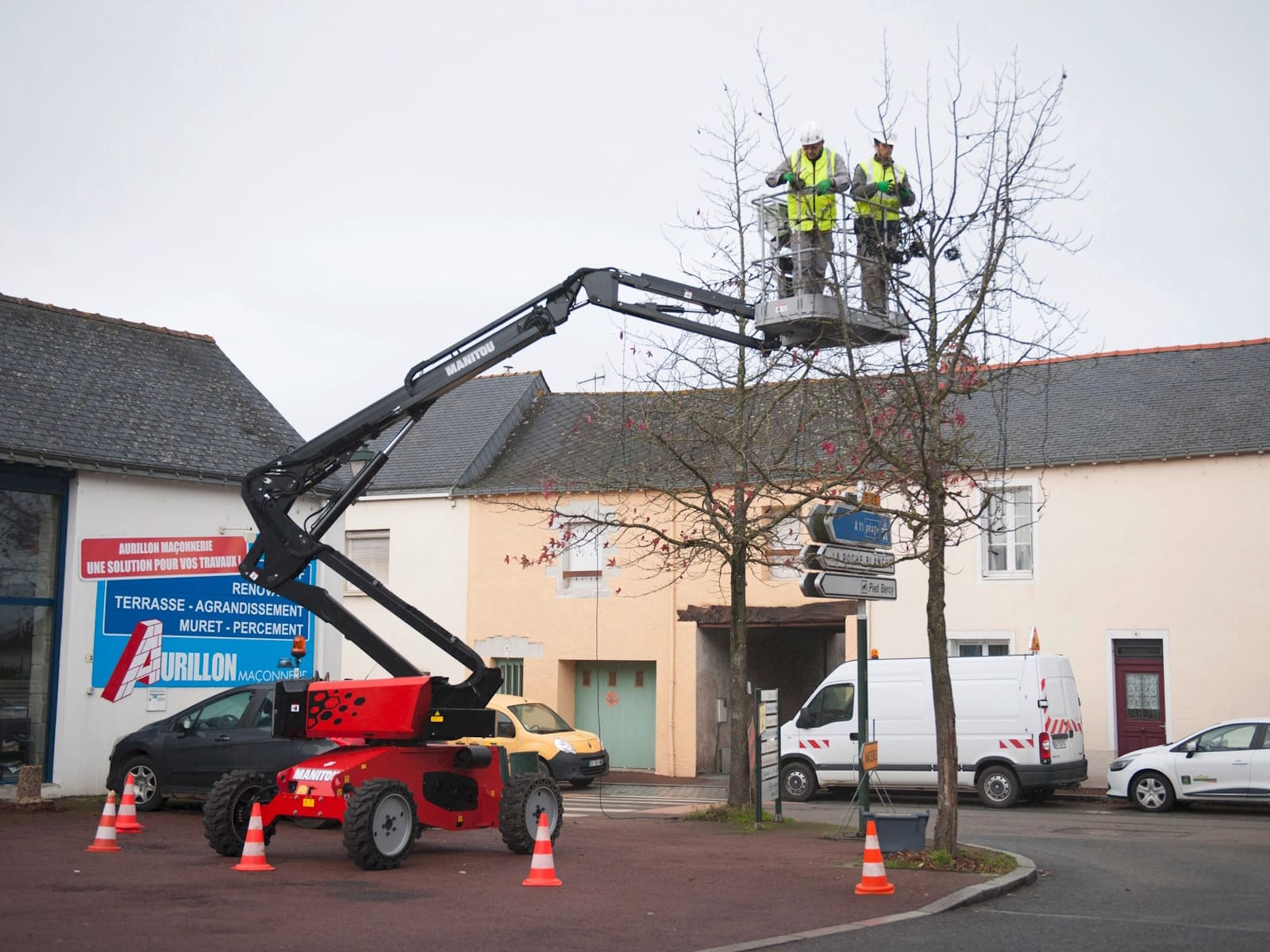

The MAN'GO 33 is one of the most compact aerial offroad solutions offering by Manitou. Light and handy, this unit helps achieve effective heights, nomatter the space contraints within the jobsite area. The MAN'GO 33 is distinguished by its high compactness, turret rotation of 350 degrees, and its quick lift arms. For your comfort and safety, the MAN'GO 33 boom lift is equipped with a galvanized platform. It also works well in all-terrain conditions thanks to its high ground clearnance and ability to operate in 4-wheel drive.
Info
Industry
Agriculture
Make
Manitou Group
Model
MAN'GO 33
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Height
6 ft 7 in | Working height: 38 ft 5 in | Platform height: 32 ft 6 in | Floor height (access): 1 ft 4 in | Overall height (stowed): 8 ft 2 in | Jib length: 4 ft 9 in
Notes
Max. outreach: 21 ft 11 in | Overhang: 15 ft 9 in | Pendular arm rotation (top / bottom): +64 ° / -70 ° | Platform capacity: 500 lb | Turret rotation: 350 ° | Platform rotation (right / left): 70 ° / 66 ° | Number of people (indoor / outdoor): 2 / 2 | Platform dimensions (length x width): 4 ft 11 in x 3 ft 3 in | Counterweight Oversize / Reach: 7 in | Drive speed - stowed: 3 mph | Drive speed - raised: 0.62 mph | Gradeability: 45 % | Permissible leveling: 4 ° | Ground Pressure: 218 PSI | Hydraulic Pressure: 5802 PSI | Hydraulic tank capacity: 16 US gal | Vibration on hands/arms < 2 ft/s² | Daily consumption ** 1 US gal
Weight
Platform weight*: 9149 lb
Length
18 ft 1 in | Overall length (stowed): 14 ft 9 in
Width
5 ft 11 in
Turning Radius
External turning radius: 13 ft 6 in
Ground Clearance
Ground clearance at centre of wheelbase: 1 ft 1 in
Wheelbase
Wheelbase: 6 ft 7 in
Tires
Cured-on solid tires | 28 x 10 in / 720 x 240 mm
Wheels
Drive wheels (front / rear): 2 / 2 | Braking wheels (front / rear): 2 / 2
Steering
Steering wheels (front / rear): 2 / 0
Engine
Kubota - D1105-E4B | Engine norm: Interim Tier 4, Stage IIIA, Stage V
Power/Horsepower
24.80 Hp / 18.50 kW
Fuel Capacity
14 US gal
