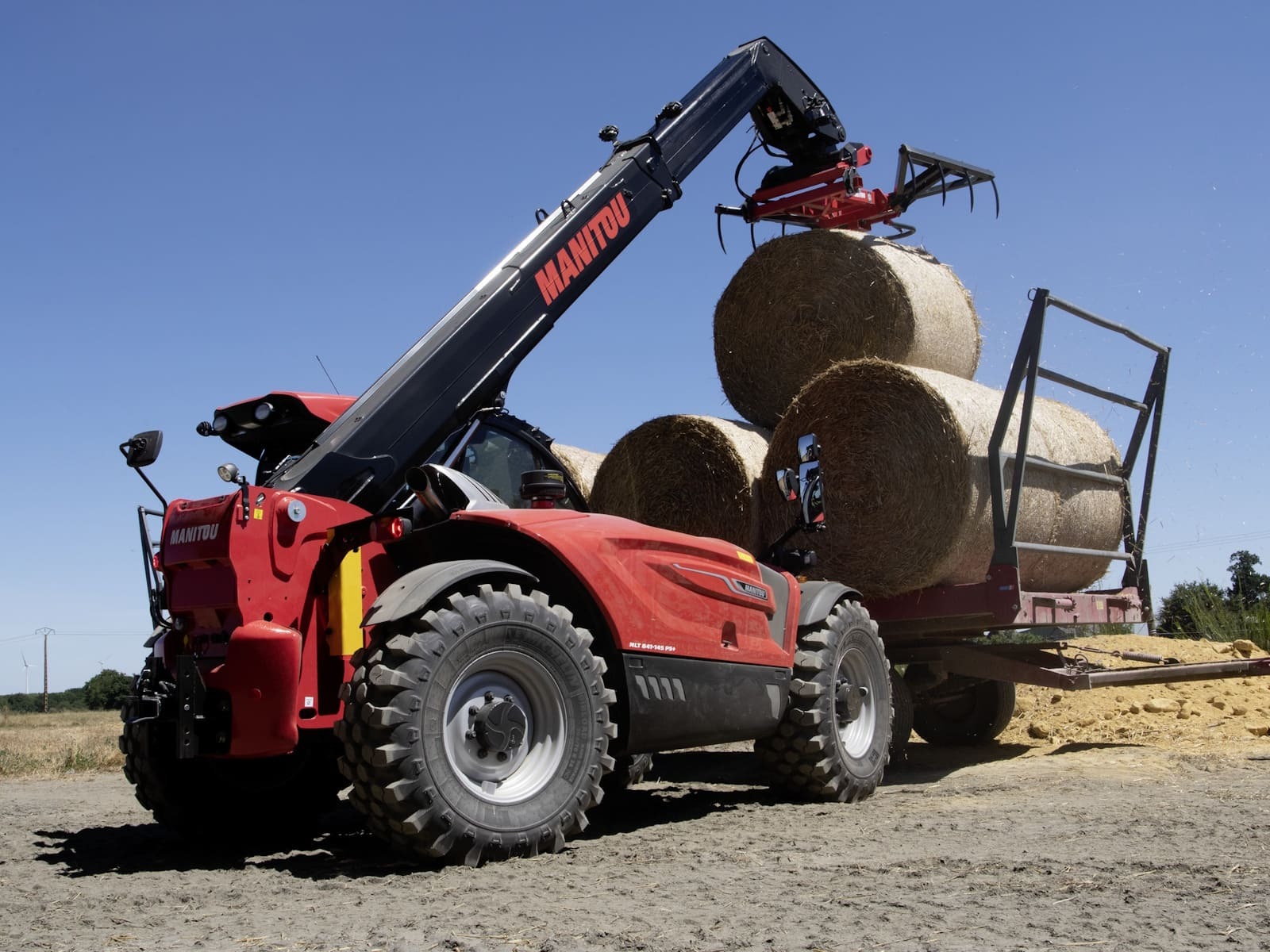

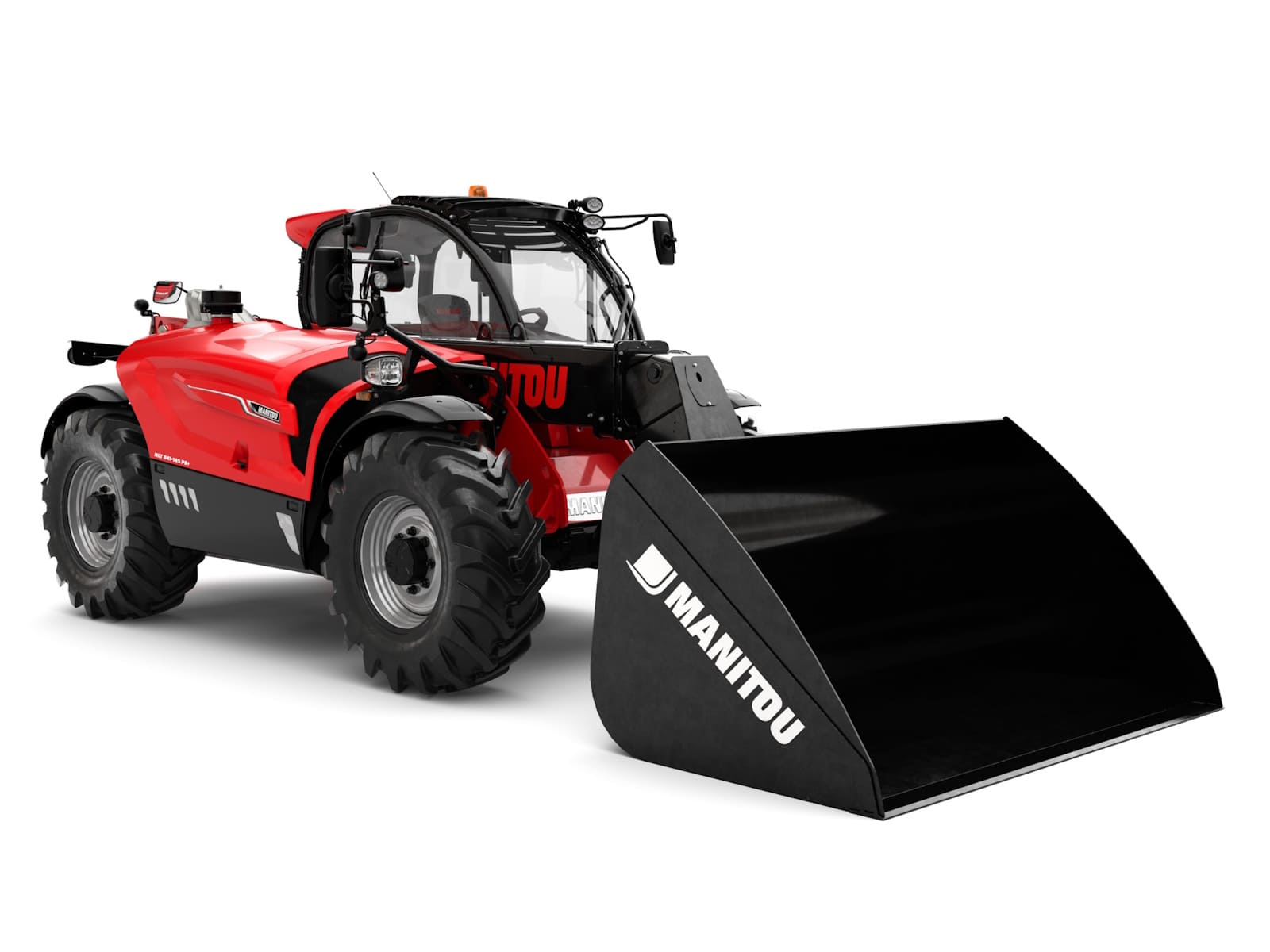

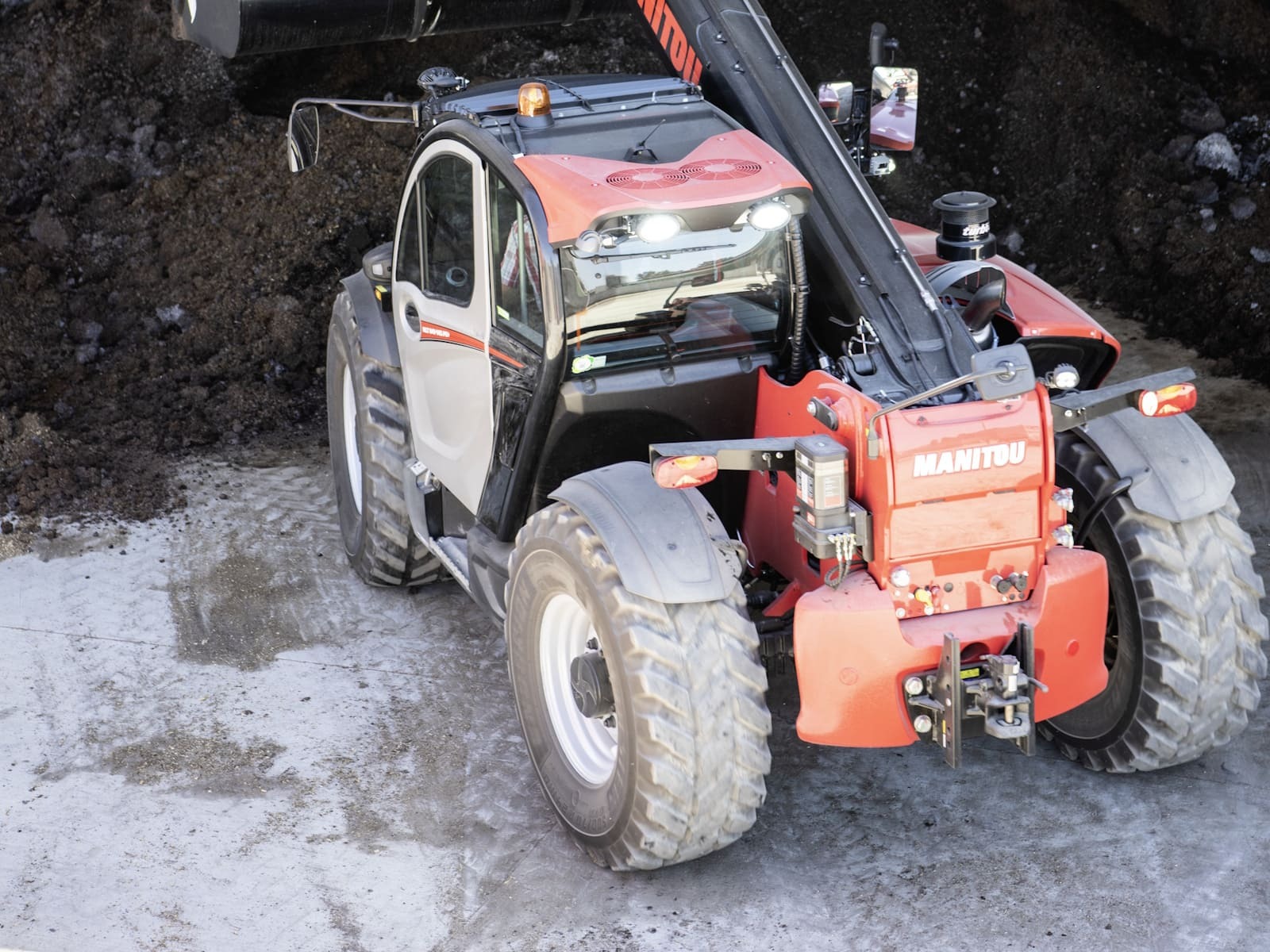

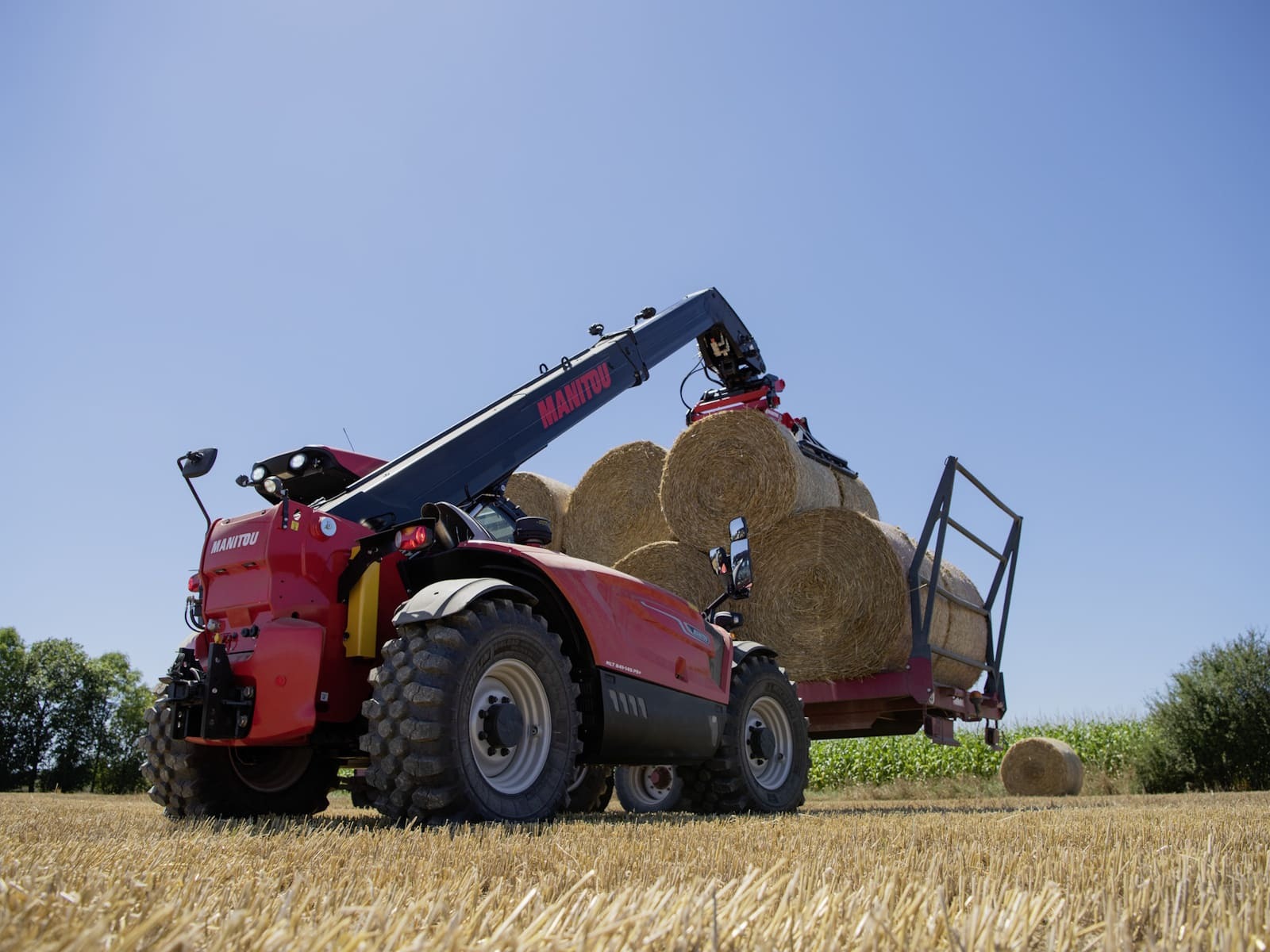

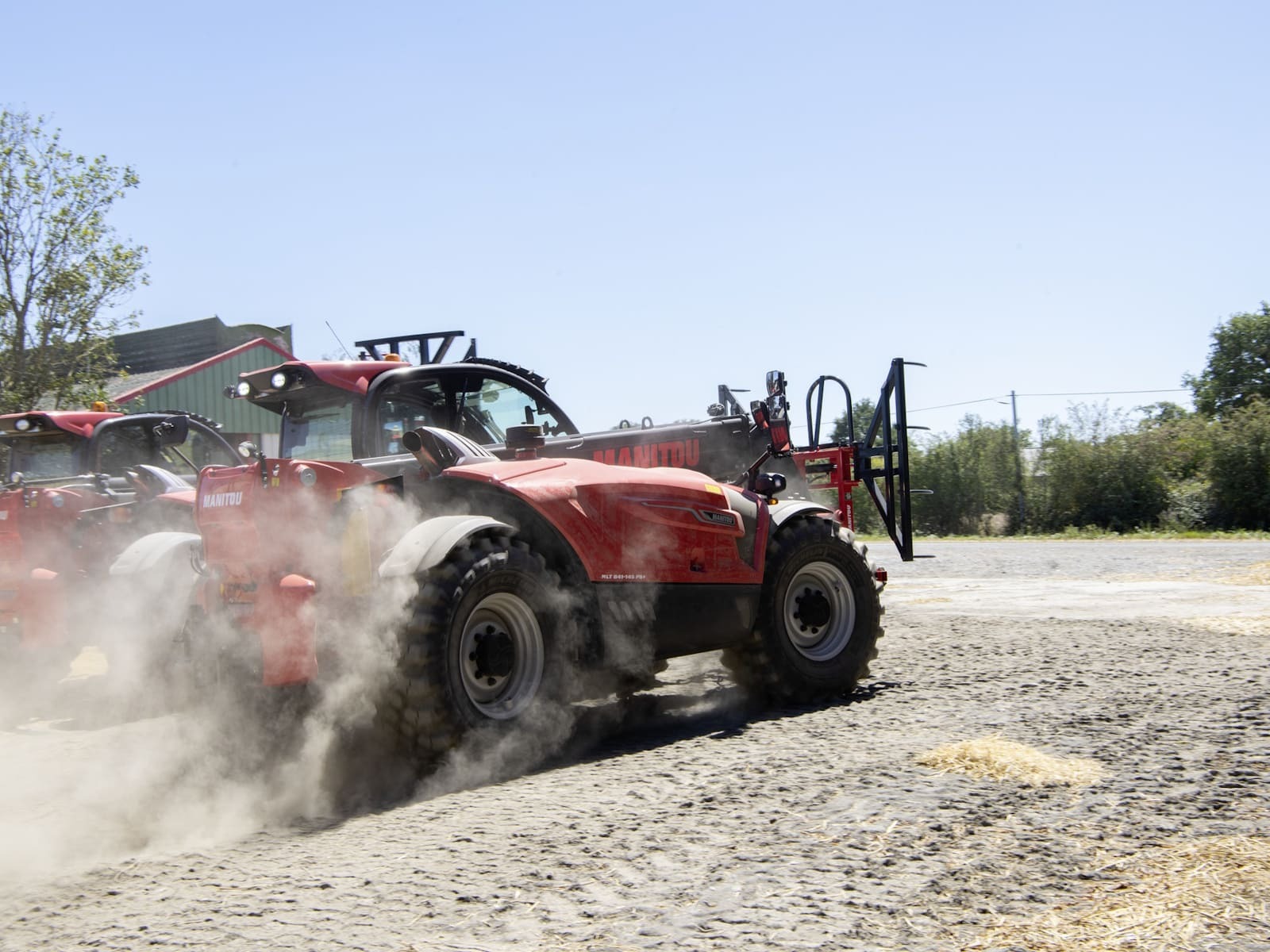

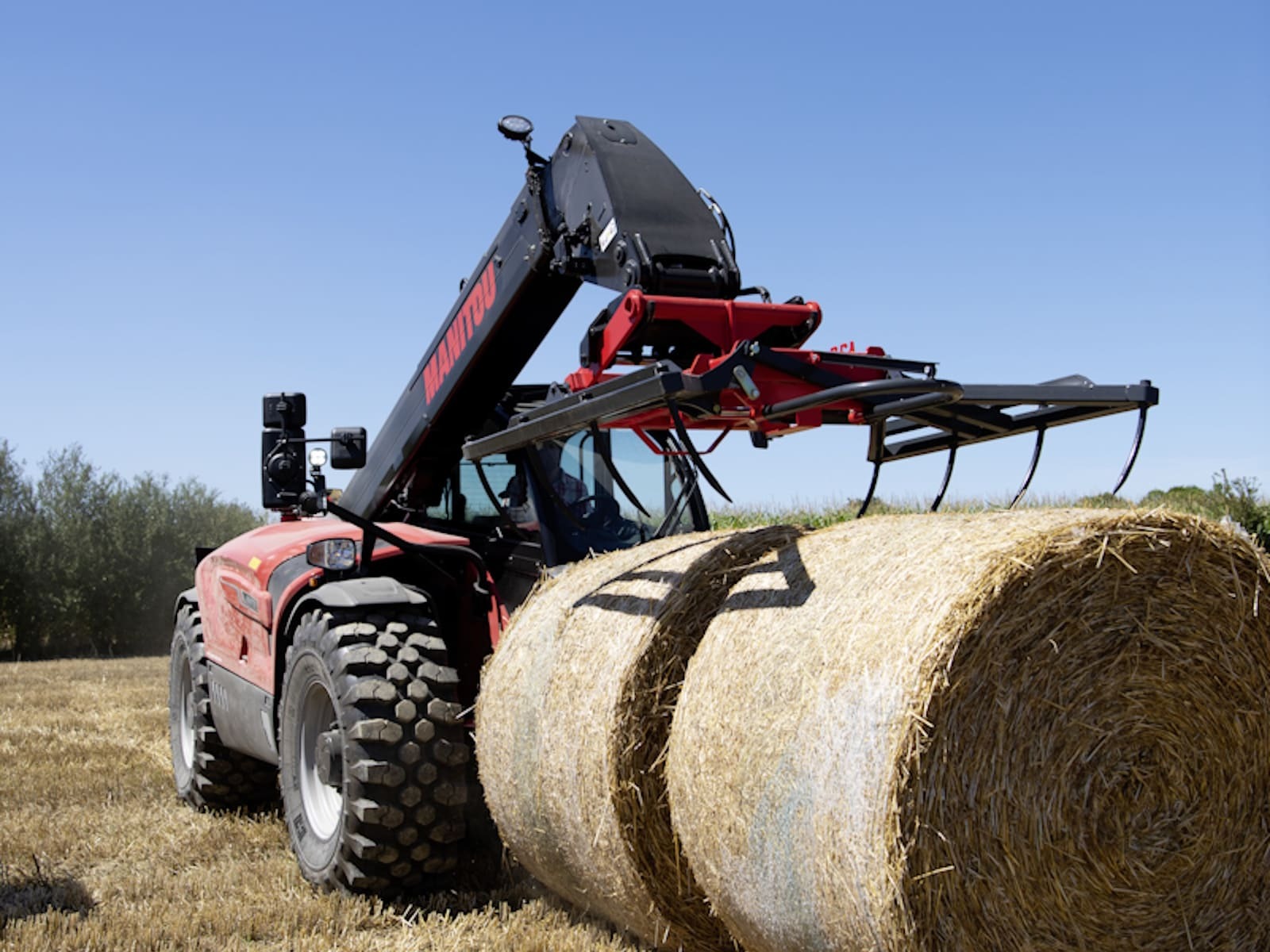

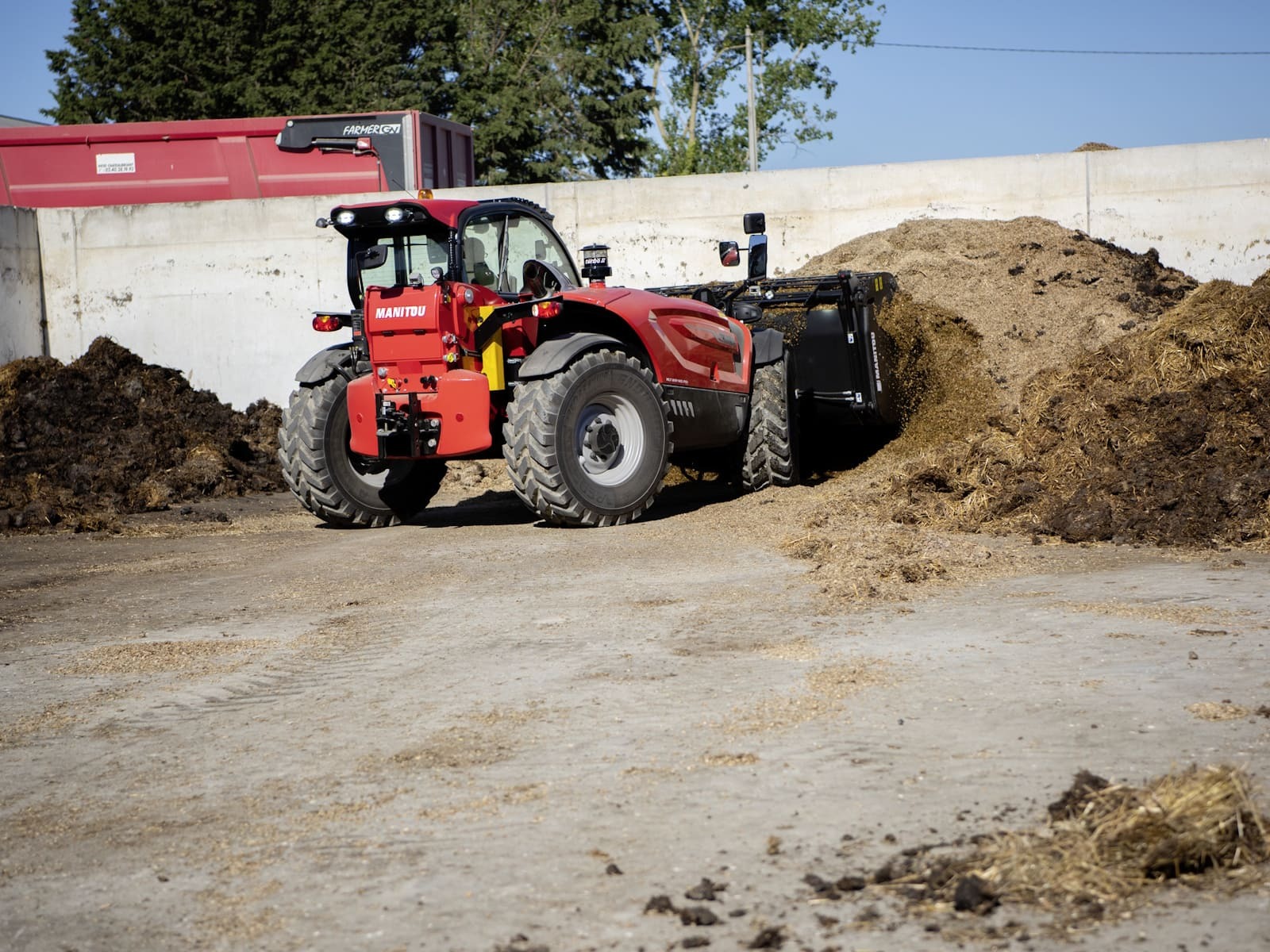

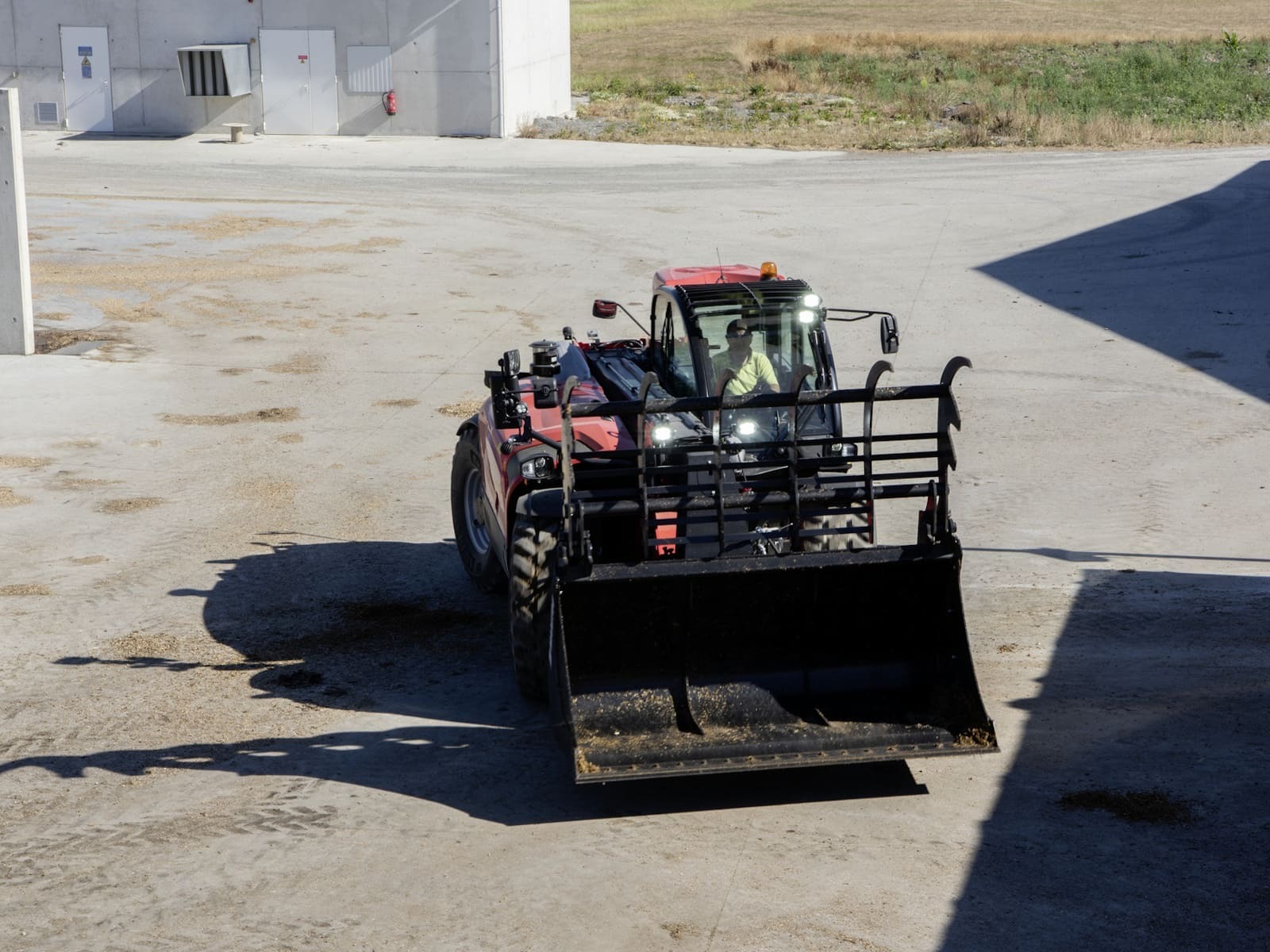

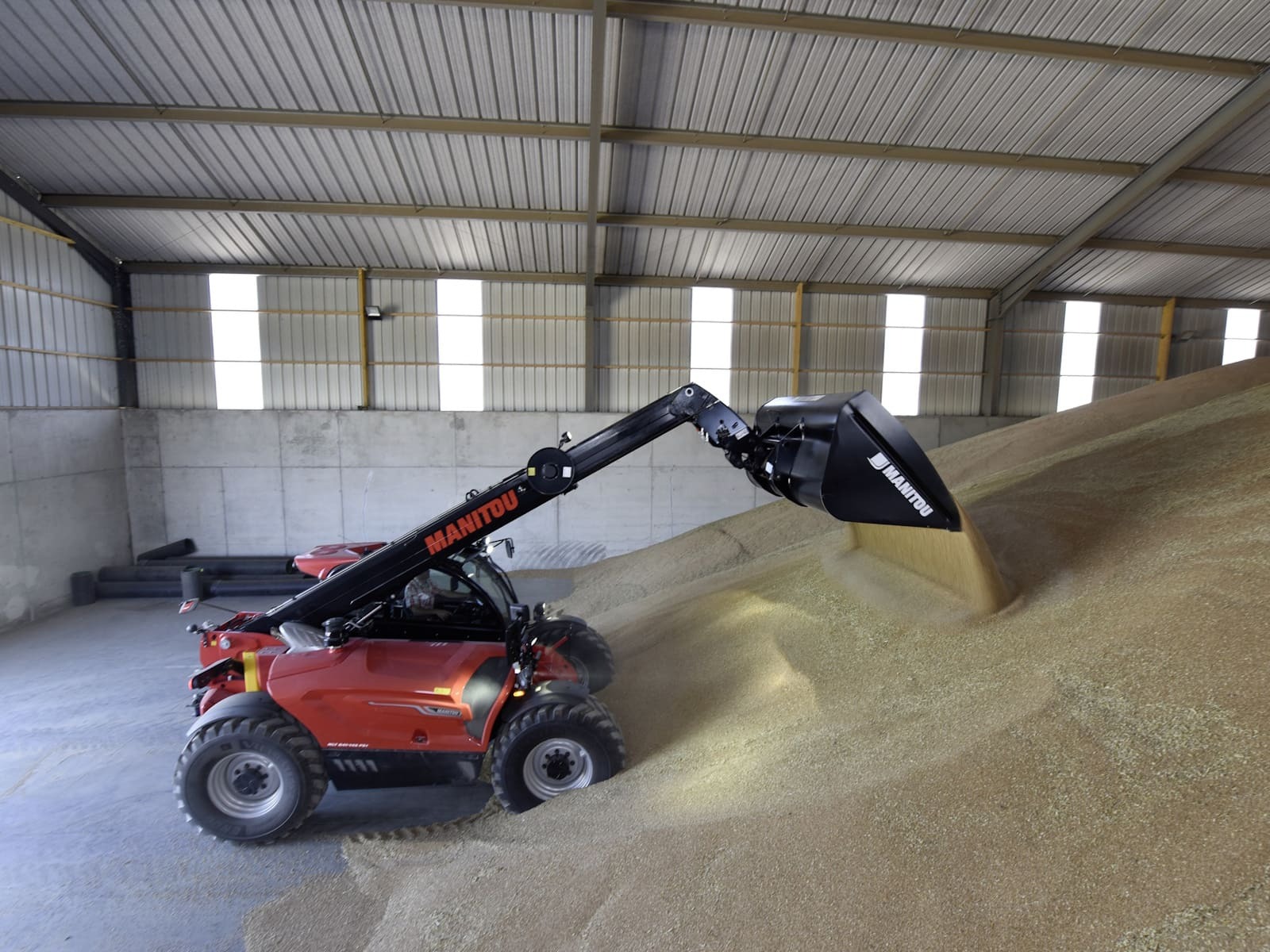

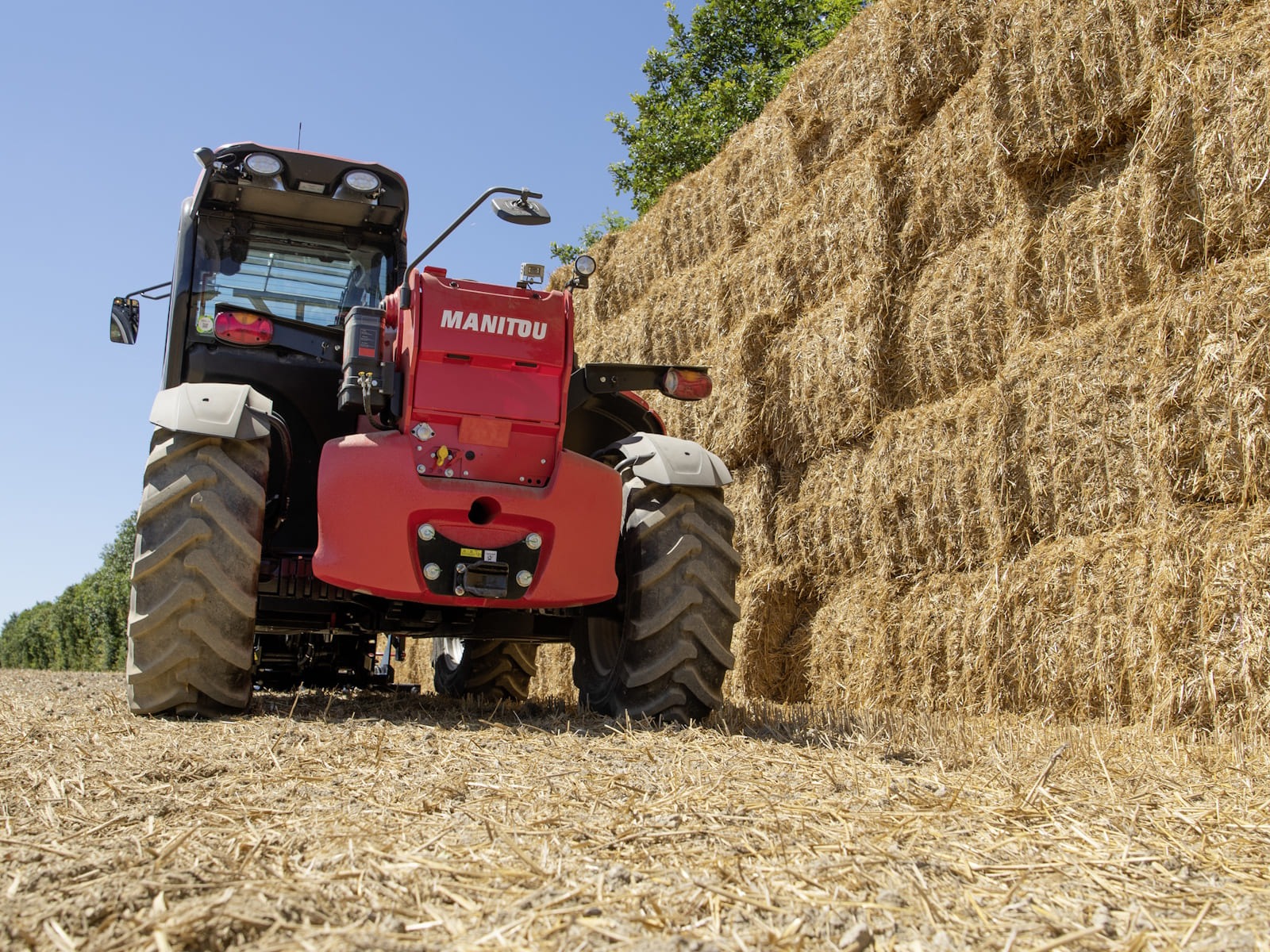

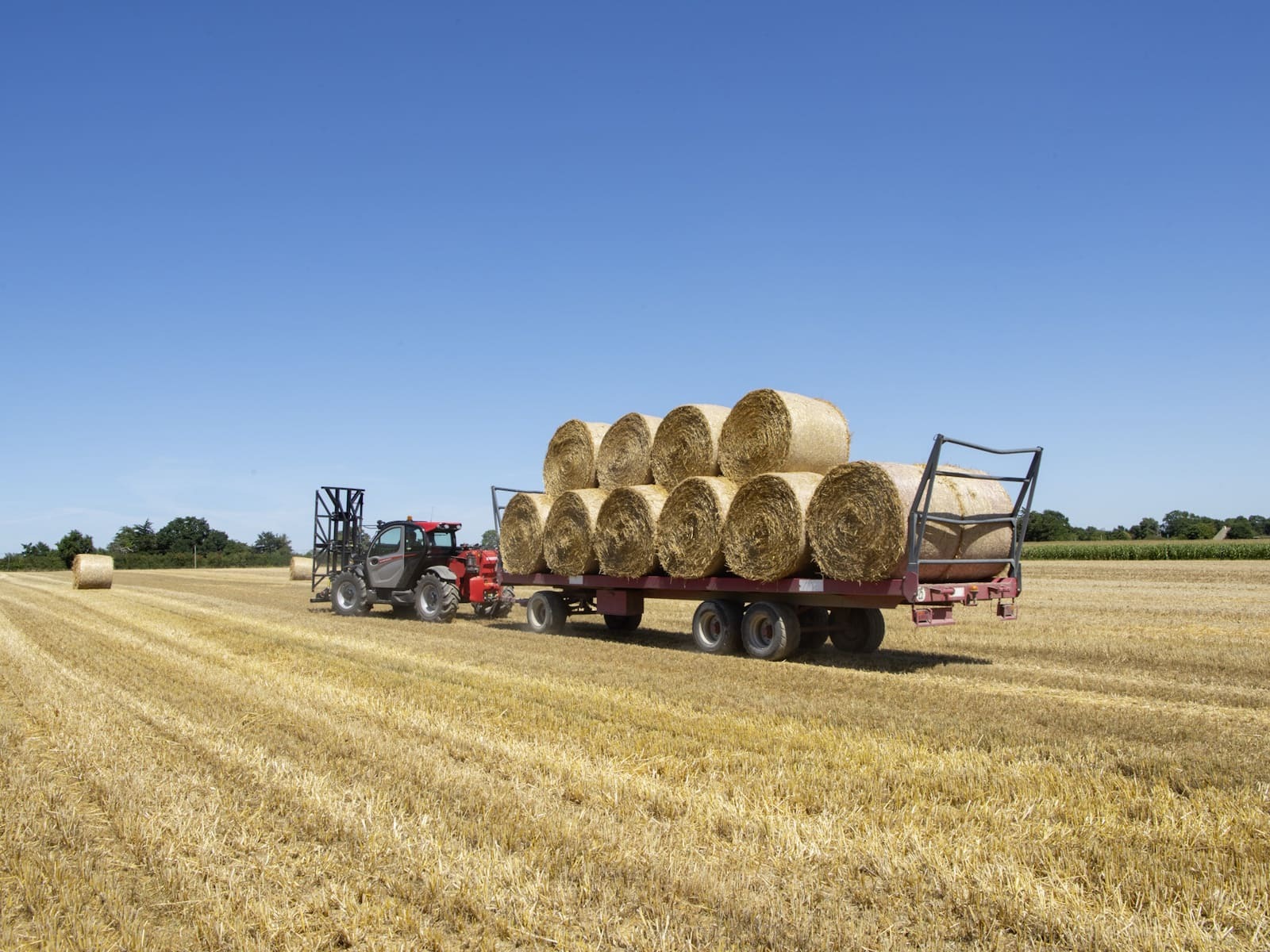

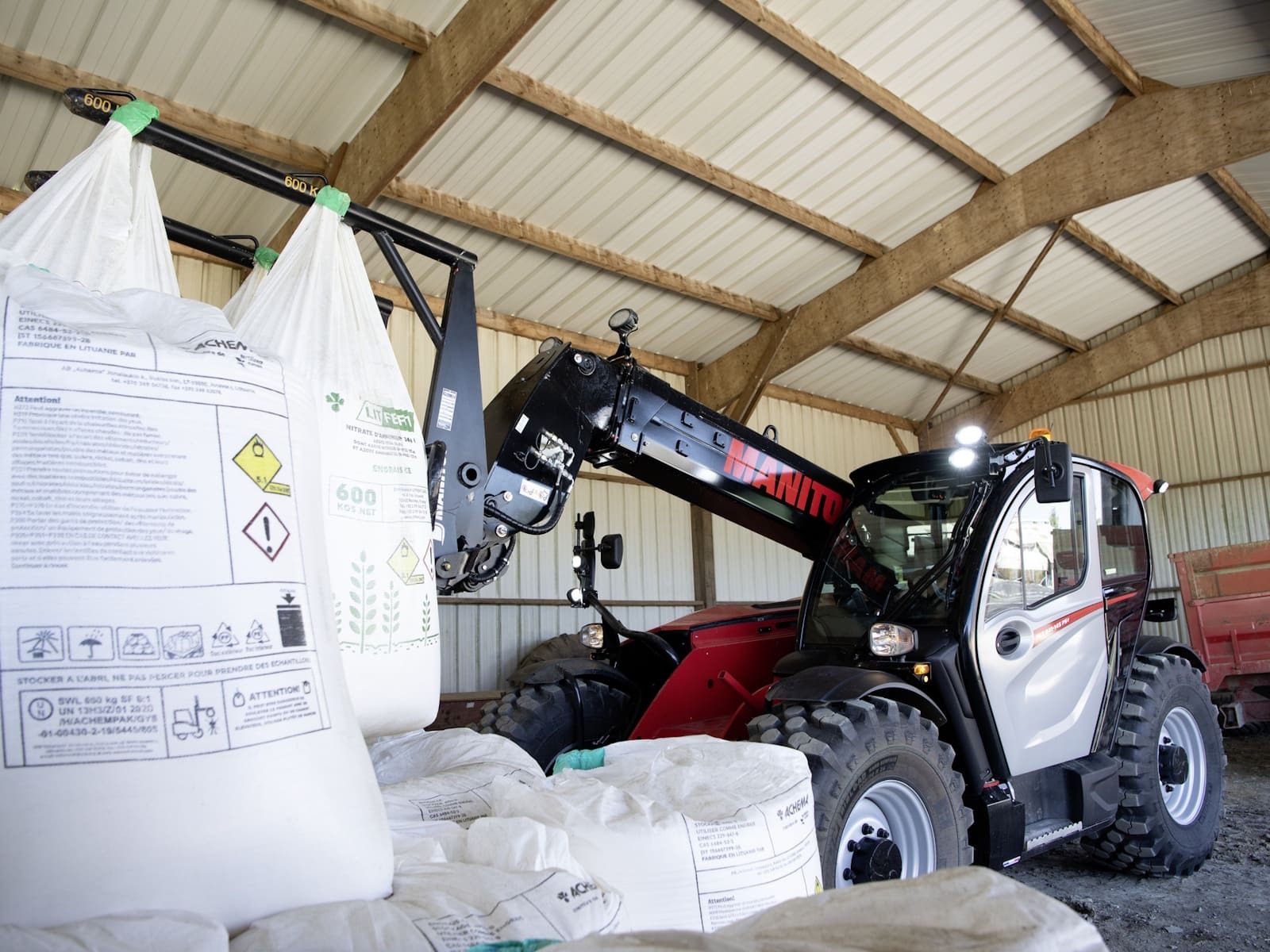

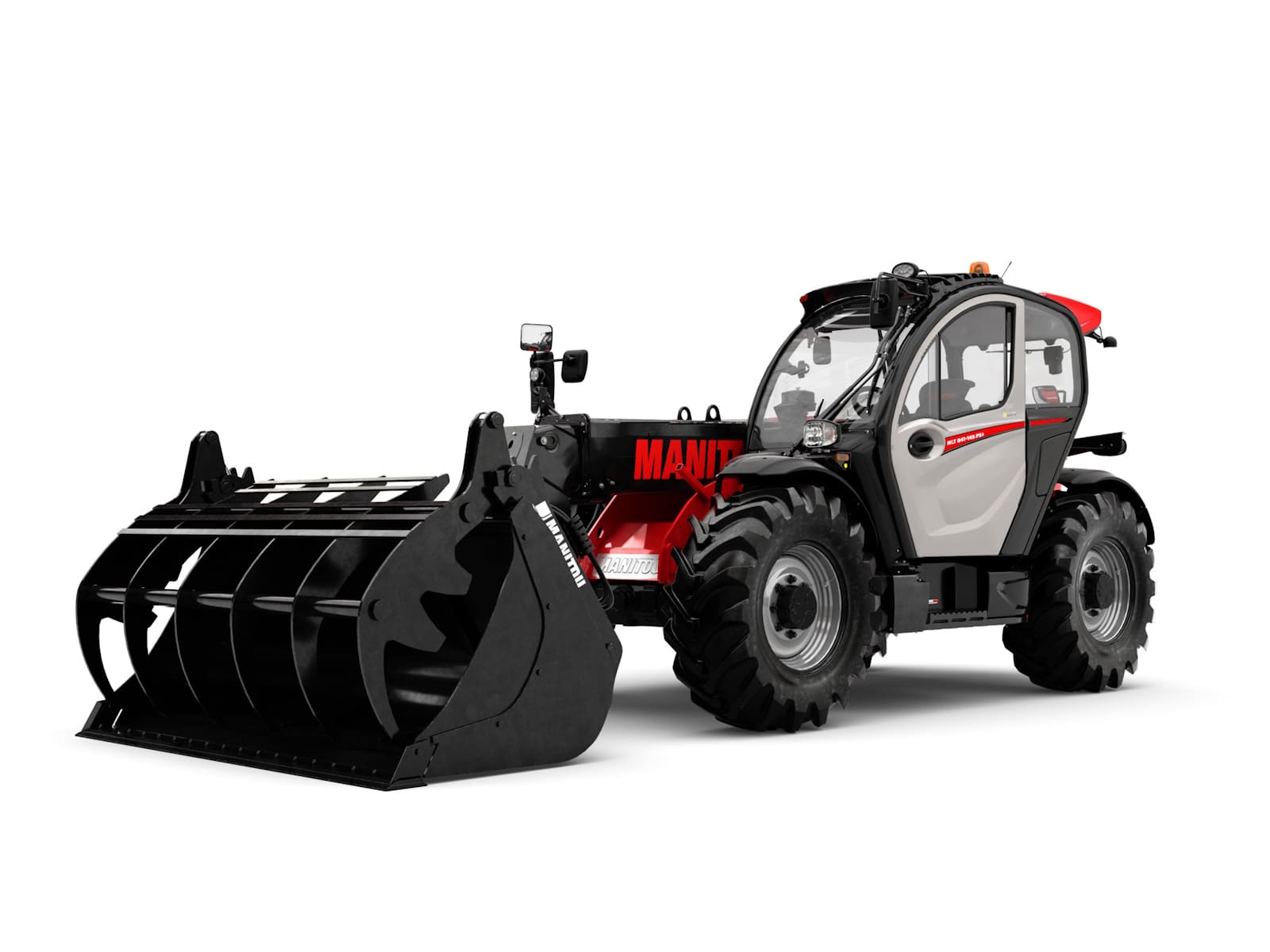

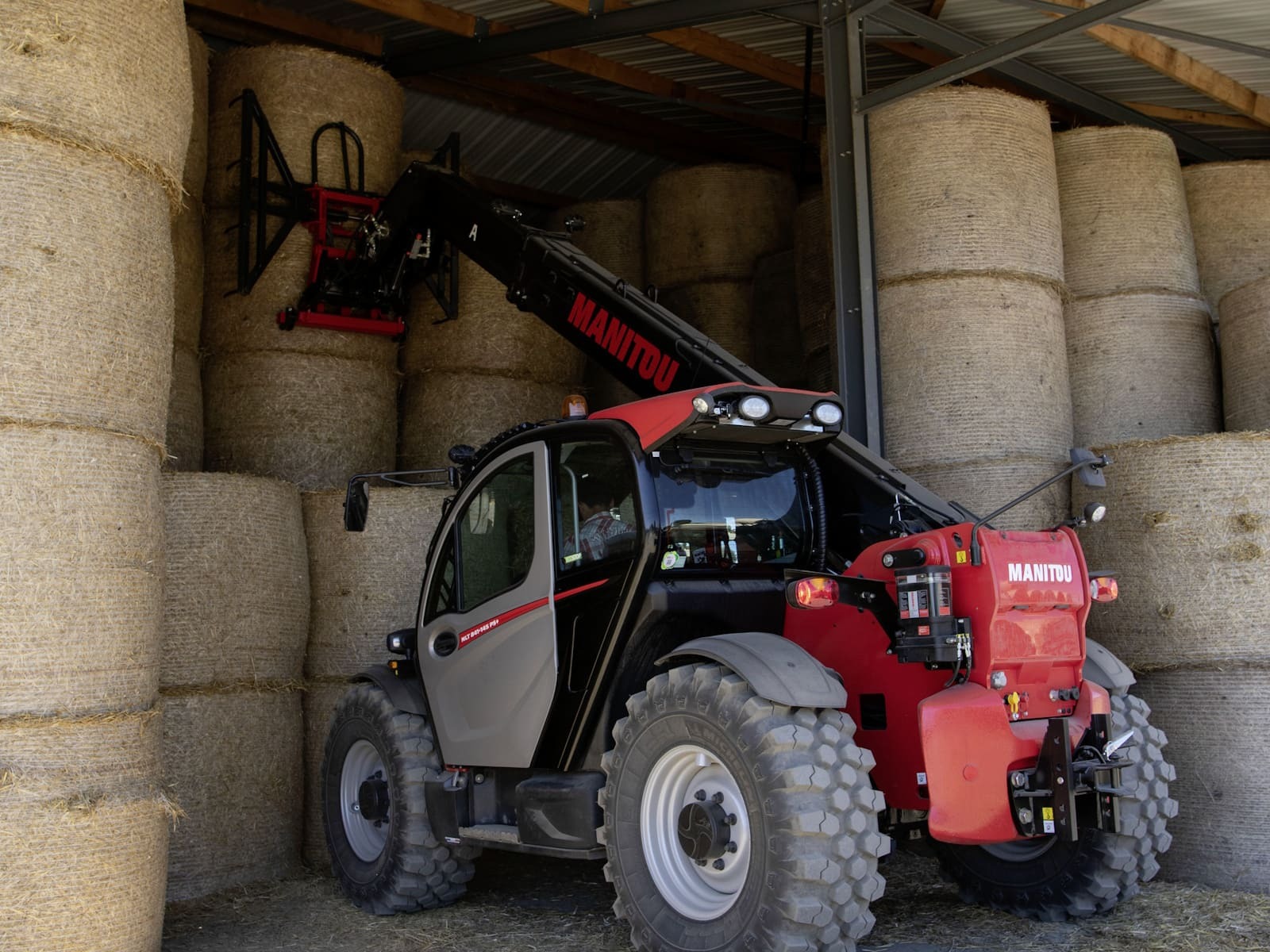

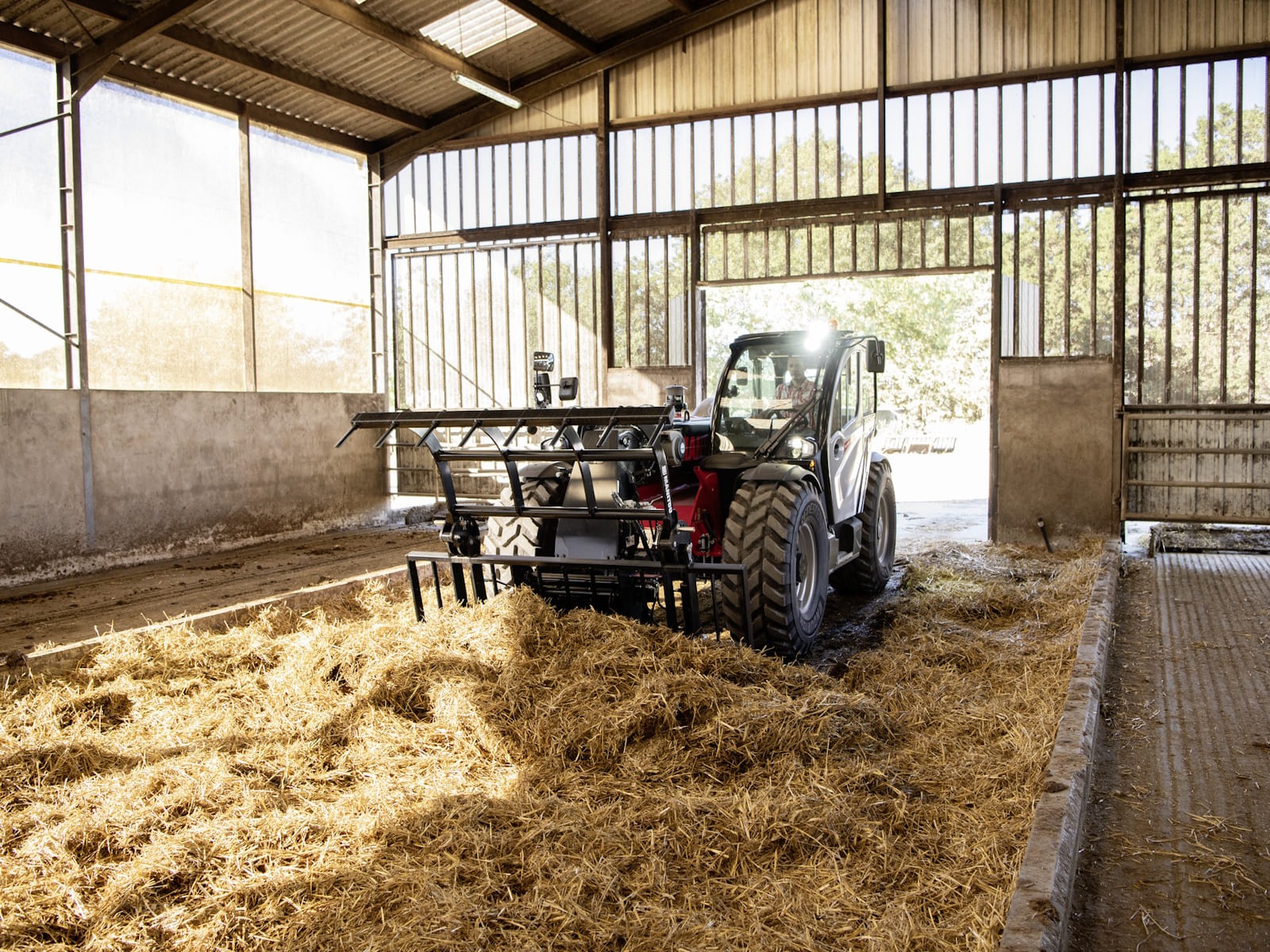

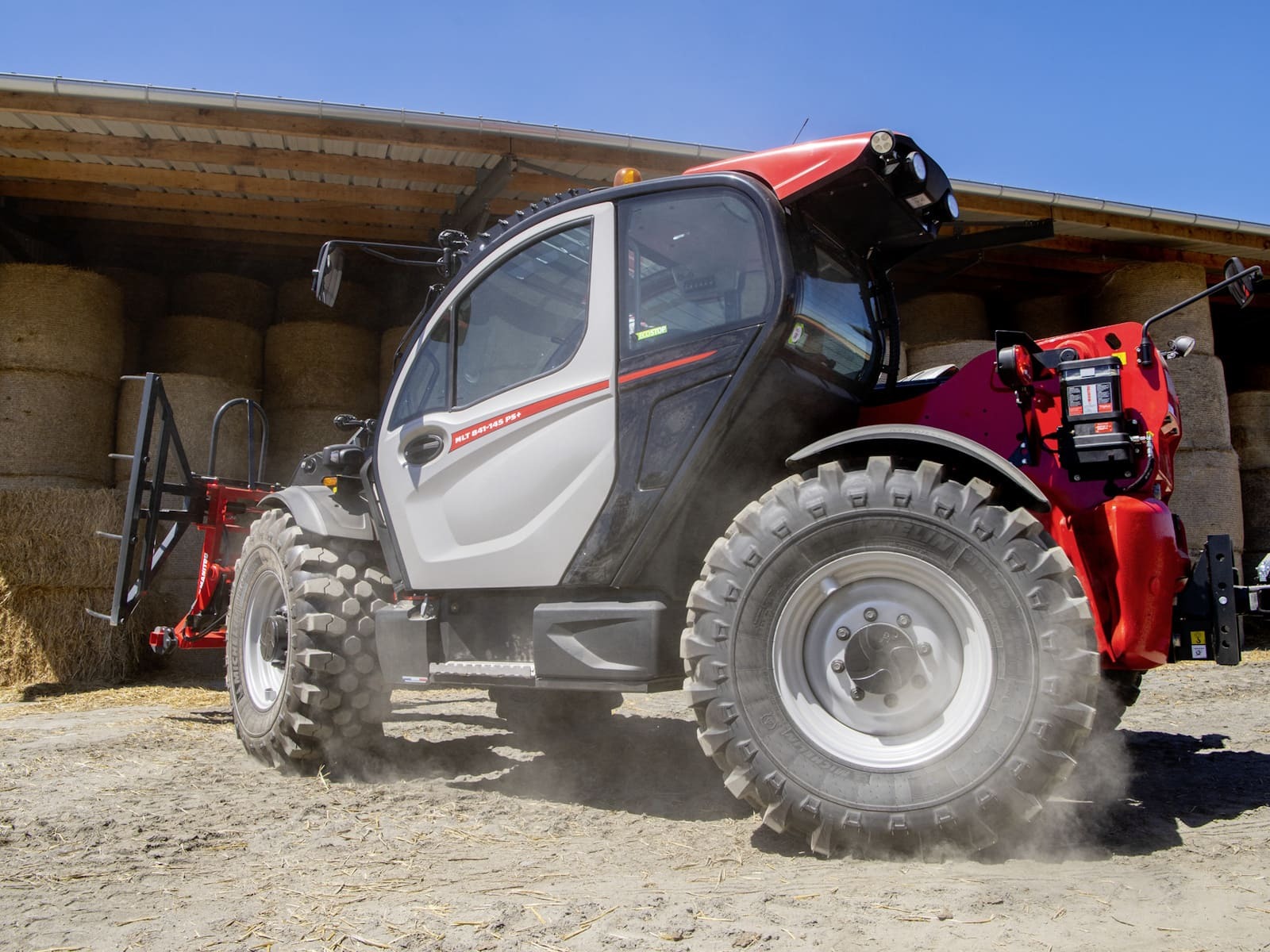

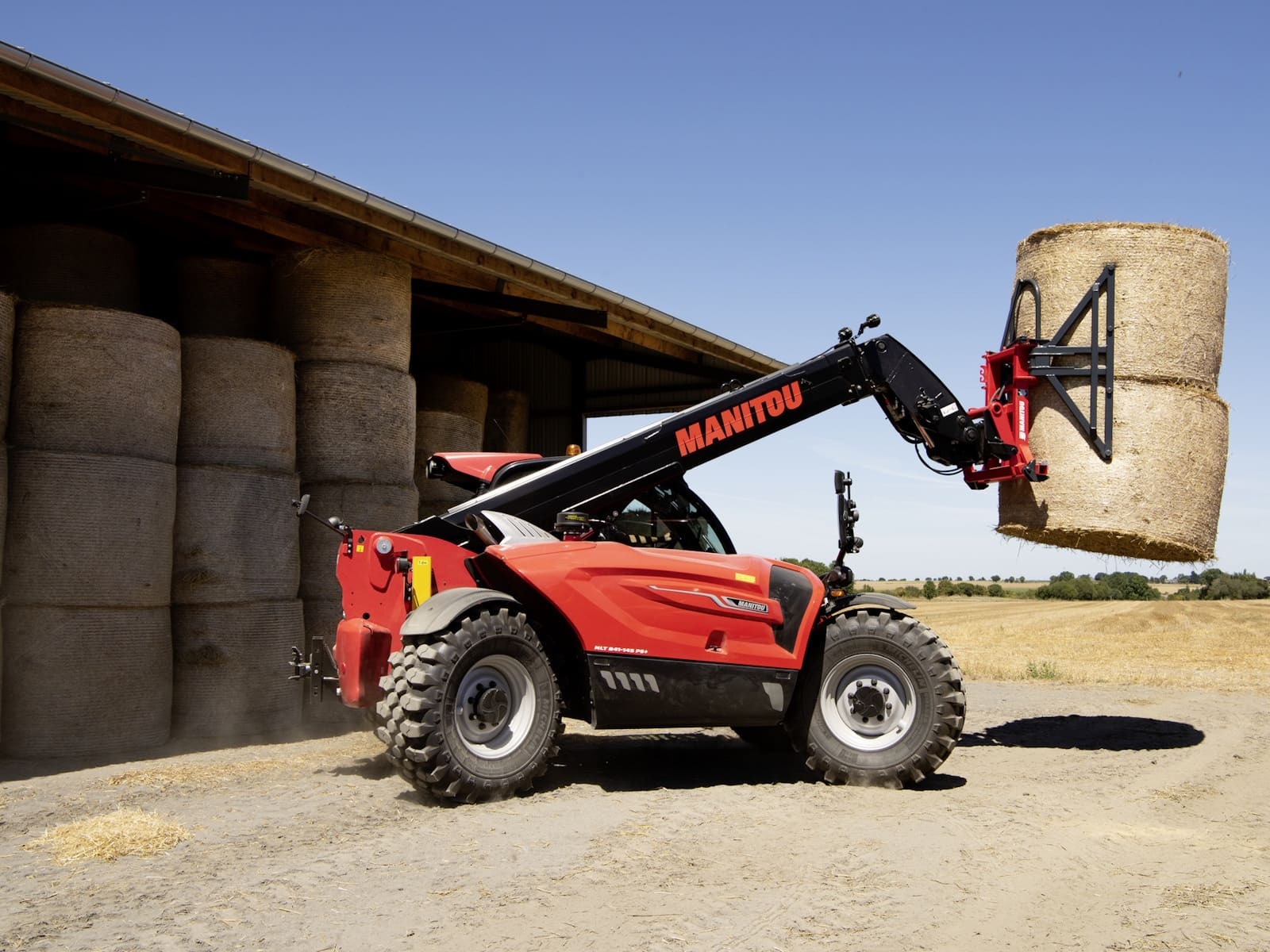

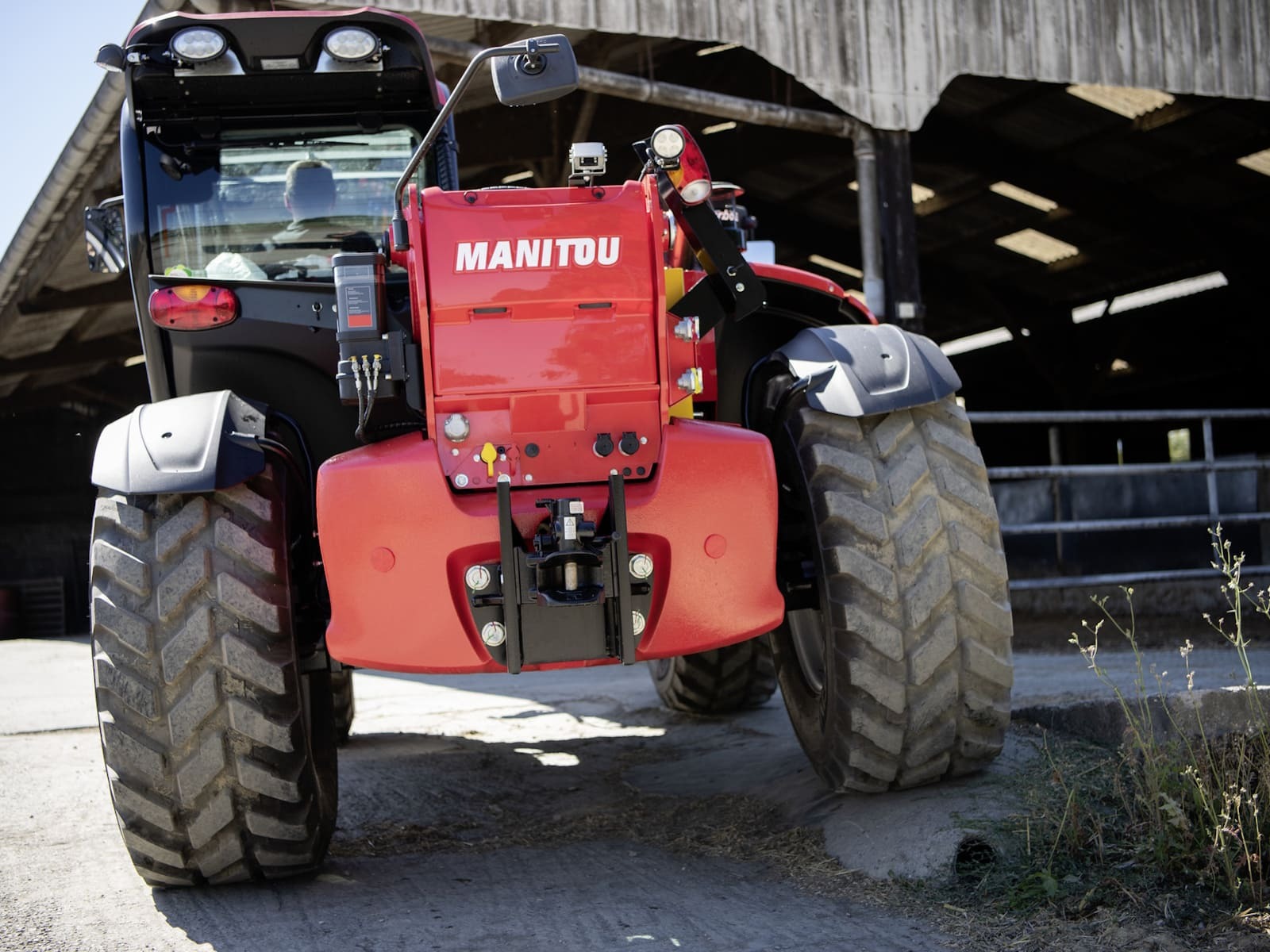

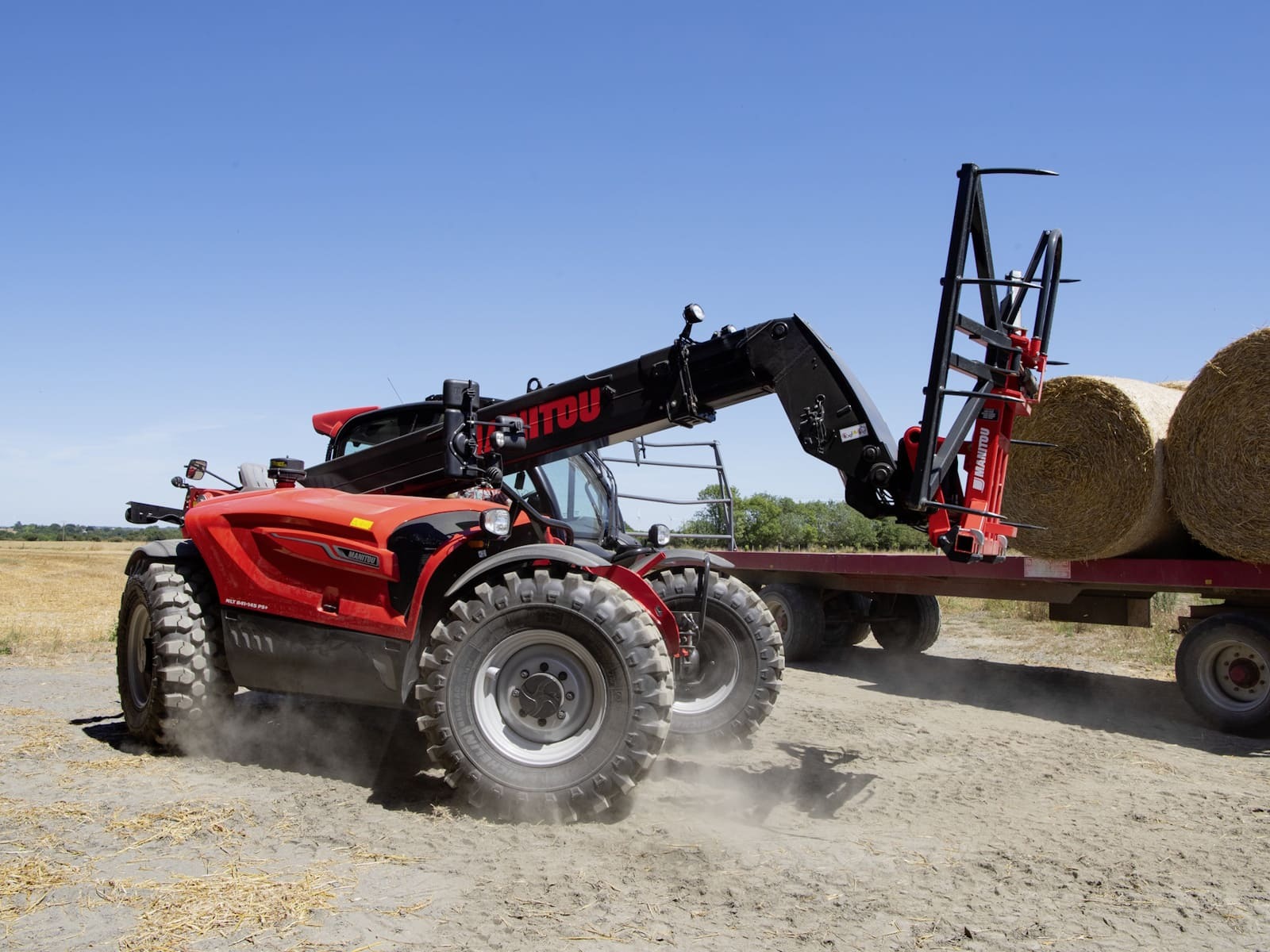

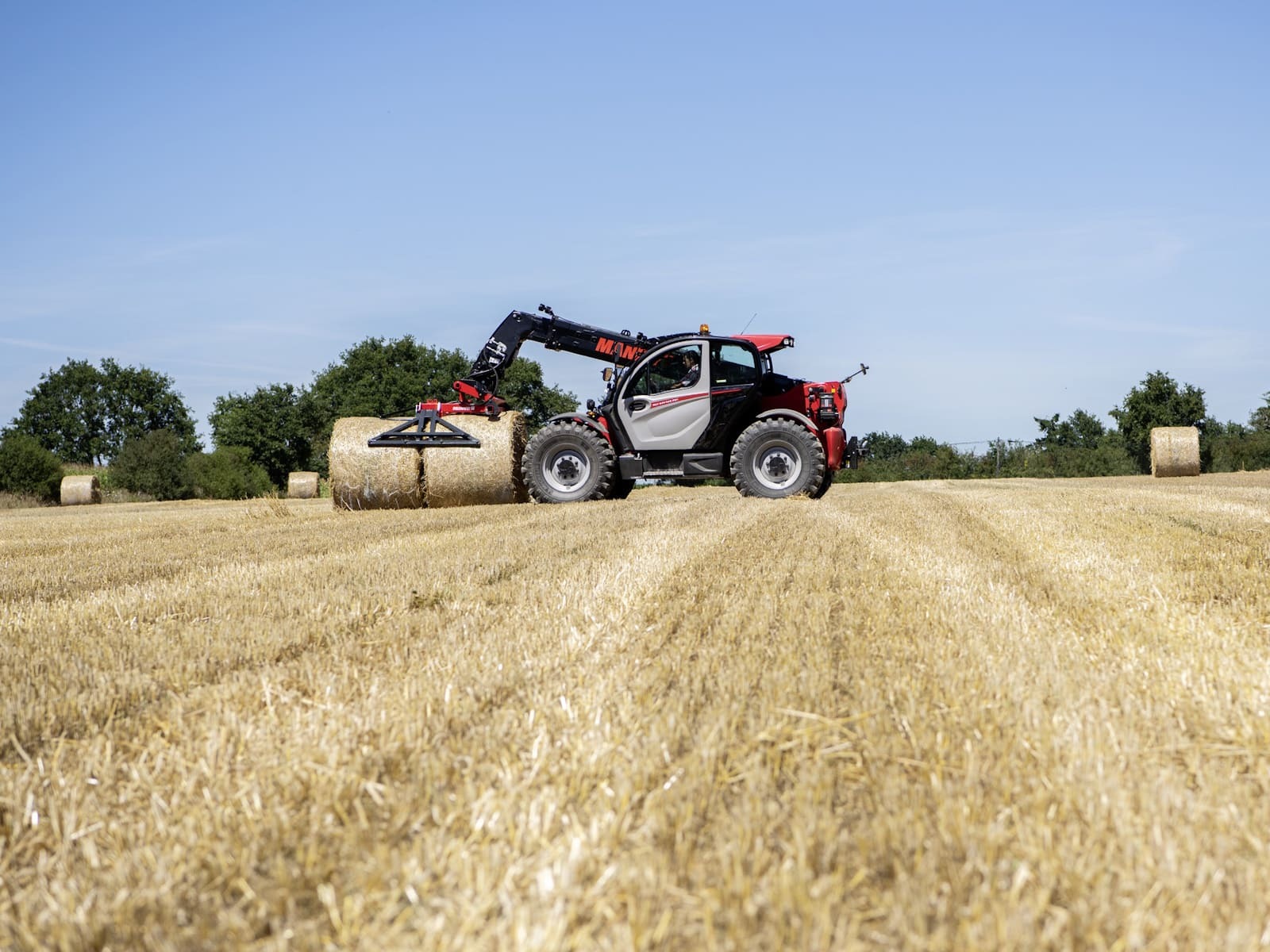

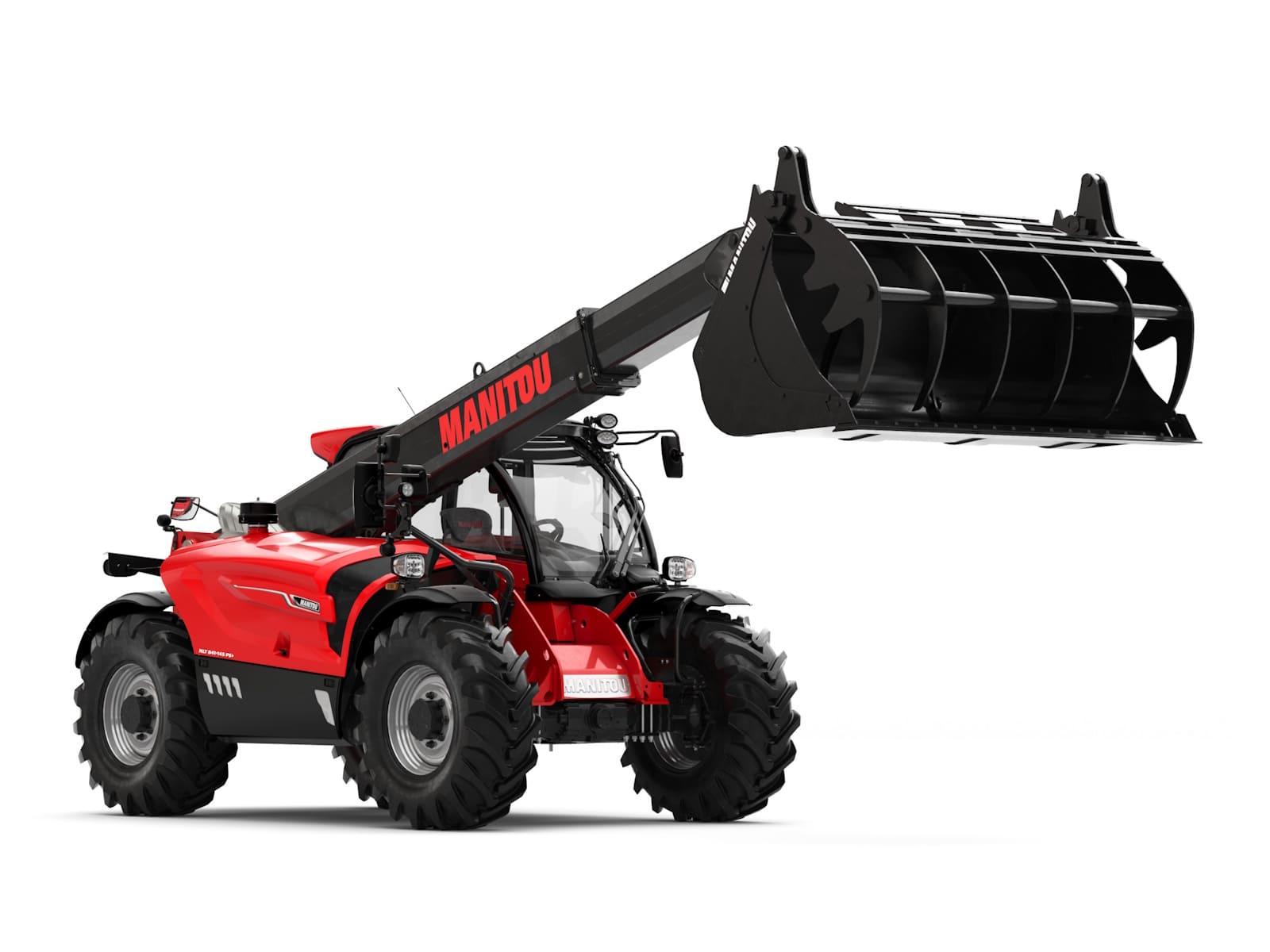

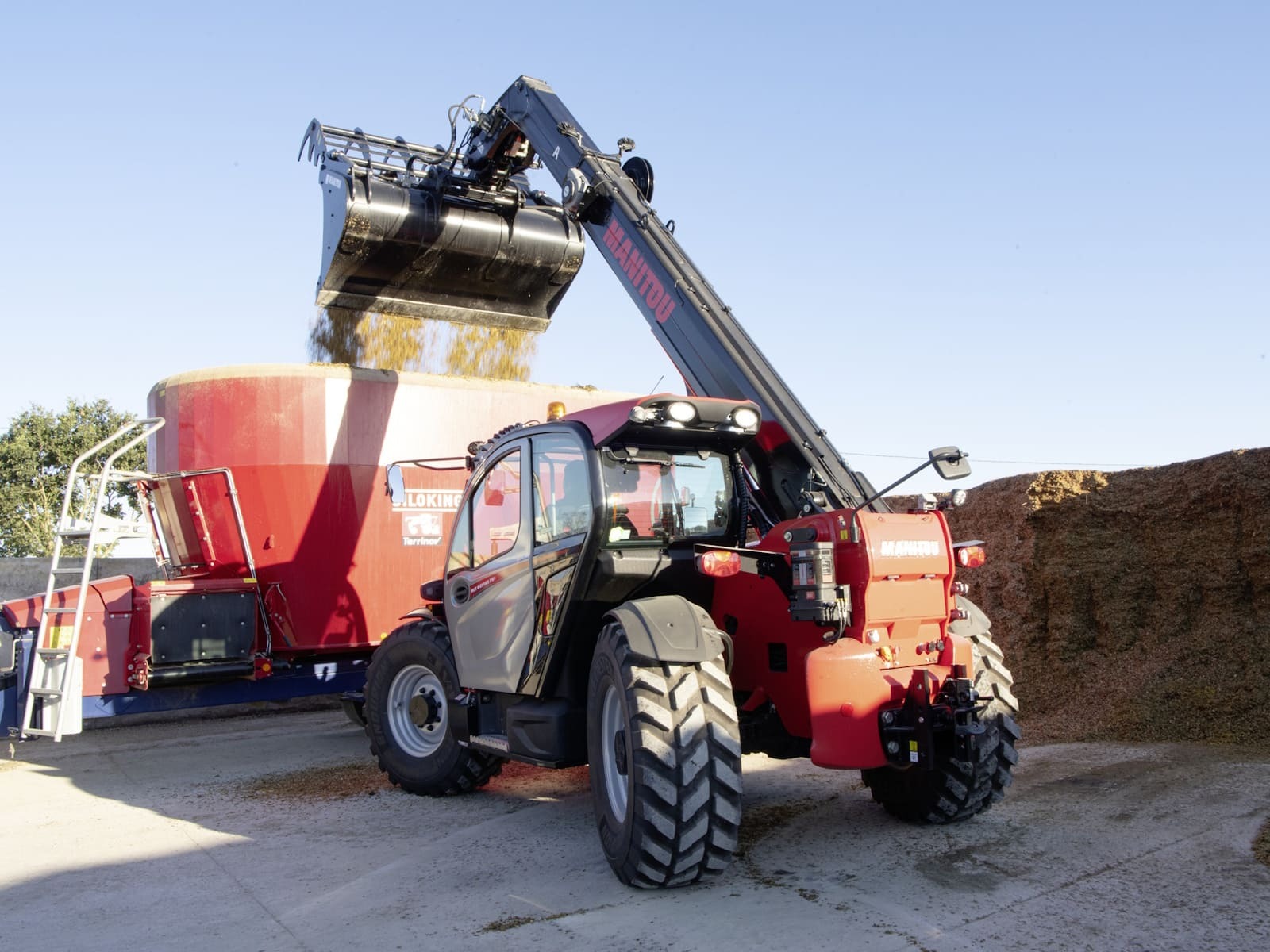

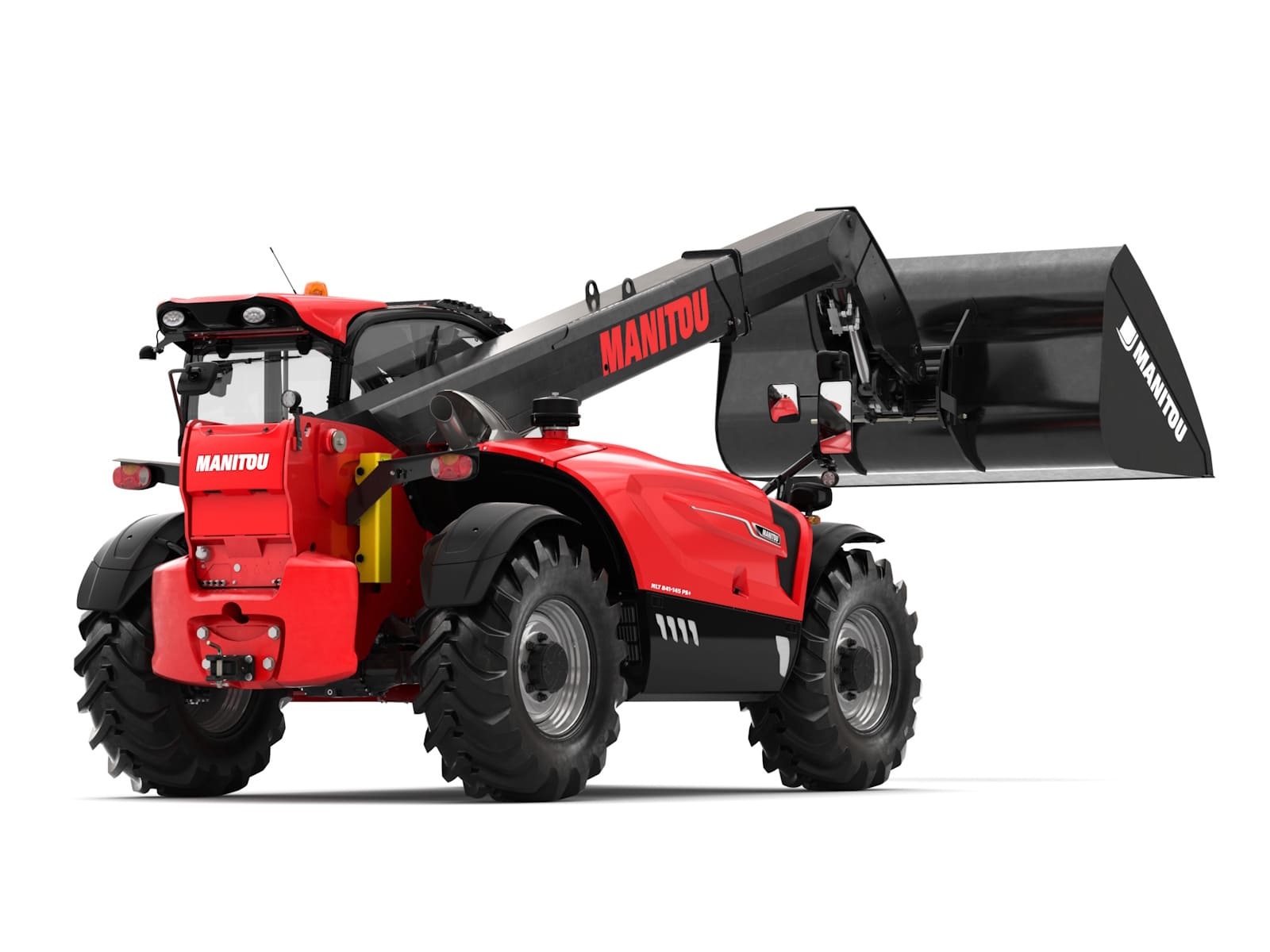

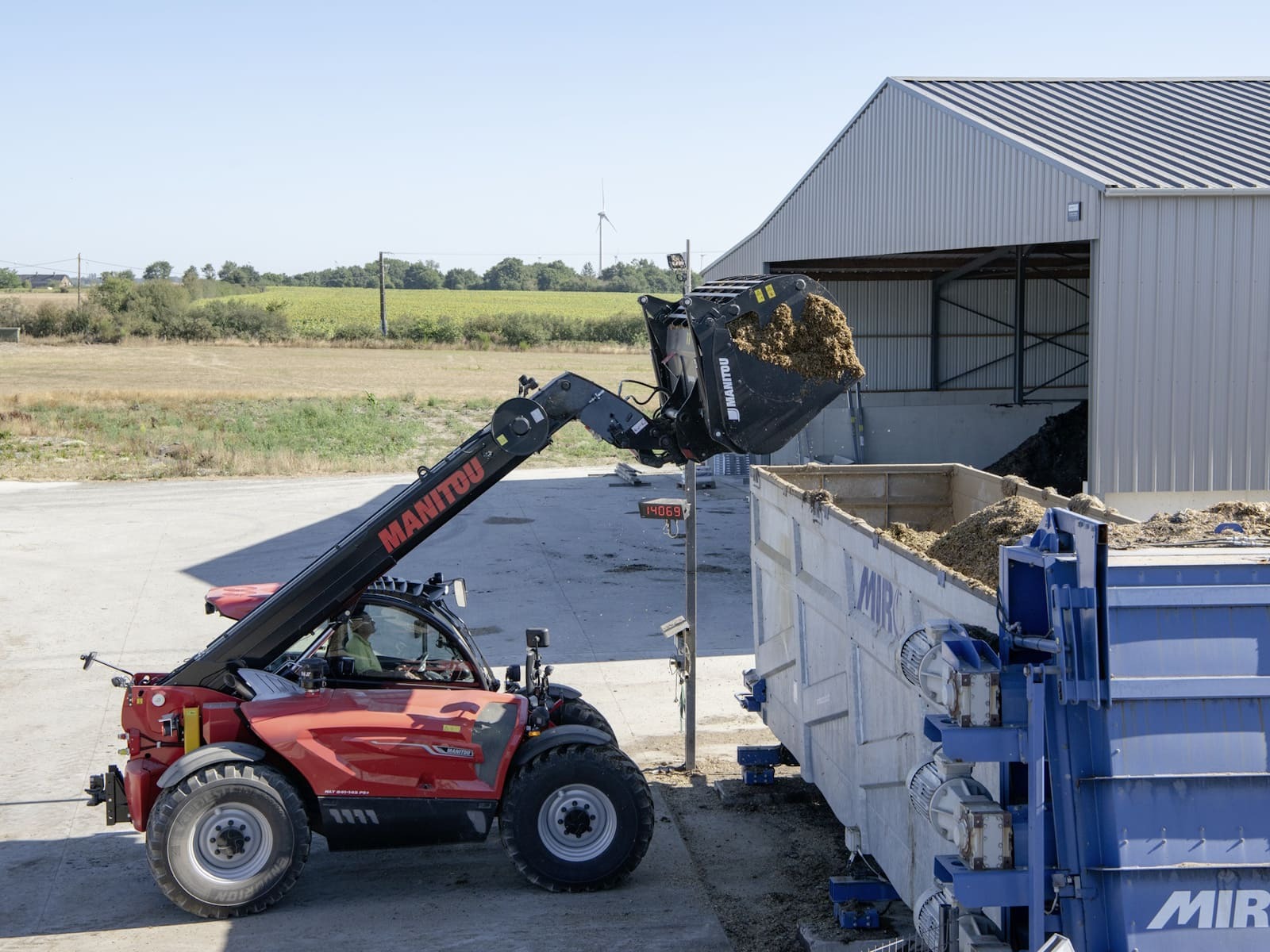

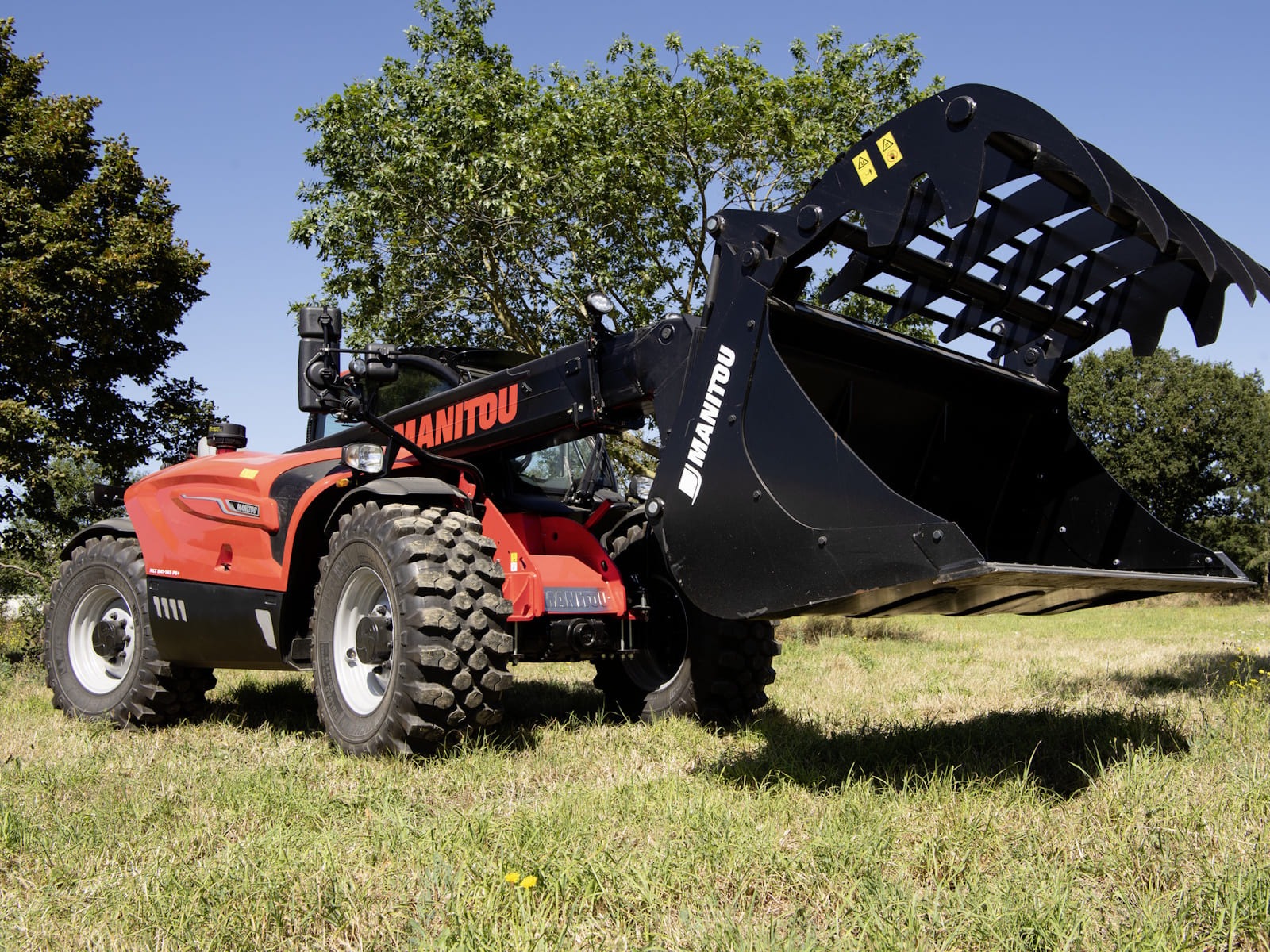

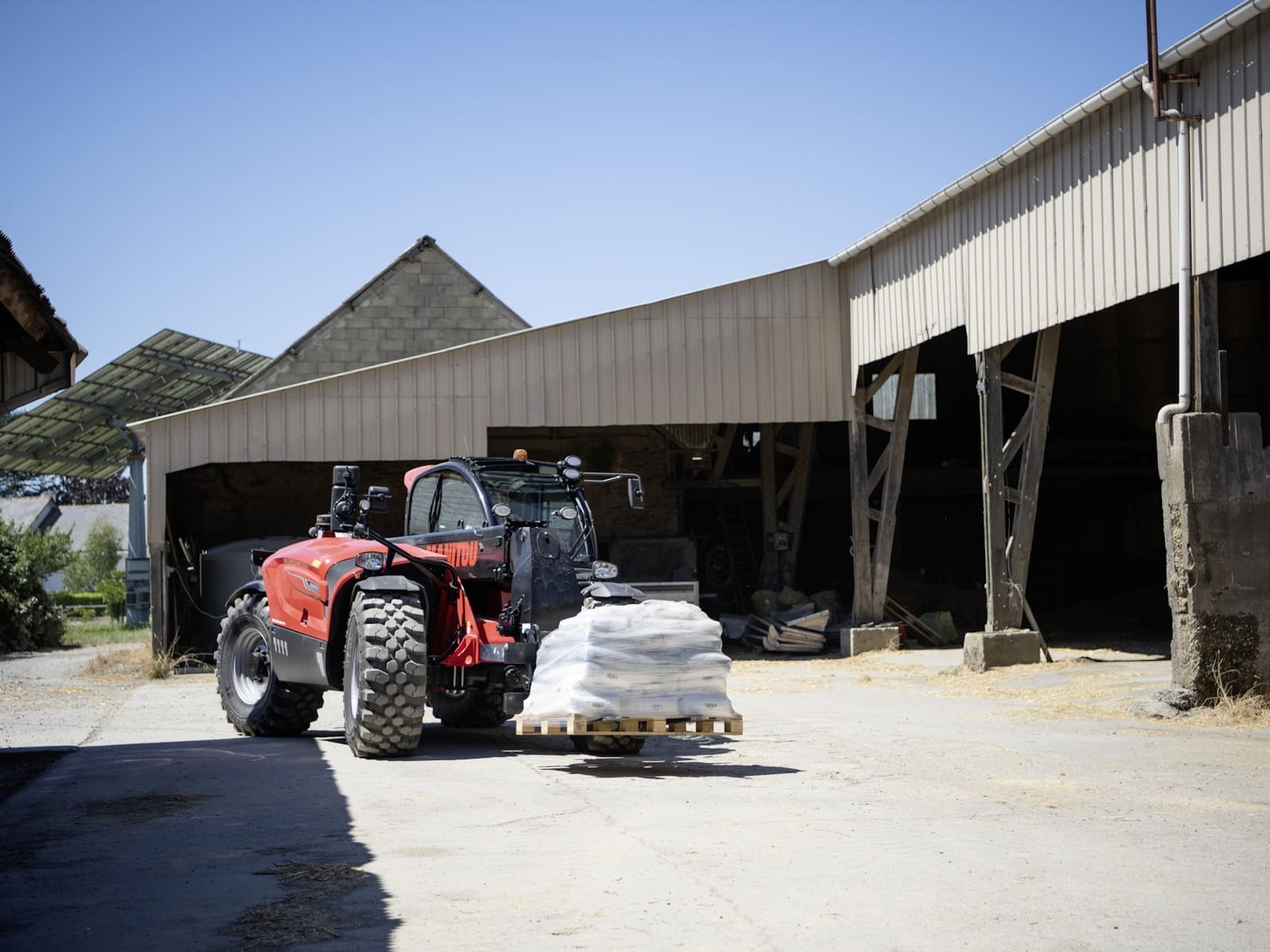

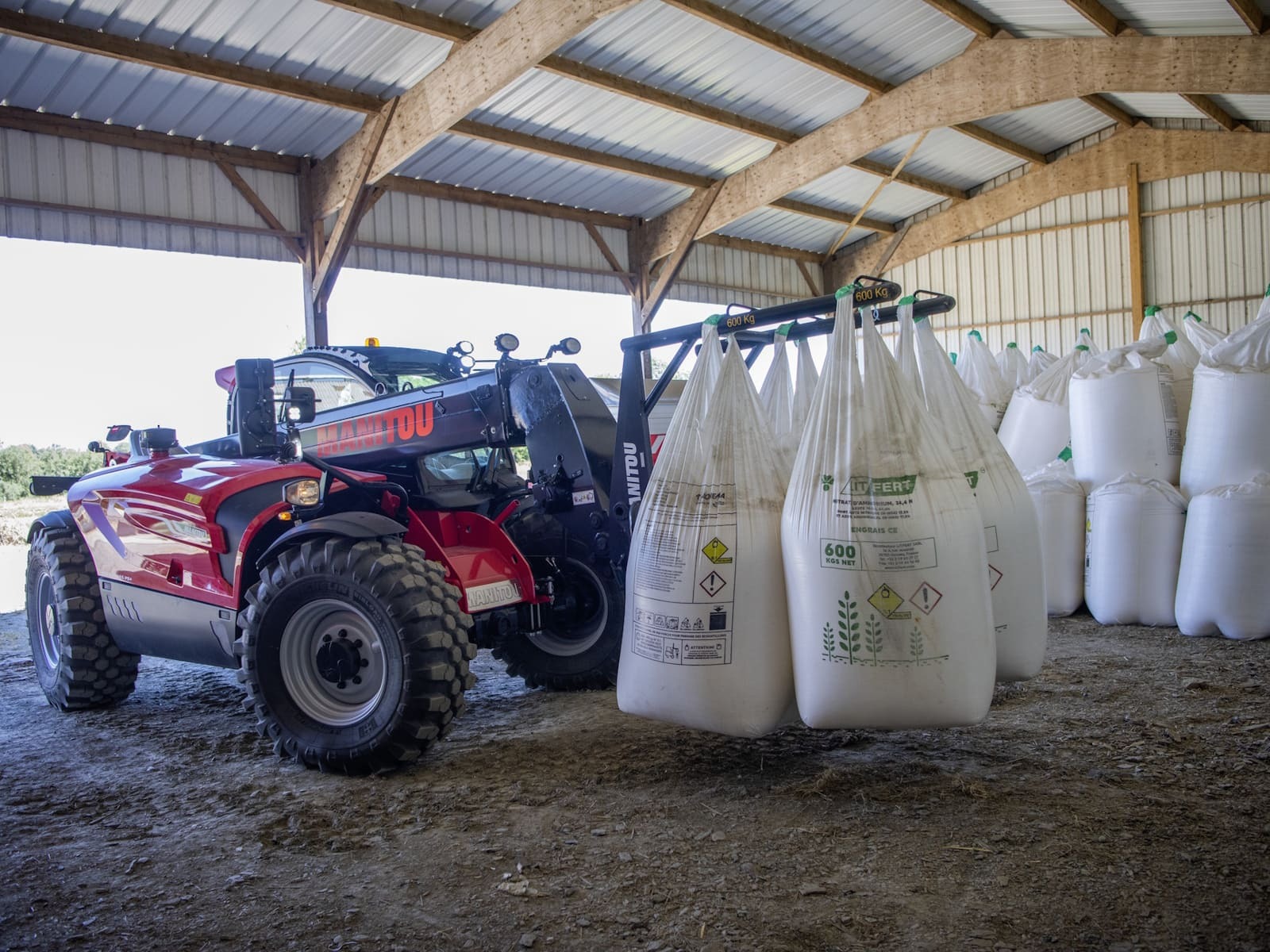

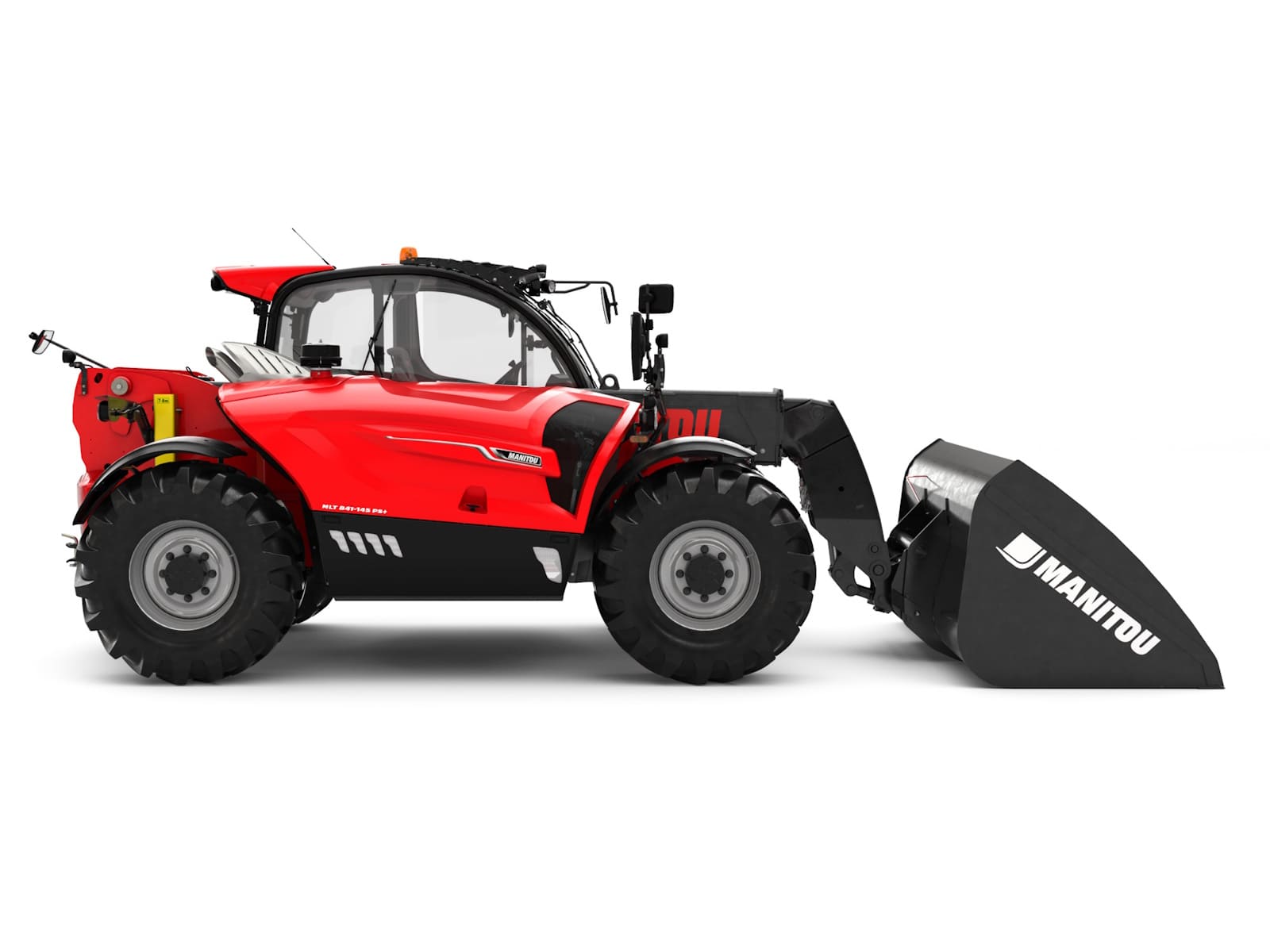

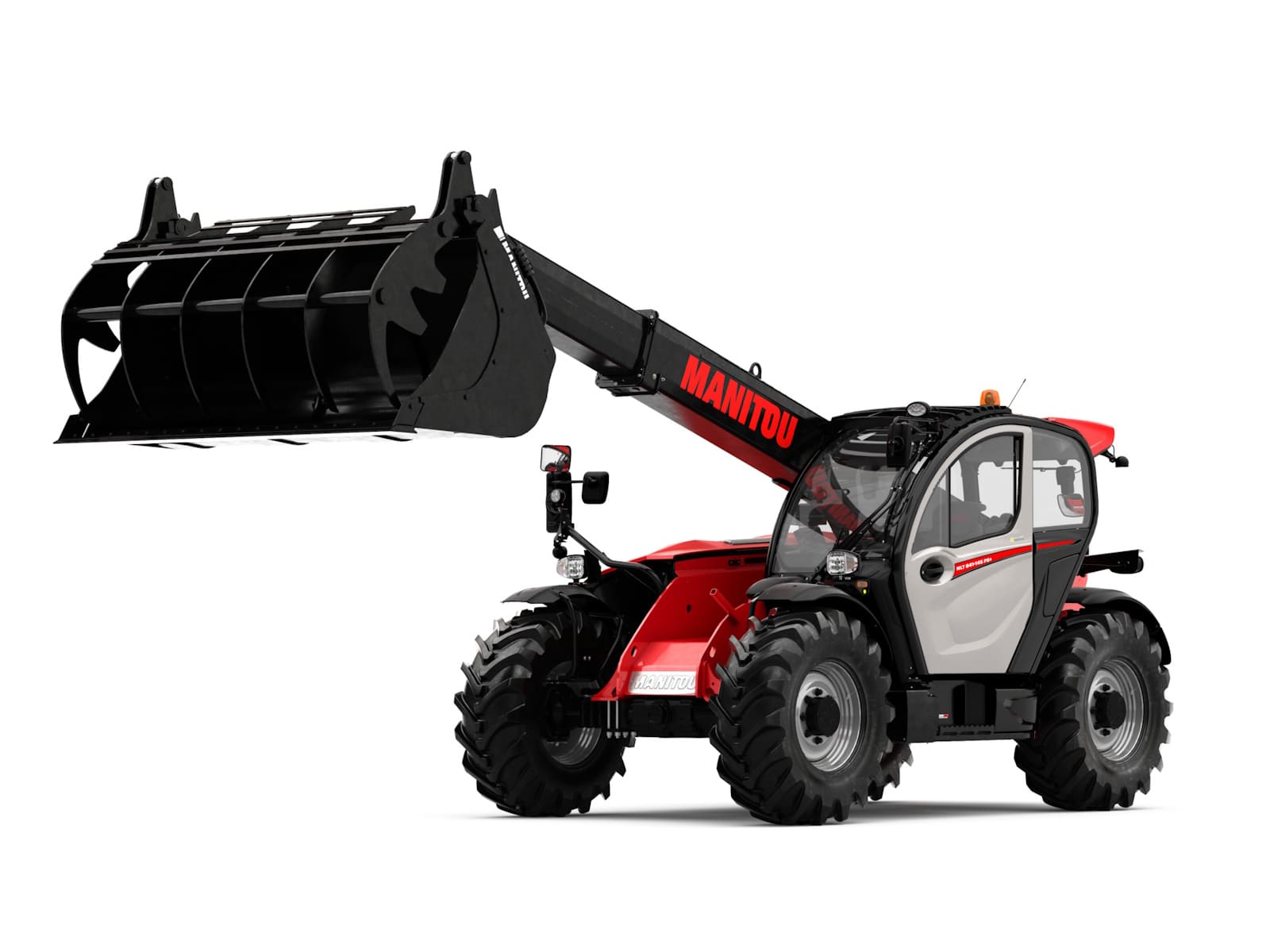

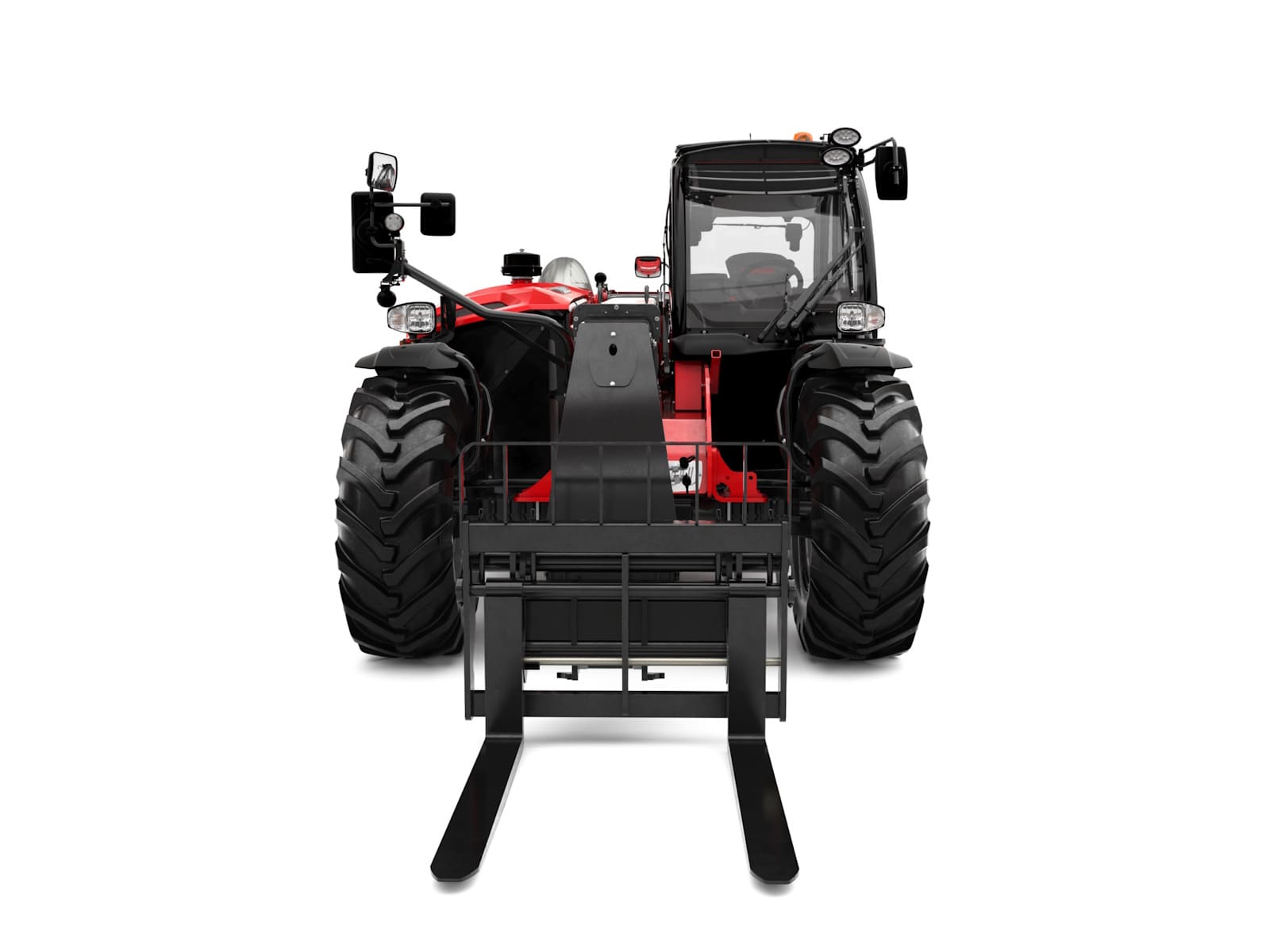

    2026 Manitou Group MLT 841-145 PS+

    Are you looking for a machine that offers you more comfort, performance and cost efficiency to optimize your long working days? The MLT 841-145 PS+ NewAg XL is made for you!

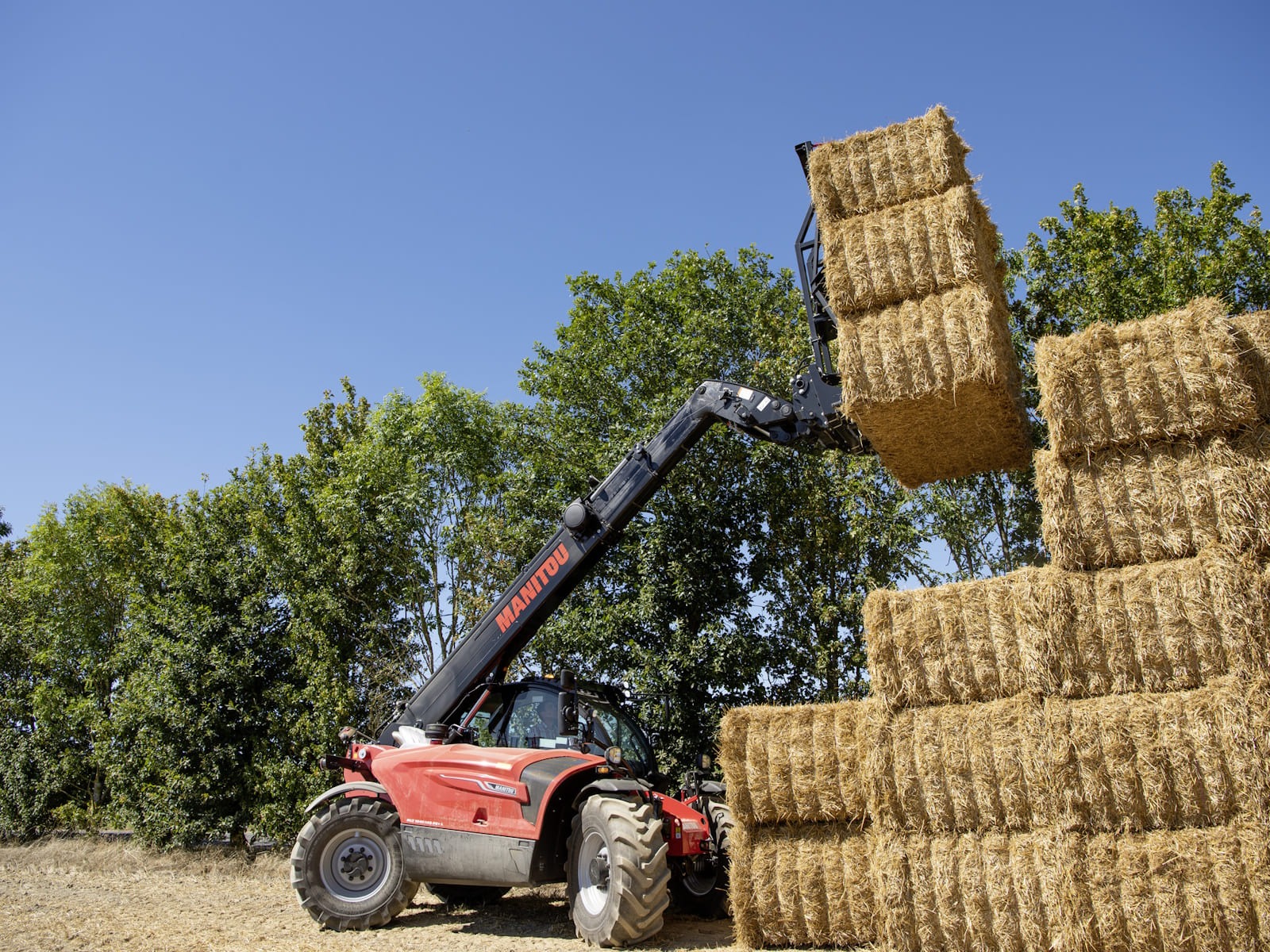

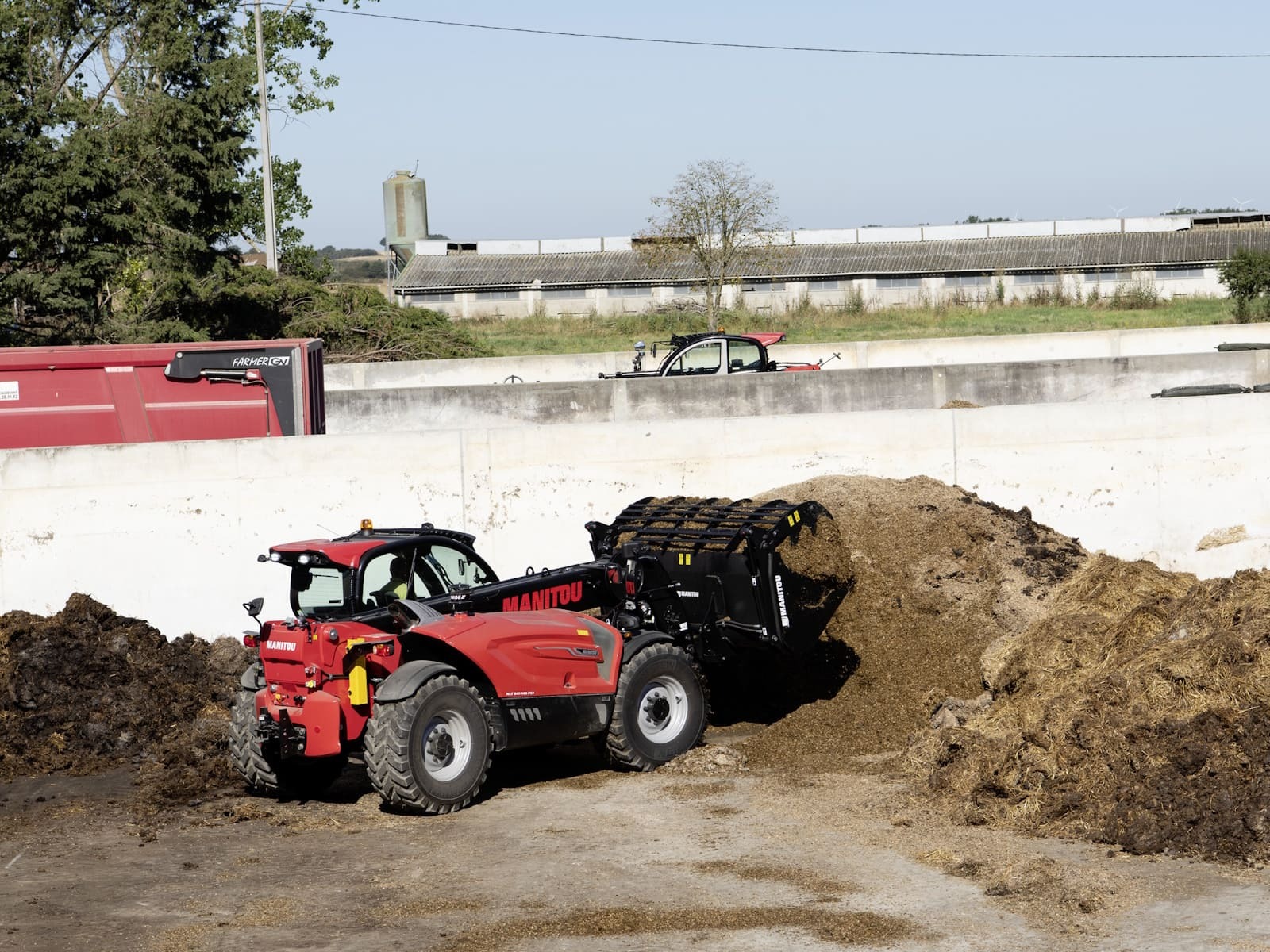

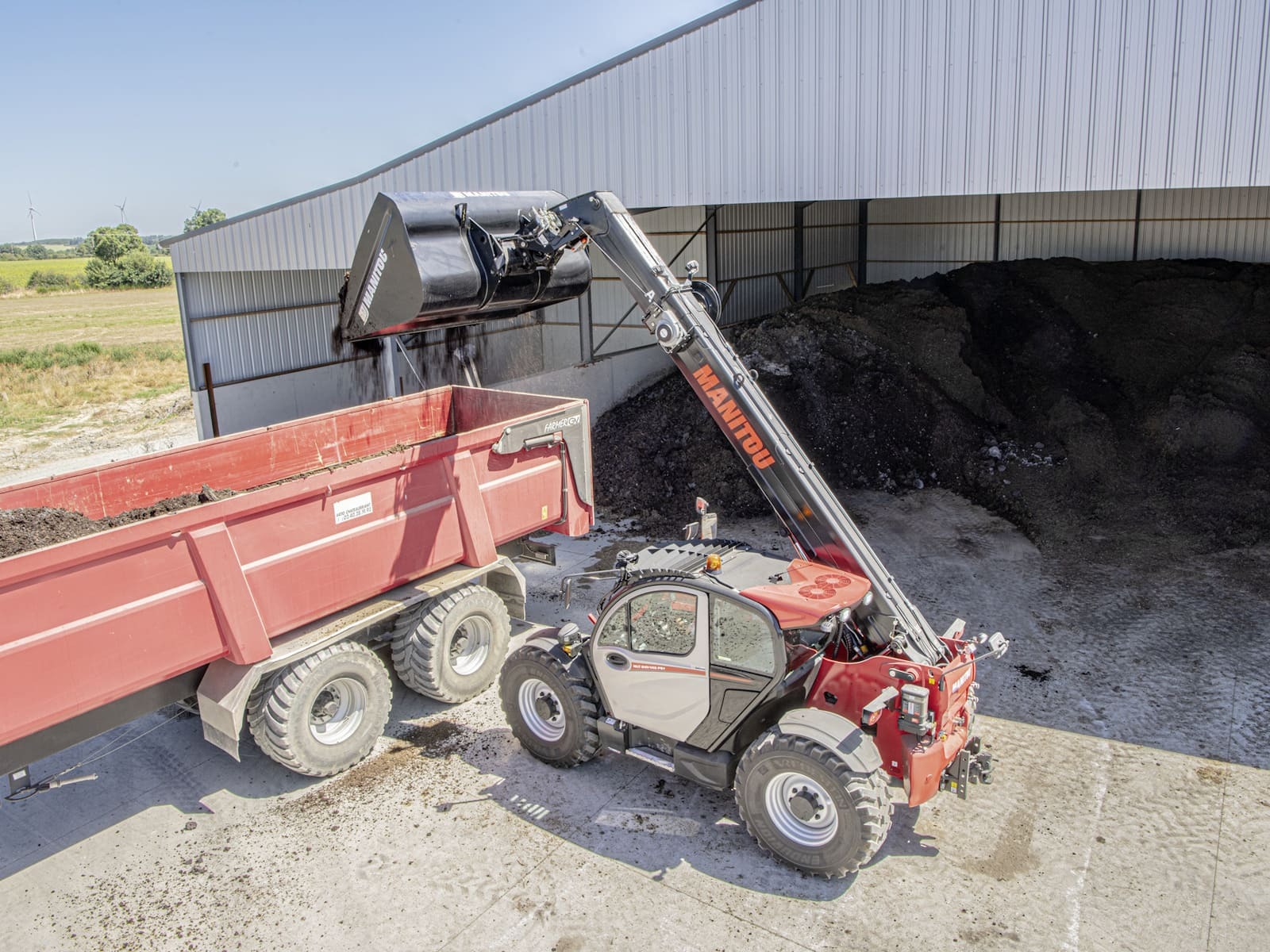

    Dedicated to intensive agricultural handling, it has a lifting height of 7.6 m and a lifting capacity of 4.1 t. XL

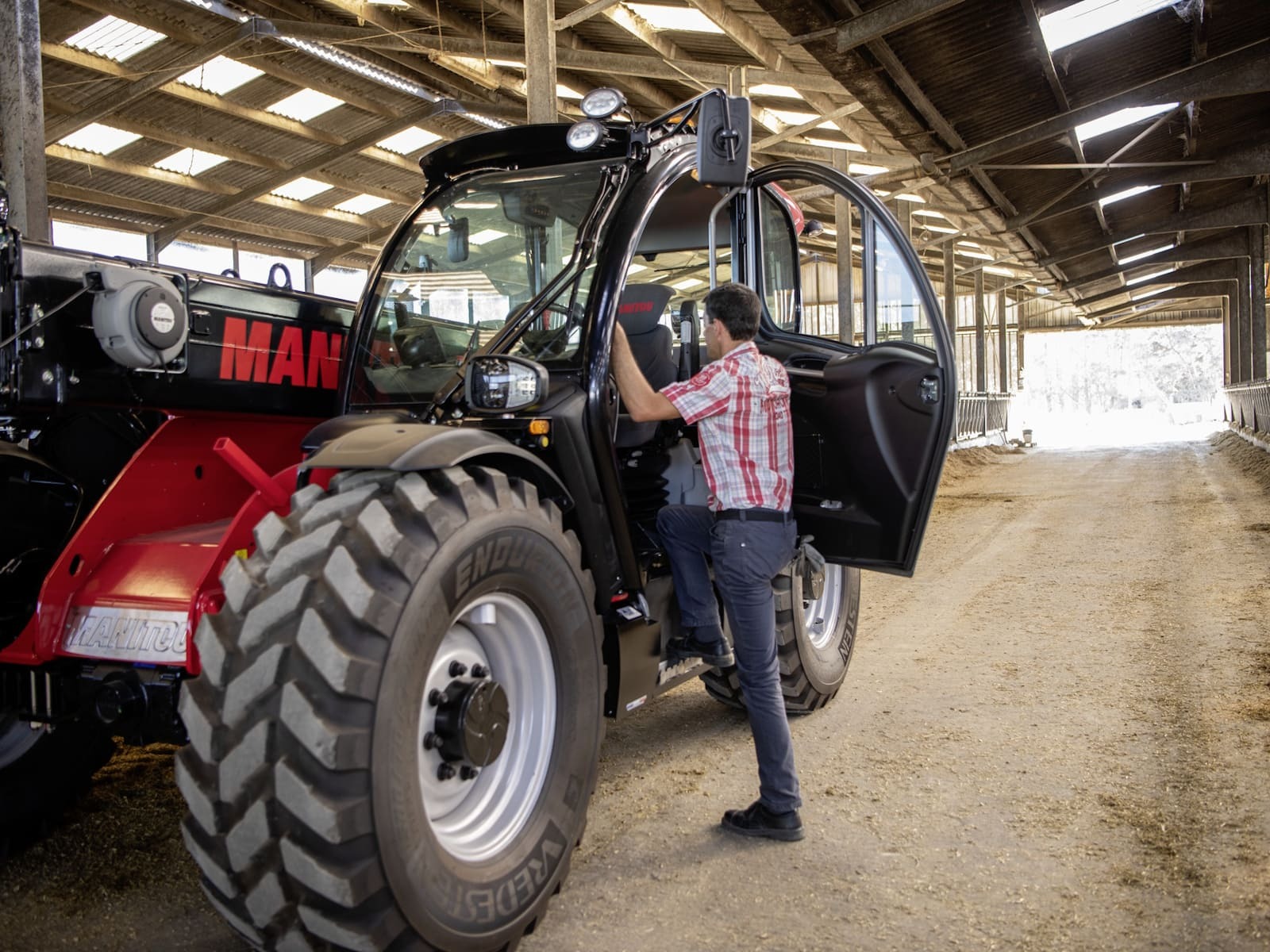

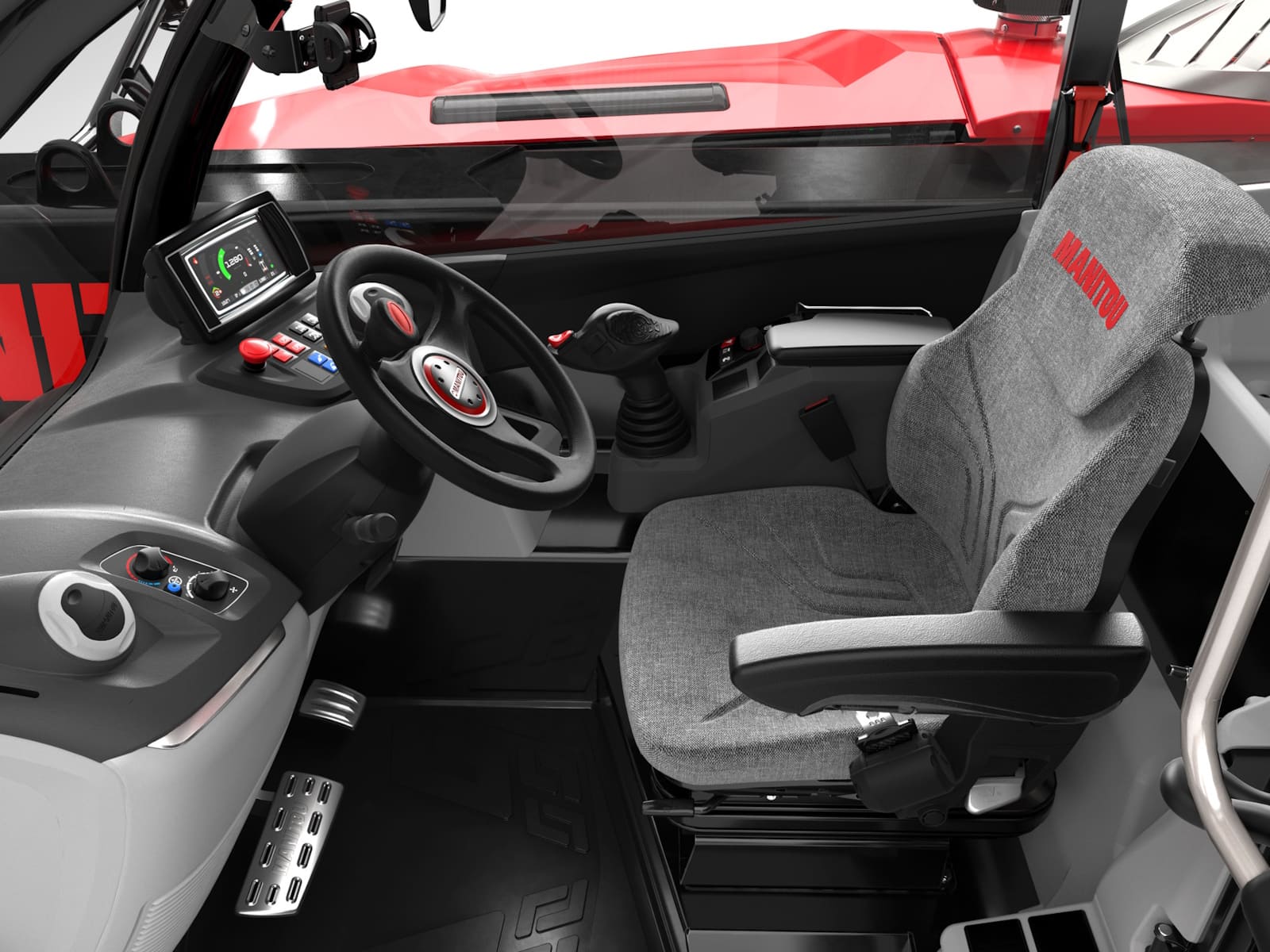

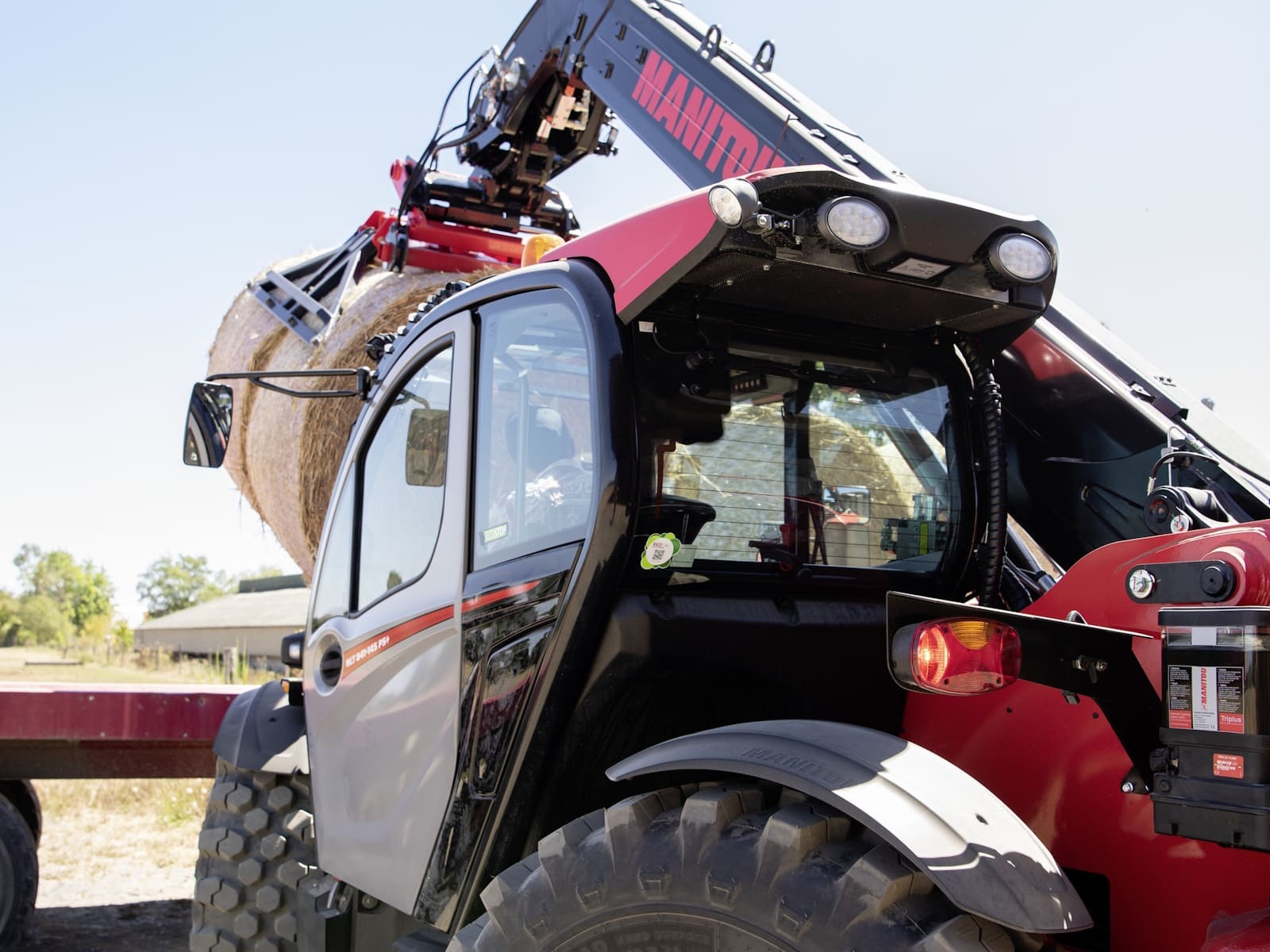

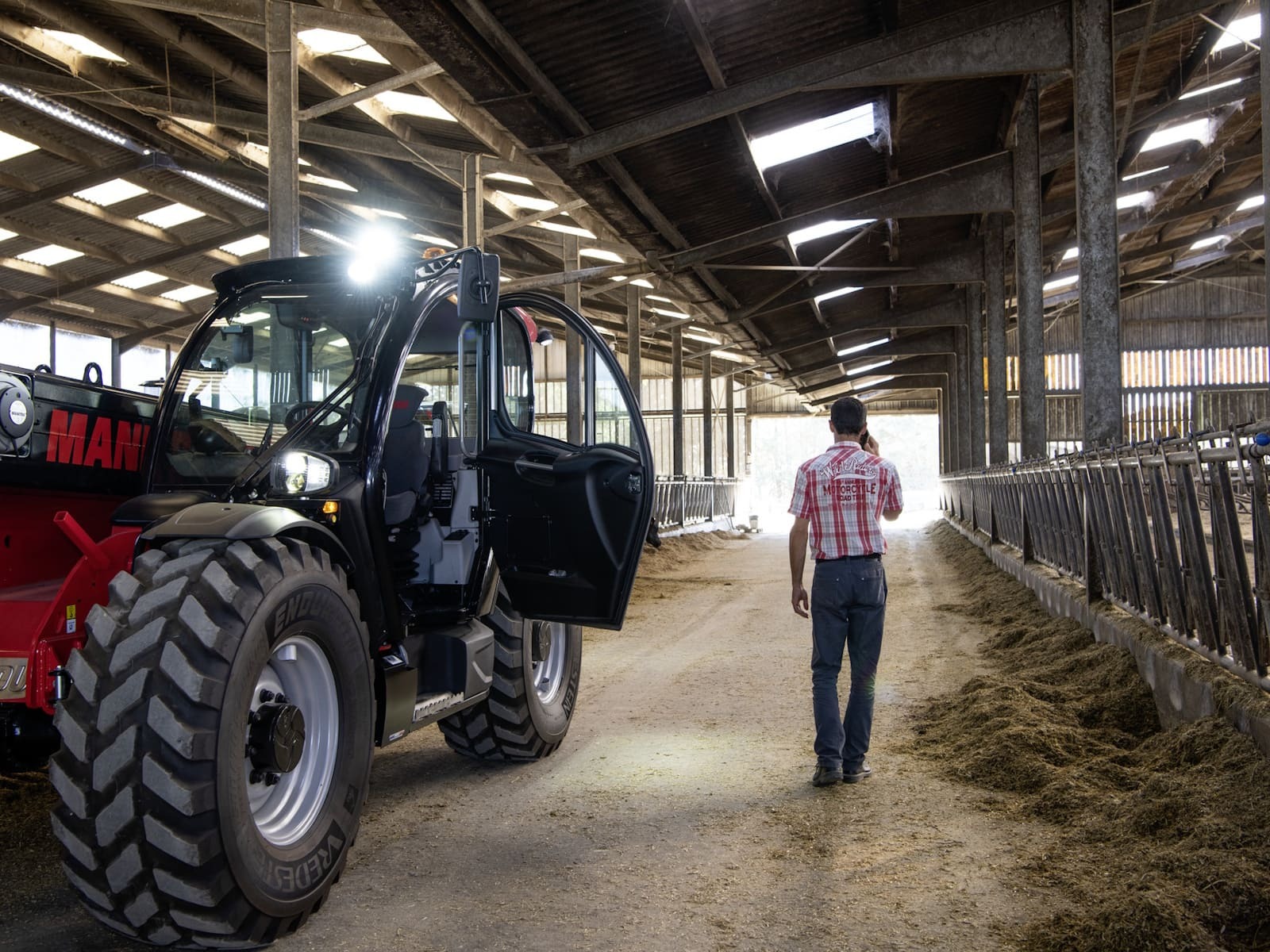

    • Comfort: this machine offers a new soundproof cab (69 dBA - the quietest cab on the market) with simple access (Easy step), optimal visibility, JSM® (Joystick Switch and Move) on floating armrest, DSB (Double Switch Buttons) and an automatic parking brake. For even more comfort, a new adaptive air suspension seat with heating and electric lumbar adjustment is also available as an option.
    • XL Performance: this machine delivers exceptional results even on the most demanding applications thanks to its Yanmar 141 hp engine (602 Nm of max torque) and its M-Shift transmission. Its limited-slip differential on the front and rear axles, ground clearance of 43 cm and auto reversing fan system are perfectly suited to intensive agricultural use. A wide choice of tires is also available to optimize your efficiency in all working environments. The new hydraulic functions and the load sensing pump with 200 l / min ensure a very high level of productivity. For even more performance, the HighView camera (+10% loading productivity), the Comfort Steering System (+12% loading productivity) and trailer braking (hydraulic, pneumatic) are among the available options.
    • XL Cost efficiency: this machine has been specifically designed to reduce its total cost of ownership (TCO), in particular by optimizing fuel consumption and machine maintenance (eg centralized greasing points, etc.). Manitou also offers you the Easy Manager connected solution to manage, optimize and secure the machine. All of these allow you to maximize the residual value of your telehandler. For even greater profitability, the Ecostop intelligent engine shutdown and automatic greasing system are available as options to reduce the machine total cost of ownership (TCO).

    Info

    Industry

    Agriculture

    Make

    Manitou Group

    Model

    MLT 841-145 PS+

    Trim

    Base

    Year

    2026

    MSRP

    N/A

    Category

    Telehandler

    Subcategory

    General


    Specs

    Load Capacity

    Max. capacity: 9039 lb

    Height

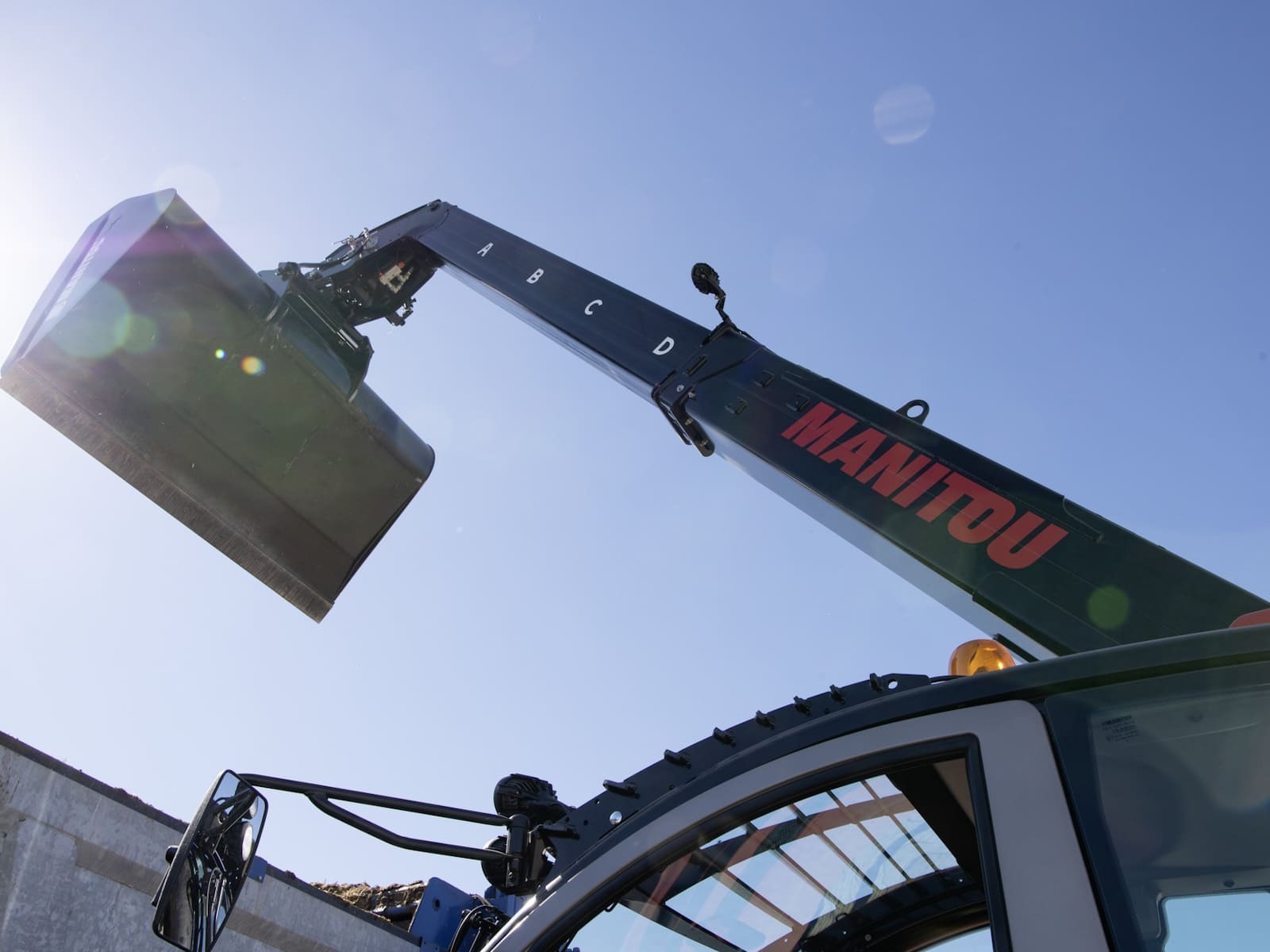

    7 ft 11 in | Max. lifting height: 24 ft 11 in | Reach at max. height: 2 ft 11 in

    Notes

    Max. outreach: 14 ft 7 in | Breakout force with bucket: 5268 daN | Front overhang: 4 ft 11 in | Tilt-down angle: 135 ° | Tilt-up angle: 12 ° | Lifting: 6.40 s | Lowering: 4.60 s | Extension: 6.10 s | Retraction: 5.20 s | Crowd: 3 s | Dump: 2.20 s | Drawbar pull (Laden): 8727 daN | Engine cooling system: 4 radiators (water + intercooler + hydraulic oil + transmission oil) | Gearbox: M-Shift | Number of gears (forward / reverse): 5 / 3 | Max. travel speed: 25 mph | Differential lock: Limited slip differential on front and rear axles | Hydraulic pump type: Variable displacement pump | Hydraulic flow - Pressure: 53 US gpm - 3916 PSI | Noise at driving position (LpA) tested following NF EN 12053 norm: 69 dB | Noise to environment (LwA): 105 dB | Vibration on hands/arms: < 8 ft/s² | Tractor homologation | Cab certification: Cabin ROPS - FOPS level 2 | Controls: JSM

    Weight

    Unladen weight (with forks): 20194 lb

    Ground Clearance

    1 ft 5 in

    Wheelbase

    9 ft 5 in

    Length

    Overall length to carriage (with hitch): 17 ft 9 in | Overall length to carriage (without hitch): 17 ft 2 in

    Width

    7 ft 10 in | Overall cab width: 3 ft 3 in

    Turning Radius

    External turning radius (over tyres): 12 ft 3 in

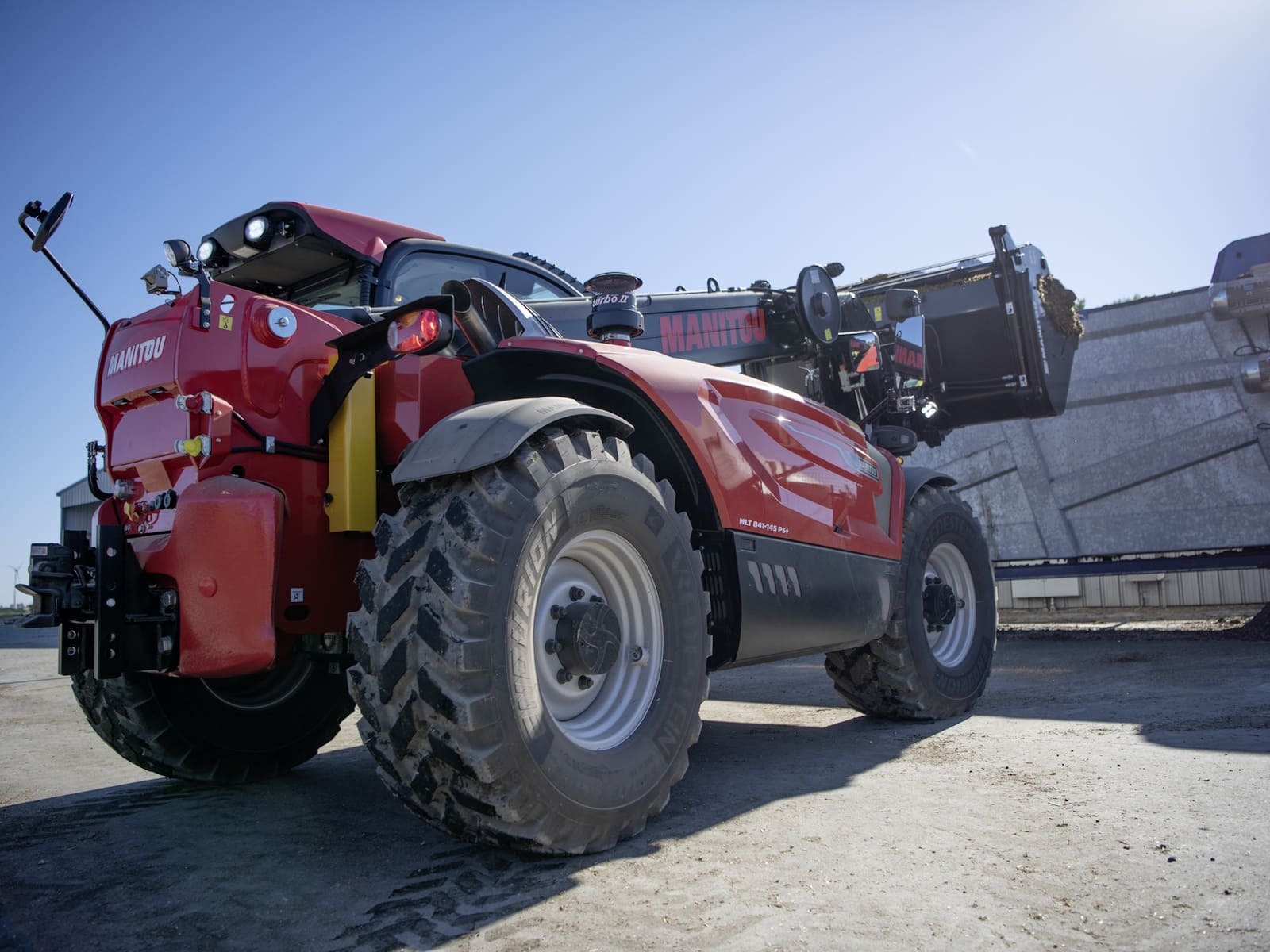

    Tires

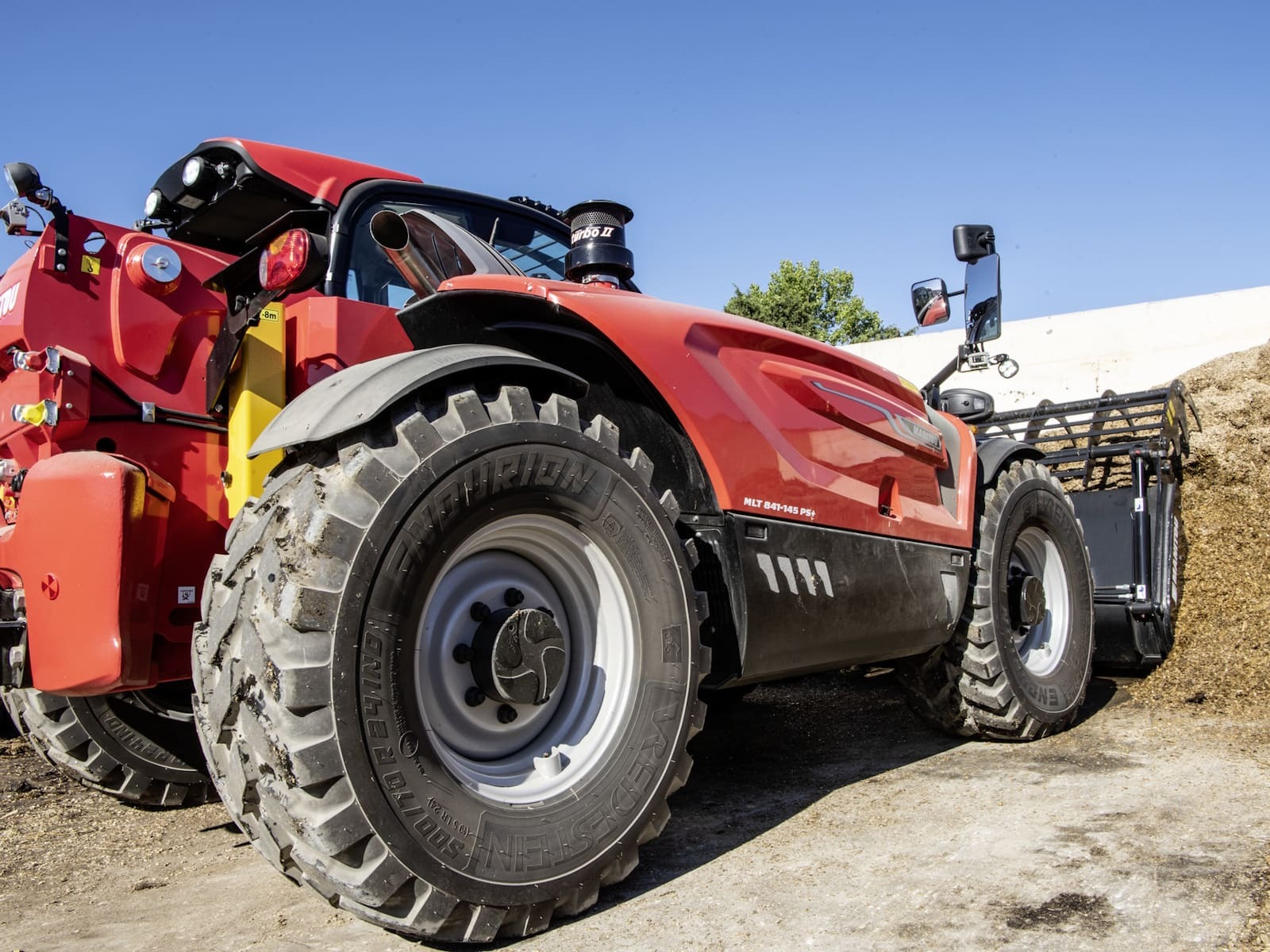

    Michelin - XMCL - 460/70 R24 159A8

    Wheels

    Drive wheels (front / rear): 2 / 2

    Steering

    Manicrab, 2 wheel steer, 4 wheel steer, Crab mode

    Engine

    Yanmar | Stage V / Tier 4 Final

    Cylinders

    Number of cylinders - Capacity of cylinders: 4 - 279 in³

    Power/Horsepower

    141 Hp / 105 kW

    Torque

    Max. torque / Engine rotation: 444 ft/lbs @1500 rpm

    Transmission

    Torque converter with powershift gearbox

    Brakes

    Parking brake: Automatic negative parking brake | Service brake: Oil-immersed multi-discs braking on front & rear axles

    Fuel Capacity

    38 US gal | Hydraulic tank capacity: 37 US gal | Diesel Exhaust fluid (AdBlue® type) tank capacity: 6 US gal
