2026 Manitou Group MT 625 H

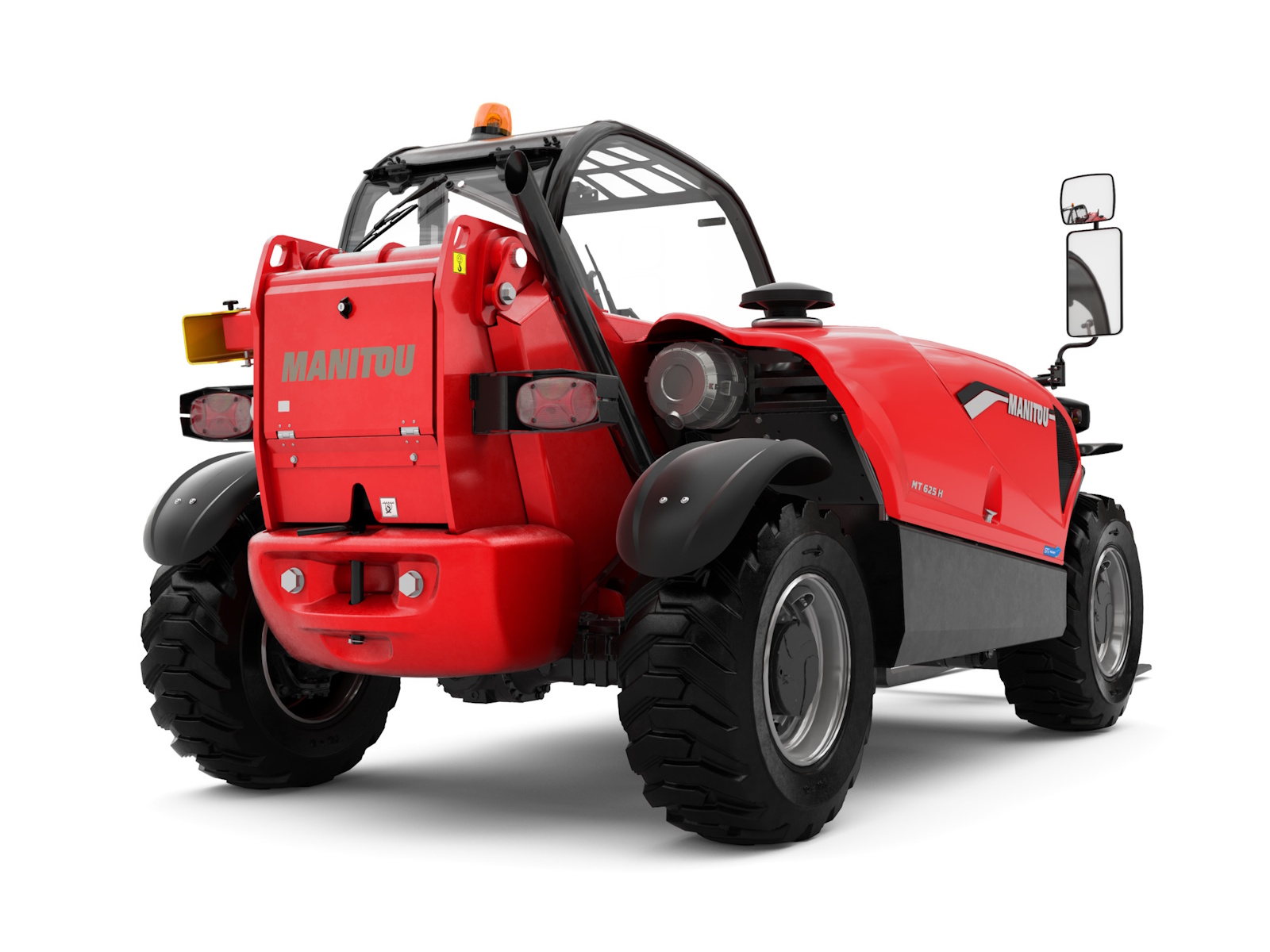

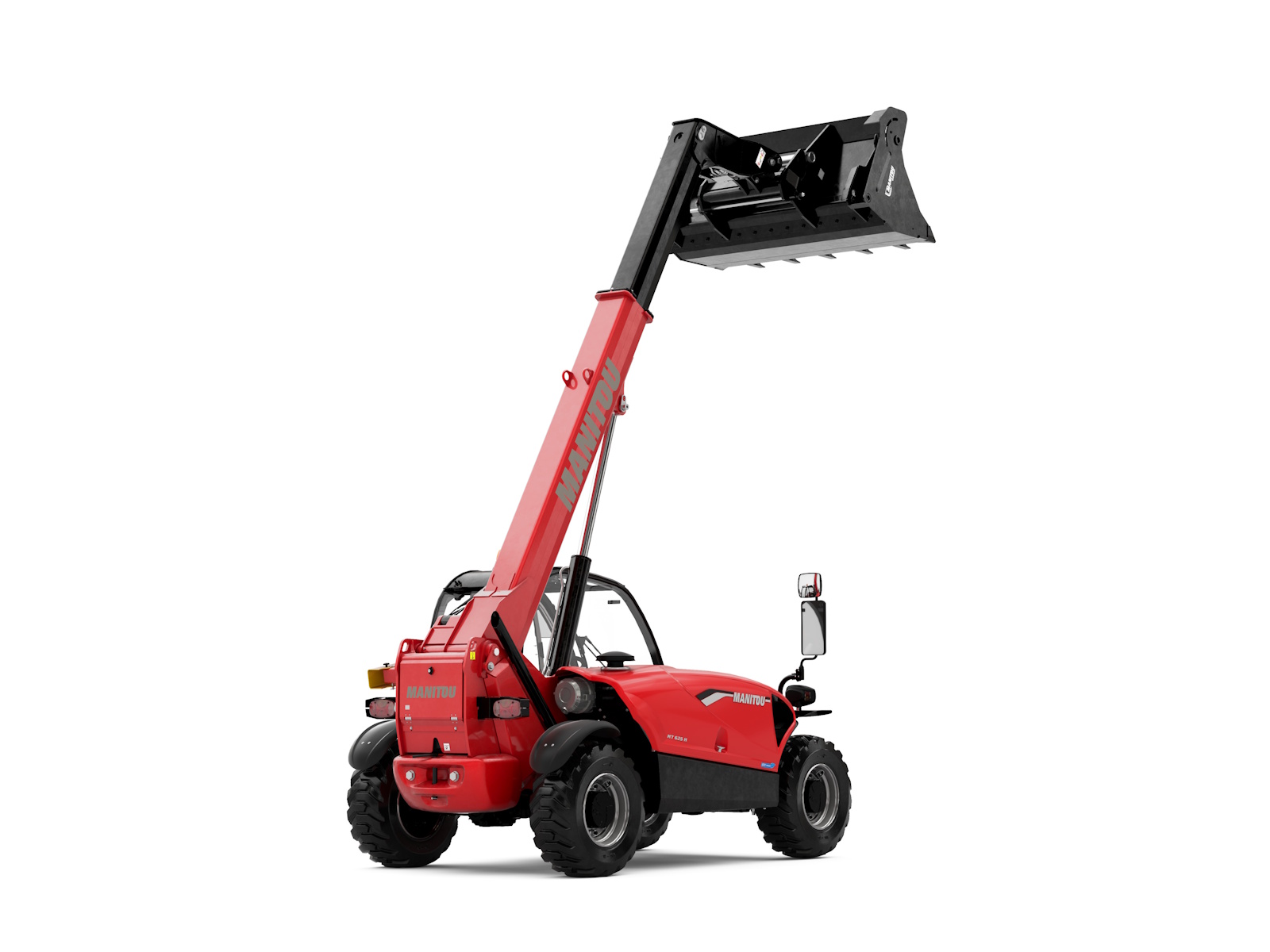

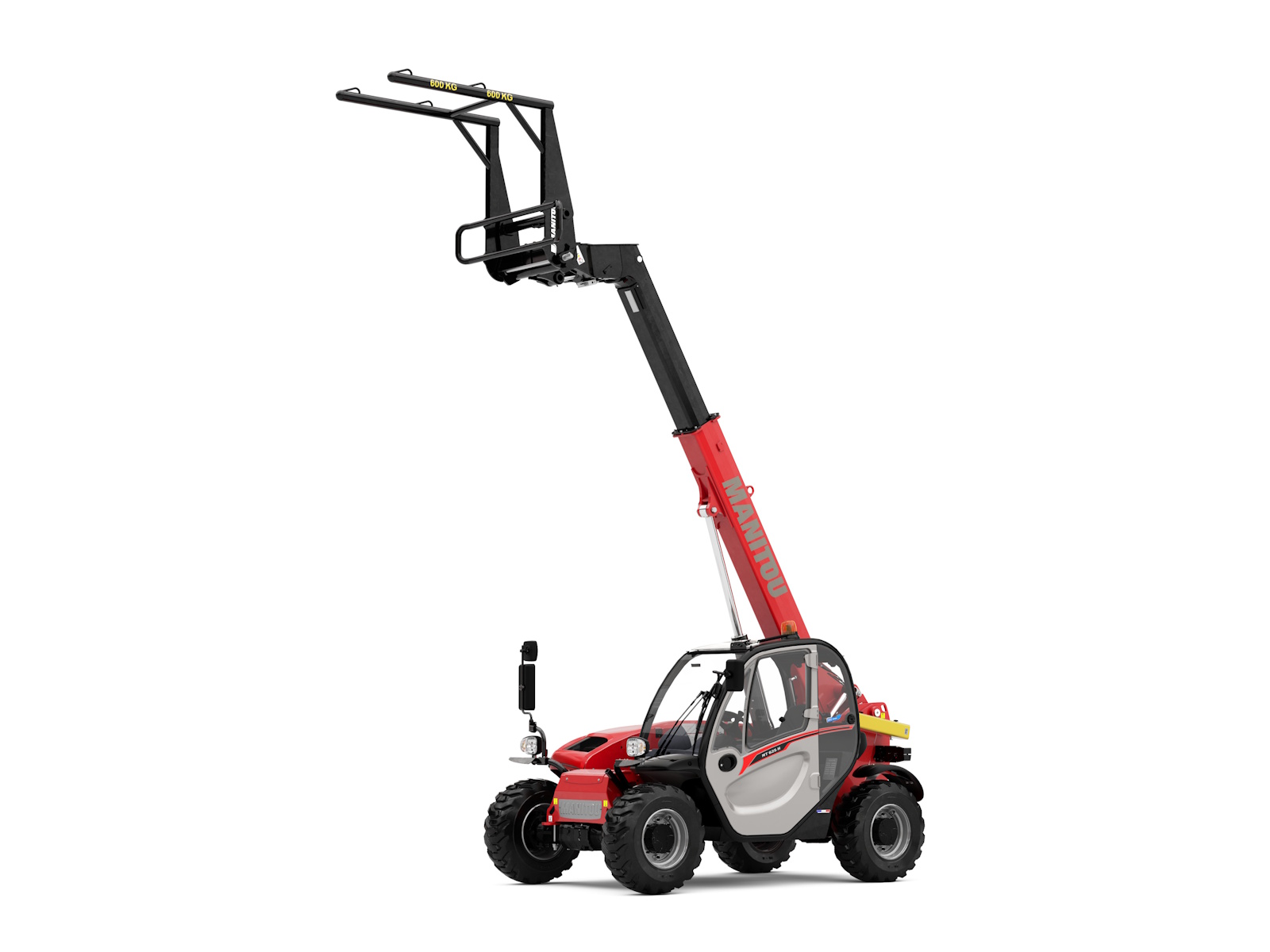

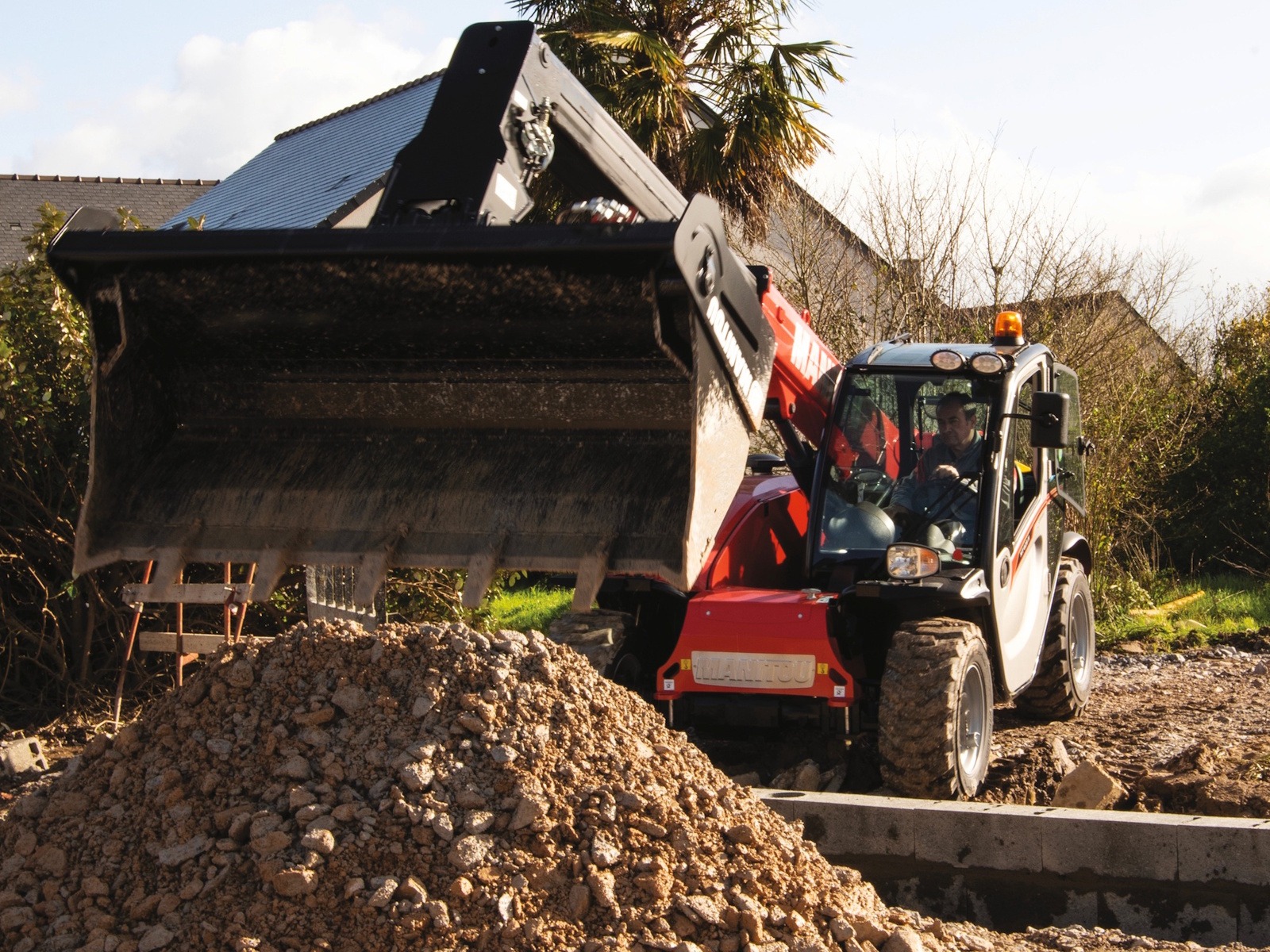

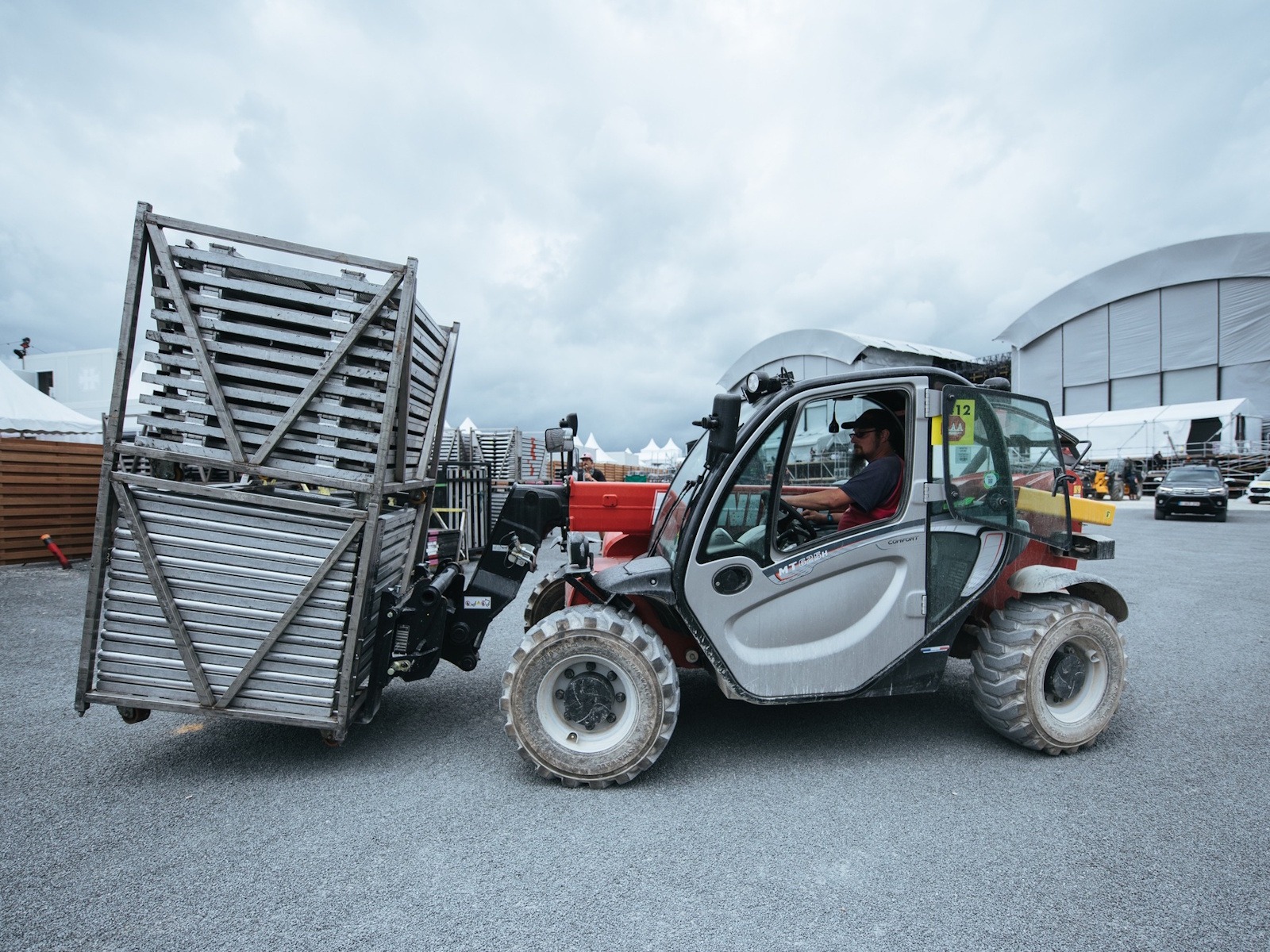

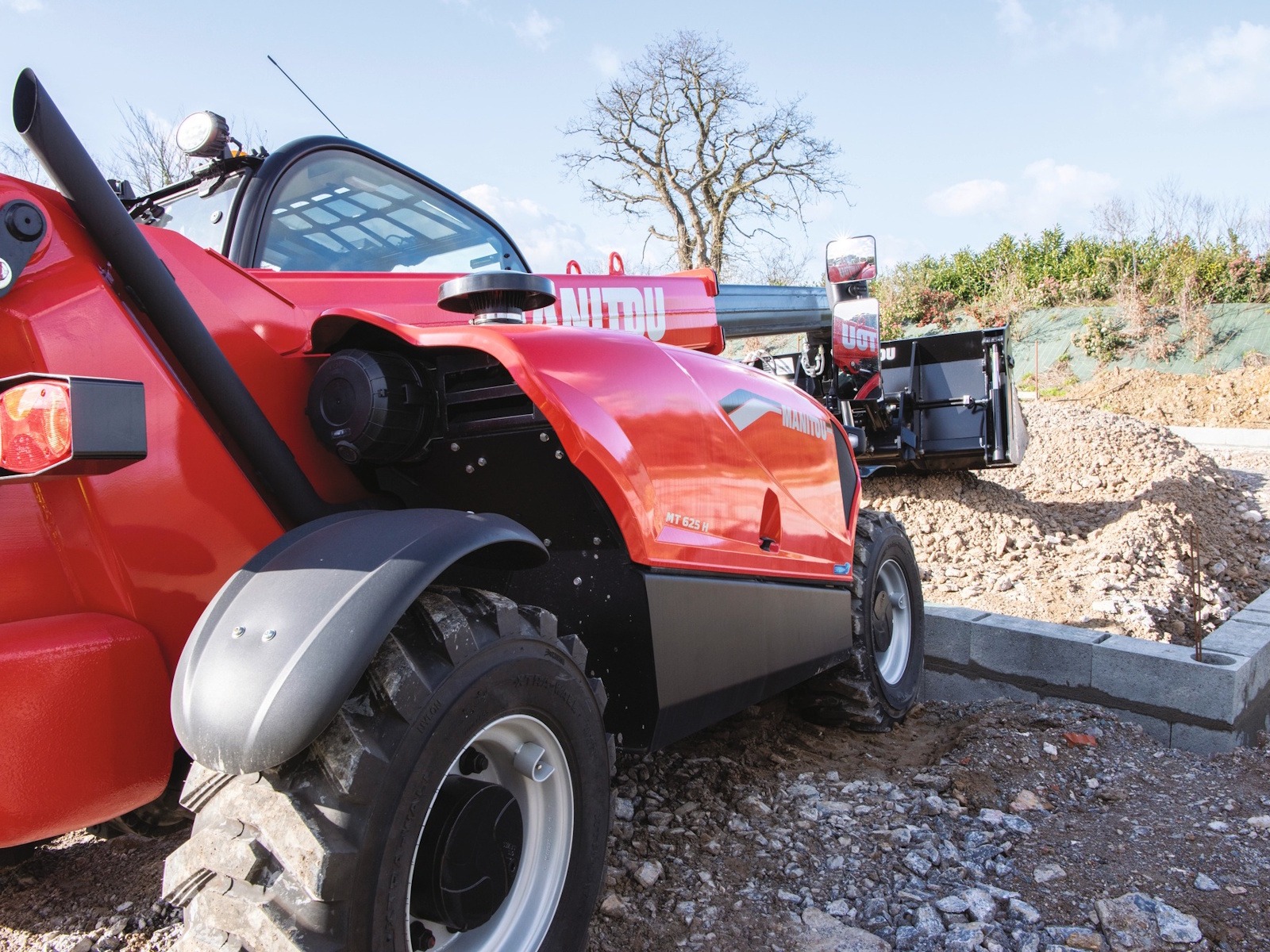

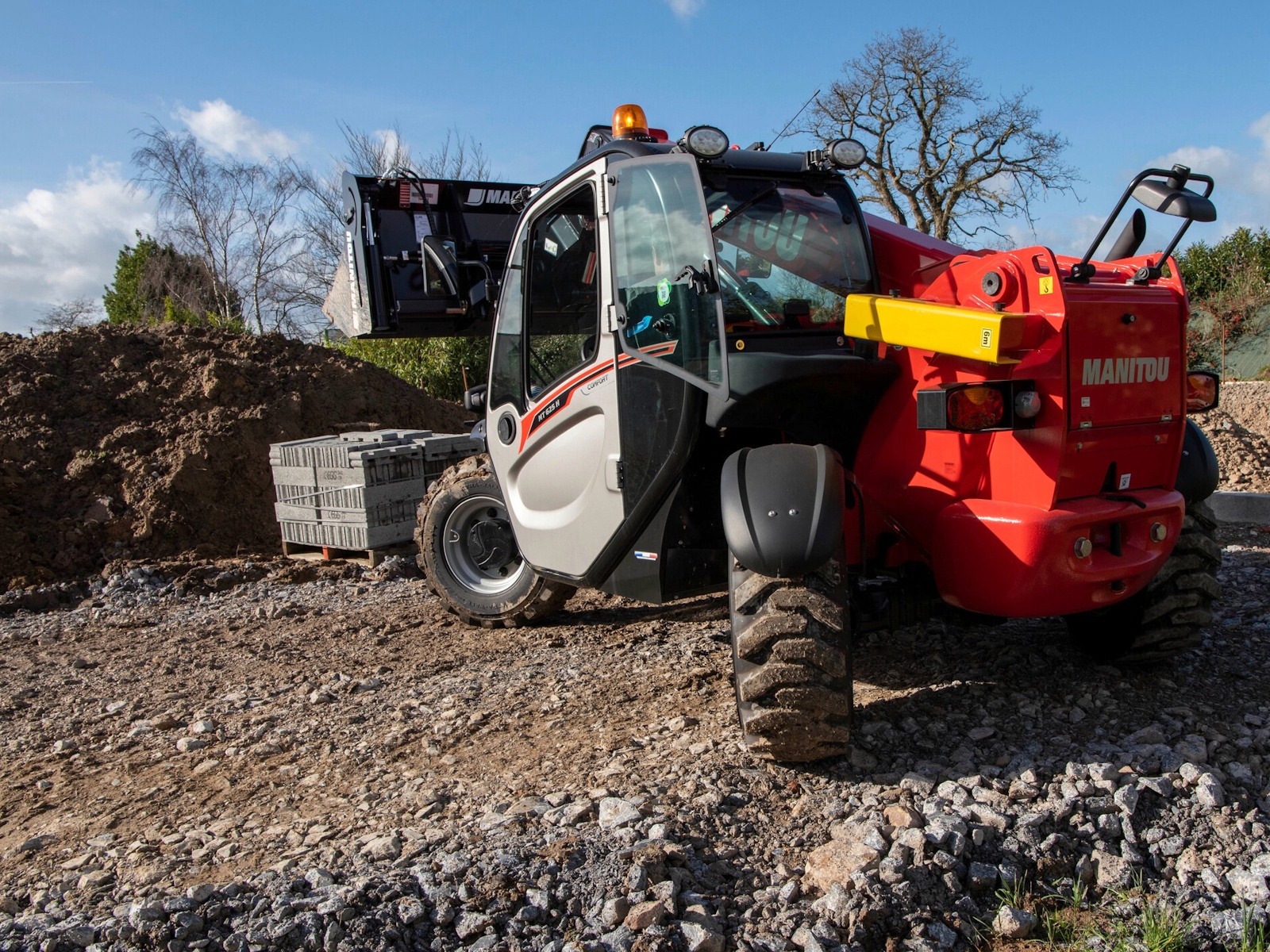

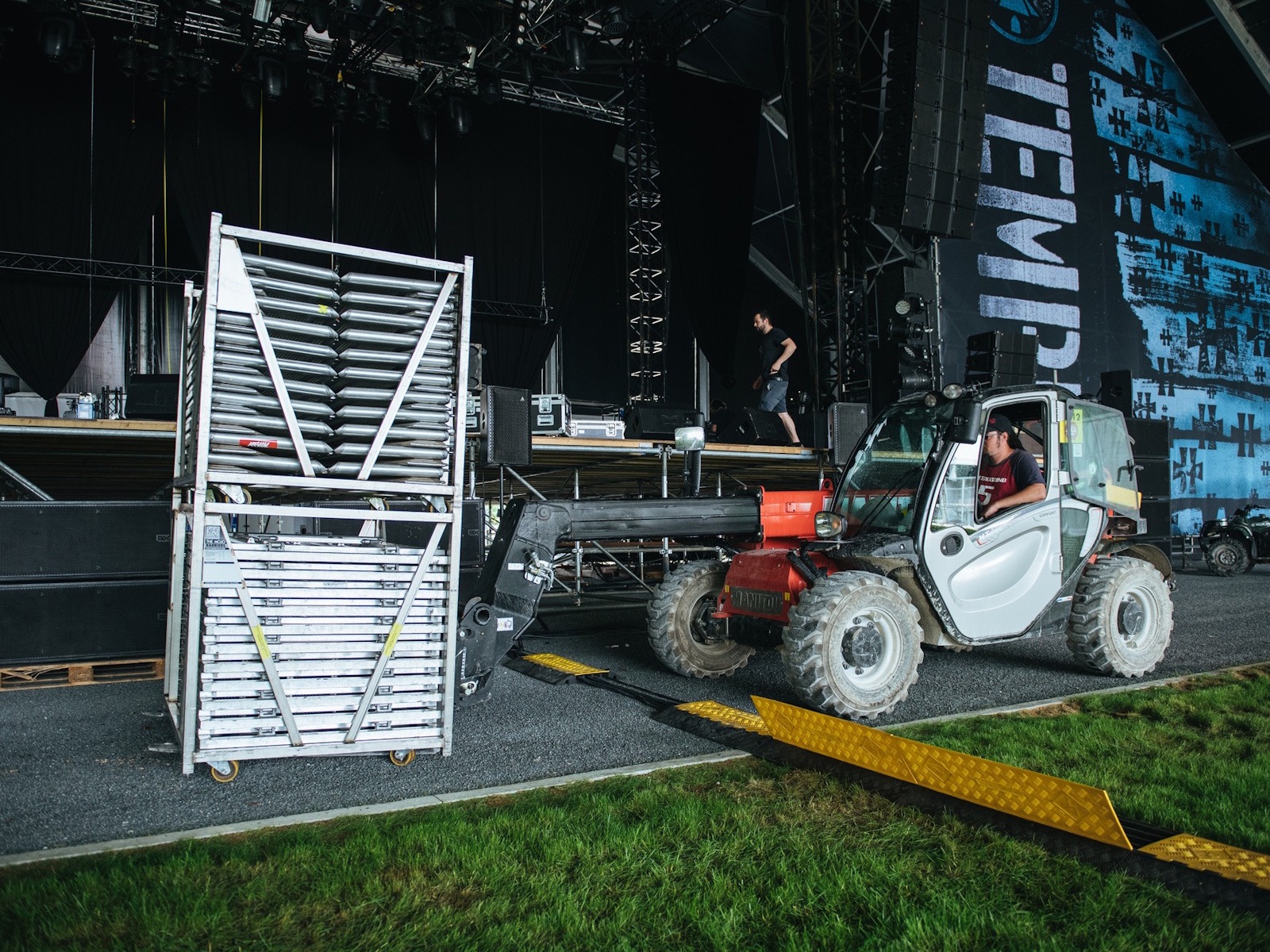

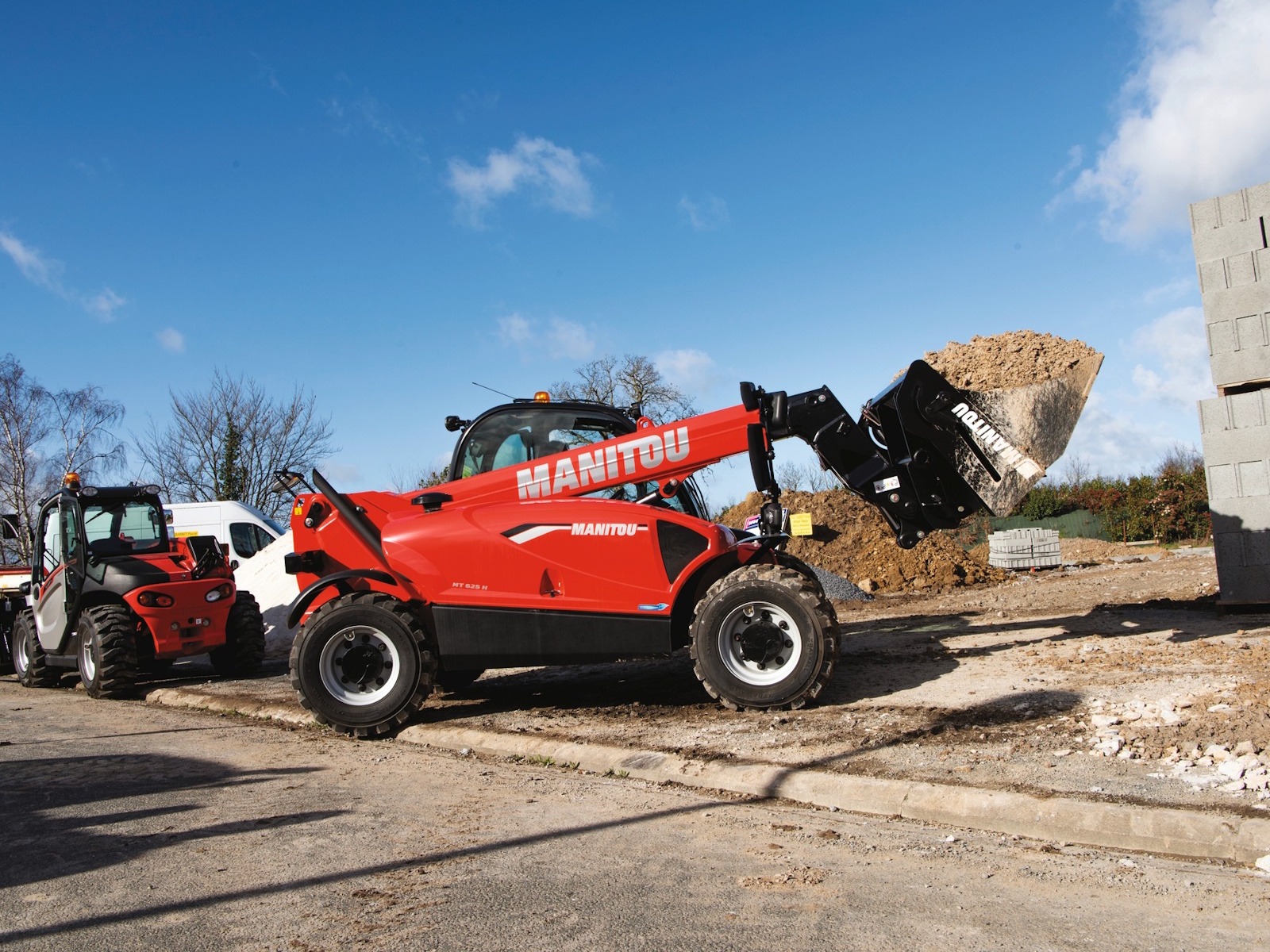

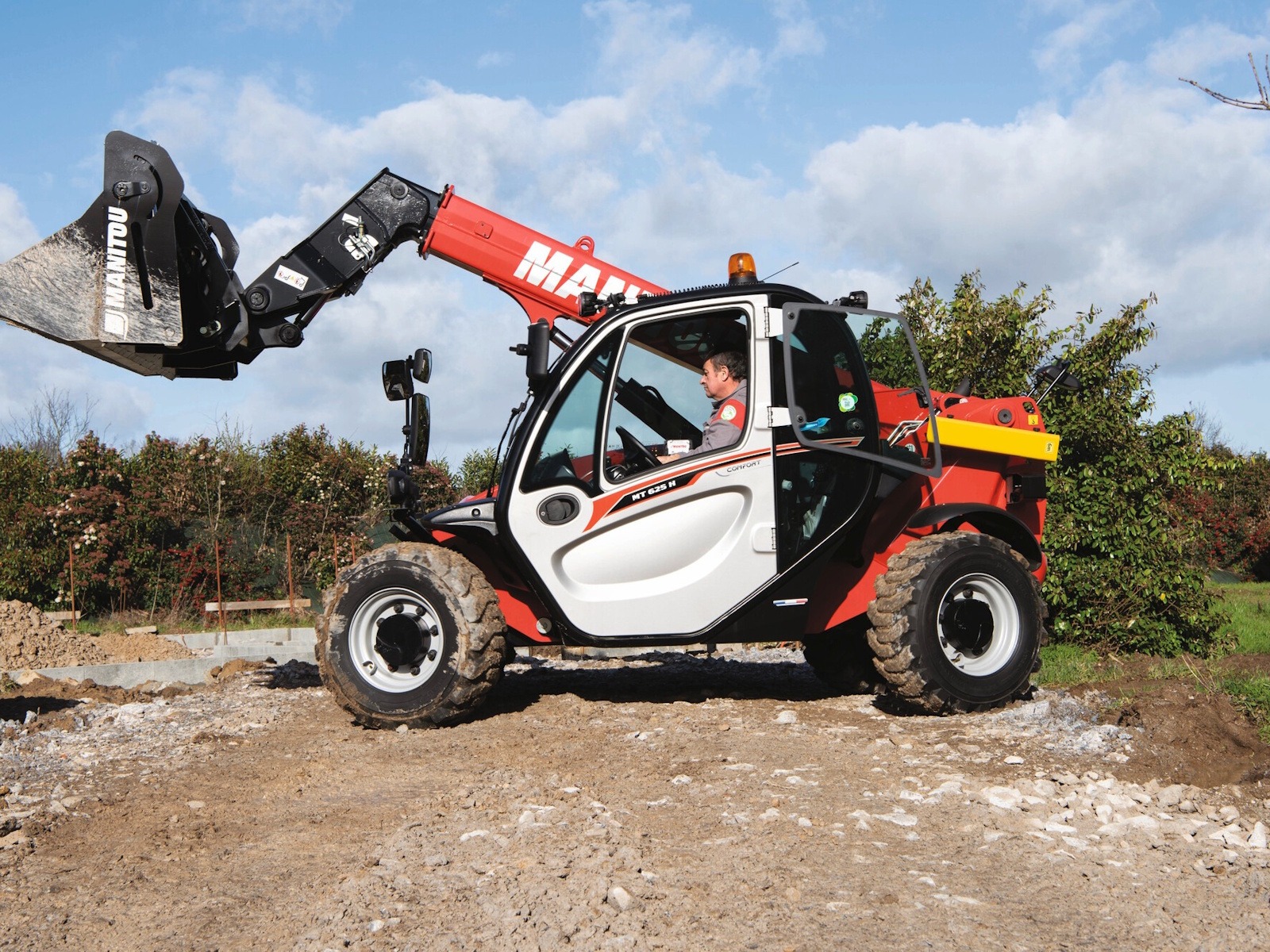

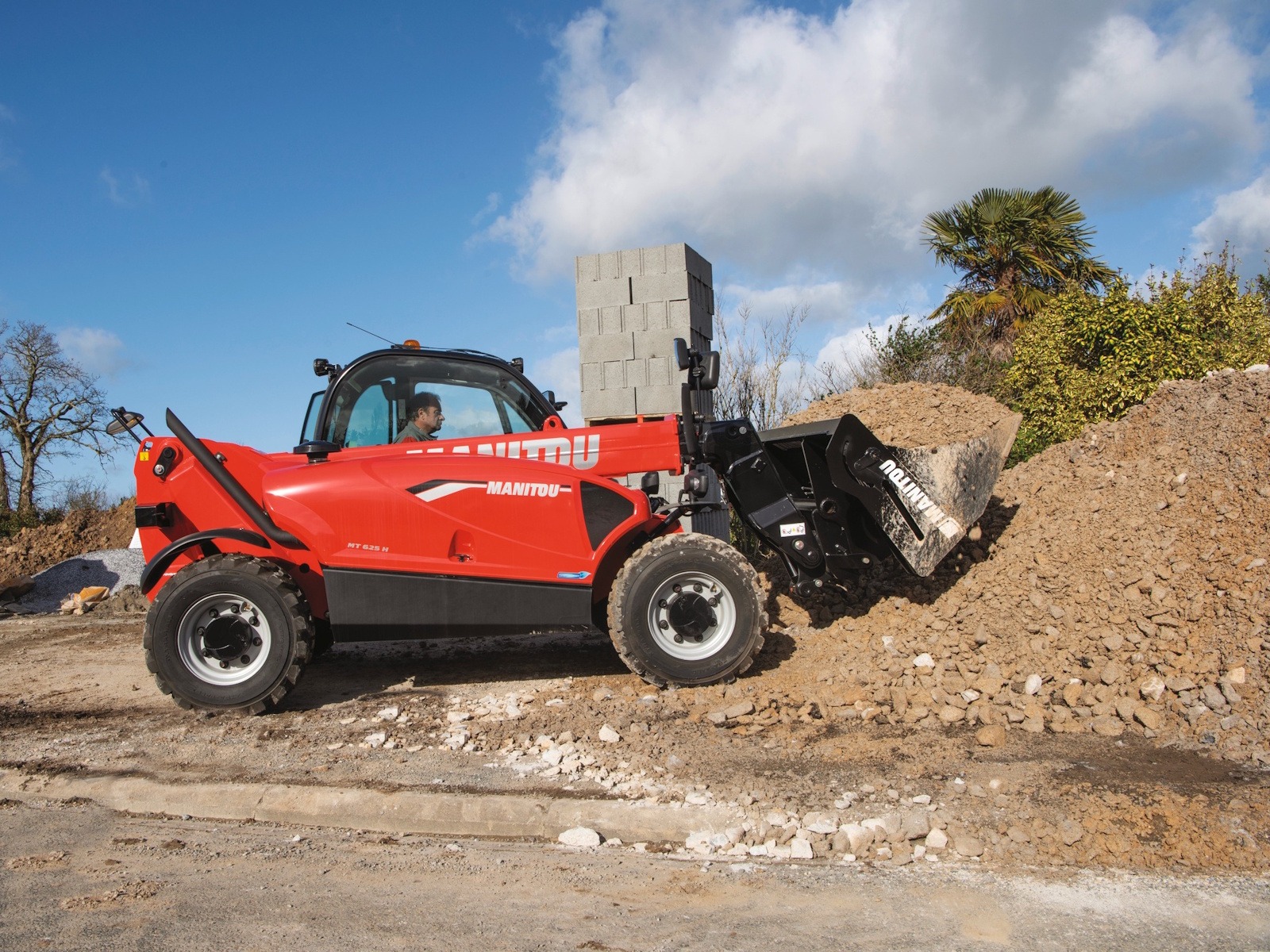

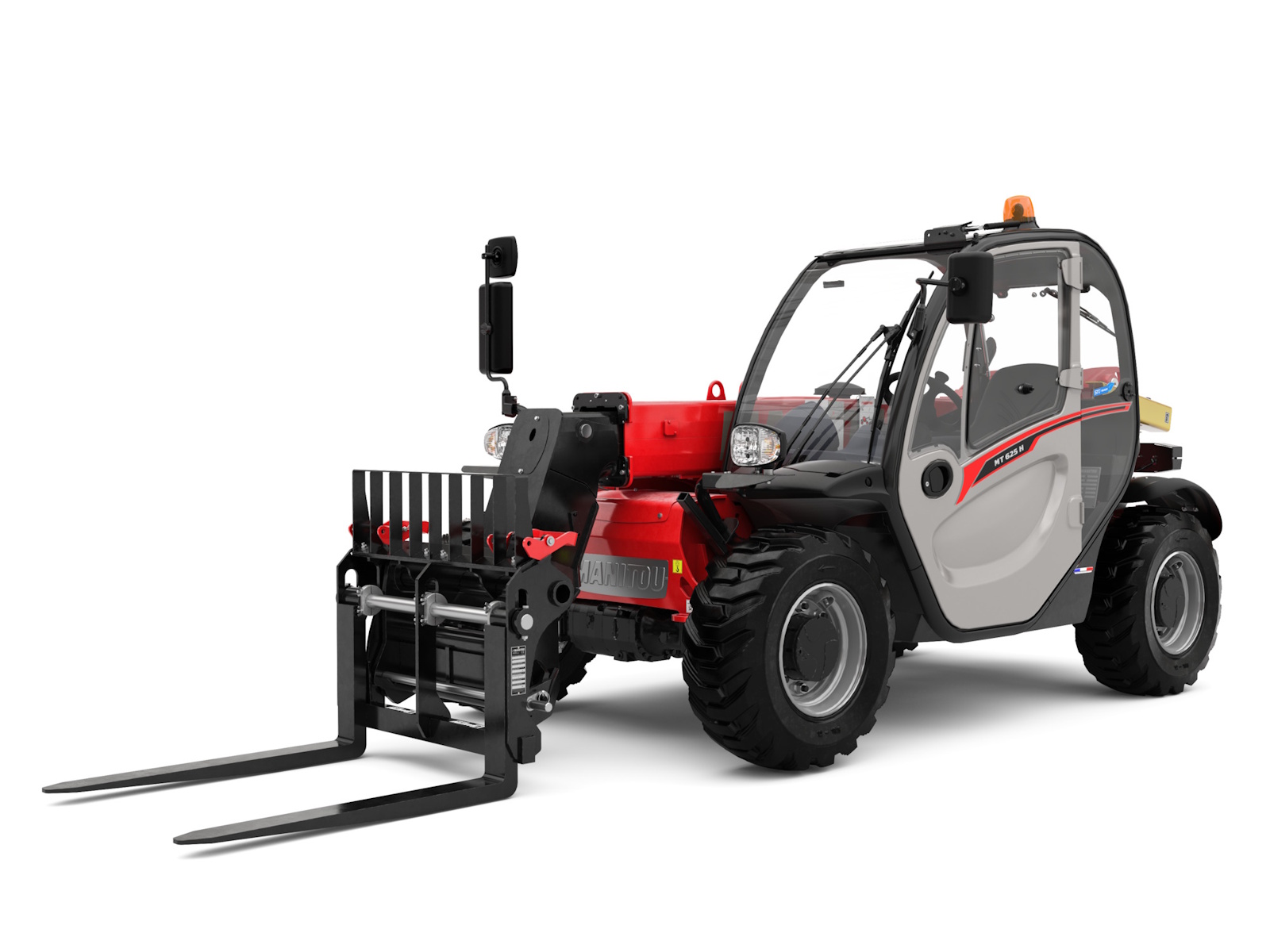

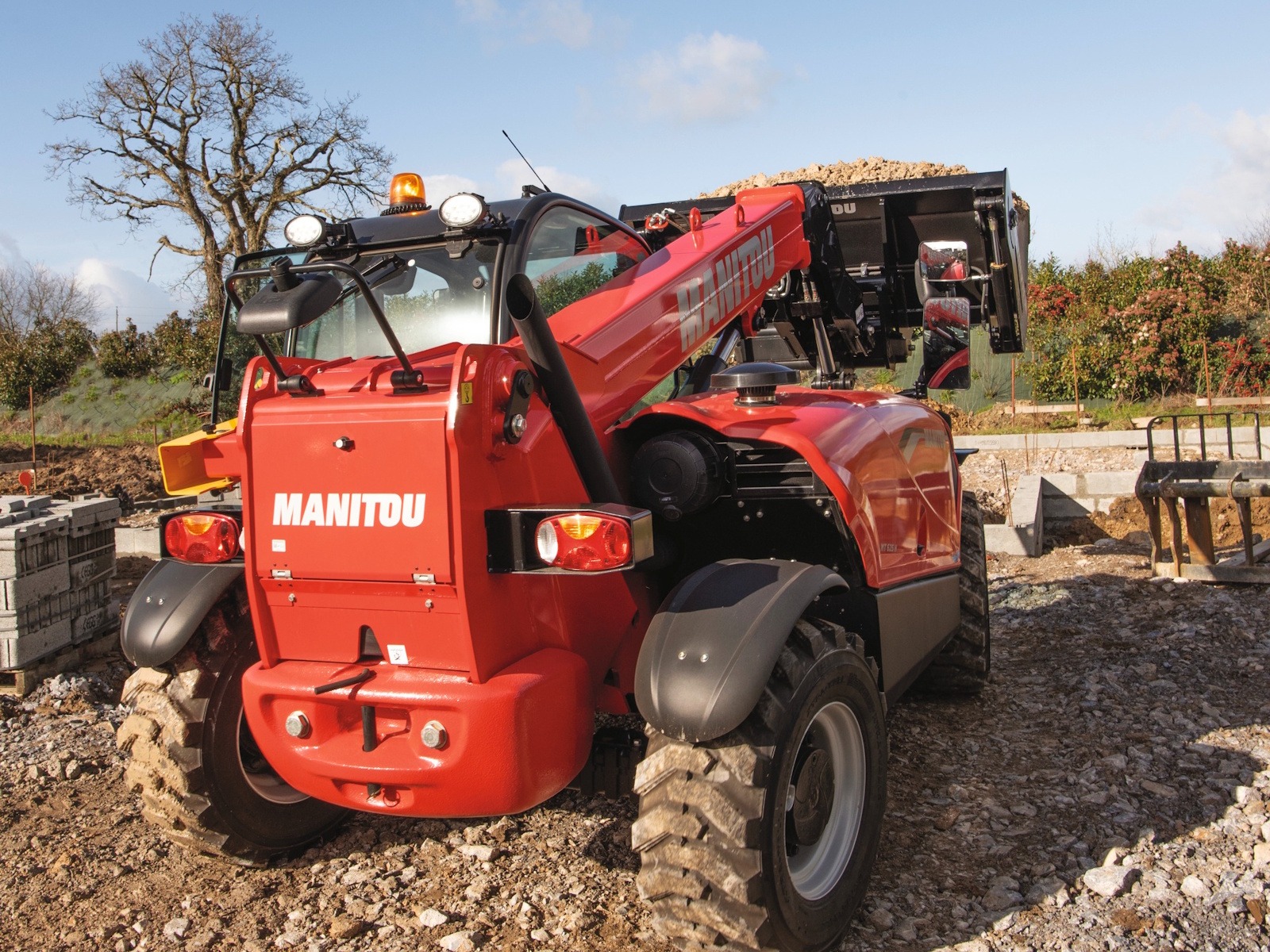

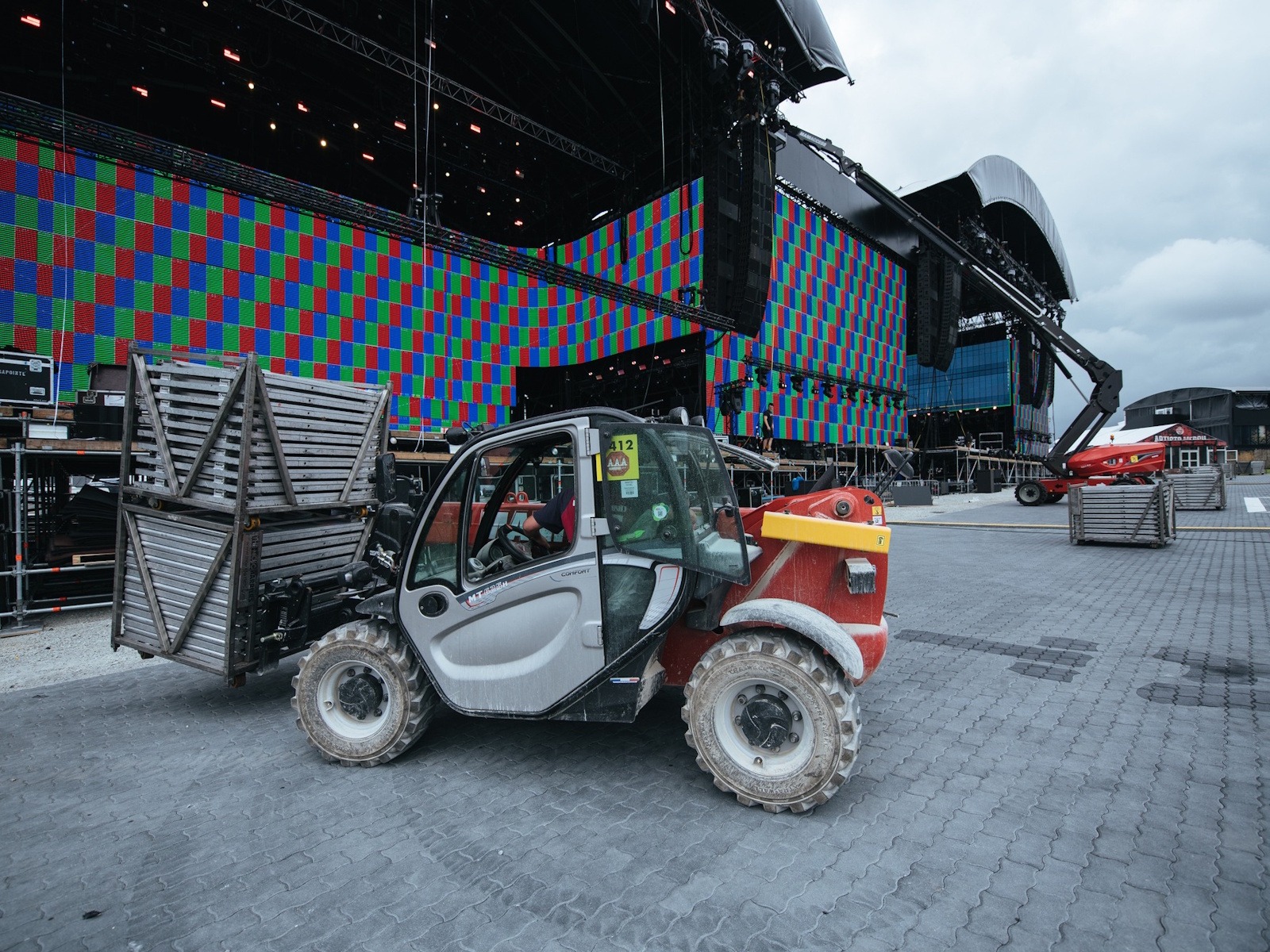

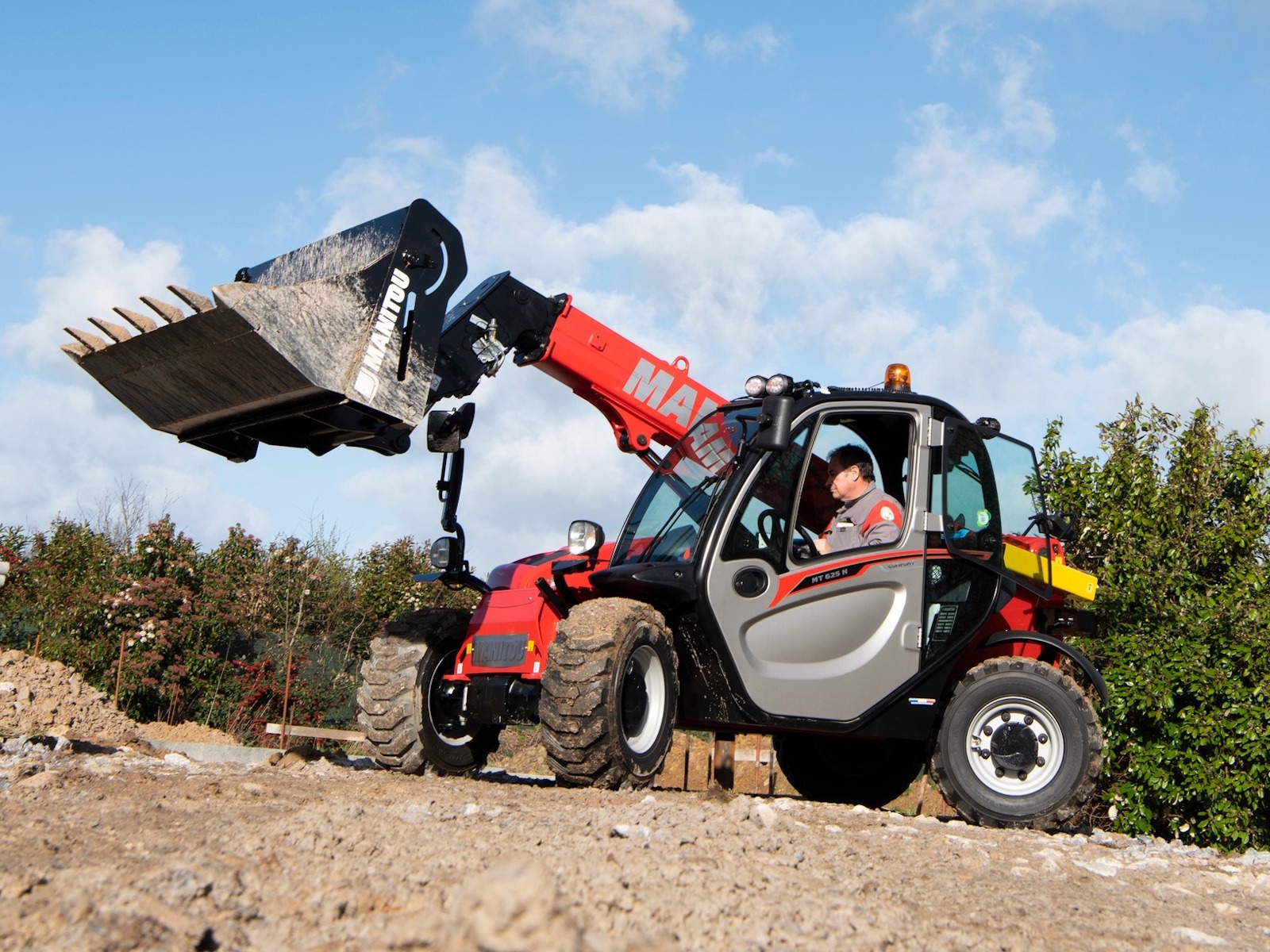

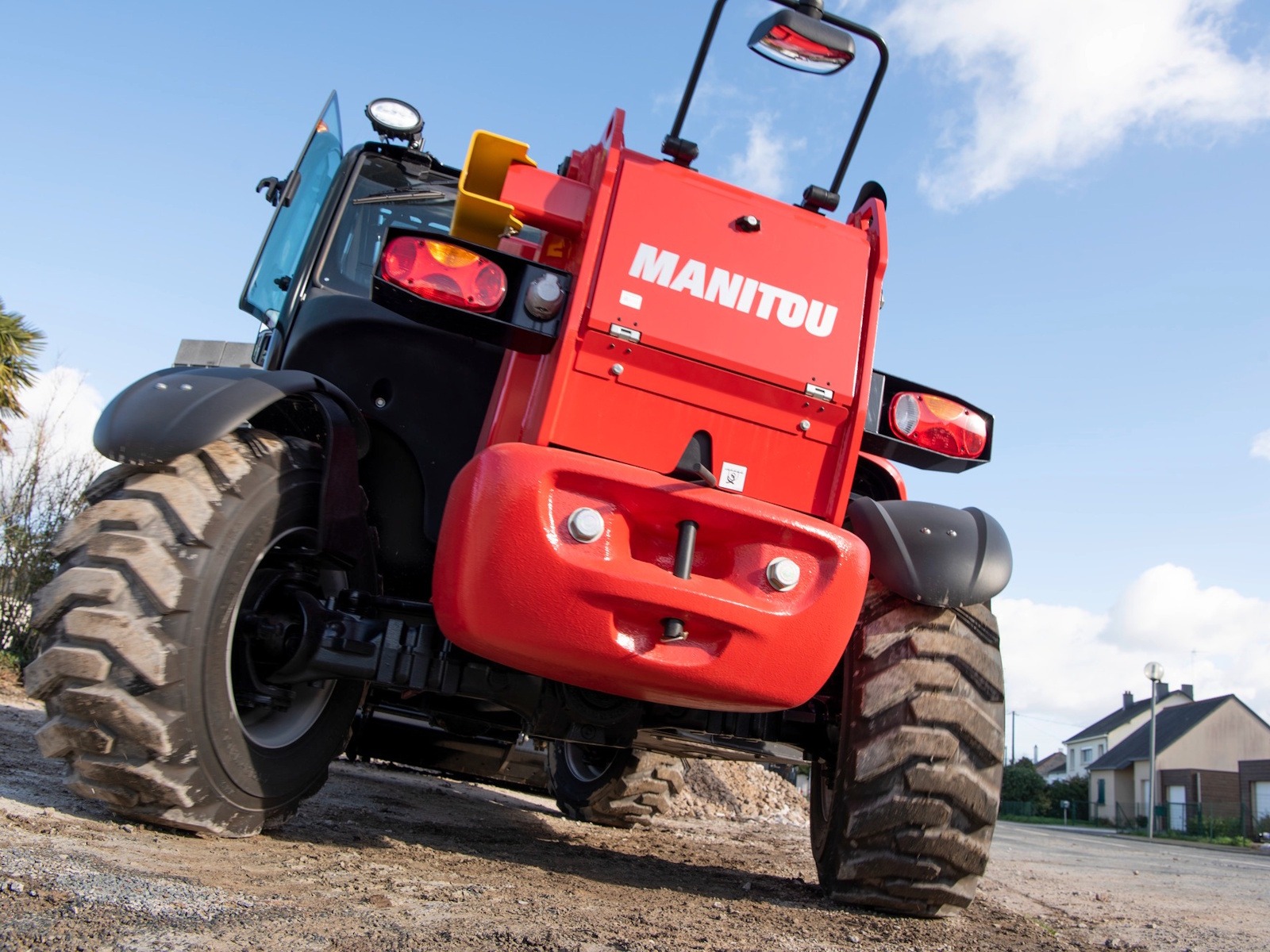

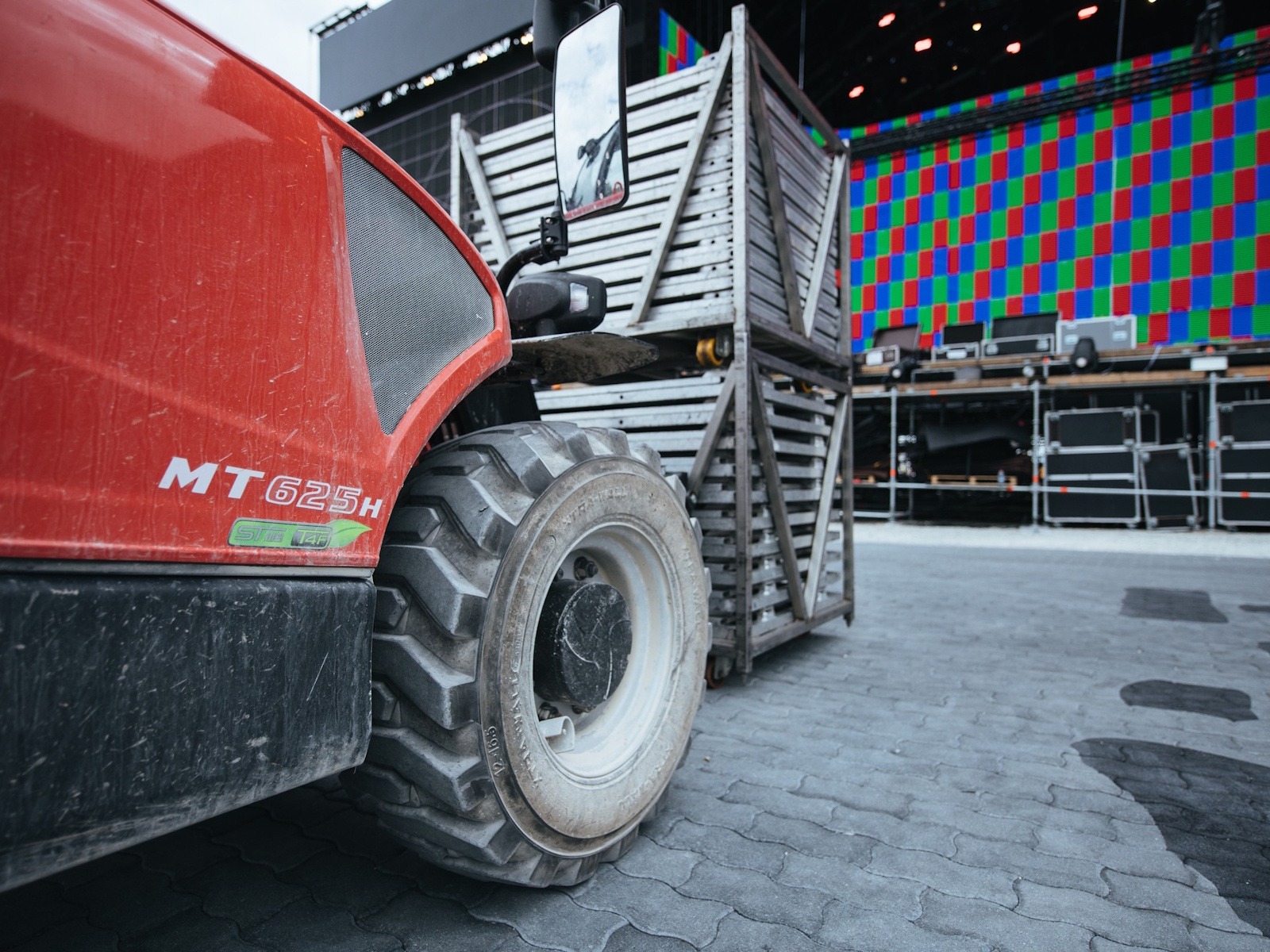

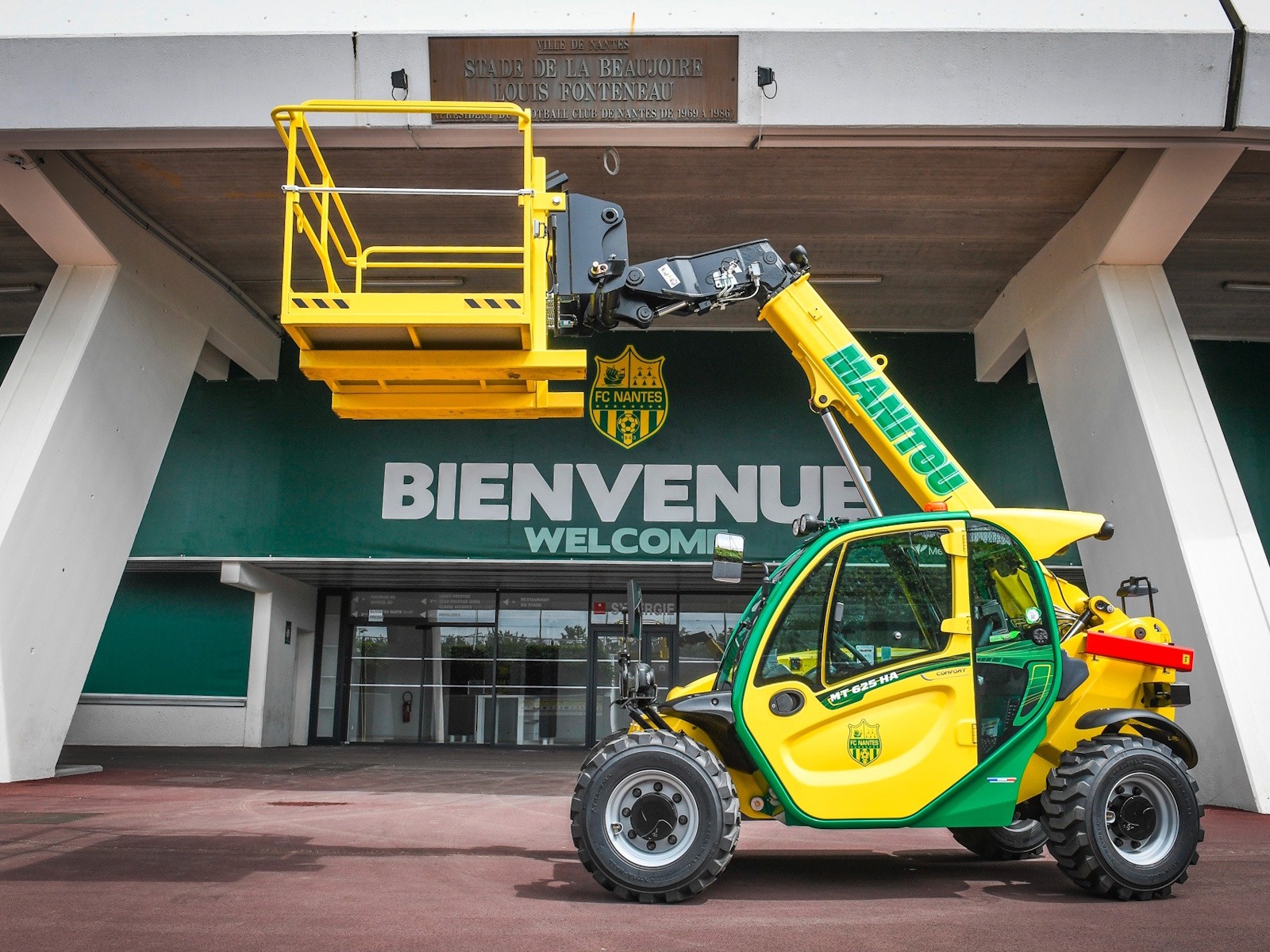

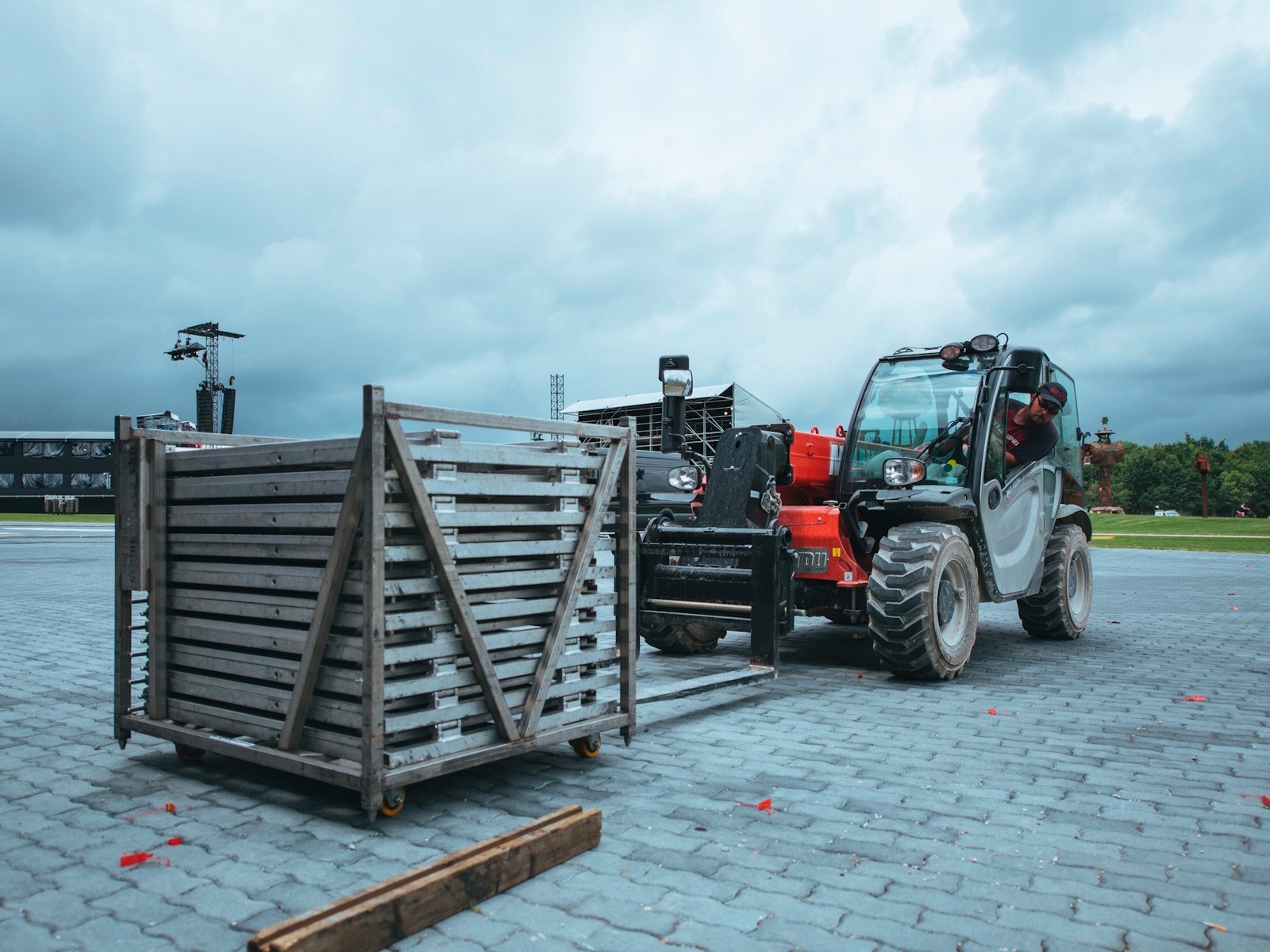

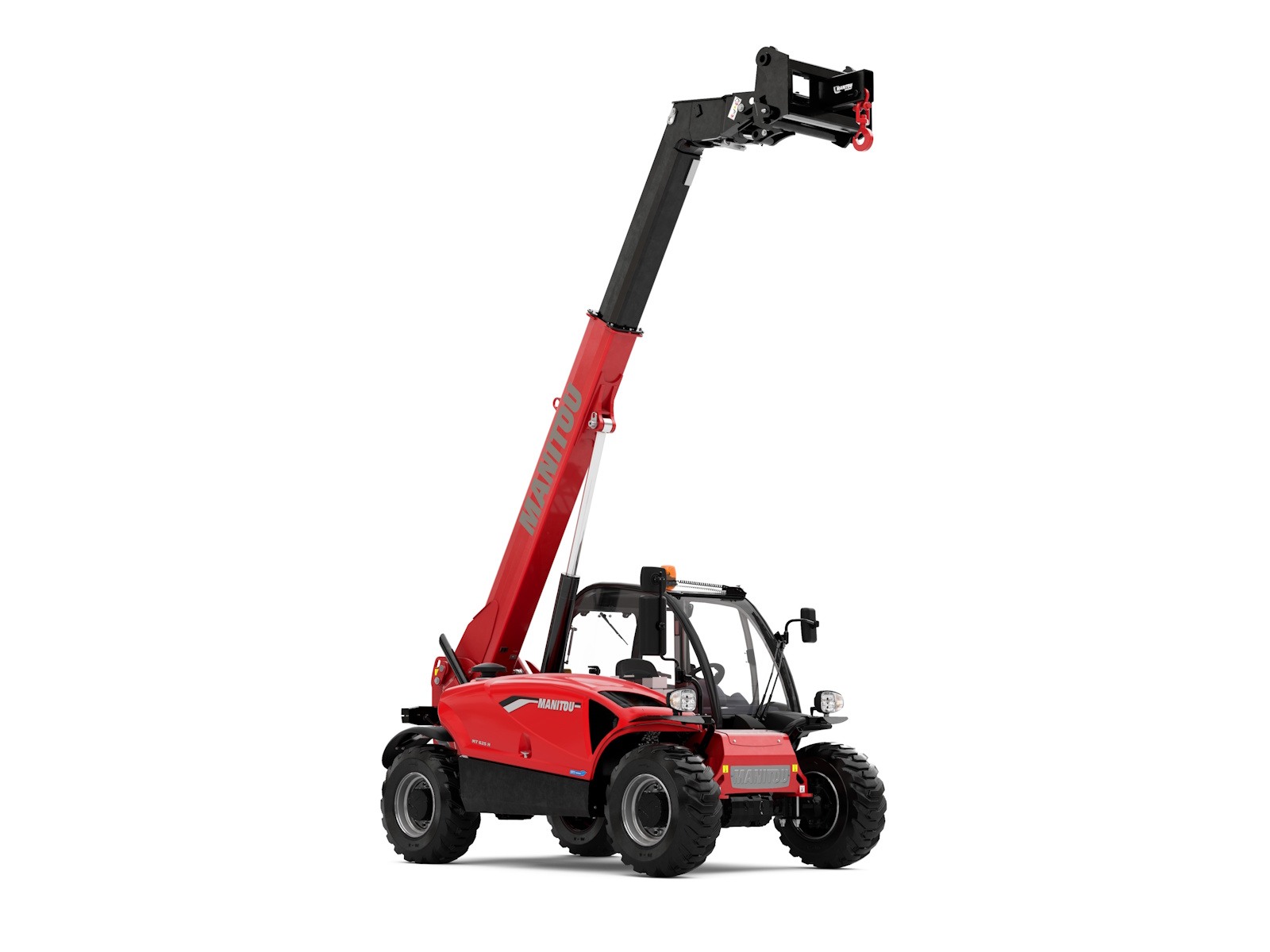

MT 625 H is a compact telehandler designed for construction and renovation projects at low heights. Its reduced dimensions (1.80 m wide, under 2 m high) allow it to easily access tight spaces and move efficiently through confined areas. With a 3.30 m turning radius and three steering modes, it delivers outstanding maneuverability on all types of job sites.
Engineered for operator comfort, the MT 625 H features an ergonomic dashboard and the Manitou JSM joystick for smooth and precise control. With a lifting capacity of 2.5 tonnes and a maximum lift height of 5.85 meters, it combines power and versatility.
Its 75 hp engine reaches speeds of up to 25 km/h, while easy maintenance access and a 90 L/min gear pump ensure optimal productivity on your most demanding construction sites.
Info
Industry
Agriculture
Make
Manitou Group
Model
MT 625 H
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
Max. capacity: 5512 lb
Height
6 ft 4 in | Max. lifting height: 19 ft 2 in
Notes
Max. outreach: 11 ft 2 in | Breakout force with bucket: 3427 daN | Tilt-up angle: 12 ° | Tilt-down angle: 117 ° | Lifting: 8 s | Lowering: 5.40 s | Extension: 5.60 s | Retraction: 4.30 s | Crowd: 3.50 s | Dump: 3.60 s | Drawbar pull (Laden): 3550 daN | Number of gears (forward / reverse): 2 / 2 | Max. travel speed: 15 mph | Max. travel speed (regulatory variation): 16 mph | Hydraulic pump type: Gear pump | Hydraulic Pressure: 3408 PSI | Noise at driving position (LpA): 76 dB | Noise to environment (LwA): 104 dB | Vibration on hands/arms: < 8 ft/s² | Safety / Cab certification: Standard EN 15000 / ROPS - FOPS cab (level 1) | Controls: JSM
Length
Overall length to carriage: 12 ft 7 in | Length to face of forks: 12 ft 10 in | Forks: 47 in
Width
5 ft 11 in | Overall cab width: 2 ft 7 in | Forks: 5 in
Wheelbase
7 ft 7 in
Ground Clearance
1 ft 1 in
Turning Radius
External turning radius (over tyres): 10 ft 10 in
Weight
10582 lb
Tires
Inflatable | CAMSO SKS532 12-16.5
Engine
Kubota | Stage V
Cylinders
Number of cylinders / Capacity of cylinders: 4 - 203 in³
Power/Horsepower
75 Hp / 55.40 kW
Torque
195 ft/lbs @ 1400 rpm
Transmission
Hydrostatic
Brakes
Parking brake: Automatic negative parking brake | Service brake: Oil-Immersed multi-discs braking on front axles
Oil Capacity
3 US gal | Hydraulic oil: 30 US gal
Fuel Capacity
17 US gal
Steering
Steering wheels (front / rear): 2 / 2
Wheels
Drive wheels (front / rear): 2 / 2
