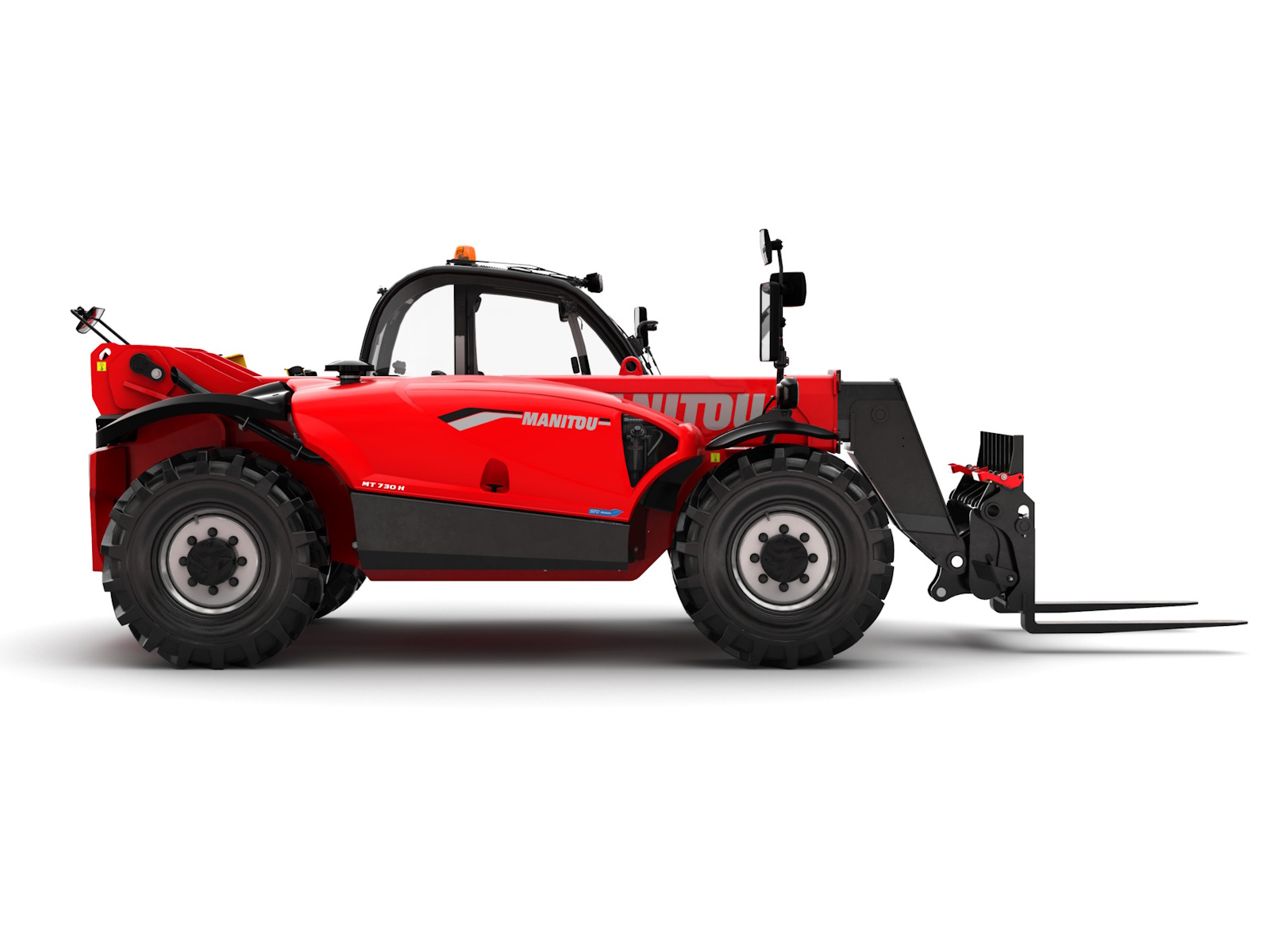

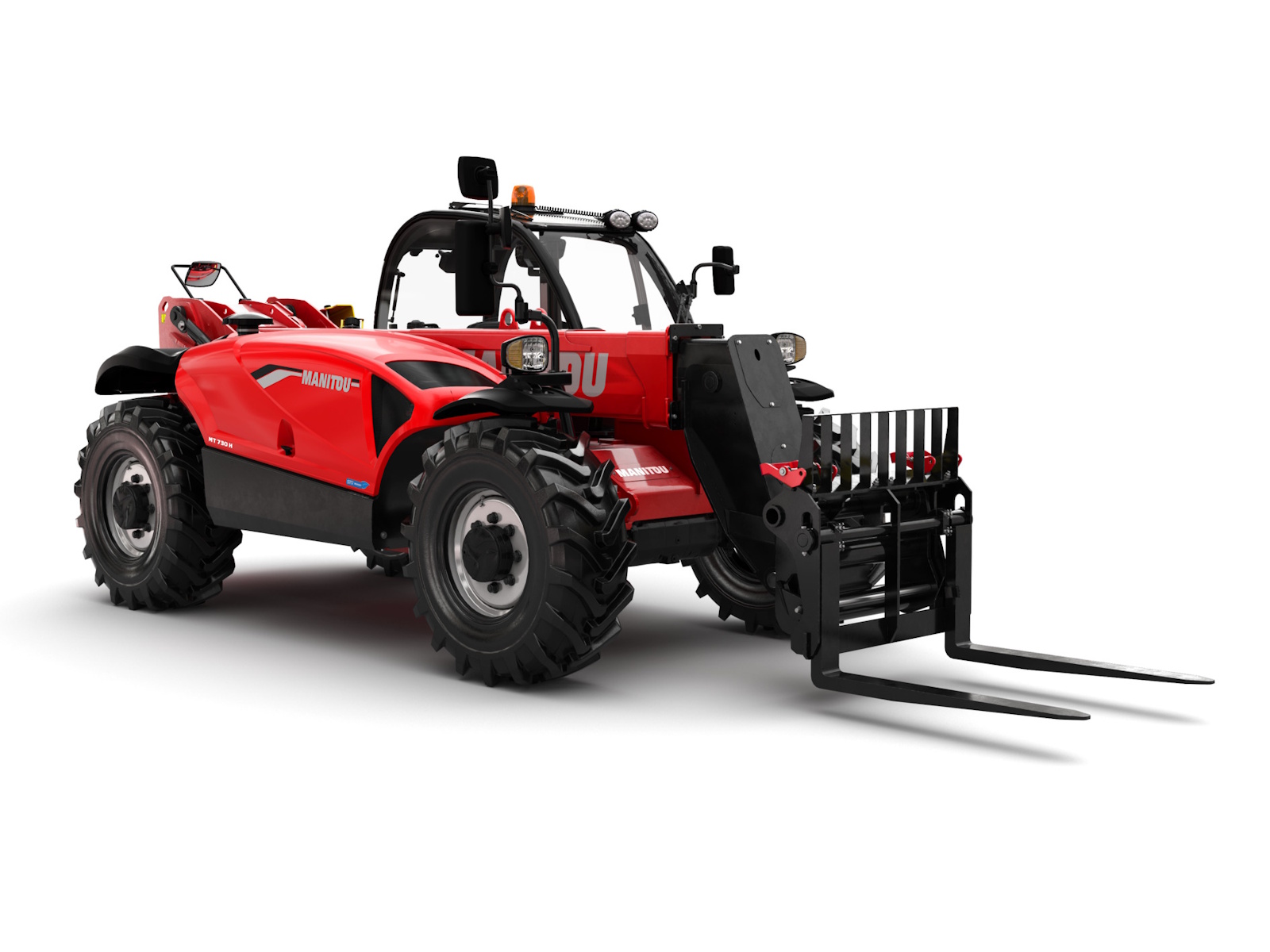

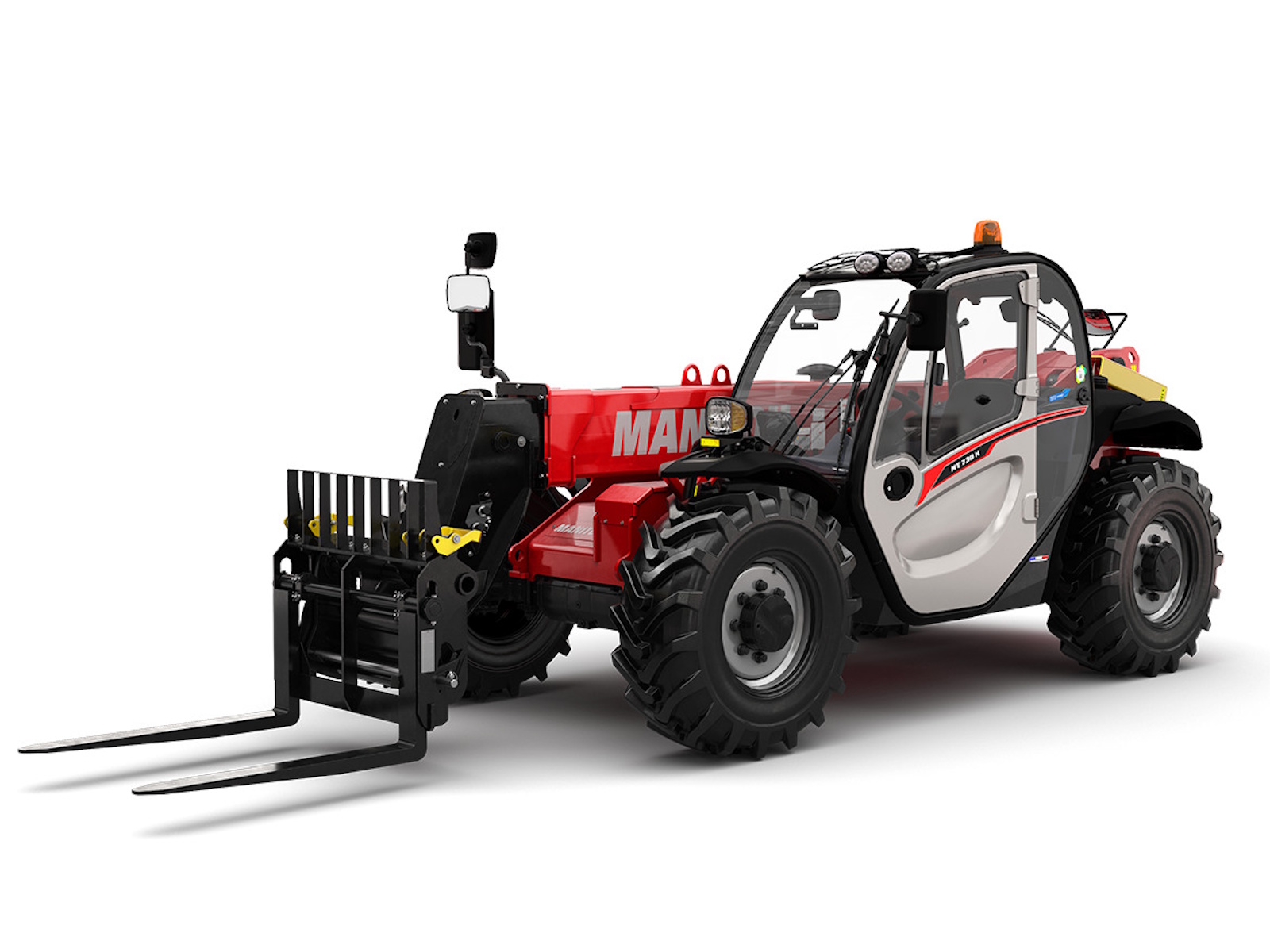

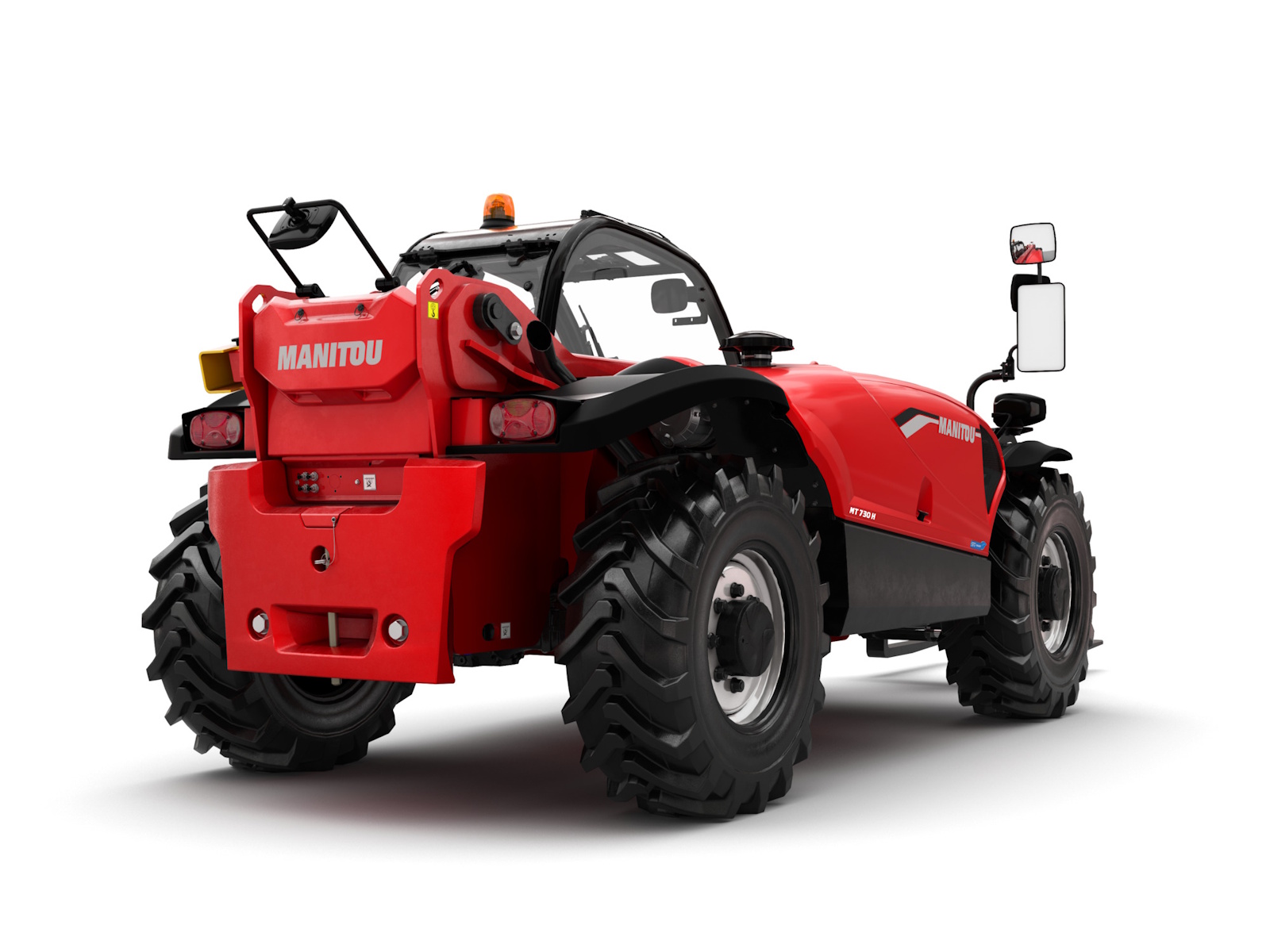

2026 Manitou Group MT 730 H
The Manitou MT 730 is an ultra-compact telehandler, designed to meet the demands of construction professionals working in confined, urban, or hard-to-access environments.

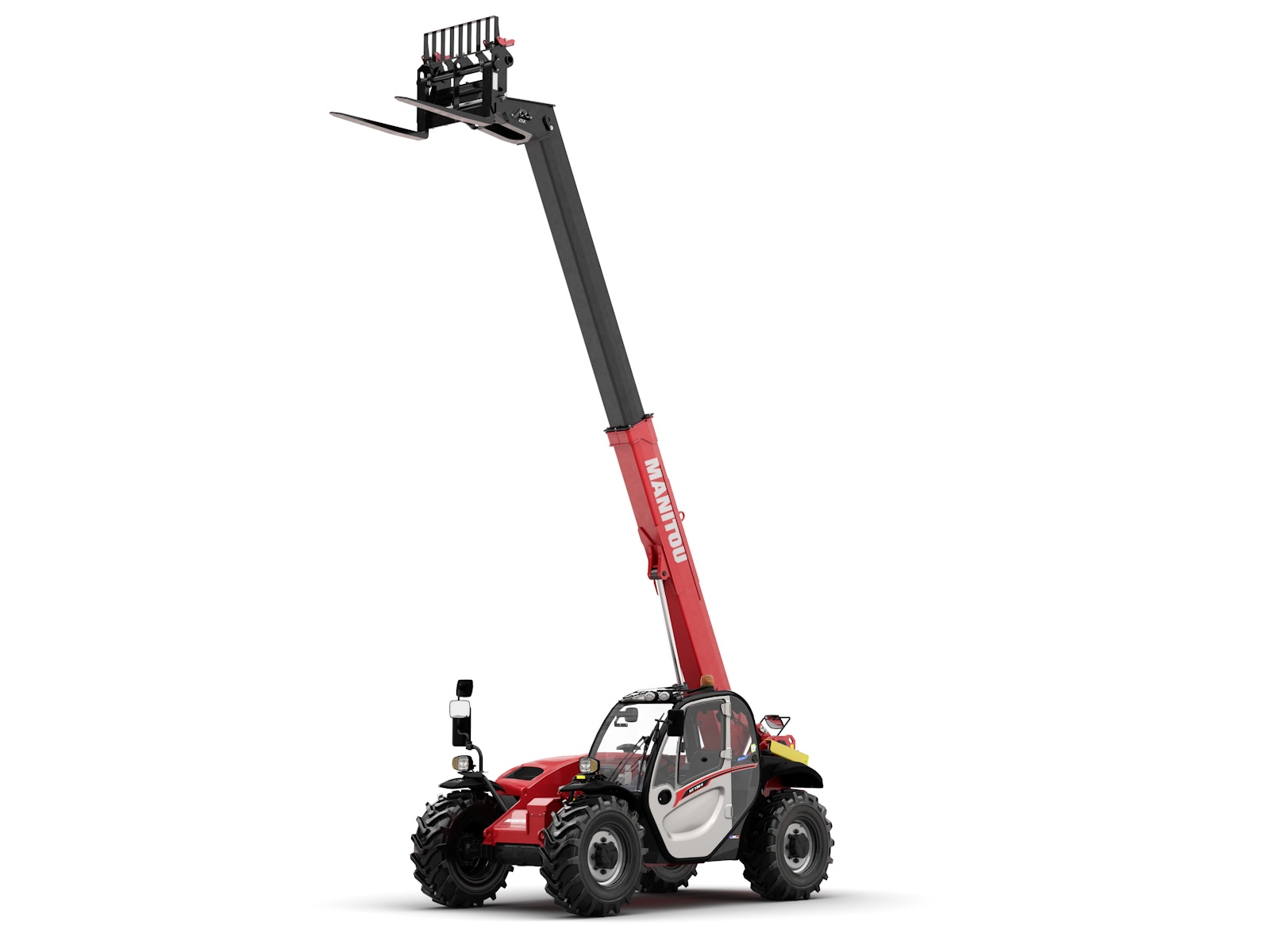

With a lifting capacity of 3,000 kg and a maximum lift height of 6.9 metres, it delivers the perfect combination of performance, agility, and safety for demanding applications.Ideal for handling operations, construction tasks, or transporting heavy loads, the MT 730 stands out for its versatility, durability, and easy maintenance, ensuring long-term productivity. Its ergonomic cab with panoramic visibility provides optimal comfort for the operator, even during intensive use.
Equipped with four-wheel drive, high ground clearance, and a reinforced frame, the MT 730 offers excellent traction and remarkable stability, even on rough terrain. Its tight turning radius allows for precise manoeuvring in the most confined spaces.
The MT 730 is also compatible with a wide range of Manitou attachments.
Info
Industry
Agriculture
Make
Manitou Group
Model
MT 730 H
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
Max. capacity: 6614 lb
Height
6 ft 6 in | Max. lifting height: 22 ft 8 in
Notes
Max. outreach: 13 ft 1 in | Tilt-up angle: 11 ° | Tilt-down angle: 116 ° | Lifting: 9.42 s | Lowering: 7.53 s Extension: 7.43 s | Retraction: 9.36 s | Crowd: 3.21 s | Dump: 2.15 s | Drawbar pull (Laden): 3860 daN | Number of gears (forward / reverse): 2 / 2 | Max. travel speed: 15 mph | Hydraulic pump type: Gear pump | Hydraulic flow / Pressure: 23 US gpm-3553 PSI | Noise at driving position (LpA): 74 dB | Noise to environment (LwA): 103 dB | Vibration on hands/arms: < 8 ft/s² | Cab certification: Cabin ROPS - FOPS level 2 | Controls: JSM
Length
Overall length to carriage: 15 ft 4 in | Overall length (with forks): 18 ft 11 in | Forks: 42 in
Width
6 ft 6 in | Overall cab width: 2 ft 7 in | Forks: 4 in
Wheelbase
8 ft 10 in
Ground Clearance
1 ft 2 in
Turning Radius
External turning radius (over tyres): 10 ft 11 in
Weight
12963 lb | Unladen weight (with forks): 12963 lb
Tires
Inflatable | Alliance - 380/75 R20 148A8 A580
Engine
Kubota | Stage V
Cylinders
Number of cylinders / Capacity of cylinders: 4 - 203 in³
Power/Horsepower
75 Hp / 54.60 kW
Torque
Max. torque / Engine rotation: 194 ft/lbs @ 1400 rpm
Transmission
Hydrostatic
Brakes
Service brake: Hydraulic
Oil Capacity
3 US gal | Hydraulic oil: 30 US gal
Fuel Capacity
24 US gal
Steering
Steering wheels (front / rear): 4 / 4
