2026 Manitou Group MRT 2570

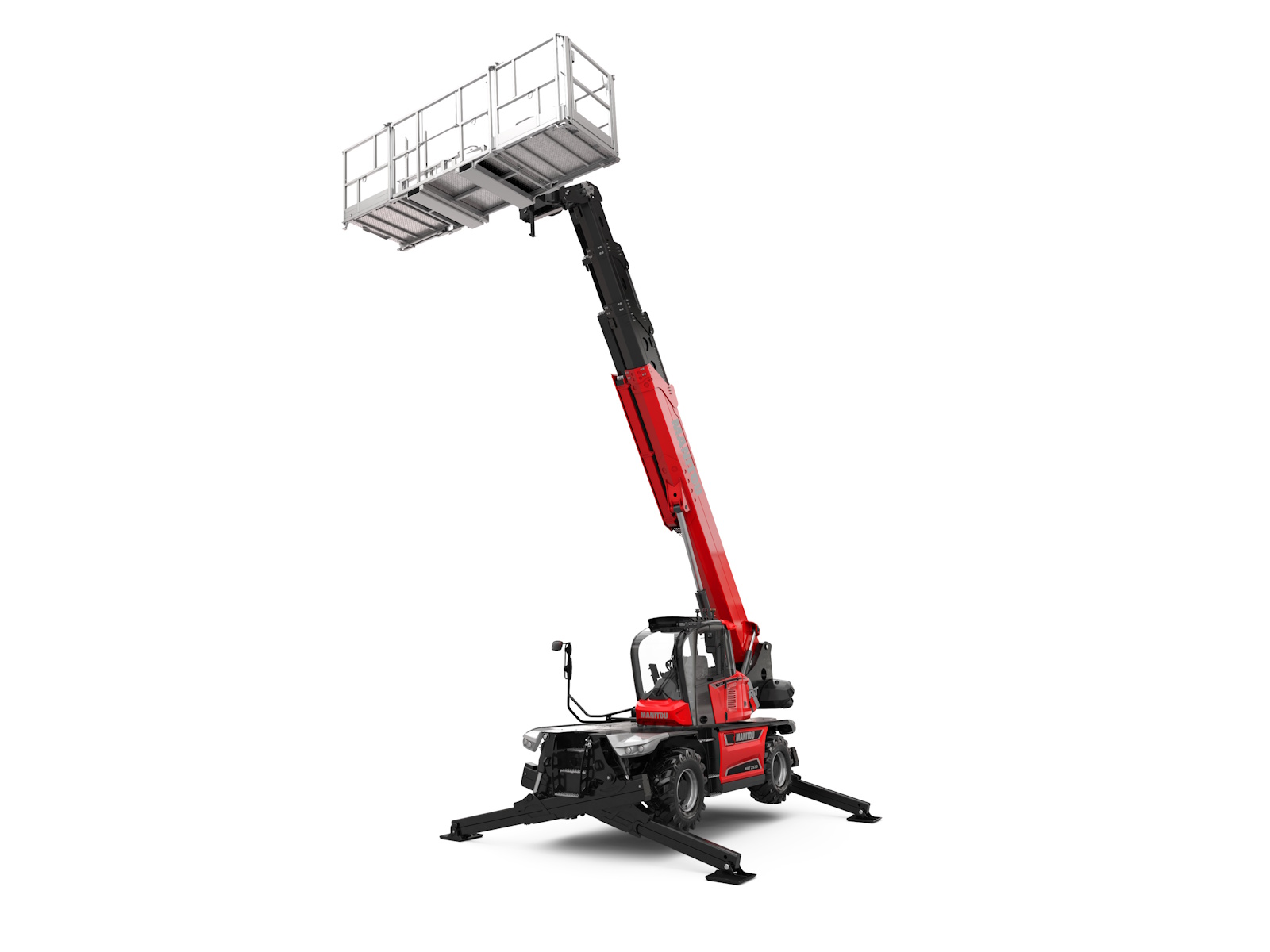

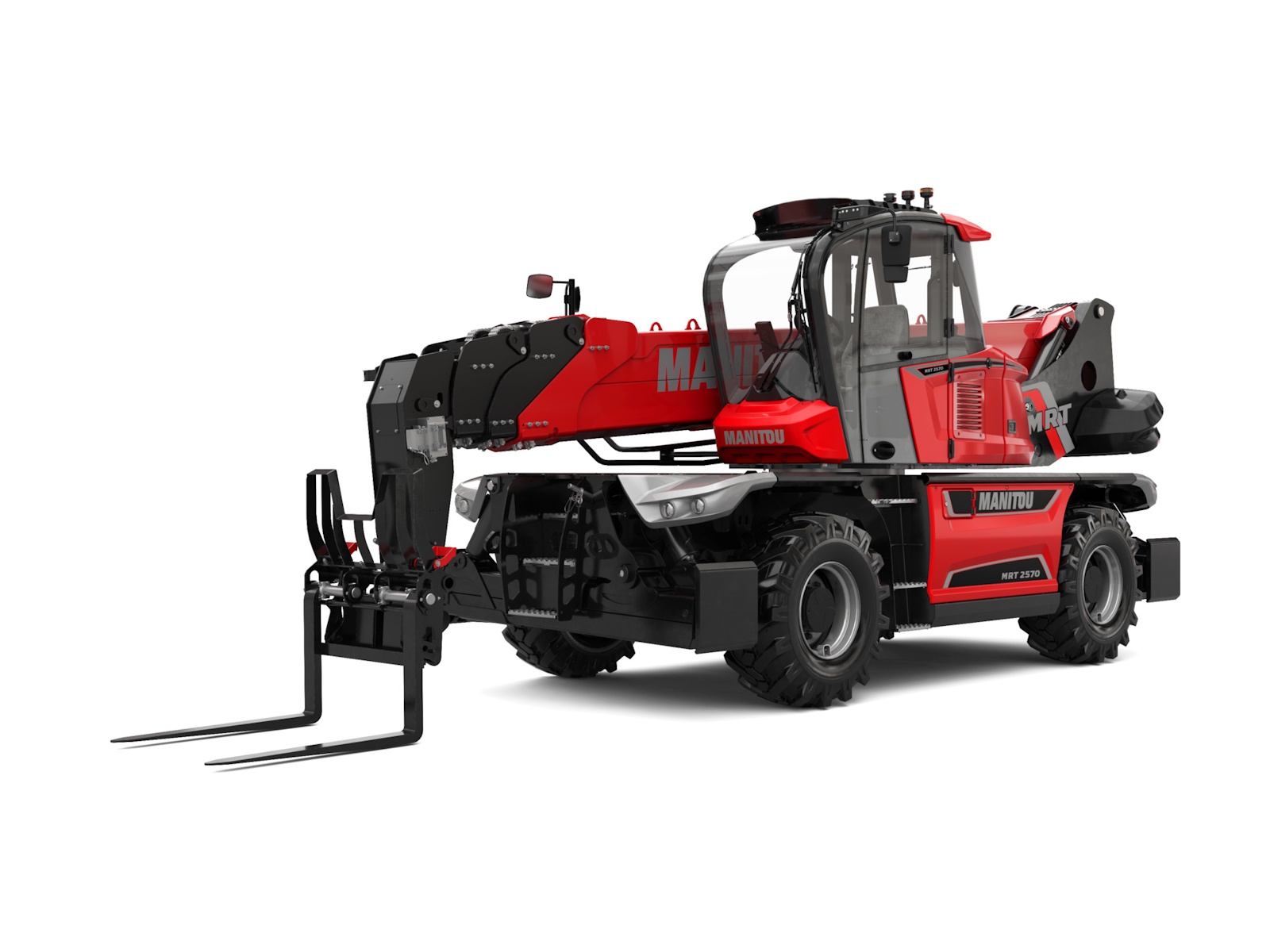

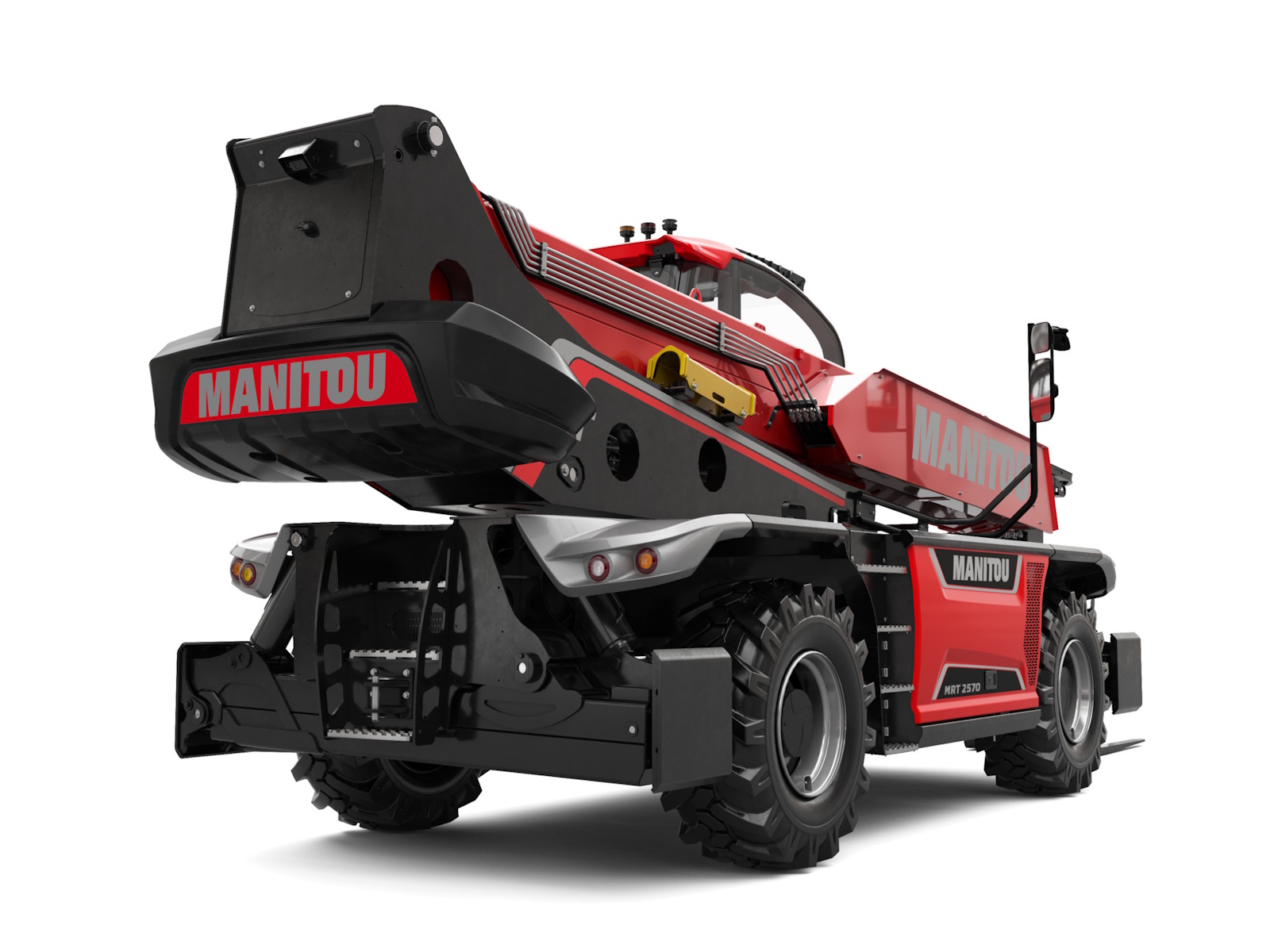

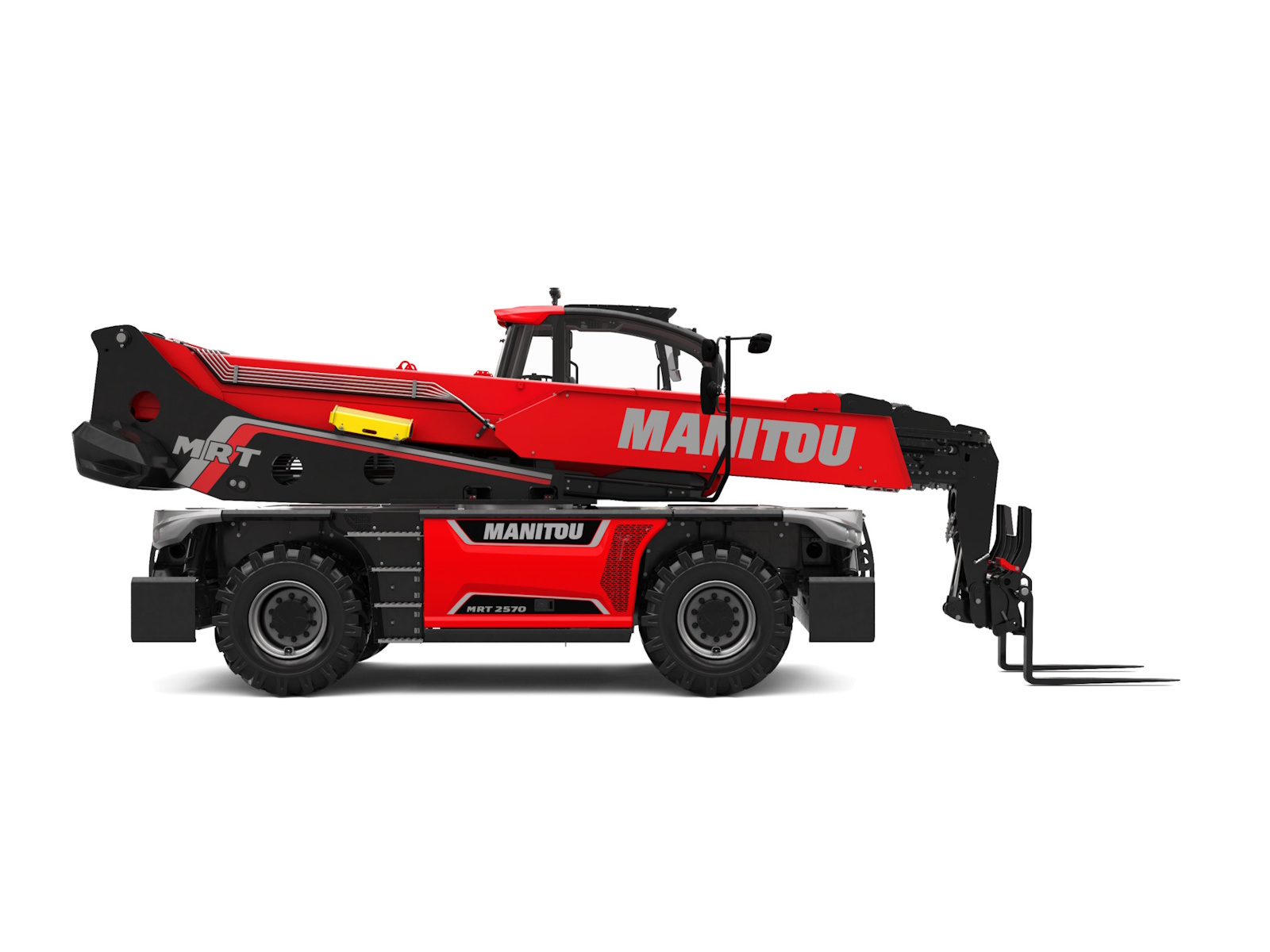

The MRT 2570 is a powerful all-terrain rotating telescopic handler. This 3-in-1 machine is a telescopic handler, winch and aerial work platform with a multitude of compatible attachments for versatility and performance on your construction and industrial sites.
360° rotation of the turret and its exceptional cab visibility allows you to perform operations more easily without having to move the machine. The pentagonal section of the boom allows for precise movement and stability of the machine with automatic leveling of the stabilizers.
Equipped with smart features for optimum handling and safety, the MRT 2570 is the tool you won't want to do without!
Info
Industry
Agriculture
Make
Manitou Group
Model
MRT 2570
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
Rotating
Specs
Load Capacity
15432 lb
Height
10 ft 2 in | Max. lifting height: 81 ft 4 in
Notes
Max. outreach: 67 ft 3 in | Tilt-up angle: 12 ° | Tilt-down angle: 110 ° | Turret rotation: 360 ° | Stabilizers Type: Telescopic Duplex | Gradeability (laden / unladen): 32.40 % / 41.40 % | Engine cooling system: Water cooled | Gearbox / Number of gears (forward / reverse): Speedshift / 2 / 2 | Max. travel speed: 25 mph (40 km/h) | Drawbar pull: 9200 daN | Hydraulic flow: 49 US gpm (185 l/min) | Hydraulic Pressure: 5076 PSI (350 bar) | Noise at driving position (LpA): 67 dB | Noise to environment (LwA): 108 dB | Vibration on hands/arms: < 2.50 m/s² | Controls: 2 Joysticks | Safety cab homologation: Cabin ROPS - FOPS level 2
Length
Overall length (with forks): 29 ft 1 in | Length to face of forks: 25 ft 2 in | Forks: 47 in
Width
8 ft 2 in | Overall cab width: 3 ft 2 in | Forks: 5 in
Turning Radius
External turning radius (over tyres): 15 ft 2 in
Ground Clearance
1 ft 3 in
Wheelbase
10 ft 8 in
Weight
46958 lb
Tires
445/65 R22,5
Wheels
Drive wheels (front / rear): 2 / 2
Steering
2 wheel steer, 4 wheel steer, Crab mode | Steering wheels (front / rear): 2 / 2
Engine
Yanmar | Stage V / Tier 4
Power/Horsepower
173 Hp / 127 kW
Torque
594 ft/lbs @ 1500 rpm
Cylinders
4 - 279 in³
Battery
Number of batteries / Battery voltage: 2 x 12 V | 12V Battery capacity: 120 Ah | Battery starting current: (EN)850 A
Transmission
Hydrostatic
Brakes
Parking brake: Automatic negative parking brake | Service brake: Oil-immersed multi-discs braking on front & rear axles
Oil Capacity
3 US gal
Fuel Capacity
85 US gal | Diesel Exhaust fluid (AdBlue® type): 6 US gal
