2027 New Holland Rolabar 230 Twin Basket

2027 New Holland Rolabar 230 Twin Basket

LEAVE NO HAY BEHIND
The Rolabar® 230 twin-basket rake is built for commercial haymakers who demand a high-capacity rake that provides greater efficiency, gentle handling, and rugged durability. More clean hay is placed in every windrow thanks to the design.

A CLEAN SWEEP
Two 12 ft. (3.7 m) baskets rake up to 30 ft. (9.1 m) of crop into one clean and tidy windrow. It’s ideal for raking swaths produced by large center-pivot disc mower-conditioners and self-propelled windrowers with heads up to 19 ft. (5.8 m) wide.

RAKE AND TAKE CONTROL
Buttons are color-coded by function on the intuitive control box. The low 9 gpm (34 Lpm) hydraulic requirement means you can operate the rake with just about any tractor. Match basket speed with your ground speed and crop conditions by simply rotating the knob on top of the box.

SUPERIOR BASKET FLOTATION
By engaging flotation on the control box, the basket raise/lower cylinders can extend and retract as the rake goes over uneven terrain. Unlike baskets that are locked in place, the Rolabar® 230's baskets float up and over obstacles and uneven ground for clean raking and maximum tine life.

ROLABAR® RAKES LEAVE NO HAY BEHIND
You won’t leave any hay behind with a New Holland Rolabar® rake. Rolabar® rake tines more closely follow the ground contours, while leaving the dirt in the field. The result is cleaner hay and more of it.

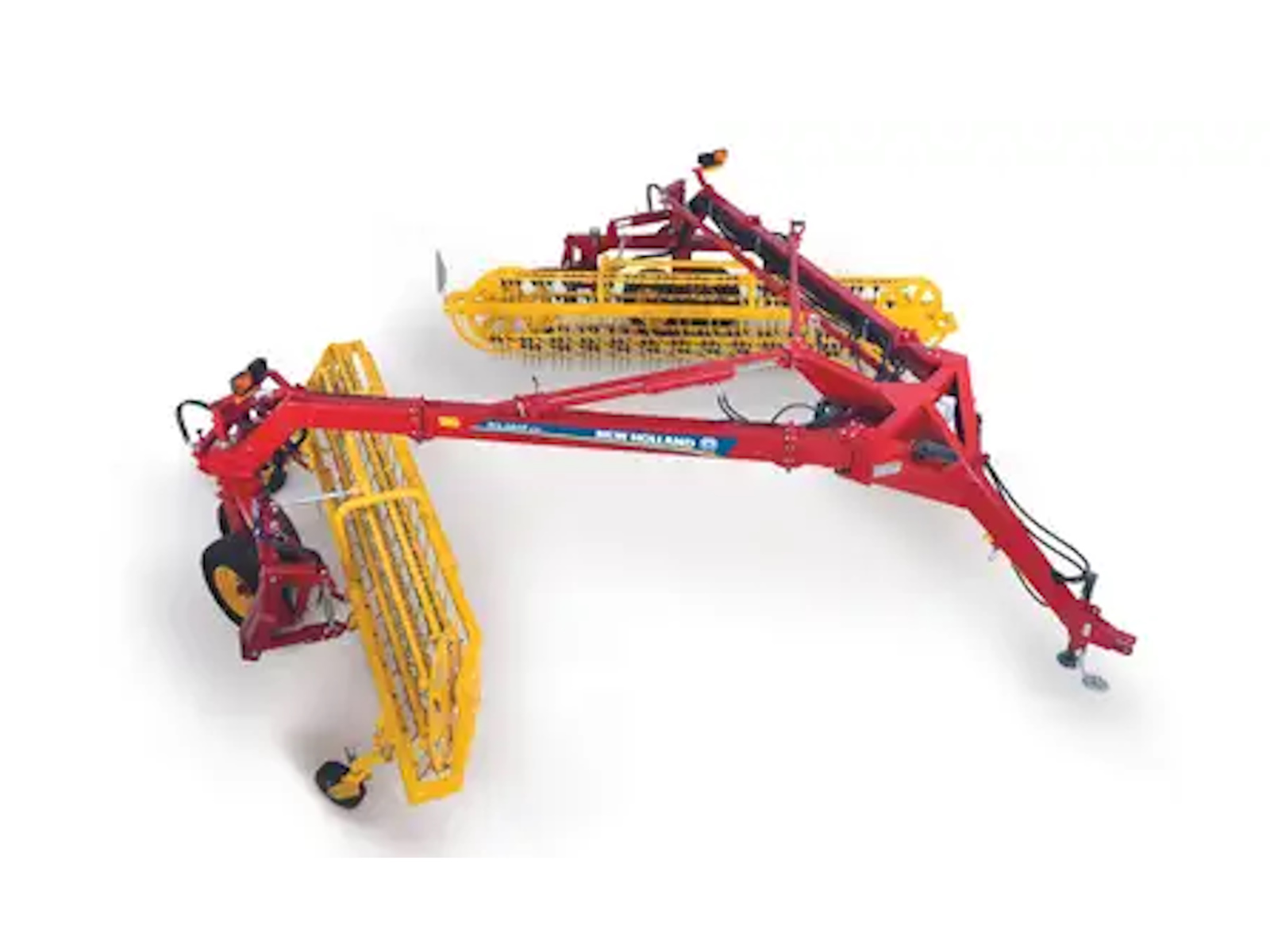

ROLABAR® 230 TWIN BASKET RAKE
The Rolabar® 230 expands raking width up to 30 feet for huge capacity that allows you to reduce the number of passes needed to complete the job, increasing your overall efficiency and productivity.

Features May Include:

MAKE A CLEAN, 30-FOOT SWEEP

• Large commercial operations will appreciate the clean, high-capacity raking performance of the Rolabar® 230 twin basket rake. Using two 12-foot baskets, the Rolabar® 230 rakes up to 30 feet of crop into one tidy windrow. It’s ideal for raking the swaths produced by self-propelled windrowers with heads up to 19 feet wide and wide, center-pivot mower-conditioners.

SMOOTH, CLEAN RAKING

• Each rake bar uses 37 rubber-mounted tines to smoothly move crop to the center, even at high ground speeds. Choose between a six-tine-bar rake basket or the seven-tine-bar rake basket for added capacity and higher ground speeds.

CLOSELY FOLLOW GROUND CONTOURS

• Adjustable spring-mounted front and rear solid-rubber gauge wheels are standard equipment and provide consistent tine height so you are sure to gather all of the crop. Walking beam tandem axles allow the rake to move smoothly over rough ground conditions such as pivot tracks for the cleanest possible raking.

SUPERIOR BASKET FLOTATION

• Responsive flotation is where the Rolabar® 230 excels, resulting in cleaner raking and less hay left behind. Since the rake baskets react quickly to varying ground conditions, you put more tonnage in the windrow. Flotation can easily be engaged by pressing a button on the control box. With flotation engaged, the basket raise/lower cylinders can extend and retract as the rake goes over uneven terrain. Unlike some competitive models with baskets that are locked in place, the Rolabar® 230 rake baskets float up and over obstacles and uneven ground to rake cleanly and maximize rake tine life. Rake baskets are suspended by adjustable flotation springs to reduce the weight of the baskets on the ground.

A FULL RANGE OF ADJUSTMENTS
It’s easy to tailor the Rolabar® 230 to match field and crop conditions. You can change basket height and pitch with simple turnbuckle adjustments, and the intuitive control box allows you to make changes on the go from the tractor seat. Color-coded buttons are grouped logically by function, and the low 9-gpm hydraulic requirement means you can operate the Rolabar® 230 with just about any tractor in your operation.

• Rake on/off
• Flotation on/off
• Basket speed (knob on top of control box)
• Basket raise/lower
• Unfold left/right
• Fold left/right
• Angle out left/right
• Angle in left/right

ADJUST BASKET SPEED WITH THE TURN OF A KNOB

• Simply rotate the knob on the top of the control box to dial in the basket speed to match your ground speed and crop conditions, which reduces leaf shatter and crop losses for maximum forage quality.

FIELD TO ROAD IN NO TIME

• Using the red and blue buttons on the control box, the Rolabar® 230 folds to a narrow 10’8” width for convenient maneuvering and confident, fast transport to the next location.

EASY RETURN TO PRE-SET RAKING WIDTH AND ANGLE

• Adjustable stop pins on both sides of the Rolabar® 230 allow you to easily repeat the same raking width you used previously for consistent raking width from field to field. Likewise, adjustable pin stops allow you to maintain basket angle and consistent windrows when moving from field to field.

TINE STRIPPER BAR TOOL

• A convenient tool is provided as standard equipment to adjust or straighten tine stripper bars if they become bent. A storage location is provided under the front of the rake tongue.
