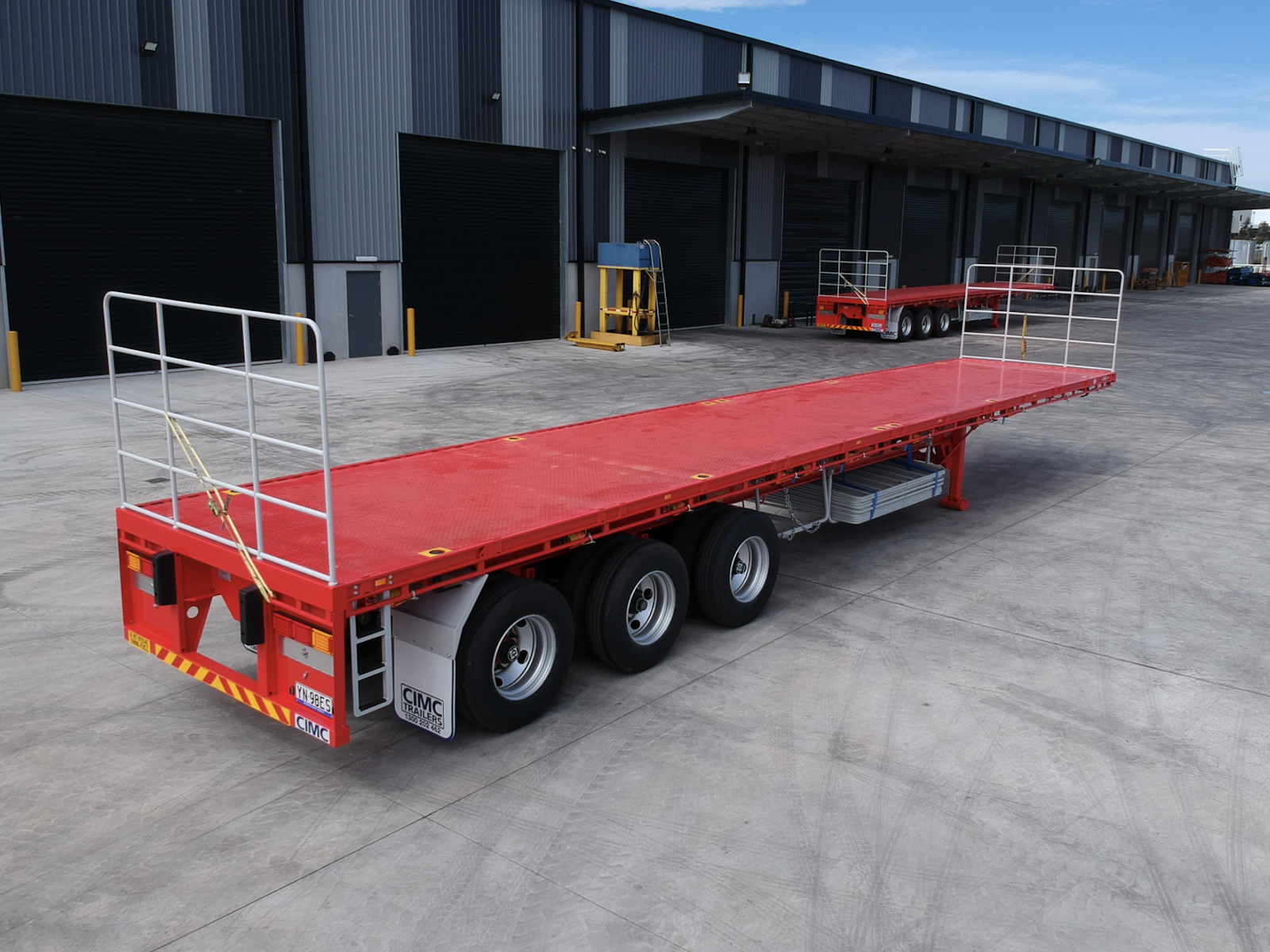

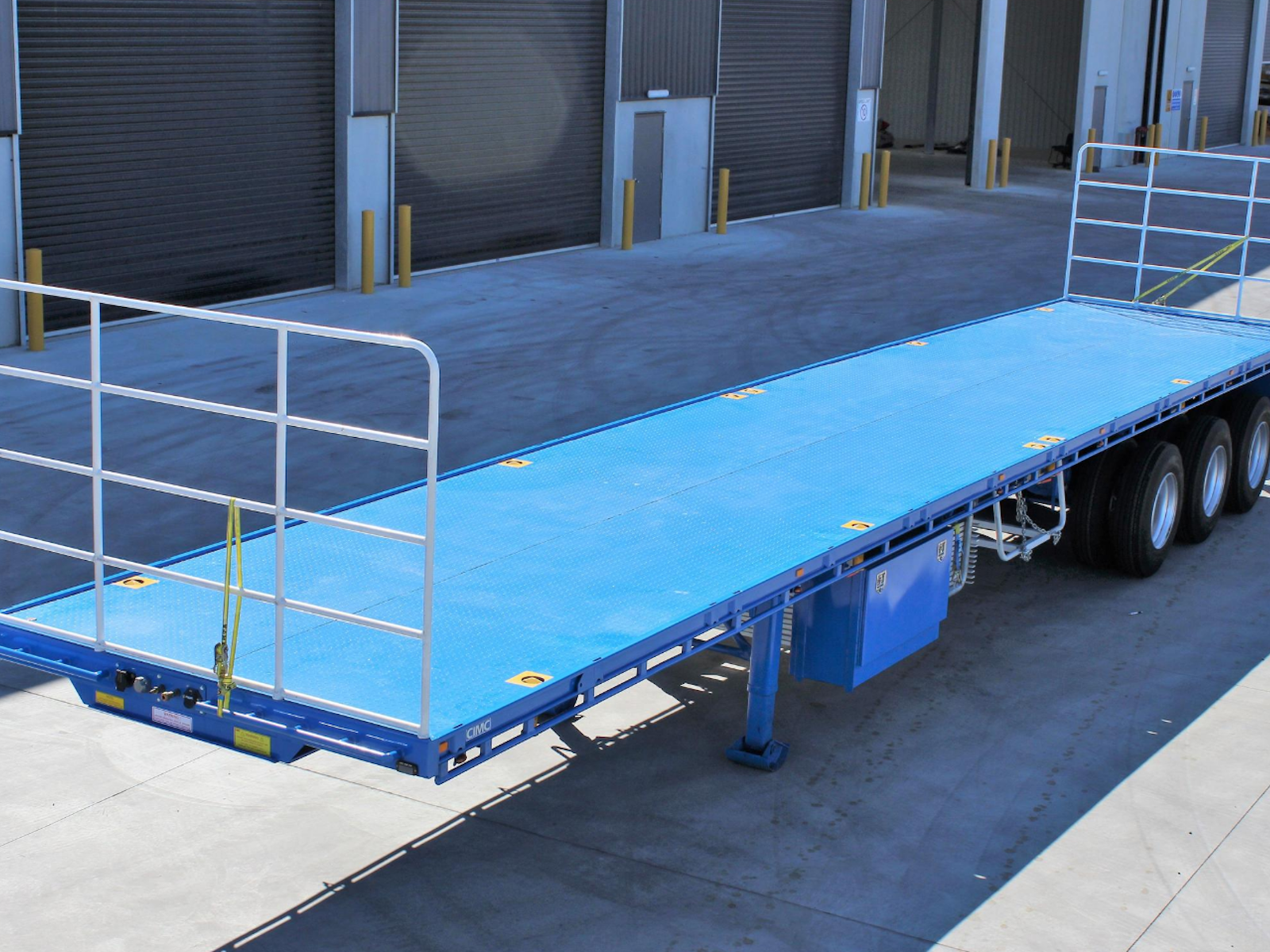

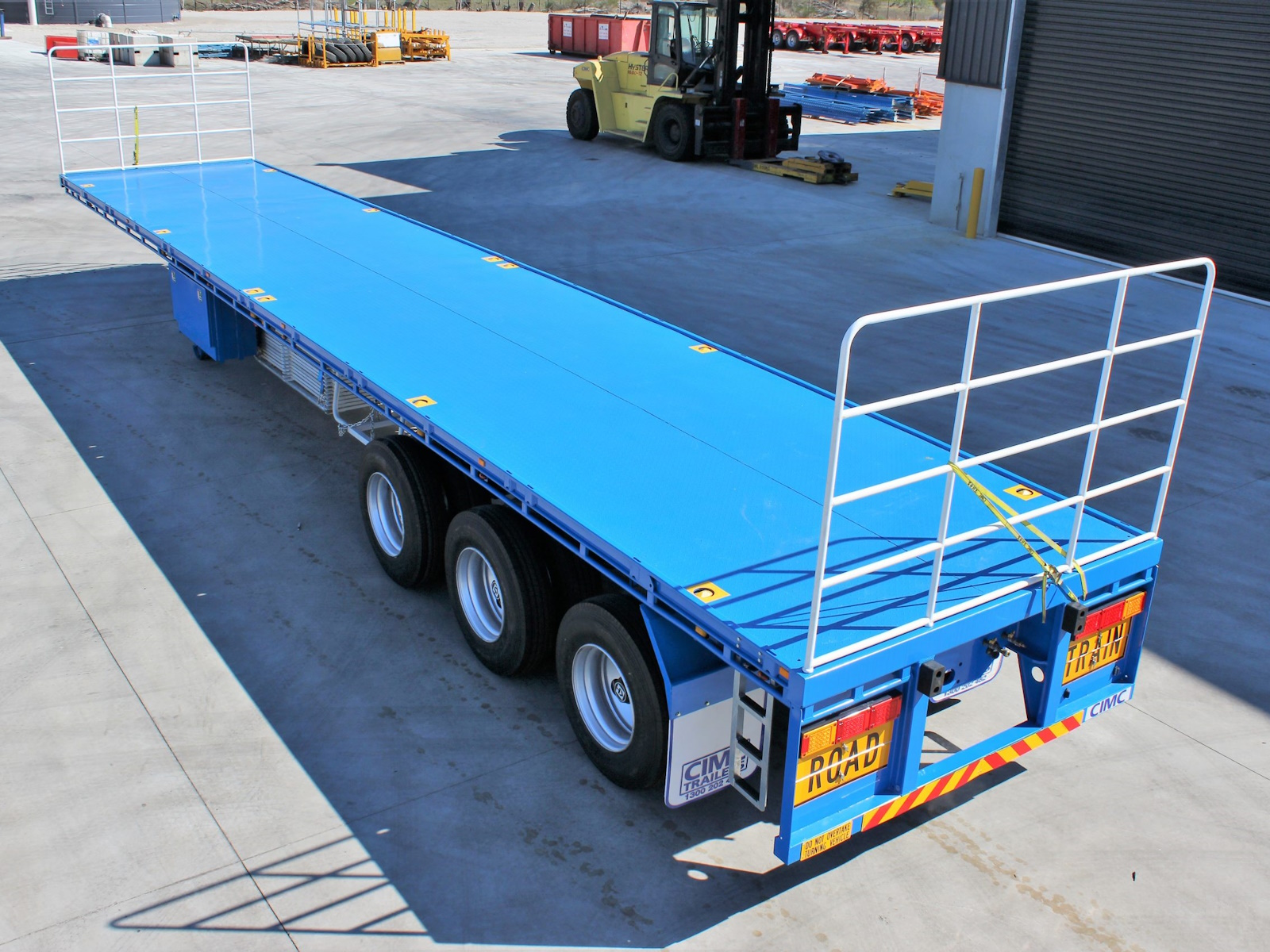

2025 CIMC AU30 45′ 3 Way Flat Deck Semi-Trailer

AU30 45′ 3 Way Flat Deck Semi-Trailer
Our Flat Deck B Trailers are built to high quality and standards to serve a wide range of general application. With the already flexible 3-Way Twistlock design and B-Double or Single trailer configurations, our trailers exhibit robust design and versatility with customisation tailored to the Australian market and your loading needs.

Features May Include:

• JOST 50mm bolt-on kingpin with 10mm skid plate
• JOST A400 Series 2 speed landing legs with rocker feet
• 3 Way Twist Locks: 1 x 20’, 2 x 20’ and 1 x 40’
• 24mm raised pressed coaming with tie rails & gate pockets on each side
• Front and rear coamings with tie rails & pockets for load racks
• Front & rear connection plates w/PBR air couplings
• 3mm steel chequer plate forklift rated floor with access steps
• Rear bumper bar fitted with dock rubbers
• Provision for road train with air & electrical to rear (Tow coupling not fitted)
• Dual spare tyre carrier fitted
• One (1) off 1,200mm Jumbo Toolbox with dual lockable T handle fitted
• Eleven (11) off load binder ratchet winches (3 recessed at front and 8 on sliding track – 9mt straps)
• Eight (8) off raiser blocks supplied inside toolbox
• Conspicuity plates and long vehicle signage on rear
• Gate carrier with two (2) gate load binders
• Twelve (12) off 1500mm CIMC lightweight steel gates w/3 spades
• Two (2) off 1500mm lightweight load racks (Front & Rear)
• K-Hitch 127mm drum brake round axles with parallel bearings
• K-Hitch tri-axle overslung air bag suspension KT Series
• Auto Slack Adjusters fitted
• Hubodometer fitted on centre axle roadside
• WABCO EBS Multi-Voltage (EBS) brake system to ADR 38/05
• Twelve (12) off 11R22.5 Tyres
• Twelve (12) off 10 Stud 285 PCD
• Steel rimsSteel splash guard with anti-spray CIMC rubber mudflaps at rear
• LED Multi-volt lighting to ADR 13
• 7-pin standard and heavy duty socket at front and rear
• Philips heavy-duty wiring loom with weatherproof connectors and conduit rated for road train application
• Chassis, twist lock beams and bumper bar finished in Powder Coating
• Approx. 8,220kg based on standard specification
