    2026 RawMaxx FDX 36' x 102"

    FDX Trailer

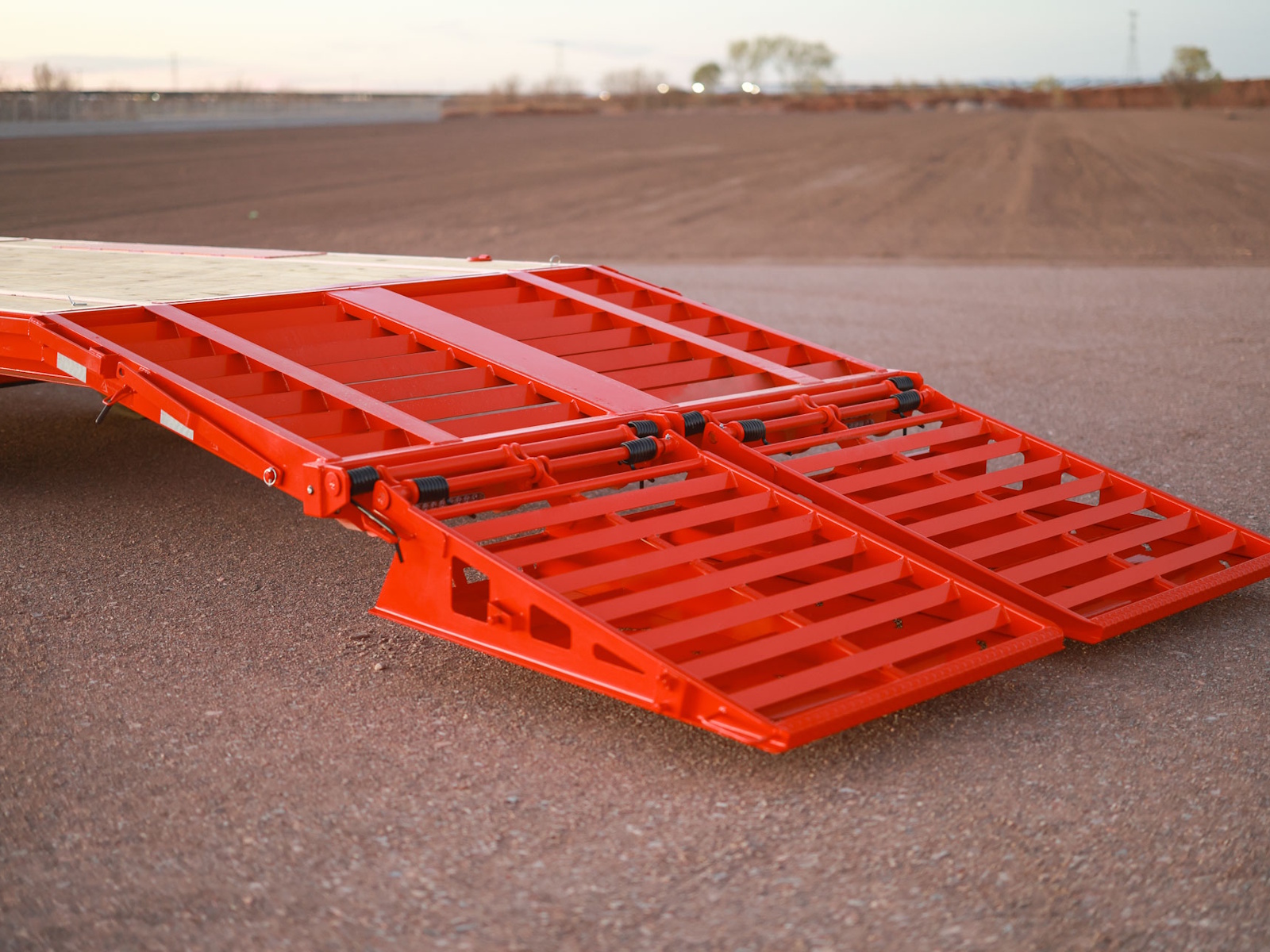

    Get ready to take your hauling game to the next level with the RawMaxx trailer! This beast of a trailer comes in six sizes ranging from 20 to 40 feet long and 102 inches wide, with a maximum load capacity of over 10,000 pounds. The sturdy 12″ x 14 lbs. I-Beam main frame and 2″ treated lumber deck flooring can handle even the toughest loads. Plus, with options like 8′ slide-in channel ramps and Maxx Ramps on the 5′ dovetail model, loading and unloading has never been easier. And don’t forget about the safety features, like the electric breakaway kit and 3/8″ G70 safety chains. With the RawMaxx trailer, you’ll be ready to tackle any hauling challenge with ease and style.


    Info

    Industry

    Trailer

    Make

    RawMaxx

    Model

    FDX

    Trim

    36' x 102"

    Year

    2026

    MSRP

    N/A

    Category

    Flatbed Trailer

    Subcategory

    Gooseneck


    Specs

    Length

    36' | Neck: 93"

    Width

    102"

    Height

    Deck: 33"

    GVWR

    14,000 lbs.

    Dry Weight

    7,015 lbs.

    Max Load

    8,382 lbs.

    Warranty

    Axle: 5 Year Dexter | Trailer: 3 Year Structural / 1 Year Paint

    Coupler

    2-5/16” Ball Coupler

    Safety Chains

    3/8" G70 Safety Chains

    Floor

    2” Treated Lumber Deck

    D-Rings

    4 D-Rings Welded Outside Corners

    Fenders

    3/16” Thread Plate

    Frame

    12" x 14 lbs. I-Beam Main Frame | Bridge: 2" x 4" Square Tube / 4 x 3/8" Flat Bar | Wiring: All Weather Wiring Harness

    Crossmembers

    3" Channel / 16" Spacings

    Tires

    Type: Radial Tires | Size: ST235/80R16

    Suspension

    Axle Type: Spring | Axles: 2

    Brakes

    Electric

    Lights

    Side Markers: 3/4" LED Bullet Lights | Turn Flashers: 2" x 6" Amber Side Turn Lights | Rear Lights: DOT Approved LED Lights
